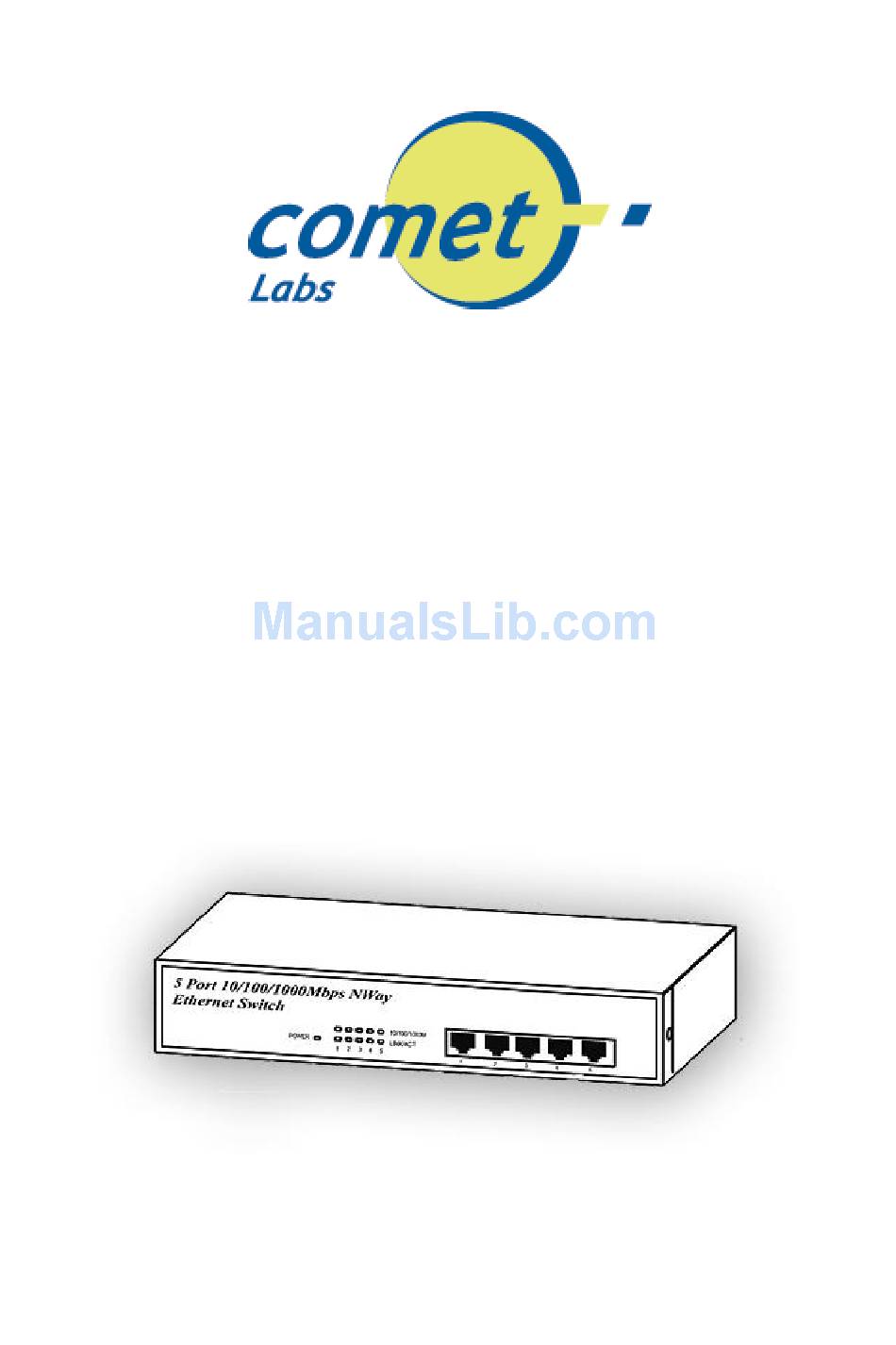

- Page 1 5 Ports Gigabit Nway Ethernet Switch Model-nr : GS5+ User’s Manual (English version)
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
LINK/ACT LED ............5 Rear Panel Layout............5 ? . AC input..............5 Comet Labs Quiet & Cool technology ; No fan, no noise – a specific design for better cooling ....5 Chapter 4 ..............6 I. To connect the Switch to PCs, servers, and other network devices ............ -
Page 4: Chapter 1 - Specifications
Chapter 1 - Specifications Introduction The Switch provides 5 10/100/1000Mbps NWAY RJ-45 ports. It was designed for easy installation and high performance in an environment where traffic on the network and the number of user increase continuously. With newest Gigabit chip set, eTen 9”... - Page 5 Key Features Complies with the IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet and IEEE 802.3ab Gigabit Ethernet Standards Provides five 10/100/1000Mbps Gigabit switching ports Performs full wire-speed switching with Head of Line (HOL) blocking prevention. Non-blocking & Non-head-of-line blocking full wire speed forwarding. Store-and-forward operation support.
-
Page 6: Chapter 2
Chapter 2 Package Contents Before you start to install the Switch, please verify your package contain the following items: One 9” Gigabit Ethernet Switch One AC Power Cord One User’s Manual Note: If any of these items is found missing or damaged, - 3 -... -
Page 7: Chapter 3
please contact your local supplier for replacement. Chapter 3 Front Panel Layout I. Ports - 5 RJ-45 Gigabit Switch Ports There are 5 RJ-45 connectors on the front panel for connecting to servers, workstation or other devices. The Switch provides 5 10/100/1000Mbps switching ports that could sense the 10/100/1000M speed and negotiate Full/Half duplex mode automatically. -
Page 8: Led Definitions
? The data is transmitted or received on the port. Rear Panel Layout ? . AC input AC input (90-240V/AC, 50-60Hz) UL Safety Comet Labs Quiet & Cool technology ; No fan, no noise – a specific design for better cooling - 5 -... -
Page 9: Chapter 4
Chapter 4 I. To connect the Switch to PCs, servers, and other network devices Use straight-through twisted-pair cable (Cat. 5) to connect the Switch to PCs, servers and other network devices. Networks can be built as figure shown. To connect the Switch to a Switch or a Hub Use straight-through twisted pair cable to connect the Switch to another Switch or Hub on uplink port. -
Page 10: Chapter 5
Chapter 5 I.Technical Specifications 1. Standards Compliance - IEEE 802.3 10BaseT; IEEE 802.3u 100BaseTX and IEEE 802.3ab 1000BaseT copper over Ethernet 2. Number of ports - 5 integrated ports (10/100/1000Mbps N-Way port) 3. Fully Flow Control Supported - Full-duplex mode: IEEE 802.3x - Half-duplex mode: Backpressure 4. - Page 11 11. Operating Temperature -0? ~ 60? 12. Store Temperature - -20? ~ 90? 13. Humidity - 10% ~ 90% RH (Non-condensing) 14. Dimension (L x W x H) - 228mm x 123mm x 44mm 15. Weight - 1.6Kg 16. Safety & EMI Certificates - CE &...
