Summary of Contents for Wireless Garden Super Cantenna SCB10X

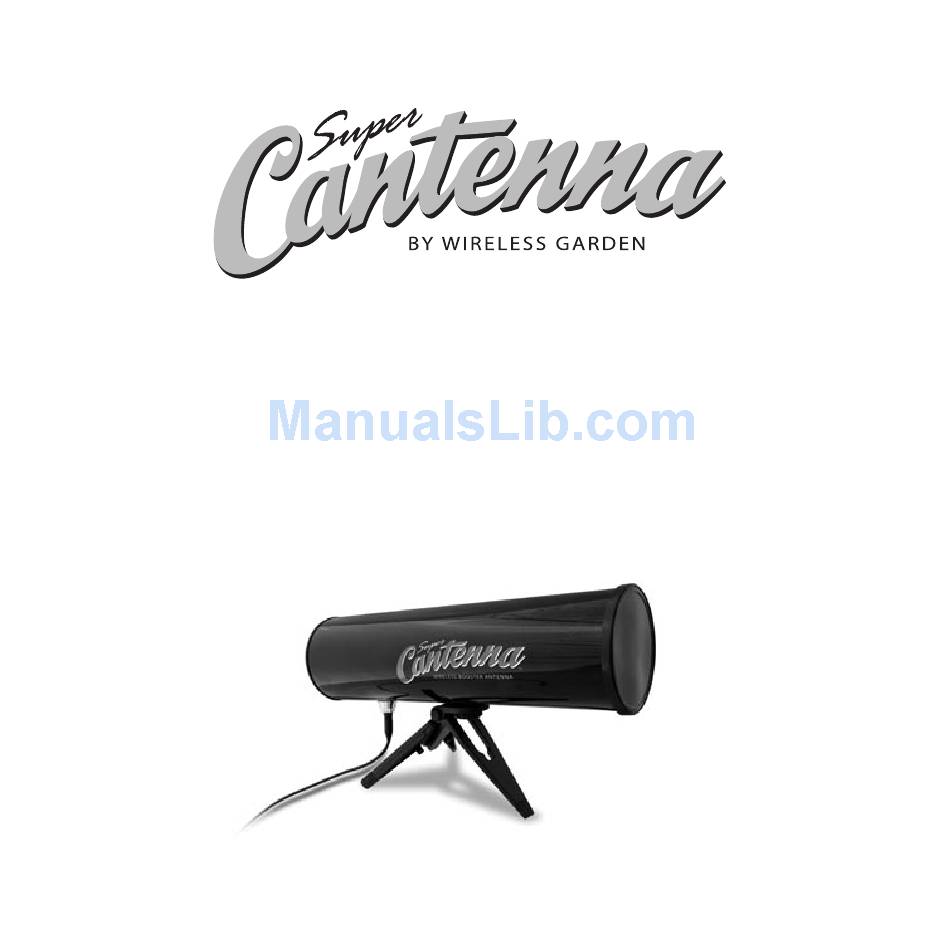

- Page 1 User Guide SCB10X...
-
Page 2: Table Of Contents
Contents: Before You Begin Important Linksys® Information Typical Uses for a Super Cantenna Setting Up Your Super Cantenna Fine-tuning & Aiming Troubleshooting Additional Resources Warranty Information Optional Accessories Super Cantenna® is a registered trademark of Wireless Garden, Inc., All other trademarks are the property of their respective owners. ©2007 Wireless Garden, Inc. -
Page 3: Before You Begin
Tip: To connect to your laptop, you will need either a PCMCIA card with an external antenna port or a WiFi USB adapter with removable antenna (See page 9 for details). Your new Super Cantenna: Front Back RF cable... - Page 4 Do You Have a Linksys® Wireless Router? There are some additional troubleshooting tips when setting up your Super Cantenna with a Linksys® wireless router (Models WRT54G, WRT54GS, and WRT54GL). Please visit our website for step-by-step support in configuring your Linksys® router with the Super Cantenna. www.cantenna.com/linksys...
-
Page 5: Typical Uses For A Super Cantenna
Typical uses for your Super Cantenna Connect to public WiFi hot spots at coffee houses, restaurants, resorts, hotels, RV-parks, truck stops, campgrounds, airports, libraries, campuses, and more. Create your own hot spot in your community. Network with neighbors for house-to-house gaming, file... - Page 6 Conduct security scans around your home and office to find interfering networks and security risks. Extend your range even further or repeat your signal by using a Super Cantenna at each location. For more uses and tips or to see how others are using the Super Cantenna, visit www.cantenna.com.
-
Page 7: Setting Up Your Super Cantenna
Setting Up Your Super Cantenna Step 1: Mount tripod Tip: Prefer a different mounting system? The mounting socket fits standard 35mm camera tripods, video camera wall mounts, or other mounting hardware using a Mount tripod 1/4-20 thread. Back legs Front leg... - Page 8 Step 2: Connect • Turn off all of your equipment. • Remove the antenna on your compatible wireless router, access point, repeater, WiFi USB adapter, game adapter, camera, or other wireless device. • Replace with the Super Cantenna cable, using the included RPTNC adapter if necessary. (Laptop users, see page 9) • Turn your equipment back on. Step 3: Locate and Aim The Super Cantenna is a directional, line-of-sight antenna. The wireless signal exits and enters the cap end of the Super Cantenna. It extends in a narrow, 30 degree beam, to and from your target base station or access point. Trees, metal buildings, drywall, power lines, and other objects may block your wireless signal and make the Super Cantenna less effective. For best results, locate and aim the Super Cantenna where you have a clear line-of-sight to the target. That’s it! If your wireless device does not connect, consult the wireless device instruction manual on how to configure a connection. Tip: RF cables are delicate electrical devices. Avoid twisting or kinking the cable and use care when connecting/disconnecting.
- Page 9 Fine-tuning the Super Cantenna Now that you are all set up, make sure to get the most out of your new Super Cantenna with a bit of fine-tuning. Because the Super Cantenna has linear polarization, you may find that you get a better signal by rotating the tripod to its side. Then you can tilt the tripod’s mounting plate and rotate the Super Cantenna along its cylindrical axis. Tip: Download the free NetStumbler software from www.netstumbler.com for precise fine-tuning of your signal! Tilt Back legs Tip: You should also experiment by aiming the Super Cantenna slightly to the left, right, or above...
- Page 10 Troubleshooting Guide (For additional help, go to www.cantenna.com) Symptoms: Solution: Cantenna cable doesn’t Try the supplied RPTNC adapter; make sure your device fit wireless device has a removable antenna or external antenna port (for a list of compatible devices, check www.cantenna.com). Weak wireless signal or Position the Super Cantenna in a clear line-of-sight, signal goes in and out away from obstructions like metal, concrete, trees, etc. ; keep it away from microwave ovens and cordless phones; try rotating it on its axis (see page 8). Can’t connect cable to You will need either a PCMCIA card with an external laptop with built-in WiFi antenna port* or WiFi USB adapter with removable antenna. See www.cantenna.com/laptop.html for more information. (*requires Laptop Adapter Cable) Signal seems to be This is perfectly normal. You can even try pointing the stronger when slightly Super Cantenna slightly higher or lower than the target pointed to the left or network. right of target network Computer’s built-in WiFi Download the free NetStumbler software from software does not show www.netstumbler.com (Macs: www.macstumbler.com). accurate signal strength This software is invaluable for finding and fine-tuning networks. Can’t connect to net- Make sure you have permission to use the network. work even though signal Ask the network’s administrator for access privileges/...
-
Page 11: Additional Resources
Additional Resources For additional help, useful tips, accessories, articles, and more, go to: www.cantenna.com NetStumbler software: (Free—for detecting networks and precise fine-tuning of your Super Cantenna) www.netstumbler.com Mac version: www.macstumbler.com Hot Spot Finder: www.wifidirectory.com Laptop users: Connecting the Super Cantenna directly to your laptop is easy: www.cantenna.com/laptop... -
Page 12: Limited Warranty
Limited Warranty Wireless Garden, Inc. guarantees that every Cantenna product is free from physical defects in material and workmanship for 30 days from the date of purchase, when used according to the instructions. If these products prove defective during this warranty period, contact Wireless Garden directly furnishing a valid proof of purchase. Valid proof of purchase must be shown in the form of a receipt from the retail store or website you purchased the Super Cantenna from, including the date of purchase. BE SURE TO INCLUDE YOUR FULL NAME. REPLACEMENT REQUESTS CANNOT BE PROCESSED UNLESS WE CAN VERIFY YOUR IDENTITY AND ISSUE A REPLACEMENT AUTHORIZATION NUMBER. The Cantenna must be returned in its ORIGINAL CONDITION and in its original package within 30 days of purchase for a replacement. You will be responsible for shipping and handling charges. IN NO EVENT SHALL WIRELESS GARDEN’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, OR ITS DOCUMENTATION. WIRELESS GARDEN MAKES NO WARRANTY OR REPRESENTATION, EXPRESSED, IMPLIED, OR STATUTORY, WITH RESPECT TO ITS PRODUCTS OR THE CONTENTS OR USE OF THIS DOCUMENTATION AND SPECIFICALLY DISCLAIMS ITS QUALITY, PERFORMANCE, MERCHANTABILITY, OR FITNESS FOR ANY PARTICULAR PURPOSE. Wireless Garden reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to customerservice@cantenna.com. FCC REGULATIONS This product should be used in connection with a device that has been tested and complies with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in an installation. There is no guarantee that interference will not occur in a particular installation and you are solely responsible for compliance with FCC regulations. -
Page 13: Optional Accessories
Optional Accessories for the Super Cantenna® Available at your electronics retail store, or from www.cantenna.com -foot Extension Cable (SCBX7) —The Super Cantenna works best with a clear line-of-sight. This extension cable extends the reach of your Super Cantenna by an additional 7 feet. Laptop Adapter Cable (WG-LA01) —Compatible with most major wireless PCMCIA cards with external antenna port (example: Buffalo®, Proxim-Orinoco®, SMC®, etc.). Wireless PCMCIA Cards —With external antenna connector and compatible with the Super Cantenna. WiFi USB Devices —With external antenna connector and compatible with the Super Cantenna. Wireless Garden, Inc. • Solana Beach, California Phone: 888-509-9434 • Outside USA: 858-509-9434...
