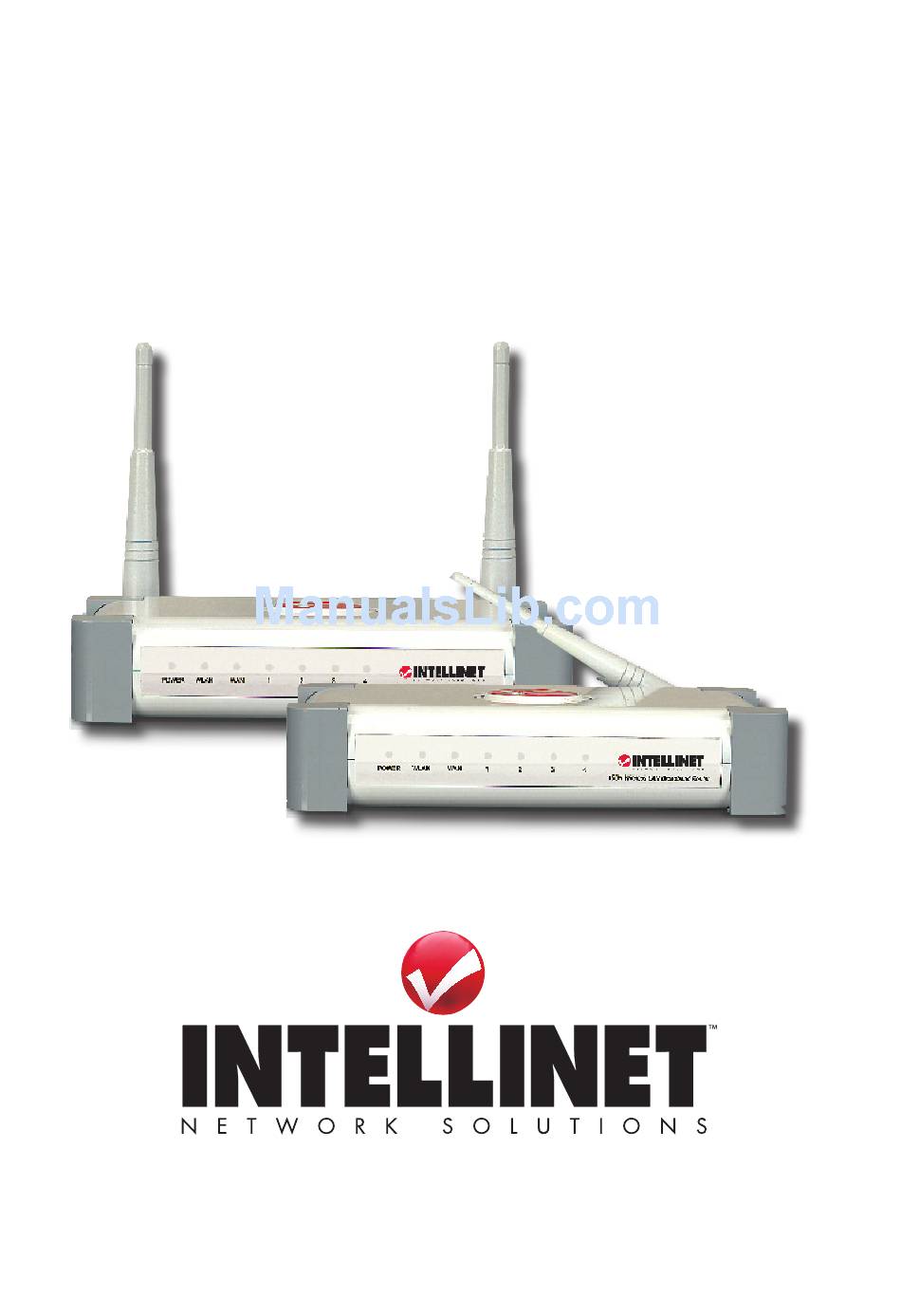

WIRELESS 150N / 300N 4-PORT ROUTER USER MANUAL MODELS 524445 & 524490 INT-524445/524490-UM-0112-10... -
Page 2: Package Contents
• Up to 150 Mbps (model 524445) or 300 Mbps (model 524490) network link speed • Complies with IEEE 802.11g/b standards and is upward compatible with 802.11n •... -
Page 3: Table Of Contents
TABLE OF CONTENTS section page section page 1 HARDWARE ...........5 2.7.3 Wireless Security .....33 1.1 Front Panel Display ......5 2.7.4 Wireless Access Control ..37 1.2 Back Panel Display ......5 2.7.5 WPS ........38 2 SYSTEM & NETWORK SETUP .....6 2.7.6 Security Tips ......39 2.1 Connecting the Router .....6 3 ADVANCED FUNCTIONS .... -
Page 4: Safety Guidelines
SAFETY GUIDELINES For the protection of equipment users and connected devices, follow these safety guidelines: 1. This router is designed for indoor use only; do not place this router outdoors. 2. Do not place this router in hot or humid environments. 3. -
Page 5: Hardware
1 HARDWARE 1.1 Front Panel Display Status Description POWER ON Router is switched on and correctly powered. WLAN Wireless network is switched on or WPS mode is on. Wireless network is switched off. Flashing Wireless LAN activity (transferring or receiving data). WAN port is connected. -
Page 6: System & Network Setup
2 SYSTEM & NETWORK SETUP 2.1 Connecting the Router 1. Connect your DSL or cable modem to the WAN port of the router using the provided RJ45 Ethernet cable. NOTE: Standard modems provided by Internet service providers come with at least one LAN/Ethernet port, which connects to the WAN port of the router. -
Page 7: Windows Xp Ip Address Setup
NOTE: If this procedure is successful, skip the following subsections and proceed to 2.3 Using Quick Setup. If the above procedure doesn’t result in your obtaining an IP address, or if you know that your computer has a static IP address setup, follow the steps in the appropriate subsection below. - Page 8 2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” then click “OK.” SYSTEM & NETWORK SETUP...
-
Page 9: Windows Vista/7 Setup
2.2.2 Windows Vista/7 IP Address Setup 1. Click “Start,” then go to the control panel. Click “View Network Status and Tasks,” then click “Manage Network Connections.” Right-click “Local Area Network,” then select “Properties.” With the Local Area Connection Properties window displayed, select “Internet Protocol Version 4 (TCP / IPv4),”... -
Page 10: Router Ip Address Lookup
2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” then click “OK.” 2.2.3 Router IP Address Lookup 1. After the IP address is set up, click “Start” at the bottom-left of the desktop, then click “Run.” SYSTEM &... - Page 11 2. With the Run window displayed, enter “cmd” in the “Open:” text field, then click “OK.” SYSTEM & NETWORK SETUP...
- Page 12 3. Enter “ipconfig,” then press <Enter>. The IP address displays, followed by the default gateway. In the example below, the IP address of the router is 192.168.2.1. NOTE: If the IP address of the gateway is not displayed, or if the address begins with 169, recheck the network connection between your computer and the router, and re-check each step of the network setup procedure.
-
Page 13: Quick Setup
2.3 Quick Setup The Quick Setup procedure lets you configure all the settings required for quick Internet access. The initial Quick Setup screen presents time settings. Set Time Zone — Use the drop-down menu to select your time zone. Time Server Address — Enter the IP address/hostname of the time server. This isn’t normally required, but if the default time server (NTP) should go offline, you can obtain a new NTP server from the list at http://www.ntp.org. -
Page 14: Cable Modem
Daylight Savings — If your locale uses Daylight Saving, activate “Enable Function” and select the duration using the drop-down menus. Click “Next” to continue to the next screen of the Quick Setup procedure, where you select the broadband (Internet connection) type you use. On all screens, click “Apply”... -
Page 15: Fixed Ip Xdsl (Static Ip)
MAC address — Enter the MAC address of your computer here if your service provider only permits a computer with a certain MAC address to access the Internet. If you’re using a computer used to connect to the Internet via cable modem, you can simply click “Clone Mac address”... -
Page 16: Pppoe Xdsl
2.3.3 Setup Procedure for PPPoE xDSL User Name — Enter the username assigned by your ISP. Password — Enter the password assigned by your ISP. Service Name — Provide a name for this Internet service. (optional) MTU — Enter the MTU value of your network connection. NOTE: Use the default value unless your ISP specifies otherwise. - Page 17 correctly entered; otherwise, the Internet connection will fail even if the PPTP settings are correct. Contact your ISP if you don’t know how you should fill in these fields. The PPTP Settings panel presents these options: User Name — Enter the username assigned by your ISP. Password —...
-
Page 18: L2Tp Xdsl
2.3.5 Setup Procedure for L2TP xDSL L2TP is another popular connection method for xDSL and other Internet connection types, and all required setting items are the same as the PPTP connection (see section 2.3.4 above). 2.3.6 Setup Procedure for Telstra BigPond This procedure is only for the Telstra BigPond network service in Australia. -
Page 19: Basic Setup
NOTE TO DSL USERS While PPPoE is the most common way to connect to DSL Internet service, it still may be necessary to enable “Cable Modem” in the Broadband settings. Below are examples for using Cable Modem instead of xDSL PPPoE, even if your Internet service is a DSL service. -
Page 20: Time Zone / Auto-Synch
management settings. Start your Web browser and log on to the router’s Web management interface by opening http://192.168.2.1, then click the “General Setup” button on the left. 2.4.1 Time Zone and Time Auto-Synchronization Click the “System” menu on the left of the Web management interface, then click “Time Zone.”... -
Page 21: Remote Management
If the passwords entered in the “New Password” and “Confirmed Password” fields aren’t the same, you’ll see the message at right. Re-enter the new password. If you see the error message at right, it means the content in the “Current Password” field is wrong. -
Page 22: Wan Setup
NOTE: To manage this router from another computer on the Internet, you need to input the IP address and port number of this router. If your Internet service provider assigns you a static IP address, it will not be a problem; but if the IP address your service provider assigns will vary every time you establish an Internet connection, this will be a problem. -
Page 23: Dynamic Ip
2.5.1 Setup Procedure for Dynamic IP Host Name — Enter the host name of your computer. (This is optional and is only required if your service provider asks you to do so.) MAC Address — Enter the MAC address of your computer if your service provider only permits a computer with a certain MAC address to access the Internet. -
Page 24: Pppoe
2.5.3 Setup Procedure for PPPoE User Name — Enter the user name assigned by your Internet service provider. Password — Enter the password assigned by your Internet service provider. Service Name — Enter a name for this Internet service. (optional) MTU —... -
Page 25: L2Tp
entered; otherwise, the Internet connection will fail even if the PPTP settings are correct. Contact your ISP if you don’t know how you should fill in these fields. The PPTP Settings panel presents these options: User Name — Enter the username assigned by your ISP. Password —... -
Page 26: Telstra Bigpond
2.5.6 Setup Procedure for Telstra BigPond This procedure is only for the Telstra BigPond network service in Australia. User Name — Enter the username assigned by Telstra. Password — Enter the password assigned by Telstra. Assign login server manually — Select to choose the login server by yourself. Server IP Address —... -
Page 27: Ddns
preferred DNS server or use a static IP address, or if your service provider didn’t assign the IP address of the DNS server for any reason, you can input the IP address of the DNS server here. Primary DNS — Enter the IP address of the DNS server provided by your ISP. Secondary DNS —... -
Page 28: Lan Configuration
2.6 LAN Configuration This section explains the IP address settings of the local network. Normally, there is no need to make any changes here: The default values work fine for most applications, and you could just go directly to section 2.7 WLAN Configuration. There are two ways to assign IP addresses to computers: static IP address (set the IP address for every computer manually) and dynamic IP address (the IP address of computers will be assigned by the router automatically). -
Page 29: Dhcp Server
Subnet Mask — Enter the subnet mask for this network. 802.1d Spanning Tree — Select “Enable” or “Disable” from the drop-down menu. DHCP Server — Select “Enable” or “Disable” from the drop-down menu. RECOMMENDED VALUES IP Address: 192.168.2.1 802.1d Spanning Tree: Disabled Subnet Mask: 255.255.255.0 DHCP Server: Enabled 2.6.2 DHCP Server... -
Page 30: Wlan Configuration
2.6.3 Static DHCP Leases Table This function allows you to assign a static IP address to a specific computer forever, so you don’t need to set the IP address for a computer to enjoy the benefit of using a DHCP server. A maximum of 16 static IP addresses can be assigned here. NOTE: If you set “Lease Time”... -
Page 31: Basic Wireless Settings
your network from intruders. Click the “Wireless” menu on the left of the Web management interface to open the wireless settings page. Remeber to click “Apply” to save your settings. 2.7.1 Basic Wireless Settings Band — Select one of the options from the drop-down menu: •... -
Page 32: Advanced Wireless Settings
clients; maximum of 54 Mbps for 802.11g clients; maximum of 300 Mbps for 802.11n clients. NOTE: For optimal compatibility with wireless clients, select “2.4 GHz (B+G+N).” ESSID — Enter the name for your wireless network. You may choose to use the default value, but you can adjust the value to make identification in areas with different wireless networks easier;... -
Page 33: Wireless Security
N Data Rate — Same as above, but only for 802.11n clients. Channel Width — Set the channel width of the wireless radio. NOTE: If you aren’t sure what this should be set to, leave it as the default setting (“Auto 20/40 MHz”). Preamble Type —... -
Page 34: Disable Wireless Security
card information or bank records. Click the “Security Settings” menu on the left of the Web management interface to select one of the four encryption methods from the drop-down menu (see image below). 2.7.3.1 Disable Wireless Security When you select this mode, data encryption is disabled and every wireless device in proximity will be able to connect your wireless router if no other security measure is enabled (like using MAC address access control disabling ESSID broadcast). - Page 35 Default Tx Key — You can set up to four sets of WEP keys, and you can designate one as the default here. NOTE: If you don’t know which one you should use, select “Key 1.” Encryption Key 1-4 — Enter WEP key characters here. The number of characters must be the same as the number displayed n the “Key Format”...
-
Page 36: Wpa Radius
2.7.3.3 Wi-Fi Protected Access (WPA) Pre-Shared Key WPA Unicast Cipher Suite — Once you select one of the three ciper options — “WPA (TKIP),” “WPA2 (AES)” or “WPA2 Mixed” — make sure your wireless clients support it. Pre-shared Key Format — Select the type of pre-shared key from the drop-down menu: “Passphrase”... -
Page 37: Wireless Access Control
“WPA (TKIP),” “WPA2 (AES)” or “WPA2 Mixed” — make sure your wireless clients support it. RADIUS Server IP address — Enter the IP address of the RADIUS server. RADIUS Server Port — Enter the port number of the RADIUS server. RADIUS Server Password —... -
Page 38: Wi-Fi Protected Setup (Wps)
Enable Access Control — Select to enforce MAC address filtering. The router will not filter the MAC addresses of wireless clients if this is left unchecked. MAC Address — Enter the MAC addresses of your wireless devices here without special characters. If the MAC address label of your wireless device indicates “aa-bb-cc-dd-ee-ff”... -
Page 39: Wps
This router supports two types of WPS: Push-Button Configuration (PBC) and PIN code. To use PBC, you need to push a specific button on the wireless client to start the WPS mode and switch this router to WPS mode. You can push the Reset/WPS button of this router, or click “Start PBC”... - Page 40 password cannot be found in the dictionary and consists of a combination of characters, symbols and numbers. You should also refrain from using passwords that carry a personal meaning — names of pets, names or birthdays of a spouse, and such — as these can easily be guessed by unauthorized users. •...
-
Page 41: Advanced Functions
3 ADVANCED FUNCTIONS 3.1 Quality of Service (QoS) Quality of service provides an efficient way for computers on the network to share the Internet bandwidth with a promised quality of Internet service. Without QoS, all computers and devices on the network compete with each other to get Internet bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) are affected negatively, resulting in an interruption of video/audio transfers. -
Page 42: Adding A New Qos Rule
performance of your Internet service. If you’re not sure about these numbers, contact your ISP. QoS can only be effective if accurate information is provided. Current QoS Table — All existing QoS rules are shown here. Add — Click to add new QoS rules (see section 3.1.2 Adding a New QoS Rule). Edit —... -
Page 43: Nat
Local IP Address — Specify the local (source) IP address that will be affected by this rule. Enter the starting IP address in the left field, and enter the end address in the right field to define a range of IP addresses; or just enter the IP address in the left field to define a single IP address. -
Page 44: Port Forwarding
Click the “NAT” menu on the left of the Web management interface. NAT is enabled by default, and there is normally no need to change this. 3.2.1 Port Forwarding With this function, you can tell the router to forward incoming connections bound to a specific port or port range to an IP address on your local network. -
Page 45: Virtual Server
Type — Select the type of connection from the drop-down menu: “TCP,” “UDP” or “Both.” If you’re not sure which to use, select “Both.” Port Range — Enter the starting port number in the left field and enter the ending port number in the right field. -
Page 46: Port Mapping
Enable Virtual Server — Check to enable this function; uncheck to disable. Private IP — Enter the IP address of the computer on the local network that provides Internet service. Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address. -
Page 47: Upnp
Current Trigger-Port Table — All the settings for the specifal applications are listed here. Delete — To remove a Special Application setting from the Current Trigger-Port Table, select the setting and click “Delete.” Delete All — Click to delete all existing specifal application settings. 3.2.4 UPnP This function enables network auto-configuration for peer-to-peer communications. -
Page 48: Firewall
3.3 Firewall In addition to the NAT feature, this router provides firewall functionality to block malicious intruders from accessing the computers on your local network. Click the “Firewall” menu on the left of the Web management interface. Firewall Module — Check to enable this function; uncheck to disable. 3.3.1 Access Control This function allows or denies computers with a specific MAC address —... - Page 49 filtering table will be able to connect to the network, and all other network devices will be rejected. Client PC MAC address — Enter the MAC address of the computer or network device. Dashes (–) or colons ( : ) are not required. For example, if the MAC address label of your device reads “aa-bb-cc-dd-ee-ff”...
-
Page 50: Add Pc
3.3.2 Add PC Clicking “Add PC” on the Access Control screen will display this page. Client PC Description — Enter up to 16 alphanumerical characters to describe this IP address. Client PC IP Address — Enter the starting IP address in the left field and the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address. -
Page 51: Url Blocking
Protocol — If the service you need is not listed, you can create a new service yourself. Select “TCP” or “UDP” from the drop-down menu and follow the Port Range instructions below. If you’re not sure which Protocol to use, select “Both.” Port Range —... -
Page 52: Dos Attack Prevention
Add — Click to add the URL/keyword to the URL/Keyword Filtering Table. Reset — Click to remove all entries in the “URL/Keyword” text field. Current URL Blocking Table — All existing URL/keywords in the filtering table. Delete — Select a URL/keyword by checking the “Select” box of the entry, then clicking “Delete.”... -
Page 53: Dmz
3.3.4.1 DoS – Advanced Settings Clicking “Advanced Settings” on the first DoS Module screen will display this page. Ping of Death — Set the threshold of when this DoS prevention mechanism will be activated. Check the box for Ping of Death and enter the frequency of threshold (how many packets per second, minute or hour). - Page 54 Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address. Add — Click to add the public IP address and associated private IP address to the DMZ table.
-
Page 55: Additional Functions
4 ADDITIONAL FUNCTIONS/FEATURES 4.1 Status This screen and the submenus that can be accessed from here show information about the firmware version of the router, the Internet connection, IP address information, log files and more. Click the “Status” link at the upper-right corner of the Web management interface. -
Page 56: Device Status
This screen shows IP address information the router has obtained. If you experience problems with your Internet connection, open this page and check the contents. Values for IP address, default gateway and primary DNS should always be filled. If they’re missing, it indicates that there is a connection problem preventing the router from accessing the Internet. -
Page 57: Security Log
Save — Click to save the current event log to a text file. Clear — Click to delete all event log messages displayed. Refresh — Click to refresh the view to display the most current event log messages. 4.1.4 Security Log Save —... -
Page 58: Tools
Refresh — Click to display the latest information. NOTE: The information is accumulative and is only reset after the router is restarted. 4.2 Tools This screen and the submenus that can be accessed from here provide options and information helpful in managing files and router information. Click the “Tools” link at the upper-right corner of the Web management interface. -
Page 59: Firmware Upgrade
Restore Settings — Click “Browse…” to select a saved configuration file from your computer, then click “Upload” to transfer the configuration file to the router. After the configuration is uploaded, the router’s current configuration will be replaced by the file you just uploaded. Restore to Factory Default —... -
Page 60: Reset
4.2.3 Reset This screen lets you restart the router without disconnecting the power from the unit. A restart (or system reset) may be necessary if the router responds slowly, if your Internet connection speed has dropped or if the router behaves in an unusual manner. -
Page 61: Troubleshooting
5 TROUBLESHOOTING This section helps you troubleshoot problems you may be experiencing with the router. Before you contact your dealer for help, you should perform the following troubleshooting steps as they apply to your situation. The router is not responding when I want to access it with the Web browser. •... - Page 62 My wireless notebook cannot see or connect to the wireless network. • Check if Broadcast ESSID is off. Remember that you need to input the ESSID on your wireless client manually if the ESSID broadcast is disabled. • Check that you’ve securely attached the antenna(s). •...
-
Page 63: Glossary
6 GLOSSARY Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out toward the destination. - Page 64 ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations. LAN: Local Area Network. A LAN is a group of computers and devices connected together in a relatively small area (such as a house or an office). Your home network is considered a LAN.
-
Page 65: Specifications
7 SPECIFICATIONS Standards • IEEE 802.1d (Spanning Tree Protocol) • IEEE 802.11b (11 Mbps Wireless LAN) • IEEE 802.11g (54 Mbps Wireless LAN) • IEEE 802.11n (150 Mbps Wireless LAN) • IEEE 802.3 (10Base-T Ethernet) • IEEE 802.3u (100Base-TX Fast Ethernet) General •... - Page 66 - IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps) - Model 524445: IEEE 802.11n (MCS0-7: up to 150Mbps) - Model 524490: IEEE 802.11n (MCS0-7: up to 150Mbps; MCS0-15: up to 300 Mbps) •...
- Page 67 - Client access control through media access control (MAC) filter • Antennas: - Model 524445: fixed dipole antenna with 2 dBi gain - Model 524490: 2 fixed-dipole antennas with 2 dBi gain each; 2T2R MIMO mode (2 transmitters, 2 receivers) LEDs •...
-
Page 68: Regulatory Statements
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. - Page 70 INTELLINET NETWORK SOLUTIONS ™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com © IC INTRACOM. All rights reserved. INTELINET is a trademark of IC INTRACOM, registered in the U.S. and other countries. All other trademarks and trade names are the property of their respective owners.
