Summary of Contents for Autodiagnos MULTI TESTER PRO

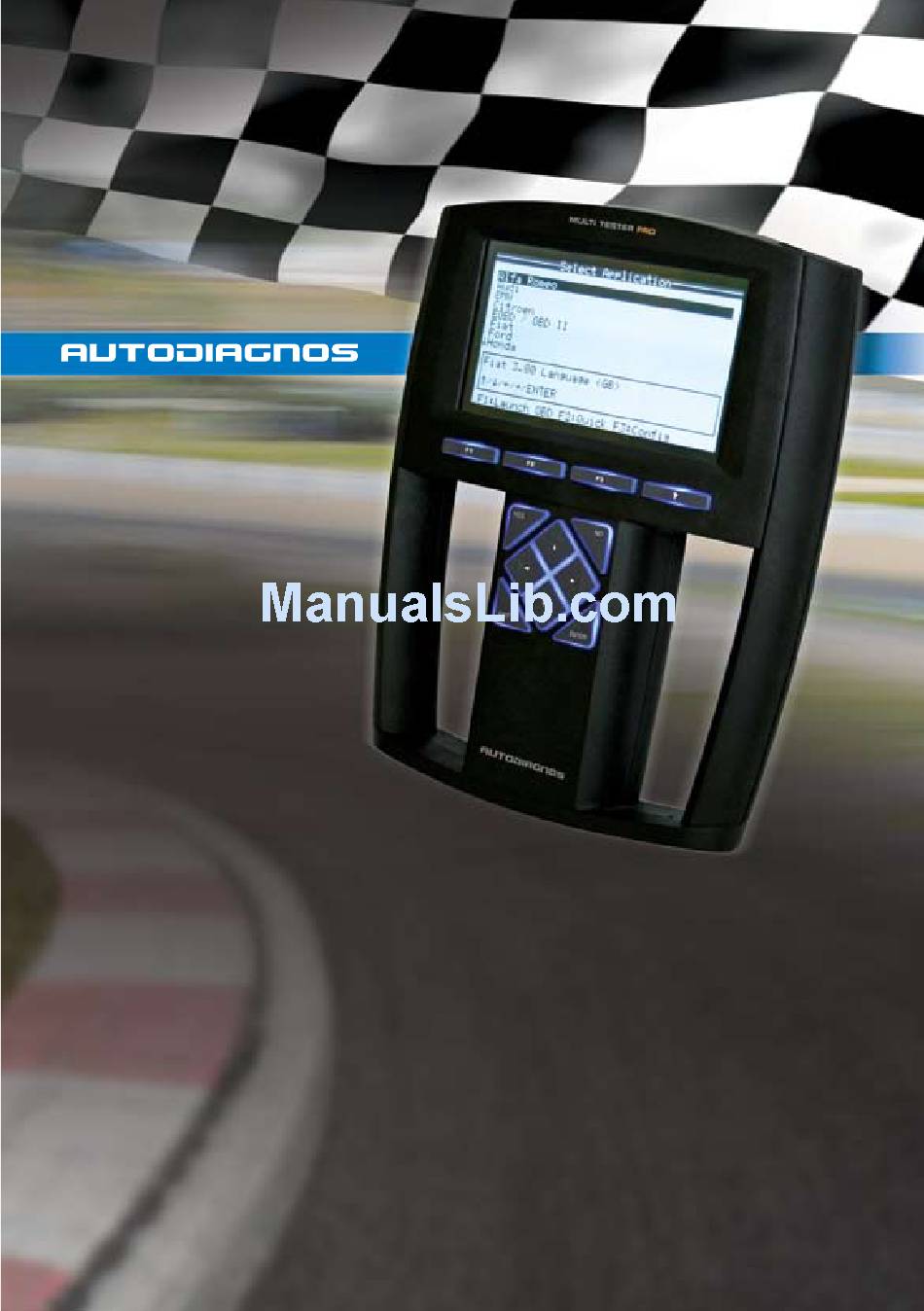

  • Page 1 MULTI TESTER User manual A37MAN I318495 Iss1...
  • Page 2 Multi Tester Pro User Manual Part Number A37MAN Issue 1 © Autodiagnos 2009 Part Number A37MAN © Autodiagnos 2009 EN - Issue 1...

  • Page 4: Table Of Contents

    Contents Introduction Copyright ....................1 Introduction..................... 1 Getting Started Setting up ....................2 Multi-Cartridge Manager - Installation ............. 2 Multi-Cartridge Driver - Installation ..............3 Multi-Cartridge Driver - Update................ 5 Connecting Multi-Cartridge Manager............. 10 Downloading applications................11 Updating License................... 12 Software updates - Website ................
  • Page 5 Contents Support Services Product Support..................30 Technical Information..................30 Training ......................31 Autodiagnos Website ..................31 Contact Details Addresses..................... 32 Parts list ....................33...

  • Page 6: Introduction

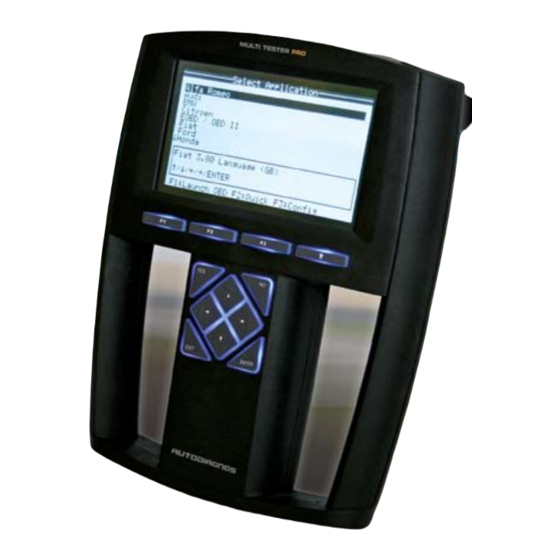

    Any breach of these stipulations may lead to legal action Introduction The Autodiagnos Multi-Tester Pro is a hand-held serial diagnostic tool for carrying out fault finding on Electronic Control Units (ECUs) fitted to cars and light commercial vehicles.

  • Page 7: Getting Started

    It is recommended that this software is installed immediately, by following these steps: Note: Do not connect the Multi-Cartridge until advised. 1. Insert the CD into the drive; it should auto-run and display the ‘Autodiagnos’ window. 2. Press the ‘Multi-Cartridge’ button. Follow the on-screen prompts to install the...

  • Page 8: Multi-Cartridge Driver - Installation

    Getting Started Multi-Cartridge Driver - Installation 1. Once the Multi-Cartridge Manager installation is complete, connect the Multi-Cartridge to a USB port on the PC. Windows will detect a new device and display the installation wizard. Select ‘No, not this time’ and press ‘Next >’ to continue.
  • Page 9 Getting Started 2. Select ‘Install the software automatically’ and press ‘Next >’. Windows will install the USB driver from the CD. 3. If a warning message saying that the driver ‘..has not passed Windows Logo testing..’ is displayed, press ‘Continue anyway’. 4.

  • Page 10: Multi-Cartridge Driver - Update

    Note: This procedure must be repeated for each USB port to which the Multi-Cartridge is connected. 1. Ensure the latest Autodiagnos CD is in the CD drive and the Multi-Cartridge is connected to the PC.
  • Page 11 Getting Started 2. To update the driver used for the Multi-Cartridge press the right mouse button on ‘My Computer’ (which can be found either on the desktop or within the ‘start’ menu), select ‘Properties’ then the ‘Hardware’ tab followed by the ‘Device Manager’...
  • Page 12 Getting Started 3. Look for any unknown device. An unknown device will normally be highlighted by either a yellow ‘!’ or ‘?’.
  • Page 13 Getting Started 4. Reconnect the Multi-Cartridge to the PC and press the right mouse button on the ‘unknown device’. Select ‘Update Driver’ to display the above message box. 5. Select ‘No, not this time’ then press the ‘Next >’ button. 6.
  • Page 14 Getting Started 7. Press ‘Continue Anyway’. 8. The Multi-Cartridge is now a recognised USB device. The Multi-Cartridge Manager software is ready to use.

  • Page 15: Connecting Multi-Cartridge Manager

    Getting Started Connecting Multi-Cartridge Manager 1. Connect Multi-Cartridge to the PC using the USB cable. 2. Launch the Multi-Cartridge Manager from the icon on the Desktop. Click ‘OK’ to begin connecting to the cartridge. 3. If the ‘Found New Hardware’ message appears, repeat the ‘Multi-Cartridge Installation’...

  • Page 16: Downloading Applications

    Getting Started Downloading applications 1. When connecting to the Multi-Cartridge, the software versions are checked. Details of all current and available versions are shown against their respective applications. If a later version is available, a tick will automatically be placed in the ‘Update’...

  • Page 17: Updating License

    Getting Started Updating License A unique license key is provided by Autodiagnos for every Multi-Cartridge. License keys provide the Multi-Cartridge with application and subscription information. 1. Press the ‘Update License’ button. 2. Enter the new license key in the text box.

  • Page 18: Software Updates - Website

    Getting Started Software updates - Website The ‘Downloads’ area of the www.autodiagnos.com website allows users of the Multi-Tester Pro to obtain the latest releases and beta releases of vehicle application software. The ‘Downloads’ area of the website provides the following.

  • Page 19: Snapshot Reader - Installation

    Getting Started Snapshot Reader - Installation 1. To install the software press the ‘Install Snapshot Reader’ button and follow the prompts.

  • Page 20: Using Multi-Tester Pro

    Using Multi-Tester Pro Using Multi-Tester Pro Getting familiar with Multi-Tester Pro Connection points 12V DC AU0062 1. Connection to PC. 2. Connection to vehicle serial interface.

  • Page 21: Display And Keys

    Using Multi-Tester Pro Display and keys AU0061 1. Display • Backlit. • Displays graphics and text. • Can show text with pictures and graphs. • Lighting switches off if no key is pressed within 5 minutes. This extends life of back lighting. Press any key to switch display on. 2.

  • Page 22: Typical Screen Layout

    Using Multi-Tester Pro Typical screen layout Global ECU Test Drive Chassis Body Read DTC memory from all supported modules AU0069 1. Header. 2. List of menus - the selected alternative is marked. 3. Explanation of selected alternative. 4. List of permitted keys. 5.

  • Page 23: Keypad Operation

    Using Multi-Tester Pro Keypad operation AU0063 1. Select the function key according to instructions on the display. 2. Use to move between menu selections or to update groups of figures. 3. Use to move between numbers when updating figures, or to scroll through long text strings.

  • Page 24: Connections

    Using Multi-Tester Pro Connections To ensure reliable communications with any module selected, the following steps should be followed. 1. Identify the vehicle and refer to the vehicle application list found on the CD to ensure the application is supported. 2. Locate the vehicle diagnostic connector. 3.

  • Page 25: Cable Quick Guide Chart

    Using Multi-Tester Pro Cable Quick Guide Chart AU0064 * Requires Battery Cable 12V...

  • Page 26: Display And Keys

    Using Multi-Tester Pro Display and Keys Communicate When connected to the vehicle diagnostic connector, the Multi-Tester Pro will power up and execute a self test procedure. Once complete, the main menu will display the vehicle manufacturers currently available on the Multi-Cartridge. To start communications, use the keypad to navigate through the menu and follow on-screen prompts when displayed.

  • Page 27: Functionality Overview

    Using Multi-Tester Pro Functionality Overview Each system will have a specific set of functions described thereafter. Most functions will provide the opportunity to take a snapshot using the function keys. Electronic Control Unit (ECU) Identification: The ECU identification will give the electronic signature of the ECU.
  • Page 28 Using Multi-Tester Pro AU0035 To delete a DTC, Use to select it and press ‘F2’. AU0036 Confirm the deletion by pressing ‘YES’ or cancel the function by pressing ‘NO’. The stored DTCs will be erased from the ECU memory. Engine: Erase DTCs The stored DTC could not be erased! Press ENTER to read ECU memory...

  • Page 29: Monitor List

    Using Multi-Tester Pro Monitor list L6A MM8P: Select List Battery Voltage Coolant Temp Map Sensor Throttle Position Engine speed Idle air control O2 Sensor loop 02 Sensor Coolant Temperature Sensor / /ENTER/EXIT F1:Help F2: F3:Deselect all AU0040 Multi-Tester Pro reads current data from the car's control unit. The values are updated continuously.

  • Page 30: Actuators

    Using Multi-Tester Pro Actuators AU0041 In most cases, the actuators can simply be switched on and off using the ‘YES’ or ‘NO’ button on the Multi-Tester Pro. The ‘F1’ key can also be used to toggle the actuator automatically, leaving the operator free to inspect the system under test.

  • Page 31: Reset Adaptation Values

    Using Multi-Tester Pro Reset adaptation values It is possible to reset some systems to their original adaptation values. (e.g. BMW DDE5.0). Self Test Some systems can perform a self-test and then display the trouble codes that have been logged during this test. Module Synchronisation The Multi-Tester Pro can synchronise replacement ECUs.

  • Page 32: Snapshot Reader Functions

    Using Multi-Tester Pro Snapshot Reader functions During diagnostic procedures, the Multi-Tester Pro has the facility to save a snapshot of information. The information can be viewed on the Multi-Tester Pro at a later time or can be downloaded to a PC, using the Snapshot Reader application. To use this feature, press the F3 button during a diagnostic test procedure and the currently viewed information will be saved within the Multi-Tester Pro memory.
  • Page 33 Using Multi-Tester Pro AU0044 3. Select the ‘View Snapshots’ menu, then select ‘Download Snapshots to PC’. 4. Start the snapshot download. If required, complete the Customer and Vehicle Details and then press the ‘LOAD’ button.
  • Page 34 Using Multi-Tester Pro 5. If required, complete the Customer and Vehicle Details and then press the ‘LOAD’ button. If all the settings are correct, the snapshots will be extracted from the Multi-Tester Pro, processed, and displayed in your default web browser. 6.

  • Page 35: Support Services

    • communication issues; • Diagnostic Trouble Code identification; • procedural help; • service and repair of equipment. Customers with non-urgent product support enquiries can also contact Autodiagnos directly using the electronic ‘Ticket system’ found in the contacts section of www.autodiagnos.com. Technical Information Vehicle technical information maybe required to carry out diagnostic procedures using the Multi-Tester Pro.

  • Page 36: Training

    Please contact your supplier for details of all available services. Autodiagnos Website Visit the ‘Support’ section at www.autodiagnos.com to keep up to date with useful information and procedural help. The ‘Support’ section of the website provides: • technical bulletins;...

  • Page 37: Contact Details

    Contact Details Addresses Contact Details United Kingdom Germany Autodiagnos Ltd Autodiagnos Omitec Inc Hopton Estate Deutschland GmbH 29777 Telegraph Road London Road Rödelheimer Bahnweg 21-23 Suite 1637, Onyx Plaza Devizes, SN10 2EU 60489 Frankfurt Southfield United Kingdom Germany MI 48034...

  • Page 38: Parts List

    Appendix A: Replacement parts Parts list Replacement parts Cable Description Part Number 2m 25 to 16 pin J1962 cable OM3000/10 Battery cable A010202-2 BMW 20 to 25 pin cable A0904081-1 Fiat 3 to 16 pin cable A090307-2 Ford 2/3/4 to 16 pin cable A0903061-3 Land Rover 1-way cable A0904121-1...
  • Page 39 Autodiagnos Limited Unit 1 Hopton Estate • London Road • Devizes SN10 2EU Tel: 0870 949 3799 • Fax: 0870 949 3702 www.autodiagnos.com...
