Electrix FilterQueen Owner's Manual

Stereo vintage filter
Hide thumbs

Advertisement

Quick Links

Download this manual
English V1.0
Stereo Vintage Filter Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FilterQueen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electrix FilterQueen

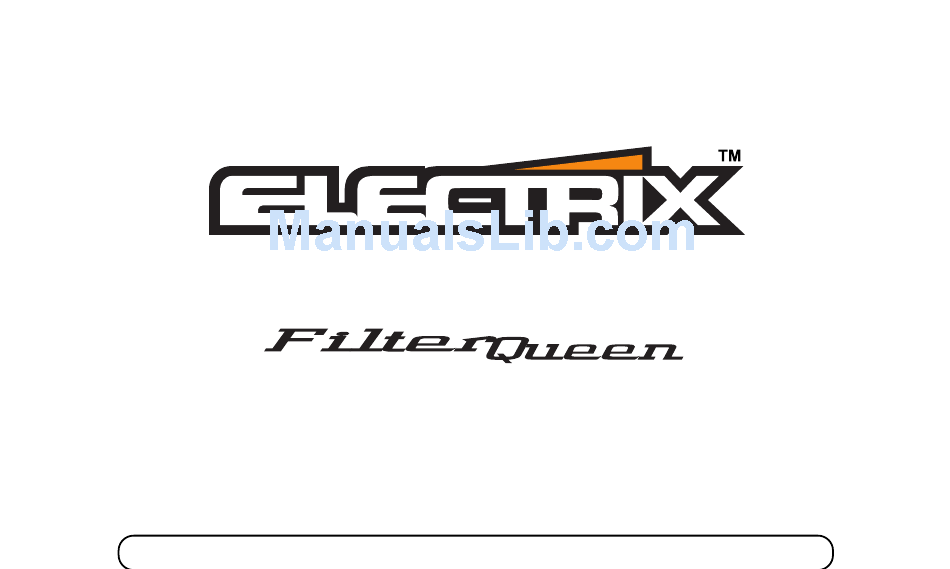

  • Page 1 English V1.0 Stereo Vintage Filter Owner’s Manual...
  • Page 2 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ C A U T I O N within the product’s enclosure that may be of sufficient magnitude to con- R I S K O F E L E C T R I C S H O C K stitute a risk of electric shock to persons.

  • Page 3: Inventory Inspection

    • Power Transformer (as appropriate for your region) • Rackmount kit (shipped attached to product) • Electrix Joiner Plate (joins two "Mods" together!) Note: If any of the above are missing, please inform your local Electrix distributor, agent or dealer immediately. English... 3...
  • Page 4 S S e e t t t t i i n n g g s s T T e e m m p p l l a a t t e e Title: Session: Date: Artist: Description:...
  • Page 5 The ultra-smooth feel of the knobs and gold plated switch contacts musical electronics, unique in both its ‘hands on’ ease of use and put the 'Electrix Mods' processors in a class of their own. They are ‘retro-futuristic’ design. 'Effects Instruments' that have been designed to be 'played live' on stage and in the studio.
  • Page 6 Q Q U U I I C C K K S S T T A A R R T T • W W h h a a t t t t o o C C o o n n n n e e c c t t t t o o W W h h e e r r e e Here is the simplest way to pass audio signals through Filter Queen and create effects: Connect the Power Transformer here.
  • Page 7 Q Q U U I I C C K K S S T T A A R R T T • A A F F i i r r s s t t L L o o o o k k a a t t t t h h e e C C o o n n t t r r o o l l s s Use the momentary button Resonance controls the to play the effect.
  • Page 8 U U n n d d e e r r s s t t a a n n d d i i n n g g t t h h e e F F i i l l t t e e r r Q Q u u e e e e n n • F F r r o o n n t t P P a a n n e e l l are: All bands, High, Mid, Low, Low+High, Low+Mid, ENV Following Explained: The ENV Follower tracks the...
  • Page 9 U U n n d d e e r r s s t t a a n n d d i i n n g g t t h h e e F F i i l l t t e e r r Q Q u u e e e e n n • F F r r o o n n t t P P a a n n e e l l Filter Type: The Band Pass Filter This control selects the basic sound of the filter.
  • Page 10 U U n n d d e e r r s s t t a a n n d d i i n n g g t t h h e e F F i i l l t t e e r r Q Q u u e e e e n n • F F r r o o n n t t P P a a n n e e l l Filter Engage: LFO Depth: This control toggles the filter on and off.

  • Page 11: Cable Strain Relief

    Engage on and off. Filter Queen accepts normally open momen- Phono/Line Switch : This switches the RCA inputs to tary footswitches. (In the near future an Electrix 3 button accept phono or line level. footswitch will be available that will add extra functionality to the Filter Queen.
  • Page 12 P P e e r r f f o o r r m m a a n n c c e e G G u u i i d d e e Set-up 1: Pre Mixer Set-up 2: Mixer - Insert MAIN OUT L AUX SEND 1 AUX RET L...
  • Page 13 P P e e r r f f o o r r m m a a n n c c e e G G u u i i d d e e Set-up 3: Amp Effects Loop Set-up 4: Mixer with Aux Sends MAIN OUT L AUX SEND 1 AUX RET L...
  • Page 14 P P e e r r f f o o r r m m a a n n c c e e G G u u i i d d e e Set-up 5: DJ - Post Mixer This is a simple setup for stereo processing of your entire mix.
  • Page 15 A A r r t t i i s s t t A A p p p p l l i i c c a a t t i i o o n n s s Phaser: Drum FX: That swooshy sound, that was initially made popular as a Fender You can use the Envelope Follower to create a 'WAKKA' Rhodes effect, is also available in the Filter Queen.

  • Page 16: Bass Boost

    A A r r t t i i s s t t A A p p p p l l i i c c a a t t i i o o n n s s Guitar Amp Setup! - The Foot Wah: Bass Boost: Connect an expression pedal up to the Frequency Controller This can create some stunning effect from subtle bass enhance-...
  • Page 17 10Hz-20.0kHz 10Hz-20.0kHz 10Hz-20.0kHz POWER CONSUMPTION 16 watts VOLTAGE FREQUENCY 100 V 50/60 Hz USE ONLY WITH ELECTRIX 120 V 60 Hz POWER SUPPLY MODEL TFR0028 230 V 50 Hz 240 V 50 Hz Actual measurements are subject to change English... 17...
  • Page 18 Certificate of Conformity the user is encouraged to try to correct the interference by one or more of Electrix, a div. of IVL Technologies Ltd., hereby declares on their own the following measures: responsibility that the following product: •...
