MOTO-1 USER MANUAL
MOTO-1 BMW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMW and is the answer not in the manual?

Questions and answers

Summary of Contents for MOTO-1 BMW

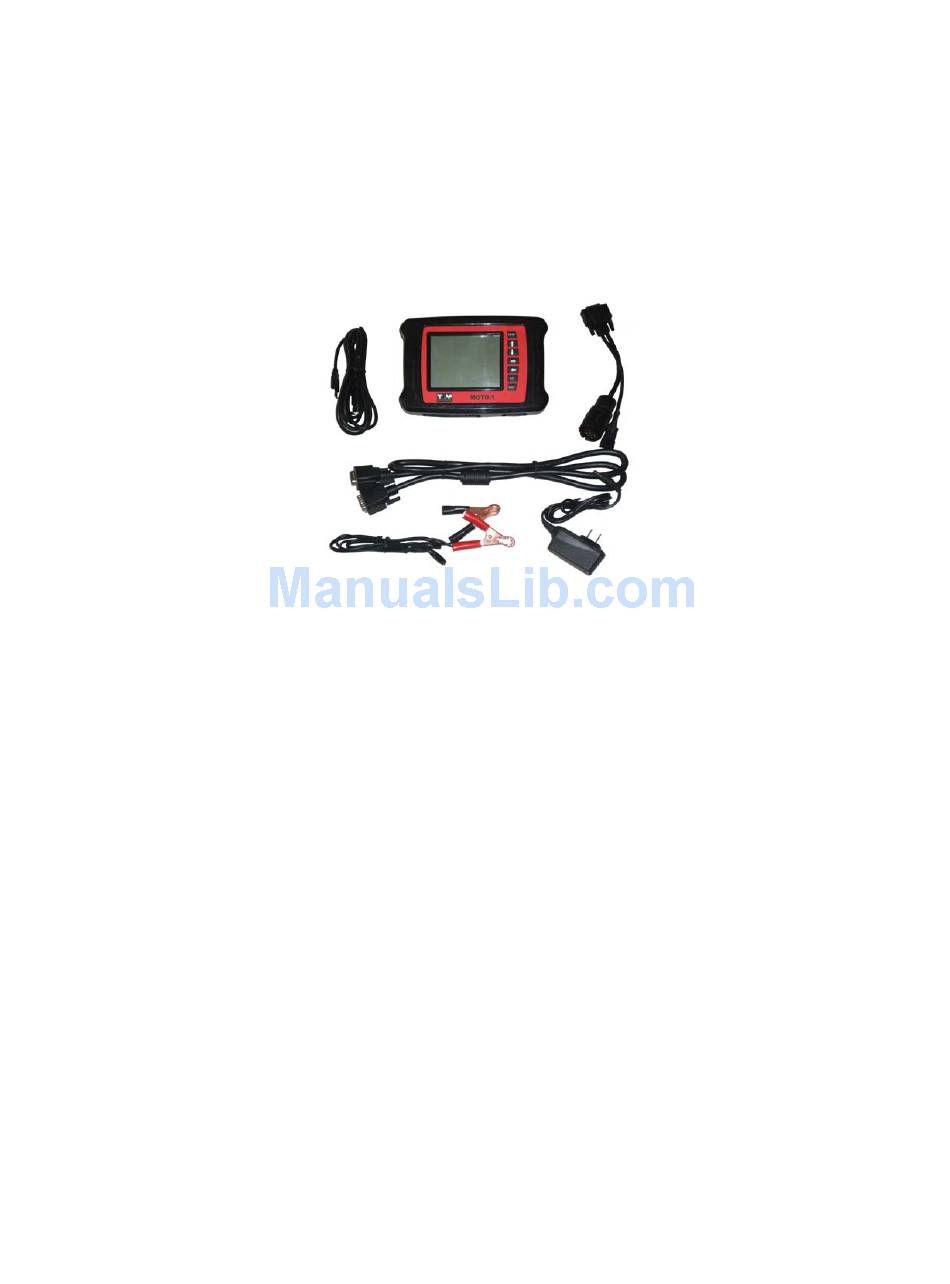

  • Page 1 MOTO-1 USER MANUAL MOTO-1 BMW...
  • Page 2 Dear Customers: ® The tool you have chosen is part of the MOTO-1 range of products, it covers the whole technology our staff has acquired in its years long experience. It will be a useful working tool to satisfy both you and your ®...
  • Page 3 MOTO-1 BMW diagnostic scanner user manual This manual is an undivided part of the product. It describes technical features and functions of the product. Please read these instructions carefully before using this tool and store it for future needs. 1. When the engine is running, please insure the ventilation or connecting the building exhaust fan system with the vehicle exhaust system to exhale the waste gas.

  • Page 4: Table Of Contents

    MOTO-1 BMW diagnostic scanner user manual INDEX 1. Product Configuration ........................2 1.1 External View of Mainframe ....................... 2 1.2 Technical parameters ........................3 2.Function Introduction.......................... 4 2.1 Mainframe power supply modes ....................4 2.2 Menu introduction of boot-strap ....................4 2.3 System Diagnosis Menu ......................

  • Page 5: Product Configuration

    MOTO-1 BMW diagnostic scanner user manual 1. Product Configuration 1.1 External View of Mainframe 1.1.1 Ichnography of the right side of Mainframe Mainframe Length: 220mm Mainframe Width: 150mm Vision Screen Length: 104mm Vision Screen Width: 81mm Instruction of keyboard [ENTER] key: confirmation...

  • Page 6: Technical Parameters

    MOTO-1 BMW diagnostic scanner user manual 1.power supply insert 2.diagnose interface 3.USB interface 1.2 Technical parameters Working Voltage: DC12V Working current: <1A Working temperature:0-40℃ Humidity: <80%   3  ...

  • Page 7: Function Introduction

    3. Provide electricity with USB interface, mainly used during the software updating. 2.2 Menu introduction of boot-strap After electrifying the mainframe, turn on the power supply. The mainframe displays the application object of the scanner: BMW MOTORCYCLE SCANNER. After waiting for 1sec. it can enter the main menu automatically. 1．System Diagnosis 2.

  • Page 8: System Diagnosis Menu

    MOTO-1 BMW diagnostic scanner user manual 2.3 System Diagnosis Menu 1．System Diagnosis 2. System Information 3. Software Updating Select ENTER This menu is the main menu of this diagnostic scanner; all the diagnostic functions enter from this menu. Because of its importance, we will give a detailed description in the later section.

  • Page 9: Software Updating Menu

    MOTO-1 BMW diagnostic scanner user manual 2.5 Software Updating Menu 1．System Diagnosis 2. System Information 3. Software Updating Select ENTER This function will be used when updating the software. According to this operation direction, you can finish the software update process.
  • Page 10 MOTO-1 BMW diagnostic scanner user manual diag. 1．BMW MOTORCYCLE Select ENTER Press [ENTER],then [↓]key to enter the following interface. BMW MOTORCYCLE 1. ENGINE SYSTEM 2. ABS SYSTEM 3. INSTRUMENT PANEL 4. MAIN ECU Select EXIT ENTER Because there are so many vehicle models and systems, here we make ABS system as an example to explain how to operate.
  • Page 11 MOTO-1 BMW diagnostic scanner user manual Press [ENTER] key, it displays the following interface. MOTORCYCLE MODEL 1. C SERISE 2. F SERISE 3. G SERISE 4. K SERISE 5. R SERISE Select EXIT ENTER Continue to press [↓]key, and choose[4.K SERISE]. As show below.

  • Page 12: Reading Ecu Information

    MOTO-1 BMW diagnostic scanner user manual 3.2 Reading ECU information Choose [5. K 1200 GT [03-05]], and press [ENTER]. It displays the following interface. start up after the key and th- e antitheft closed Press [ENTER] to confirm Press [ENTER], it displays the following interface.
  • Page 13 MOTO-1 BMW diagnostic scanner user manual Communication failure! Press [ENTER] to confirm If it succeeds to communicate with ABS ECU, it displays the following interface. Received identification:FTE I- nteral Press [ENTER] to confirm Press [ENTER], it displays the following interface.

  • Page 14: Reading Dtc

    MOTO-1 BMW diagnostic scanner user manual BMW code NO.:2333510 HW version:19 Index coding:10 Diagnostic index:BC System name:6B6C Date of manufacture:20/6/2002 Manufacture:40 ←PageUp →PageDown ENTER Press [→]to continue to select screen and look over other ECU version info. Press [ENTER] to display the following interface.

  • Page 15: Clear Dtc

    MOTO-1 BMW diagnostic scanner user manual After reading the DTCs, it displays the following interface. C031E The wheel coil pressure is high C041E The rear wheel coil pre- ssure high DTC number :2 EXIT 3.4 Clear DTC Select [3.Clear DTC]. It appears the following interface.
  • Page 16 MOTO-1 BMW diagnostic scanner user manual Continue to press [ENTER]. It displays the following interface. Clearing,please wait... Then, it enters the following interface. Open the key after close the – Press [ENTER] to confirm Press [ENTER]. It displays the following interface.

  • Page 17: Read Datastream

    MOTO-1 BMW diagnostic scanner user manual 3.5 Read DataStream Select [4.Read datastream]. It appears the following interface. SELECT FUNCTION 1. ECU information 2. Read DTC 3. Clear DTC 4. Read datastream 5. Action test ↑→↓←Select EXIT ENTER This function is used to display the current data condition of ECU system. Using this data, you can estimate the vehicle working condition.
  • Page 18 MOTO-1 BMW diagnostic scanner user manual SELECT FUNCTION 1. ECU information 2. Read DTC 3. Clear DTC 4. Read datastream 5. Action test ↑→↓←Select EXIT ENTER Press [ENTER]. It displays the following interface. Action test 1. General break light 2. Weak break light ↑→↓←Select...
  • Page 19 MOTO-1 BMW diagnostic scanner user manual If there isn’t any trouble, the component test can finish by itself. It displays the following information. Test finished Press [ENTER] to confirm Through the component test, we can judge the working condition of ECU and executed components.

  • Page 20: Addendum I: Treatment Measures For Common Problems

    MOTO-1 BMW diagnostic scanner user manual Addendum I: Treatment Measures For Common Problems 1. When testing the motorcycle ECU with the diagnostic scanner, it displays “Communication failure!” what is the problem? How to deal with it? This problem is caused by the reasons as below: 1.1 The ECU model of diagnostic program you choose is different from the ECU model of...
