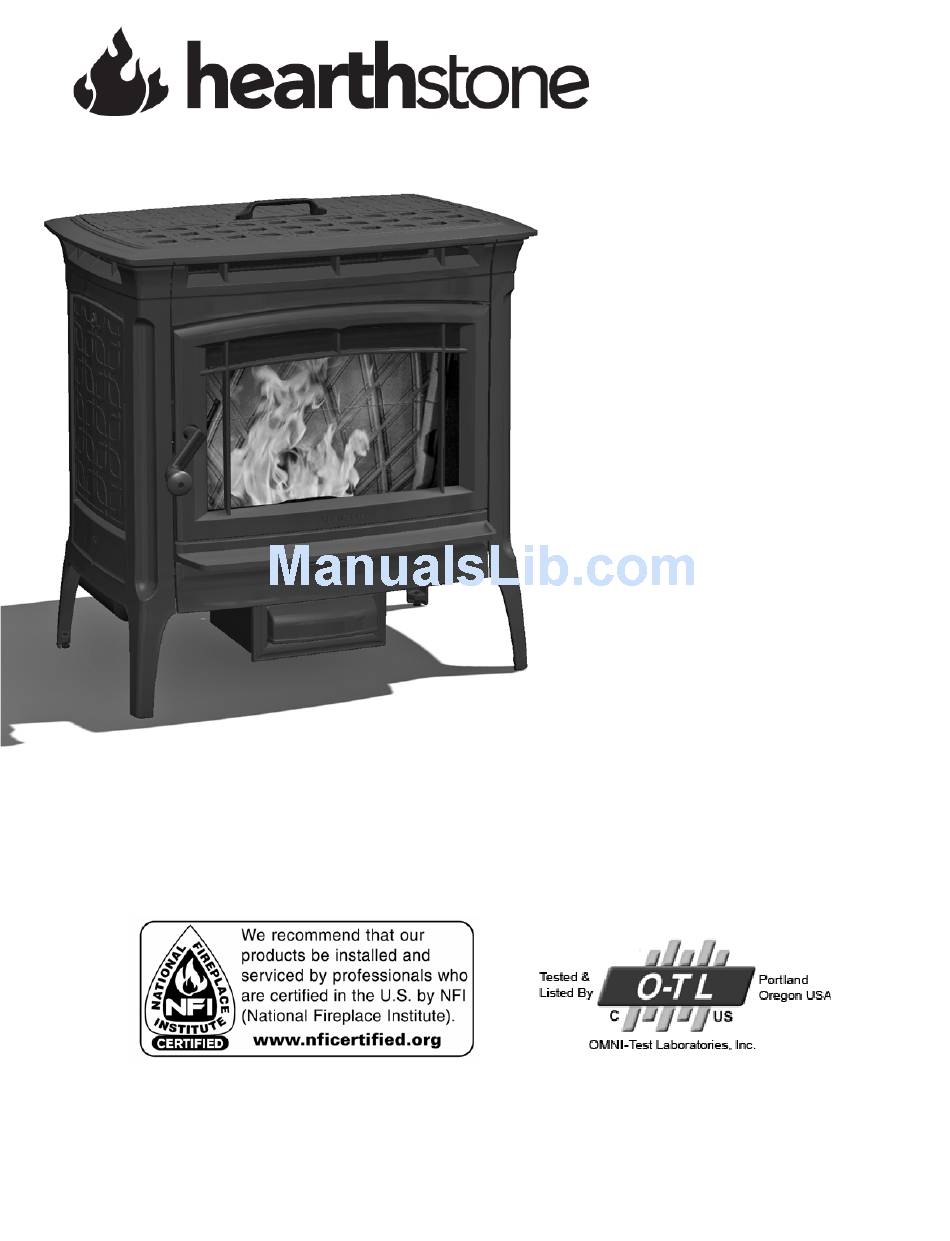

HearthStove Manchester 8330 Owner's Manual

Pellet-fired direct-vent fireplace heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manchester
(Model 8330)
Pellet Stove
OWNER'S MANUAL

Operating Instructions

Please read this entire manual before installation and use of this pellet fuel burning room heater.
Failure to follow these instructions could result in property damage, bodily injury, or even death.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
Manchester Pellet Model 8330
Report:
261-S-04b-2
Manual: 6400-40468
R: 4 - 7/31/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Manchester 8330 and is the answer not in the manual?

Questions and answers

Summary of Contents for HearthStove Manchester 8330

  • Page 1: Operating Instructions

    Manchester (Model 8330) Pellet Stove OWNER’S MANUAL Operating Instructions Please read this entire manual before installation and use of this pellet fuel burning room heater. Failure to follow these instructions could result in property damage, bodily injury, or even death. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
  • Page 2 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Intentionally Blank Page 2 of 43...

  • Page 3: Table Of Contents

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Table of Contents Introduction ..........................4 Important Notes ..............................4 Specifications ........................6 General Specifications ............................7 Electrical Specifications ............................7 Components ........................... 8 Operation..........................10 Loading Pellets ..............................10 Modes of Operation ............................

  • Page 4: Introduction

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Introduction Congratulations on your purchase of Hearthstone’s Manchester pellet fired stove. The Manchester Pellet stove incorporates the latest in pellet burning technology providing you with clean, efficient heat for years to come. Your decision to purchase a Hearthstone Manchester Pellet stove reflects a choice to purchase a premium product and a technology which is carbon neutral, meaning that operation of this stove will not introduce any “new”...
  • Page 5 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Introduction Ensure young children are carefully supervised when in the same room as the appliance. Do not place clothing or other flammable material on or near the appliance. Fire Hazard In the unlikely event of a soot, or creosote fire –...

  • Page 6: Specifications

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Specifications Listed as: Pellet-Fired Direct-Vent Fireplace Heater Model: Manchester Pellet (8330) Testing Agency: OMNI-Test Laboratories, Inc. Tested to: • ASTM E 1509-04 Standard Specification for Room Heaters, Pellet Fuel-Burning Type •...

  • Page 7: General Specifications

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Specifications General Specifications Stove Weight…………………………………………………………………………………………….350 lbs Pellet Hopper Capacity……………………………………………………………….………….……..50 lbs* Approximate Heating Ability (sq ft)……………………… …………………………………………..up to 2000 sq ft Burn Rate (lbs/hr)………………………………………… …………………………………………..1.8 – 6.00 lbs/hr Fuel…………………………………………………....………PFI certified premium or better Wood Pellets (Refer to Appendix A for more information about pellet fuel in general) EPA Certified Particulate Emissions….………………………………………………………………1.3g/hr (EPA Standard –...

  • Page 8: Components

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Components Components and features: Maintenance Tool Hopper Door Handle Heat Exchanger Rake Rod (x2) Firebox Baffle Front Door Pellet Door Feed Burn Pot Handle Tube Ash Pan Burn Pot Ignitor Main Hopper Door Secondary Hopper Door...
  • Page 9 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Components Room Sensor & Thermostat Connectors Fuse Panel Mounting Screws (6) STB Reset Switch Rear Cover Panel Outside Air Inlet Exhaust Vent Motherboard Hopper Housing Exhaust Vent Auger Motor Intake Air Flow Sensor Exhaust Fan...

  • Page 10: Operation

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Operation CAUTION: HOT WHILE IN OPERATION! KEEP CHILDREN, CLOTHING, AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. CAUTION: DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE. CAUTION: DO NOT BURN GARBAGE, FLAMMABLE LIQUIDS SUCH AS GASOLINE, NAPHTHA, OR ENGINE OIL. CAUTION: THIS UNIT IS DESIGNED TO BURN ONLY PREMIUM NATURAL WOOD PELLETS.

  • Page 11: Modes Of Operation

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Operation Modes of Operation The Manchester Pellet Stove has various modes of operation. They are: Manual – Most basic mode (no thermostatic control). Thermostat – Optional mode. Requires an external milli-volt thermostat sold at your local Hearthstone dealer or hardware store.

  • Page 12: Quick Operations Guide

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Quick Operations Guide Page 12 of 43...
  • Page 13 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 13 of 43...
  • Page 14 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 14 of 43...
  • Page 15 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 15 of 43...
  • Page 16 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 16 of 43...
  • Page 17 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 17 of 43...
  • Page 18 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 18 of 43...
  • Page 19 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 19 of 43...
  • Page 20 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 20 of 43...
  • Page 21 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 21 of 43...
  • Page 22 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 22 of 43...
  • Page 23 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 23 of 43...
  • Page 24 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 24 of 43...
  • Page 25 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Page 25 of 43...
  • Page 26 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Operation Set the Current Time/Date (Programmable Mode) Action Prog Step 1: From the main display press twice. 70 F time Time Step 2: Press the button to enter the menu.
  • Page 27 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Operation Programming the Heating Schedule (Programmable Mode) The stove can be programmed with two different set temperatures, one home and one away. Each of these set temperatures have two different times they can be switched on. The stove can use the same Home and Away time every day of the week or they can be set differently for every day.
  • Page 28 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Operation To Adjust Home and Away Temperature (Programmable Mode) Action Prog Home Step 1: From the main display press to view the set temperature 70 F Away to view the set temperature.
  • Page 29 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Operation Shutdown Cycle Stop The display with either read depending on if the unit is shut down manually or from the wall thermostat / room sensor. When the shutdown process starts, the exhaust fan is switched to high. STANDBY Once the fire is fully extinguished the control will either display STANDBY...

  • Page 30: Ash Disposal

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Operation Turning On and Off the Frost Setting Action Prog Step 1: From the main display press three times. 70 F setup setup Step 2: Press the button to enter the menu.

  • Page 31: Maintenance

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Maintenance ALWAYS WORK ON A COOL STOVE! ALWAYS DISCONNECT THE POWER BEFORE PERFORMING ANY MAINTENANCE. WARNING: DO NOT USE ABRASIVE CLEANERS ON THE DOOR GLASS. SCRATCHING THE CERAMIC GLASS WILL COMPROMISE ITS STRENGTH.

  • Page 32: Weekly Or As Needed

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Maintenance Weekly or as Needed Remove ash from firebox 1. Lift burn pot, sweep ashes into ash pan or use an ash vacuum. WARNING! USE OF A REGULAR VACUUM MAY CAUSE A FIRE.

  • Page 33: Yearly Or Every Ton Of Pellets

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Maintenance Yearly or Every Ton of Pellets Rear Panel Top Casting Clean Hopper, Auger & Exterior of Pellet Engine 1. Remove hopper door – vacuum hopper and auger inlet. 2.
  • Page 34 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Maintenance Clean Convection Fan 1. Remove the screen panel (4 screws) – vacuum screen and inside housing, remove any build up from fan blades with soft bristle brush. Remove Screen. Clean Manifold 1.

  • Page 35: As Needed

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Maintenance As Needed External Cleaning WARNING: DO NOT CLEAN THE UNIT WHEN HOT OR WHEN ANY SIGN OF COMBUSTION IS PRESENT. External Cleaning - The unit should receive regular cleaning on, under, and around the stove to prevent the buildup of dust and lint.

  • Page 36: Glass Replacement Procedures

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Maintenance Glass Replacement Procedures WARNING: DO NOT OPERATE THIS APPLIANCE WITH THE GLASS PANEL REMOVED, CRACKED, OR BROKEN. DO NOT SUBJECT THE DOOR TO ABUSE, SUCH AS STRIKING OR SLAMMING SHUT. ONLY A QUALIFIED SERVICE PERSON SHOULD REPLACE THE GLASS PANEL.

  • Page 37: Troubleshooting

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Troubleshooting Most errors and issues are due to a lack of required maintenance, or cleaning. Using the instructions on the following pages should resolve most issues. If an operation error is detected, the user interface flashes, and displays a message.
  • Page 38 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Display Problem Possible Causes Solution Flame Temp sensor in Flame sensor not working Reset the unit using the power switch Sensor – firebox is and contact your dealer if the problem (code F06) malfunctioning persists.

  • Page 39: General Issues

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove General Issues: Problem Possible Causes Solution Burn pot is overflowing. Burn pot needs cleaning Remove excess ashes, clinkers, and live coals from burn pot Ignition did not occur Clean burn pot Ensure burn pot installed with ignitor hole towards rear Ignitor failure.
  • Page 40 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Problem Possible Causes Solution Low heat output Excessive soot on heat Follow procedure in the Maintenance exchanger section of this manual. Poor quality, or wet pellets Consult your Hearthstone dealer for a recommended pellet type and storage Dirty stove Preform a Yearly Cleaning (see page 33)

  • Page 41: Replacement Parts & Optional Accessories List

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Replacement Parts & Optional Accessories List PART PART DESCRIPTION: DESCRIPTION: NUMBER: NUMBER: CASTINGS:* GASKETS: 2010-915 ASH DOOR 3110-056 GASKET: ROPE,1/4”,BLK,AD 2010-997 HOPPER DOOR HANDLE 3110-057 GASKET: ROPE,3/8”,AD,NON-CORE 2310-300 3120-021 GASKET: GLASS CLIP 2310-305 HOPPER DOOR...

  • Page 42: Safety Label

    Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Safety Label Page 42 of 43...
  • Page 43 Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove Customized Set Up Data: Page 43 of 43...
