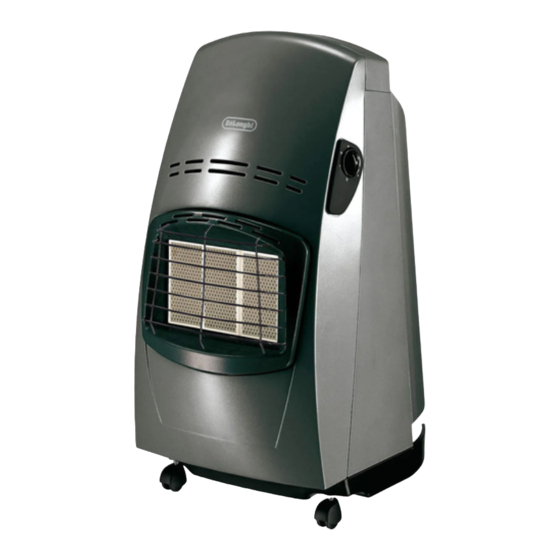

5723001300 17-12-2003 9:40 Pagina 2 BLUE FLAME GAS HEATER Technical Data Type Category Maximum Medium Gas pressure Input Input Input see rating label 4.20 2,85 1,50 2,8 kpa This appliance is designed to operate with LPG at nominal pressure: 2,8 kpa. For a correct gas combustion the required air quantity is 8,4 m WARNINGS ALWAYS use heater in accordance with instructions.
5723001300 17-12-2003 9:40 Pagina 3 ASSEMBLY 1) Place the gas cylinder in the gas cylinder compartment and connect the regulator to the cylinder as shown on page 4. 2) To fit the backcover, insert the two tabs located on the left-hand side of the back- cover into the corresponding slots in the cabinet.
5723001300 17-12-2003 9:40 Pagina 4 Pressure regulators, rubber tubes and clips CHECK that tubing is completely over the nozzles at each end of the tubing and that it is held firmly in place by tube clips (See fig.9). Check the expiry date and state of the rubber tube regularly. If it is past its expiry date or has been damaged, replace it with one which complies with the current regulations.
5723001300 17-12-2003 9:40 Pagina 5 Auxiliary ignition Should piezoelectric starter fail to work, repeat operation on control knob and use a match to light pilot flame. Turning off the heater Turn off the gas bottle tap. The Heater will be totally “OFF” only if the tap at the gas bottle is turned off. Important When the operating knob is left at the end of the starting time (see rating plate), this must move up about 5 mm and return to his starting height.
Page 6
5723001300 17-12-2003 9:40 Pagina 6 5723001300/ 12.03...
