Gemini Industries TT-002MKII Operation Manual

Direct drive straight arm turntable
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
DIRECT DRIVE STRAIGHT ARM TURNTABLE
PLATTENSPIELER MIT DIREKTANTRIEB UND GERADEM TONARM
GIRADISCOS DE BRAZO RECTO TRACCIÓN DIRECTA
PLATINE VINYLE AVEC ENTRAÎNEMENT DIRECT ET BRAS DROIT
OPERATIONS
MANUAL
B E D I E N U N G S H A N D B U C H
MANUAL DEL OPERADOR
MANUEL D'INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT-002MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for Gemini Industries TT-002MKII

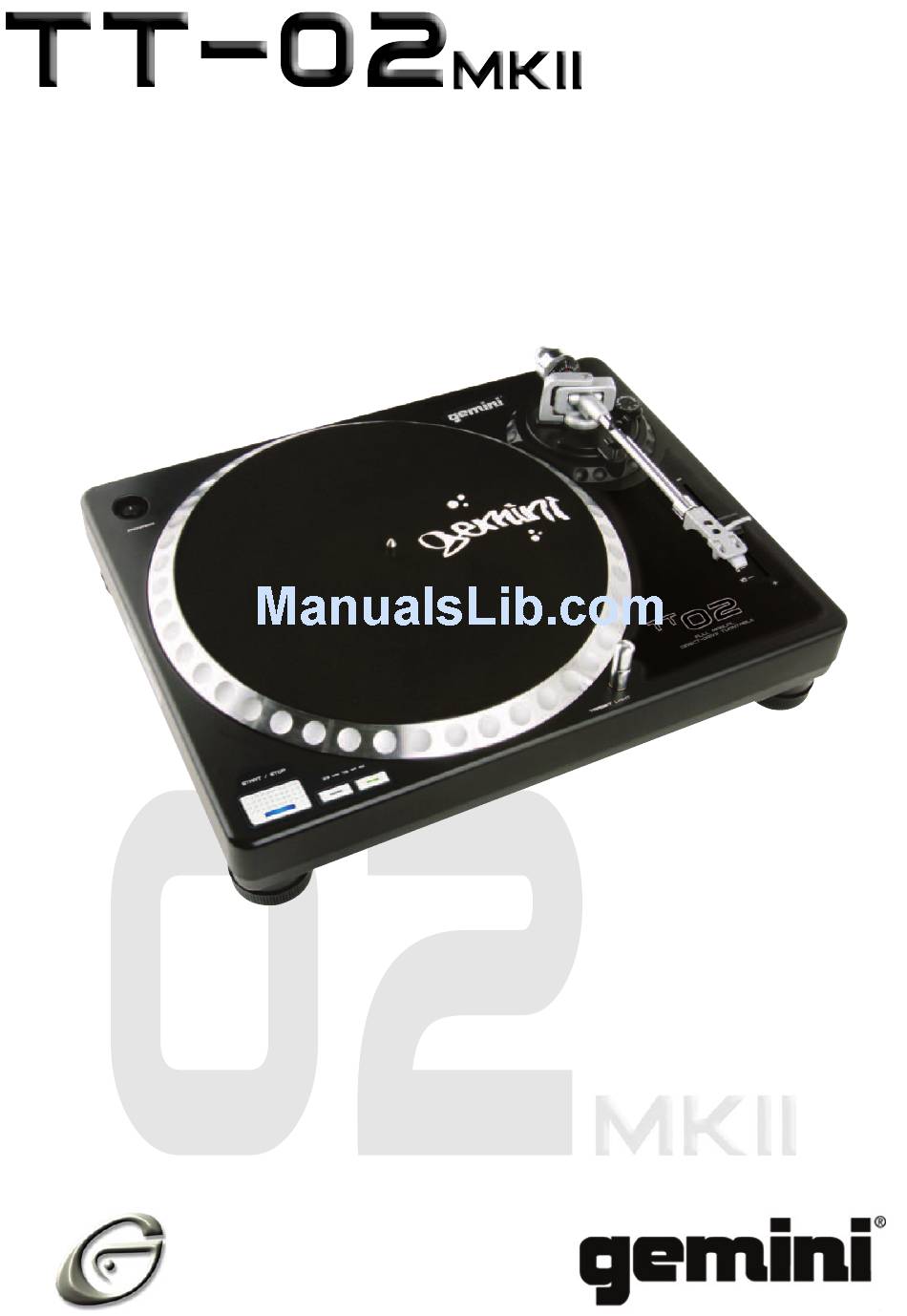

  • Page 1 DIRECT DRIVE STRAIGHT ARM TURNTABLE PLATTENSPIELER MIT DIREKTANTRIEB UND GERADEM TONARM GIRADISCOS DE BRAZO RECTO TRACCIÓN DIRECTA PLATINE VINYLE AVEC ENTRAÎNEMENT DIRECT ET BRAS DROIT OPERATIONS MANUAL B E D I E N U N G S H A N D B U C H MANUAL DEL OPERADOR MANUEL D’INSTRUCTIONS...
  • Page 2 MULTI LANGUAGE INSTRUCTIONS ENGLISH...PAGE 4 DEUTSCH...PAGE 6 ESPAÑOL...PAGE 8 FRANCAIS...PAGE 10 PLEASE READ BEFORE USING APPLIANCE, IMPORTANT WARNING & SAFETY INSTRUCTIONS! CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connec tions.
  • Page 3 TT-0 0 2MKII...

  • Page 4: Parts Checklist

    TURNTABLE. TURNTABLE INSTALLATION: 1. Put the SLIPMAT (4) on the PLATTER (2). 2. Set the TURNTABLE BASE (1) on a flat, level surface free of vibration. Use the turntable feet to stabilize the unit horizontally. 3. Try to place the unit as far away from the speakers as possible.

  • Page 5: Specifications

    ADJUSTING THE ANTI-SKATING CONTROL: Set the ANTI-SKATING CONTROL (12) to the same value as the stylus pressure. NOTE: IF YOUR TURNTABLE CAME WITH A CN-1000 CARTRIDGE, IT HAS A RECOMMENDED TRACKING FORCE OF 3.0 GRAMS AND CAN HAVE RANGE FROM 2.5-3.5 GRAMS.
  • Page 6 Den PLATTENTELLER - PLATTER (2) rotieren bis den SPANNUNGSWAHLER - VOLTAGE SELECTOR (3) (befindet sich auf dem PLATTENSPIELERCHASSIS - TURNTABLE BASE (1)) sichtbar ist durch ein Loch des Plattentellers. Den VOLTAGE SELECTOR (3) auf der richtigen Spannung setzen. WARNUNG: LASSEN SIE DEN PLATTER (2) ROTIEREN MIT EINER FALSCHEN PLATTENSPIELER SICH BESCHÄDIGEN.

  • Page 7: Spezifikationen

    2. Die TONARM-KLEMMSCHELLE - ARM CLAMP (10) freigeben und den TONARM - TONE ARM (7) von der TONARMAUFLAGE - ARM REST (11) abheben. 3. Durch das Verdrehen gegen den Uhrzeigersinn des BALANCEGEWICHTS - COUNTERWEIGHT (8) wird die Tonabnehmerseite des TONARMS - TONE ARM (7) gesenkt.

  • Page 8: Montaje Y Configuración

    INSTALACION DEL TOCADISCO: 1. Coloque la PATINADOR - SLIPMAT (4) sobre el PLATO. 2. Ponga la BASE DEL TOCADISCO - TURNTABLE BASE (1) sobre una superficie plana y nivelada sin vibra- ciones. Use las patas del giradiscos para estabilizar la unidad en sentido horizontal.

  • Page 9: Instrucciones De Operación

    2. Suelte el SUJETABRAZO - ARM CLAMP (10) y lev- ante el BRAZO DE FONOCAPTOR - TONE ARM (7) del DESCANSILLO - ARM REST (11). 3. Si el COUNTERWEIGHT (8) se avanza hacia la izquierda, se bajará el lado del cartucho del TONE ARM (7).

  • Page 10: Caractéristiques

    INTRODUCTION: Nos félicitations à l’occasion de votre achat cette table-tour- nante Gemini TT-02 MKII. Ce table-tournante très moderne inclut les caractéristiques technologiques les plus récentes. Avant de l’employer, lisez attentivement toutes les instruc- tions. CARACTÉRISTIQUES: • Varitation de vitesse +/- 10% •...
  • Page 11 posé. Tournez le CONTREPOIDS (8) dans le sens horaire ou dans le sens inverse des aiguilles d’une mon tre selon le besoin, jusqu’à ce que le BRAS DE LECTURE (7) soit équili- bré horizontalement. Ce moment seproduit, et vous le verrez facilement, lorsque le BRAS DE LECTURE (7) “flotte”...
  • Page 12 NOTES (12)
  • Page 13 NOTES (13)
  • Page 14 Carefully punch a hole in the center of this disc, Operate turntable at 0% without quartz lock. Place turntable close to any florescent lighting source. The outer ring should appear still at 33 rpm. The inner ring should appear still at 45rpm.
  • Page 15 Carefully punch a hole in the center of this disc, Operate turntable at 0% without quartz lock. Place turntable close to any florescent lighting source. The outer ring should appear still at 33 rpm. The inner ring should appear still at 45rpm.
  • Page 16 IN THE USA: IF YOU EXPERIENCE PROBLEMS WITH GEMINI CUSTOMER SERVICE. DO NOT ATTEMPT TO Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor.
