Summary of Contents for Gamut DI 150

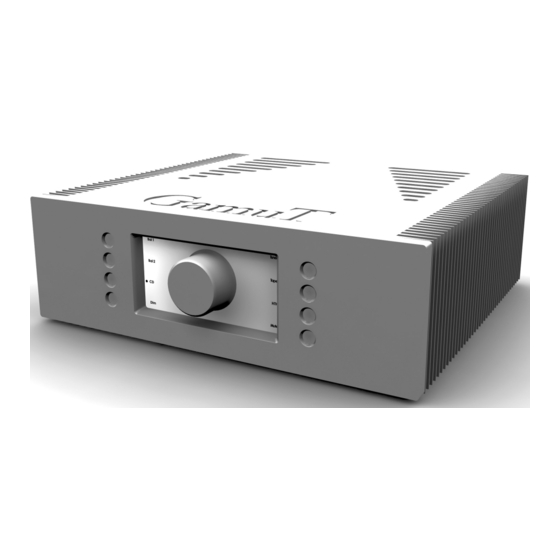

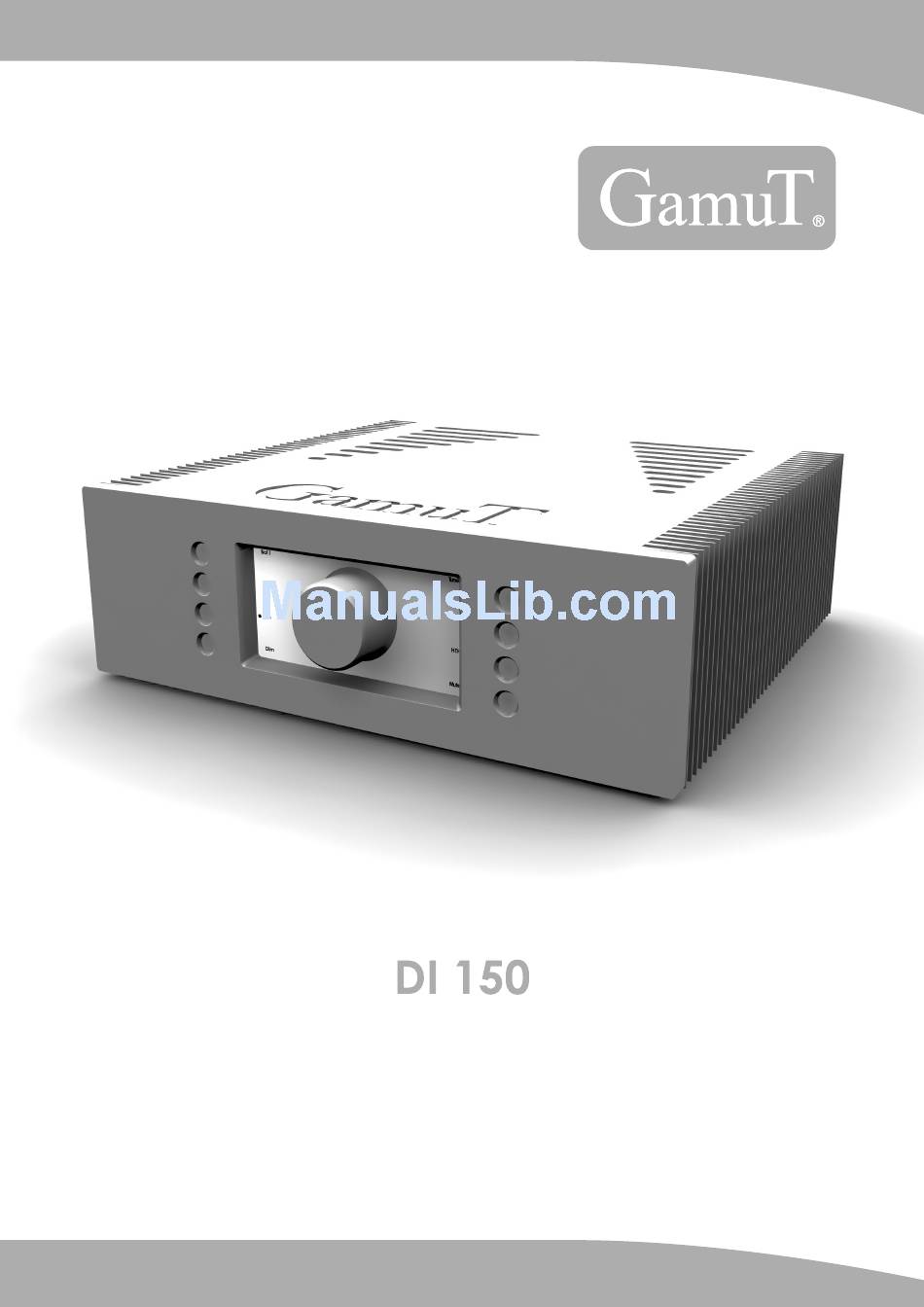

  • Page 1 Dual Mono Integrated Amplifi er User guide...
  • Page 2: Table Of Contents

    DI 150 Contents Contents of the DI 150 box Safety instructions Warning: Never: Always: About the GamuT DI 150 Design considerations Electrical circuits considerations Unpacking Placement Connecting to the mains Connecting to other equipment Inputs Outputs How to operate Selecting a source...
  • Page 3: Contents Of The Di 150 Box

    Contents of the DI 150 box • One GamuT DI 150 integrated amplifi er • One mains cord with plug for either 115VAC or 230VAC • One GamuT RC1 amplifi er/CD-player remote control unit • Two AAA batteries Sandgaardsvej 31...
  • Page 4: Safety Instructions

    • Check that the GamuT DI 150 mains fuse rating is set correctly for your local mains voltage. Please see the label next to the mains inlet.
  • Page 5: About The Gamut Di 150

    This does not only contribute to the touch and feel factor, but is essential for a long-lasting life even in a tough environment. A GamuT product is built to be used daily and we expect our products to be in the “fi eld” for many years to come.
  • Page 6: Placement

    DI 150 Placement The DI 150 will get hot during use. It is important that it has free space all around the amplifi er, espe- cially the sides and the top. Connecting to the mains Your DI 150 has been especially made for the country to which it has been shipped. Any attempt to change the voltage or other types of modifi...
  • Page 7: Outputs

    All of the inputs are line level inputs. If a turntable is to be connected, a separate RIAA amplifi er must used in between the turntable and the DI 150. You can use any of the inputs you like. The HTH input also features a “direct” function. Please refer to the section “how to operate”...
  • Page 8: How To Operate

    “Remote control” Adjusting the listening level In the middle of the DI 150 front panel you will fi nd the large volume control knob. On the outside parameter of the knob a small blue dot lights up to indicate the level setting.
  • Page 9: Hth Direct

    HTH Direct This function is intended for cases where the DI 150 is connected to a surround preamplifi er or pro- cessor. Enable the “direct” function by pushing the small switch situated at the left side of the HTH input terminals on the backside of the amplifi er.
  • Page 10: The Remote Control

    DI 150 The remote control Overview CD player functions: Open/close A-B repeat Repeat one/all Program (CD 1 only) Display dim Remain (CD 1 only) Direct track selection 1-10 / 10+ Play Pause Stop Next track Previous track Fast forward Fast backwards Amplifi...
  • Page 11: Functions

    Functions Volume up By pushing this button the volume control knob will turn and the blue level indicator dot will rotate clockwise. Holding the button down will eventually make the knob turn all around to maximum level. Volume Down This button will do the exact opposite of the volume up button. Push the button down, until a pleasant level is reached.
  • Page 12: Burn-In And Warm Up

    Should you ever require service, you can either contact your dealer or national distributor, who can solve any problems locally. You are also very welcome to contact GamuT International A/S directly if you need any information or help. Our contact information is listed on the last page of this user guide.
  • Page 13: The Protection Circuitry - A Second Of Silence

    The normal current limiting and momentary distortions of the music are completely avoided in the GamuT DI150 power amplifi er. You may experience a second of silence while the music is playing loudly. This is the protection acting to protect your audio system.
  • Page 14: Technical Information

    DI 150 Technical information Output power (@230V/115V): 180 Watt @ 8 ohms 360 Watt @ 4 ohms Frequency range: 20 – 22,000Hz +/- 0.1dB Speaker load: <1.5 ohms Noise level: 100dBA below 100W @ 8 ohms THD: <0.05% Distortion: Mainly 2...
  • Page 15: Every Musical Note

    It is Gamut´s mission to give to you these unique musical feelings.
  • Page 16 Sandgaardsvej 31 DK-7400 Herning Denmark Telephone no: +45 70 20 22 68 Fax no: +45 59 43 97 26 www.gamutaudio.com info@gamutaudio.com...
