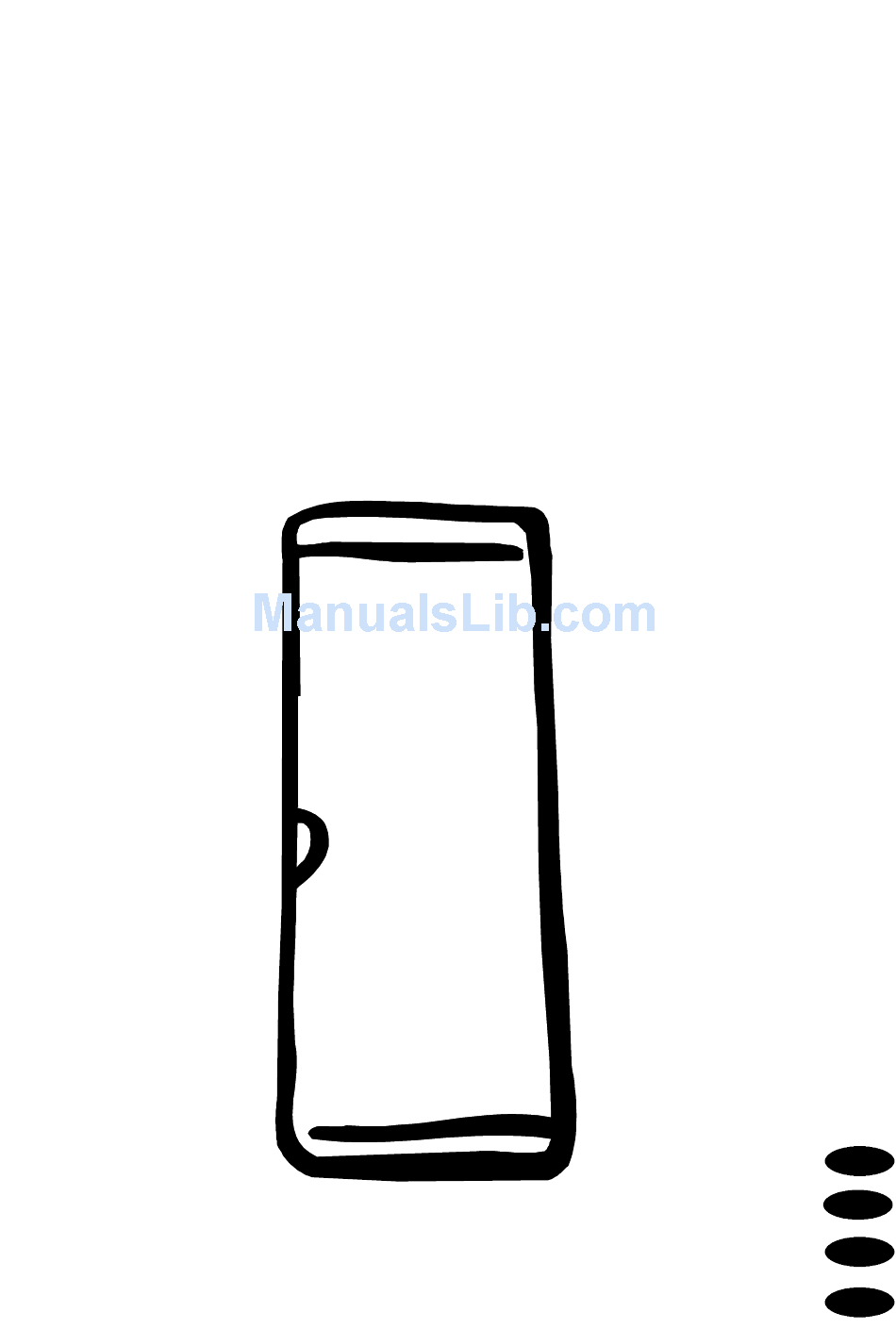

C o n g e l a d o r / G e f r i e r / F r e e z e r
INSTRUCCIONES DE USO
INSTRUÇÕES DE USO
GEBRAUCHSANWEISUNG
INSTRUCTION BOOKLET
IT
ES
PT
EUF2900 EUF2900X
DE
GB
818 38 08--01/6

Advertisement

loading

  Summary of Contents for Electrolux EUF2900

  • Page 1 C o n g e l a d o r / G e f r i e r / F r e e z e r INSTRUCCIONES DE USO INSTRUÇÕES DE USO GEBRAUCHSANWEISUNG INSTRUCTION BOOKLET EUF2900 EUF2900X 818 38 08--01/6...
  • Page 2: Table Of Contents

    Safety instructions Your new freezer may have other functions compared to your previous one. Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety.
  • Page 3: Description Of The Appliance

    Description of the Appliance 1. Freezershelf with flap 2. Freezer drawer 3. Ventilationgrille 4. Accumulator Control Panel -- 18 ACTION FREEZE C D E F G A. Freezer power switch E. Yellow indicator lamp Switches the freezer on and off. Lights when Fast Freeze is operating.
  • Page 4: Using The Freezer

    Using the freezer To start the freezer and set the correct temperature Switching on: --18 Switch on the freezer by pressing the power switch. ACTION FREEZE The alarm sounds if the temperature inside the freezer reaches room temperature. Turn off the alarm by pressing the switch-off button.
  • Page 5: Freezing

    Temperature alarm If the temperature rises above -12°C, the red warning lamp flashes and an audible alarm sounds. The temperature display will then start to flash. To switch off the alarm: Press the alarm shut-off button to switch off the audible alarm.
  • Page 6: Suitable Storage Periods

    Practical advice on freezing · When freezing products, use the top shelves. - When freezing large amounts of food/provisions, the accumulator moves to on top of the food. - Do not cover the air hole on the rear wall. · Spread out the products as much as possible to allow air to circulate between them.
  • Page 7: Hints And Tips

    Hints and Tips Saving energy Food Storage Pay careful attention to where the cabinet is To obtain the best results from your appliance, · · placed. See the section "Installation". When neither hot foods nor liquids which may installed correctly, the cabinet will consume less evaporate, should be placed in the larder energy.
  • Page 8: To Change The Light Bulb

    Internal Cleaning Disconnect the appliance from electricity supply. Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0,5 litre water) Rinse and dry thoroughly. Regularly check the door seals and wipe clean to ensure they are clean and free from debris. Wash the outer cabinet with warm soapy water.
  • Page 9 It is too warm inside the freezer. Set a lower temperature. Make sure that the door is completely closed and that the insulating strip is complete and clean. If warm food products have been put inside the freezer, wait for a couple of hours and then check the temperature again.
  • Page 10: Guarantee Conditions

    Phone: 08705 950950 * MOD (modell):............. * calls to this number may be recorded for training purposes PROD.NO (model number):........SER:NO (serial number):........Purchase date............Technical specification Model EUF2900/EUF2900X Volume 267 l Width 595 mm Height 1800 mm Depth 623 mm...
  • Page 11: Remove The Transport Supports

    Remove the transport supports Remove the transport supports placed along the door sides. Some models are fitted with a silencing pad under the cabinet. Do not remove this pad. Installation of distance Assemble the attached distance on the back side of the panel according to the illustration.
  • Page 12: Door Reversal

    Climate for an ambient temperature of classification If the cabinet is placed in a corner and the side with +10°C to +32°C the hinges facing the wall, the distance between the wall and the cabinet must be at least 15 mm to allow +16°C to +32°C the door to open enough so that the baskets can be +18°C to +38°C...
  • Page 13 Electrolux 8183808-01/6...
  • Page 14 bä=dêìéç=bäÉÅíêçäìñ=Éë=Éä=ã~óçê=Ñ~ÄêáÅ~åíÉ=ÇÉä=ãìåÇç=ÇÉ=~é~ê~íçë=é~ê~=ä~=ÅçÅáå~I=äáãéáÉò~=ó=ìëç=ÉñíÉêáçêK=j•ë=ÇÉ=RR ãáääçåÉë=ÇÉ=éêçÇìÅíçë=ÇÉä=dêìéç=bäÉÅíêçäìñ=EÑêáÖçêáÑáÅçëI=ÅçåÖÉä~ÇçêÉëI=ÅçÅáå~ëI=ä~î~Ççê~ëI=~ëéáê~ÇçêÉëI=ãçíçëáÉêê~ë=ó Åçêí~ŨëéÉÇÉëF=ëÉ=îÉåÇÉå=Å~Ç~=~¥ç=éçê=ìå=î~äçê=~éêçñáã~Çç=ÇÉ=NQ=ÄáääçåÉë=ÇÉ=rpA=Éå=ã•ë=ÇÉ=NRM=é~áëÉë=ÇÉä=ãìåÇçK aáÉ=bäÉÅíêçäìñJdêìééÉ=áëí=ÇÉê=ïÉäíïÉáí=Öê∏≈íÉ=eÉêëíÉääÉê=îçå=Ö~ëJ=ìåÇ=ëíêçãÄÉíêáÉÄÉåÉå=dÉê®íÉå=ÑΩê=ÇáÉ=hΩÅÜÉI=òìã oÉáåáÖÉå=ìåÇ=ÑΩê=cçêëí=ìåÇ=d~êíÉåK=gÉÇÉë=g~Üê=îÉêâ~ìÑí=ÇáÉ=bäÉÅíêçäìñJdêìééÉ=áå=ΩÄÉê=NRM=i®åÇÉêå=ÇÉê=bêÇÉ=ΩÄÉê=RR jáääáçåÉå=mêçÇìâíÉ=EhΩÜäëÅÜê®åâÉI=eÉêÇÉI=t~ëÅÜã~ëÅÜáåÉåI=pí~ìÄë~ìÖÉêI=jçíçêë®ÖÉå=ìåÇ=o~ëÉåã®ÜÉêF=ãáí=ÉáåÉã tÉêí=îçå=êìåÇ=NQ=jêÇK=rpaK qÜÉ=bäÉÅíêçäìñ=dêçìé=áë=íÜÉ=ïçêäÇDë=ä~êÖÉëí=éêçÇìÅÉê=çÑ=éçïÉêÉÇ=~ééäá~åÅÉë=Ñçê=âáíÅÜÉåI=ÅäÉ~åáåÖ=~åÇ=çìíÇççê=ìëÉK jçêÉ=íÜ~å=RR=ãáääáçå=bäÉÅíêçäìñ=dêçìé=éêçÇìÅíë=EëìÅÜ=~ë=êÉÑêáÖÉê~íçêëI=ÅççâÉêëI=ï~ëÜáåÖ=ã~ÅÜáåÉëI=î~Åììã=ÅäÉ~åÉêëI ÅÜ~áå=ë~ïë=~åÇ=ä~ïå=ãçïÉêëF=~êÉ=ëçäÇ=É~ÅÜ=óÉ~ê=íç=~=î~äìÉ=çÑ=~ééêçñK=rpa=NQ=Äáääáçå=áå=ãçêÉ=íÜ~å=NRM=ÅçìåíêáÉë ~êçìåÇ=íÜÉ=ïçêäÇK MARIESTAD /AV...
