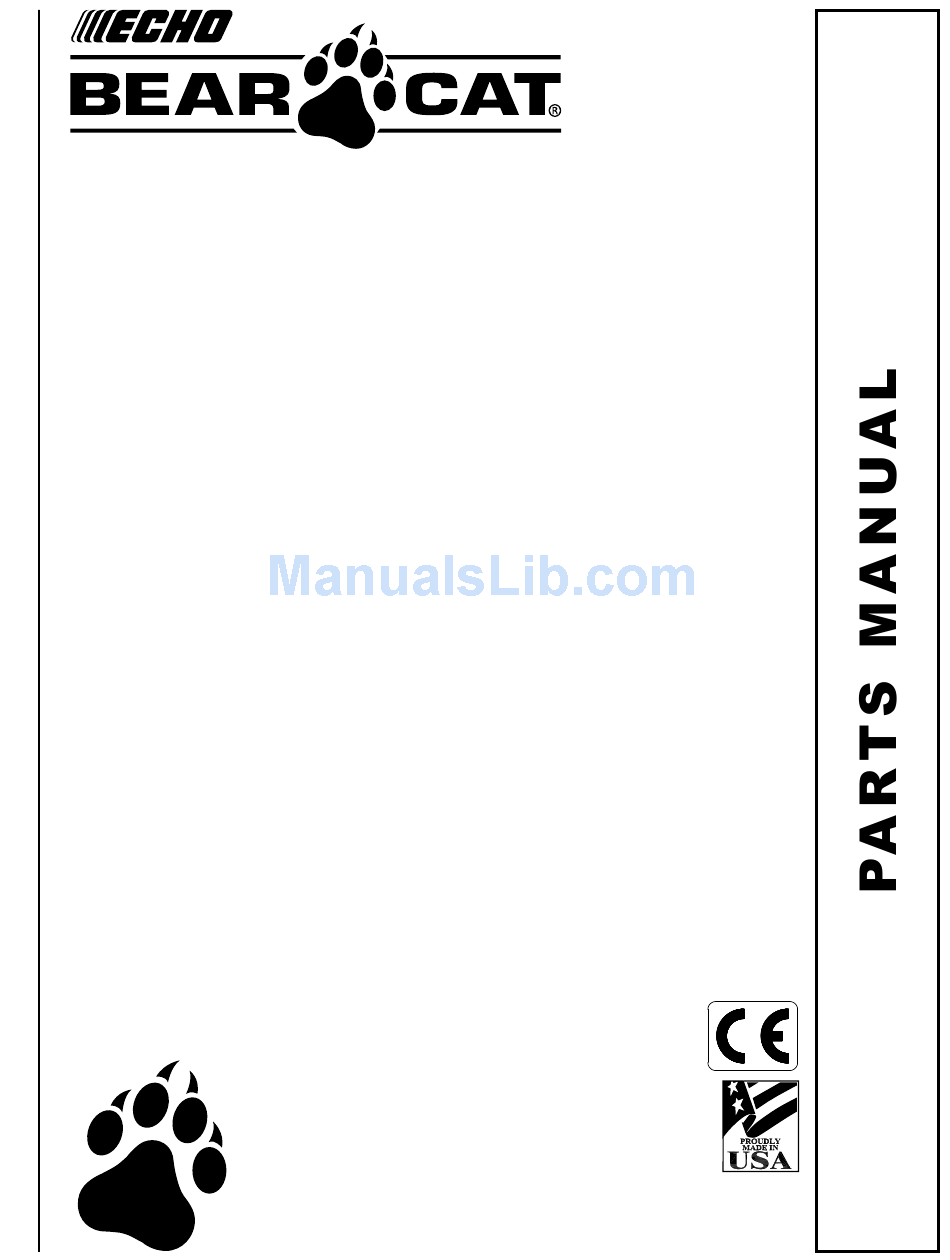

- Page 1 WV160 - honda 160cc push WV160s - honda 160cc self propelled WV190 - B&s 190cc push WV190s - B&s 190cc self propelled pn: 13888-00 rev 071410 Companion to 13887-00 sn range: a05913 to a09358...
-
Page 2: Before You Begin
If you have any questions or comments about this manual, please call us toll-free at 1-800-247-7335. If you have any questions or problems with your machine, please call or write your local authorized ECHO Bear Cat Dealer. This document is based on information available at the time of its publication. ECHO Bear Cat is continually making improvements and developing new equipment. -
Page 3: Table Of Contents
TABLE OF CONTENTS desCriPTion PaGe WV160 & WV190 driVe assemBlY ..........................2 PuSH VAC WV160 & WV190 enGine & Fan ..........................4 PuSH VAC WV160 & WV190 handleBar............................. 6 PuSH VAC WV160s & WV190s driVe assemBlY ........................8 self-propelled WV160s & WV190s enGine & Fan ........................... 10 self-propelled WV160s &... -
Page 4: Wv160 & Wv190 Drive Assembly
WV160 & WV190 driVe assemBlY PuSH VAC 4/10 Page 2... -
Page 5: Push Vac
WV160 & WV190 driVe assemBlY 4/10 PuSH VAC ParT WV160 WV190 iTem desCriPTion numBer 12172 DECAl, OPERATINg INSTRuCTIONS ISO 13890-00 DECAl, DANgER 31246-00 DECAl, 160CC PuSH BEARVAC INFORMATION 14018-00 DECAl, 6HP PuSH BEARVAC INFORMATION 14181-00 DECAl, 97 DB 15030 WASHER, 1/4 FlAT ZP... -
Page 6: Wv160 & Wv190 Engine & Fan
WV160 & WV190 enGine & Fan PuSH VAC 4/10 Page 4... -
Page 7: Push Vac
WV160 & WV190 enGine & Fan 4/10 PuSH VAC ParT WV160 WV190 iTem desCriPTion numBer 12512 ENgINE, 5.5 HP HONDA gCV 12415 ENgINE, 190CC B&S INTEK/IC VERTICAl 13816-00 HOuSINg, FAN W/INTAKE 13850-00 CAP, ROuND VINyl (4 X 1) 13890-00 DECAl, DANgER... -
Page 8: Wv160 & Wv190 Handlebar
WV160 & WV190 handleBar PuSH VAC 4/10 Page 6... -
Page 9: Push Vac
WV160 & WV190 handleBar 4/10 PuSH VAC ParT iTem numBer desCriPTion 0040-0137-00 STRAP, 4-1/2 BlACK TIE 13851-00 ClIP, HAIRPIN ZP 13857-00 PAD, FOAM HANDlEBAR 13870-12 HANDlEBAR, BEARVAC uPPER 13874-00 CONTROl, THROTTlE 13877-00 CONTROl, HEIgHT ADJuSTMENT 15030 WASHER, 1/4 FlAT ZP... -
Page 10: Wv160S & Wv190S Drive Assembly
WV160s & WV190s driVe self-propelled 4/10 assemBlY Page 8... -
Page 11: Self-Propelled
WV160s & WV190s driVe 4/10 self-propelled assemBlY iTem ParT numBer desCriPTion 12174 DECAl, SHIElD DANgER 12574 BEARINg, 1/2 FlANgE 13853-00 SPROCKET, 35 B10 13854-00 PullEy, 4 O.D. X 12 MM BORE 13871-00 CHAIN, #35 X 62 PITCH W/ CONN. lINK 15030 WASHER, 1/4 FlAT 15097... -
Page 12: Self-Propelled
WV160s & WV190s self-propelled 4/10 enGine & Fan WV160s WV190s iTem ParT numBer desCriPTion 12172 DECAl, PROTECTION 12512 ENgINE, 5.5 HP HONDA gCV 12415 ENgINE, 190CC B&S INTEK/IC VERTICAl Page 10... -
Page 13: Self-Propelled
DECAl, SERIAl NuMBER 16196 ClAMP, 4 IN HOSE 16692 KEy, 3/16 X 5/32 4 MM WDRFF JuMP 17913 DECAl, ECHO BEARCAT 6.82 X 1.90 23668 SPACER, .88 X 1.25 31247-00 DECAl, 5.5 HP SP BEARVAC INFORMATION 14020-00 DECAl, 6 HP SP BEARVAC INFORMATION... -
Page 14: Wv160S & Wv190Shandlebar
WV160s & WV190s self-propelled 4/10 handleBar Page 12... -
Page 15: Self-Propelled
WV160s & WV190s 4/10 self-propelled handleBar WV160s & WV190s handleBar assemBlY iTem ParT numBer desCriPTion 0040-0137-00 STRAP, NylON TIE 12849 DECAl, 3 SPEED 13851-00 ClIP, HAIRPIN ZP 13857-00 PAD, FOAM HANDlEBAR 13870-12 HANDlEBAR, BEARVAC uPPER 13874-00 CONTROl, THROTTlE 13875-00 CONTROl, TRANS. SHIFT 13876-00 CONTROl, CluTCH ENgAgEMENT 13877-00... -
Page 16: Debris Bag
deBris BaG all Models 4/10 deBris BaG iTem ParT numBer desCriPTion 13817-00 HANDlE, BAg WITH DEFlECTOR 31339-00 BAg, BEAR VAC Page 14... -
Page 17: All Models
4/10 all Models deCals iTem ParT numBer desCriPTion 17913 DECAl, ECHO BEARCAT 13896-00 DECAl, ECHO BEARCAT 36679-00 DECAl, MODEl WV160 36680-00 DECAl, MODEl WV160S 36050-00 DECAl, MODEl WV190 18940-00 DECAl, MODEl WV190S Page 15... -
Page 18: Caster Wheel Kit
CasTer Wheel KiT OPTIONAl 4/10 CasTer Wheel KiT, 73607-00 iTem ParT numBer desCriPTion 13872-00 WHEEl, 4 X 2 CASTER 15006 BOlT, 3/8 X 1 gR5 HEX CAPSCREW ZP 15031 WASHER, 3/8” FlAT ZP 15368 HAIRPIN ClIP ZP #203 15388 NuT, 3/8” Nyl INSERT, NE, ZP 73671-35 WElDMENT, CASTER WHEEl MOuNT Page 16... -
Page 19: Vacuum Hose Kit
VaCuum hose KiT 4/10 OPTIONAl EXISTING 5/16 X 5/8 BOLT EXISTING 5/16 WASHER EXISTING 5/16 X 5/8 BOLT RETAIN PLASTIC CAP FOR FUTURE USE EXISTING 5/16 WASHER FOR USE WITH NOZZLE WEAR PLATE APPLY FOAM AROUND PERIMETER OF SEAL PLATE EXISTING HOSE CLAMP TO BE RE-USED VaCuum hose KiT, 73606-00... -
Page 20: Housing Intake Wear Plate Kit
housinG inTaKe Wear PlaTe KiT OPTIONAl 4/10 housinG inTaKe Wear PlaTe KiT, 73640-00 iTem ParT numBer desCriPTion 15695-00 SCREW, 1/4 X 3/4” HWH TAPPINg ZP 73675-12 guARD, NOZZlE WEAR Page 18... -
Page 21: Optional Liner Kit
liner KiT 4/10 OPTIONAl Wheeled VaCuum liner KiT, Pn 76466-00 ParT no. desCriPTion 15239 BOlT, 1/4 X 1’ CRg 15355 NuT, 1/4 NylOCK 76464-12 lINER, VAC HOuSINg Page 19... - Page 22 ECHO BEAR CAT www.bearcatproducts.com 237 NW 12th Street, West Fargo, ND 58078-0849 Phone: 701.282.5520 • Toll Free: 800.247.7335 • Fax: 701.282.9522 E-mail: service@bearcatproducts.com • sales@bearcatproducts.com...
