Summary of Contents for EarthQuake MQB-XX
- Page 1 User’s Manual SHELL SHOXX The Ultimate Gaming Accessory ™ MQB-XX 300-XX Earthquake Sound Corp. | (510) 732-1000 | www.earthquakesound.com...
-
Page 2: Table Of Contents
Fax: 510-732-1095 © 2011 Earthquake Sound Corporation. All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound Corporation. The information is subject to change without notice. Earthquake Sound Corporation assumes no responsibility for errors that may appear within this document. -
Page 3: Introduction

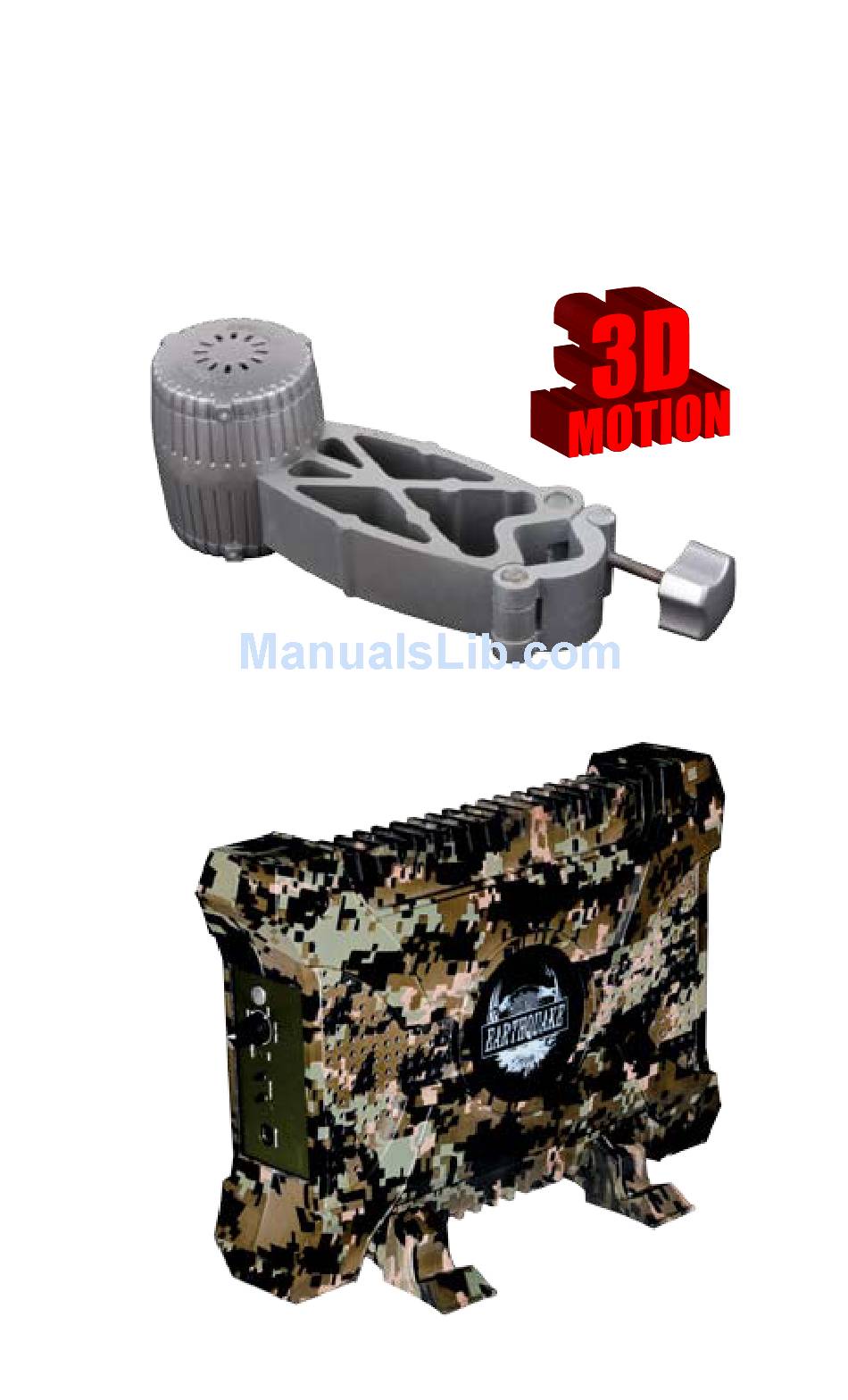

The Shell Shoxx set includes the MQB-XX shaker and 300-XX, a matching 300-watt max amplifier. This gaming set is the ultimate gaming accessory and brings 3D Motion™ to any set-up. The MQB-XX is a patented shaker that converts low frequencies into powerful vibrations. It is optimized to clamp on to virtually any office chair;... - Page 4 15) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Shell Shoxx Manual Earthquake Sound Corp. | www.earthquakesound.com...
- Page 5 • Keep all power cords away from all signal cables to prevent humming from induced noise. • Choose reliable signal cable cords (Earthquake Sound also specializes in high-performance RCA cables and patches). • All speaker wires that are ran through the walls should be twisted to reduce potential hum noise pick up.
-
Page 6: Applications
Mini “Y” Adaptor male to dual female Other 2 Velcro Rings Applications: • Video games with gaming console • Computer games • Movie Watching Great for: Apartments Offices Dorm Rooms Bedrooms Teenager’s Room Shell Shoxx Manual Earthquake Sound Corp. | www.earthquakesound.com... - Page 7 Setting Up Your Shell Shoxx System Attaching the Shell Shoxx Shaker to Your Chair 1) Mount your Shell Shoxx Shaker to your chair. If using an office chair, be sure to push down the plastic sleeve covering the center post. Tighten securely once attached to the center post.
-
Page 8: Connecting To A Tv
Video Game Console TV Audio Input Left Right (White) (Red) RCA Y Adaptor (e) Power Extension Cord (b) Amplifier RCA female to male (d) Left (White) Right (Red) Line Level Speaker Input Output Shell Shoxx Manual Earthquake Sound Corp. | www.earthquakesound.com... -
Page 9: Connecting To A Computer
Connecting to a Computer 1) Locate the audio line out on your computer, commonly signified with a light green ring. 2) Connect the Mini Y adaptor’s (f) male terminal to the computer audio output. 3) Connect your computer speakers to one of the female terminals of the Mini Y adapter (f). - Page 10 120VAC 60Hz 0.2A CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN FUSE 100-120V AC 60Hz T2AL 250V 220-240V AC 50Hz T1AL 250V AC Select Serial Number: ESC 2727 McCone Avenue Hayward California U.S.A. Shell Shoxx Manual Earthquake Sound Corp. | www.earthquakesound.com...
- Page 11 If You are Using a Computer with iQuake-52 1) Connect a Mini to RCA cable (c) from the audio output on your computer to the audio input on the iQuake-52 amplifier. 2) Toggle through the input selector until you hear the audio. iQuake-52 Amplifier 300-XX Amplifier Left...
- Page 12 120VAC 60Hz 0.2A CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN FUSE 100-120V AC 60Hz T2AL 250V 220-240V AC 50Hz T1AL 250V AC Select Serial Number: ESC 2727 McCone Avenue Hayward California U.S.A. Shell Shoxx Manual Earthquake Sound Corp. | www.earthquakesound.com...
- Page 13 Connecting a MiniMe Subwoofer to Your iQuake-52 For the highest impact system, use Earthquake’s MiniMe subwoofer and Shell Shoxx at the same time. 1) Connect the male end of the RCA Y Adaptor (e) into the subwoofer output of the iQuake-52 amplifier.
-
Page 14: Specifications
8-ohm load: 160WRMS Power Line Voltage 110 - 120C ~ AC/60Hz/180W (220 option) Input Sensitivity for max/min: 0.2V/1.7V Full Output Input Impedance 10Kohm Dimensions Height: 9-1/2” (241mm) Width: 13-3/16” (335mm) Depth: 3-1/4” (82mm) Shell Shoxx Manual Earthquake Sound Corp. | www.earthquakesound.com... -
Page 15: Warranty Guidelines
• Product/part damaged due to poor packaging or abusive shipping conditions. • Subsequent damage to other products. A warranty claim will not be valid if the warranty registration card is not properly filled & returned to Earthquake with a copy of the purchase receipt. - Page 16 The Sound That Will Move You. Earthquake Sound reserves the right to amend details of the specifications without notice. © Copyright Earthquake Sound Corporation Earthquake Sound Corporation 2727 McCone Avenue, Hayward CA, 94545 Phone: (510) 732-1000 Fax: (510) 732-1095...
