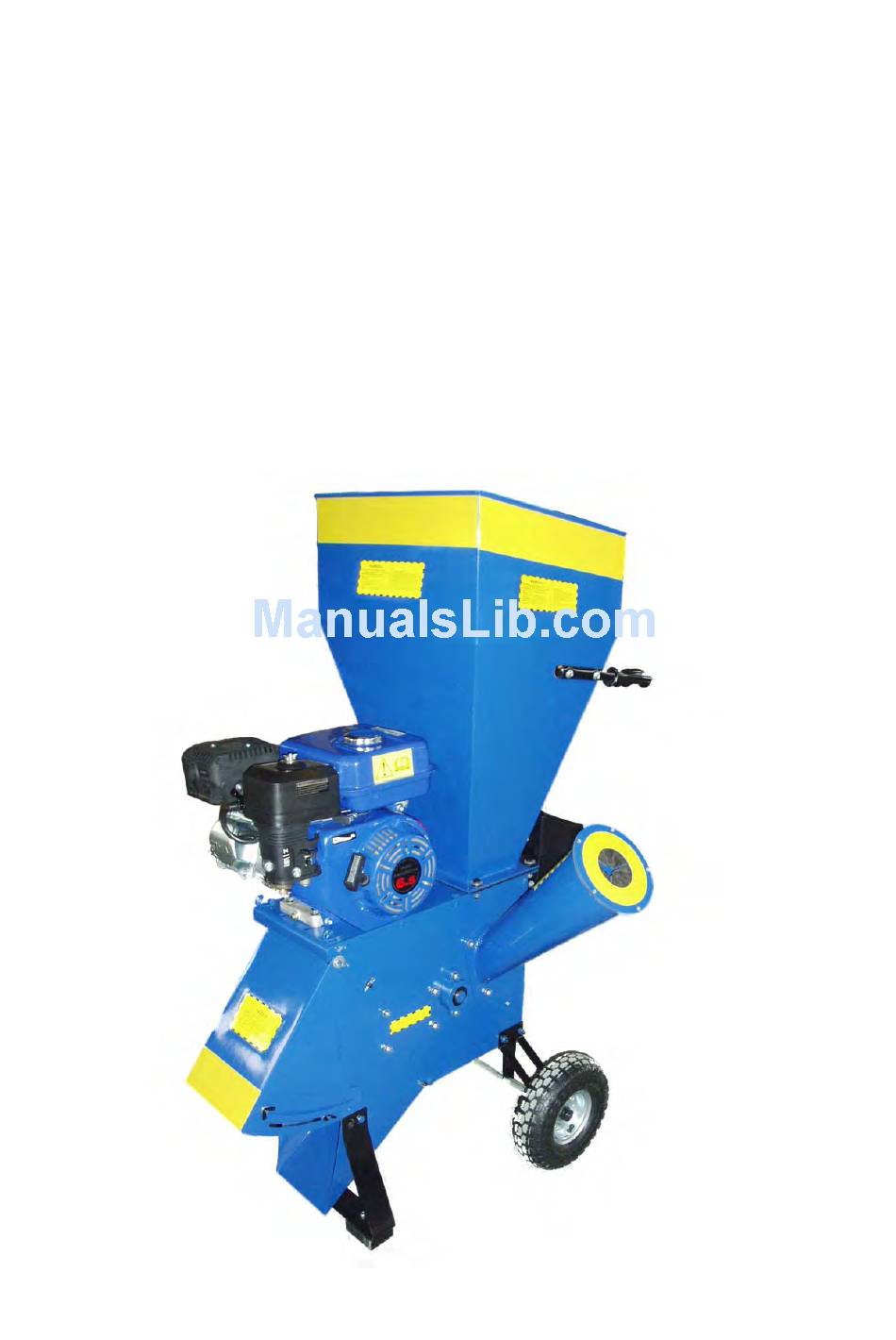

- Page 1 CS-65 6.5HP CHIPPER SHREDDER OPERATION MANUAL...
- Page 2 READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Attn: users. We are highly appreciated for your using CS-65 shredder. Read this operation manual carefully before attempting to assemble or operate the machine. The power unit used for this shredder is type JF200. Please read the attached engine manual for detail information of JF200.
- Page 3 I. Safety Warnings: Be extremely cautious to rotating blade in machine. 1. Never allow hand, foot, or any part of body enter hopper. 2. Never place hand, foot or any part of body closed to discharge opening while machine in operation.
- Page 4 2. Attaching front foot to the basic machine. See picture 2. 2.1. Remove the nuts from bolts 1, 2, remove the bolts and pipe spacer. 2.2. Forward the parts box to make the long pin 3 clear. 2.3. Pull the discharge hopper out of the parts box and align the holes 1,2. 2.4.
- Page 5 nut. 3.5 Reassemble the pipe spacer and the long bolt 7and secure it tightly with gasket and nut. Then screw the nut tight in 6 place. 4. Attaching the chipper tube to the basic machine. 4.1. Put the chipper tube 2 in place on the side of the basic machine. Align the three mounting holes in the flange with three holes around place 1.
- Page 6 9.3. Open the cover and pull the dipstick out. See picture 6. Gasoline 10W-30 and 5W-30 are available. Do not fill closer than 10mm to 15mm from the top of the fuel tank. dipstick cover 9.4. Refer to “starting the engine” for the instruction of adding fuel III.
- Page 7 4. Do not allow hands or any other parts of the body or clothing inside the feeding hopper, discharge chute, or other rotating parts. 5. Do not touch the muffler in operation since the temperature of muffler surface is so high that people will be burned.
- Page 8 chipping tube for chipping by the rotating blade. 2. Some side shoots and branches may have to be trimmed from the main stalk before chipping. 3. Shorts stubs of branches may be pushed through the chipper section with next branch, never use hand.
- Page 9 4. Sharpen the blade. ● If the blade is struck a break by metal or stone or some hard subjects, please sharpen the break lot at first. ● Avoid changing the blade color and anneal when sharpening the blade. ● It may result in a breach on the edge if you overexert. ●...
-
Page 11: Specification
SPECIFICATION Main dimension: L x W x H inch 30*29*45 Net weight Fuel tank volume 0.95 Oil tank volume 0.63 Max. cutting speed /min 2000/min Type of engine JF200 Engine manufacturer Jiangsu Jiangdong Group Engine type 4-stroke,Overhead valve, Single Cylinder Carburetor type Type of carburetor Starter...
