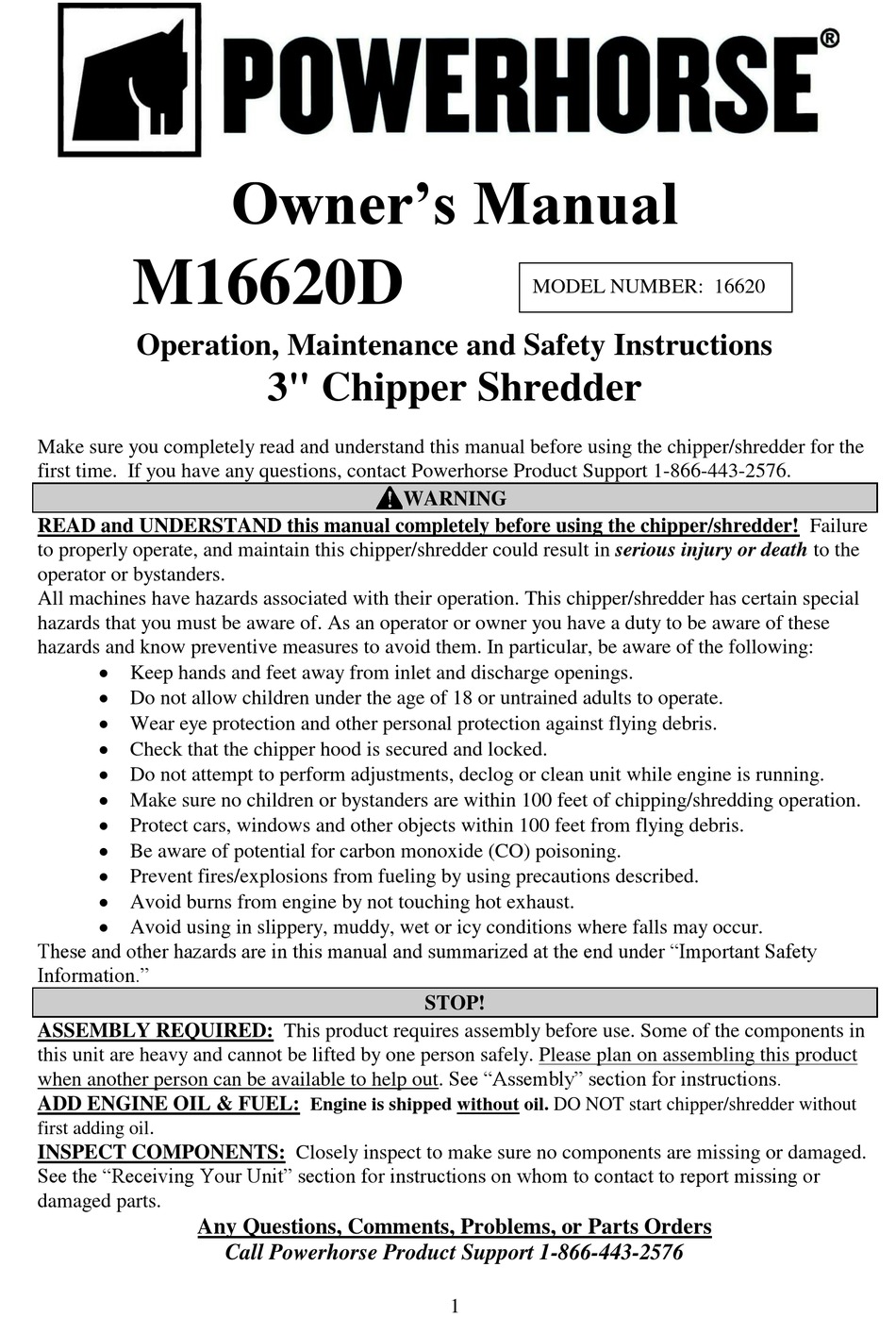

M16620D
Operation, Maintenance and Safety Instructions
Make sure you completely read and understand this manual before using the chipper/shredder for the
first time. If you have any questions, contact Powerhorse Product Support 1-866-443-2576.
READ and UNDERSTAND this manual completely before using the chipper/shredder! Failure
to properly operate, and maintain this chipper/shredder could result in serious injury or death to the
operator or bystanders.
All machines have hazards associated with their operation. This chipper/shredder has certain special
hazards that you must be aware of. As an operator or owner you have a duty to be aware of these
hazards and know preventive measures to avoid them. In particular, be aware of the following:
 Keep hands and feet away from inlet and discharge openings.
 Do not allow children under the age of 18 or untrained adults to operate.
 Wear eye protection and other personal protection against flying debris.
 Check that the chipper hood is secured and locked.
 Do not attempt to perform adjustments, declog or clean unit while engine is running.
 Make sure no children or bystanders are within 100 feet of chipping/shredding operation.
 Protect cars, windows and other objects within 100 feet from flying debris.
 Be aware of potential for carbon monoxide (CO) poisoning.
 Prevent fires/explosions from fueling by using precautions described.
 Avoid burns from engine by not touching hot exhaust.
 Avoid using in slippery, muddy, wet or icy conditions where falls may occur.
These and other hazards are in this manual and summarized at the end under ―Important Safety
Information.‖
ASSEMBLY REQUIRED: This product requires assembly before use. Some of the components in
this unit are heavy and cannot be lifted by one person safely. Please plan on assembling this product
when another person can be available to help out. See ―Assembly‖ section for instructions.
ADD ENGINE OIL & FUEL:
.
first adding oil
INSPECT COMPONENTS: Closely inspect to make sure no components are missing or damaged.
See the ―Receiving Your Unit‖ section for instructions on whom to contact to report missing or
damaged parts.
Any Questions, Comments, Problems, or Parts Orders
Owner's Manual
3" Chipper Shredder
Engine is shipped without oil. DO NOT start chipper/shredder without
Call Powerhorse Product Support 1-866-443-2576
MODEL NUMBER: 16620
WARNING
STOP!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M16620D and is the answer not in the manual?

Questions and answers

Summary of Contents for Powerhorse M16620D

  • Page 1 3" Chipper Shredder Make sure you completely read and understand this manual before using the chipper/shredder for the first time. If you have any questions, contact Powerhorse Product Support 1-866-443-2576. WARNING READ and UNDERSTAND this manual completely before using the chipper/shredder! Failure to properly operate, and maintain this chipper/shredder could result in serious injury or death to the operator or bystanders.
  • Page 2 Hazard Signal Word Definitions...

  • Page 3: Table Of Contents

    Table of Contents Part I. Introduction About Your Chipper/Shredder ......................4 Safety Label Locations ........................5 Receiving & Transporting: Initial Inspection ........................... 9 Assembly Instructions ........................10 Moving Instructions ........................14 Part II. Operation Operation: 1. Pre-start Check List & Procedures ................... 16 2.

  • Page 4: About Your Chipper/Shredder

    Manual furnished with the chipper/shredder. Product Suitability Your Powerhorse chipper/shredder has two modes of operation. 1) Chipping – The side chute is designed to only chip wood. A chipper knife is mounted on a revolving flywheel and converts branches fed into the chipper chute into ―chips‖. 2) Shredding – The top hopper is designed to shred items such as leaves and garden waste.

  • Page 5: Safety Label Locations

    To order Replacement Safety Labels Call Powerhorse Product Support at 1-866-443-2576. WARNING: Replace Missing Labels ALWAYS make sure safety labels are in place and in good condition. If a safety label is missing or is not...

  • Page 6: Safety Labels

    Safety Labels Ref # Part # Description 780307 Powerhorse decal Main warning Danger discharge screen Flying debris warning Side feed hopper 785266 Decal Set Fire Hazard Warning Danger infeed hazard Top feed hopper Belt entanglement warning 785254 Engine Instructions...
  • Page 7 Safety Labels...
  • Page 8 Safety Labels...

  • Page 9: Receiving & Transporting

    See the ―Machine Component Identification‖ section of this manual for a diagram of the chipper/shredder and all its components. Package contents shown in Pic.1: (manual bag not shown) Pic.1 Ref # Description Discharge Cover Wheel Axle and Bracket Assembly Chipping Chute Handle Wheels If you have missing components, contact Powerhorse Product Support at 1-866-443-2576.

  • Page 10: Assembly Instructions

    Receiving & Transporting Assembly Instructions WARNING DO NOT attempt to start this machine until all assembly steps have been completed. Serious personal injury and damage to the machine and operators could occur. Assembling the chipper/shredder: 1. Engine off IMPORTANT: Ensure chipper/shredder engine is off. DO NOT attempt to start the chipper/shredder until all assembly steps have been completed.
  • Page 11 Receiving & Transporting 1) Remove (2) M8 x 20 short leg bolts and (2) M8 nuts from the top of the leg. See Pic. 4. 3. Attaching the leg Short Leg Bolts and Nuts Pic.4 2) Align the leg and the discharge chute in the orientation shown in Pic. 5. 3) Install (1) M8 x 200 long leg bolt through one side of the leg, frame and discharge chute.
  • Page 12 Receiving & Transporting 1) Remove (2) M8 x 20 bolts, (2) M8 flat washers and (2) M8 nuts on both sides of the 4. Attaching the discharge cover shown in Pic. 8. discharge cover Pic.8 Bolts Flat Washers Nuts 2) Loosen the dishing nuts/wing nuts on both sides of the frame as shown. 3) Position the slots in the discharge cover to slide over the dishing nuts/wing nuts shown in Pic.
  • Page 13 Receiving & Transporting 1) Install the wheels onto the axle and bracket assembly like shown in Pic. 11. 5. Attaching the 2) Remove (2) wheel assembly support tubes, (2) M8 x 200 long bolts and (2) M8 nuts wheel assembly that came installed on the frame.
  • Page 14 Receiving & Transporting 1) Place the handle on the hopper and align handle holes with hopper holes as shown. 6. Attaching the 2) Secure the handle using (4) M8 flat washers, (4) M8 spring washers and (4) M8x20 handle bolts (fasteners supplied in manual bag). Bolts Flat Washers Spring Washers...

  • Page 15: Moving Instructions

    Receiving & Transporting CAUTION This chipper/shredder does not ship with oil in the engine. Add oil before operating the chipper/shredder, or the engine will seize. Moving Instructions WARNING The chipper/shredder is heavy. It can crush and cause serious injury if it rolls out of control or tips over.

  • Page 16: Part Ii. Operation

    Operation 1. Pre-start Check List & Procedures WARNING: High Energy Machine This is a high-powered machine. It has moving parts operating with high energy and at high speeds. Safe procedures must be used to avert serious injury or death. Unsafe operation will create serious hazards for you, as well as anyone else in the nearby area.
  • Page 17 Operation Check the fuel level in the chipper/shredder’s fuel tank. Fill If needed, fill tank with fresh fuel from a portable container, after first chipper/shredder fuel tank(s) reading the following warnings and instructions. Do NOT fill the fuel tank to the top. Fuel may spill when operating on a slope.

  • Page 18: Starting/Feeding The Chipper/Shredder

    Operation Establish Safe Lay out a safe working area that best fits your project and/or situation by:  Using safety tools such as barricade signs, safety cones and caution tape. Working Area  Determining placement of equipment and brush pile (i.e., on or off the street) that will minimize interference with auto traffic.

  • Page 19: Stopping The Engine

    Operation  Slowly bring the engine throttle up. Warm-Up Checks  Listen for any unusual metal to metal sounds as chipper wheel is rotating.  Listen for any belt squealing indicating belt needs to be tightened or replaced  (Unusual sounds may mean a need for repair or cleaning out foreign material stuck in chipper.

  • Page 20: Feeding Material/Clearing Jam

    Operation 4. Feeding Material/ Clearing Jam Feeding Material DANGER: Amputation Hazard Never place your hands, feet or any part of your body in the chipper hopper, discharge opening, or near any moving part while the machine is running. If a feeding problem should occur shut the machine down and see Maintenance and Repair‖...

  • Page 21: Refueling On Site

    Operation Clearing Jam WARNING: Shut Off Engine to Clear Jam Before attempting to unclog debris or clear a jam: shut off the engine, disconnect spark plug wire, and wait for all moving parts to come to a complete stop. 1. Remove the top shredder hopper. 2.

  • Page 22: Refueling At Service Stations

    Operation 6. Refueling at Service Stations To avoid static electric sparking while filling the gasoline tank at service stations:  Never fill the chipper/shredder’s gas tank directly from the fuel pump without grounding it. The chipper/shredder’s tank is not grounded and high velocity flow from the pump can cause static electricity build-up and eventual ignition of gas vapors.
  • Page 23 Operation Additional Long Term Storage Procedures If you have been using your chipper/shredder regularly, this is a good time to perform your regular maintenance before storing your unit.  Change the oil. Perform  Change the fuel filter. pre-storage  Clean or replace the air filter. (see Engine manual) maintenance ...
  • Page 24 Operation WARNING: Gasoline fire/explosion hazard Gasoline is highly flammable and explosive. Drain the fuel into an approved container OUTDOORS and far away from open flame. NEVER store an engine with fuel in the tank indoors or in poorly ventilated spaces where fuel vapor can come in contact with: Static electric sparks Sparks from electric wiring, batteries, or running engines...

  • Page 25: Part Iii. Maintenance And Repair

     Repair. Major service, including the installation or replacement of parts, should be performed only by a qualified service technician. Obtain factory approved parts from Powerhorse Product Support at 1-866-443- 2576.  Replacement parts. If a part needs replacement, only use factory- approved repair parts.

  • Page 26: Chipping Knives

    Maintenance and Repair 1. Chipping Knives There are chipping knives that are mounted on the large spinning knife rest/wheel which drives the knives past the incoming material at a high rate of speed and causes the ―chipping‖ action. Routine inspection of the chipping knives for sharpness will ensure the chipper/shredder is operating at full efficiency.

  • Page 27: Shredding Hammers/Knives

    Maintenance and Repair 2. Shredding Hammers/Knives There are four shafts attached to the flywheel. Each shaft has 5 hammers/knives. As the large spinning wheel rotates, the hammers/knives rotate and pulverize the shreddable material. The material is broken down and passes through the shredding screen and exits the machine. Routinely inspecting the hammers/knives and shredder screen for damage will ensure the shredder is operating correctly.

  • Page 28: Belt And Sheave Care

    Maintenance and Repair 3. Belt and Sheave Care Proper belt tension and sheave alignment is vital to chipper/shredder performance. Here are a few problems that can occur when belts and sheaves are not properly maintained or cared for. Loose Belt: A loose belt will slip and then glaze over. Once this happens the belt will not transmit power to the knife rest which can cause the chipper/shredder to clog and also cause excess sheave wear.
  • Page 29 Do not operate the machine without making sure all guards are in place after servicing. Note: New belts require a “break-in” period of approximately 2 hours. Readjustment may be necessary after “break-in.” Note: Use only factory recommended belts. Contact Powerhorse Product Support at 1-866-443-2576.
  • Page 30 Maintenance and Repair Sheave Installation Before installing sheaves, make sure the chipper/shredder shaft and engine shaft are clean and square or parallel to each other. This can be done by & Alignment using two large carpenter’s squares. Assemble bushings into sheaves by leaving them loose, then slide them on the shafts and install the key.

  • Page 31: Maintenance Schedule

    If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts that do not meet specifications may result in a safety hazard or poor operation of the chipper/shredder. Contact Powerhorse Product Support at 1-866-443-2576 for any questions, problems, or parts orders.

  • Page 32: Troubleshooting

    Maintenance and Repair 5. Troubleshooting Symptom Possible Cause Possible Solution Engine will not start. 1. Control levers are not in correct 1. Make sure the ON/OFF switch is ON, the positions for starting. fuel shut-off valve is open, and the choke and throttle controls are in the start position.

  • Page 33: Specifications

    Width 28.35in. Height 55.90in. Weight 178.50 lbs. Tires, Size 10in. Flat Free ENGINE Size Powerhorse 208cc OHV 4-stroke with low oil shutdown CHIPPER (SIDE) CHUTE Size 3in. Feed Opening 3in. Capacity 2 1/2in. SHREDDER (TOP) HOPPER Size 7 1/2in. x 6 1/2in.

  • Page 34: Machine Component Identification

    Machine Component Identification Ref # Component Description Engine Air cooled gas engine operates at 3600 RPM. Discharge Cover Debris exits the machine here. Stabilizes the front of the unit to eliminate tipping. Side Cover Plate Allows access to the chipping knives. Bearing Bearings for the rotating knife rest.

  • Page 35: Parts Explosion

    16620 Parts Explosion - Rev D...
  • Page 36 Chipping Knife 785675 Handle 785652 Knife Rest/Wheel Screw M8x16 785653 Flat Key 8x7x22 Nut M8 785654 Support Tube 2 780150 Engine-LCT Powerhorse 208cc 785655 Knighthead 785676 Nut M8 Shredding Hammer 785677 Wrench 10-13 Spacer 5 785678 Spanner M6 Hammer Axle...
  • Page 37 16620 Parts Explosion - Rev D Part Number Part Description Kit Number and Description Item Bolt M8x200 Support Tube 2 785693 Screw M8x20 Bracket Hardware Kit Locknut M8 Washer 8 Bolt M8x200 Support Tube 1 785694 Wheel Support Hardware Kit Locknut M8 Washer 8 Gasket Ø8.4xØ24x2...

  • Page 38: Summary Of Important Safety Information

    Summary of Important Safety Information This section provides a summary of the various safety procedures and measures that have been presented throughout the manual. Keep this summary handy and refer to it to refresh your memory about how to safely use your chipper/shredder. WARNING Carefully read and make sure you understand the following safety information before using the chipper/shredder.
  • Page 39 Summary of Important Safety Information  Hot exhaust - fires. Exhaust from engine can be extremely hot and cause fire. Position muffler at least 7ft. from combustible objects during operation.  Spark Arrestor. Equip engine with a spark arrestor if chipper/shredder will be used near any ignitable forest, brush or grassy land.
  • Page 40 Summary of Important Safety Information  “Bounceback”. Keep your face and body away from the chipper hopper in the event of accidental bounce back of any material.  Slipping/Falling. Operating in slippery, muddy, wet or icy conditions could lead to losing your footing and slipping or falling.

  • Page 41: Special Safety Information On Static Electricity

    Special Safety Information on Static Electricity Static electricity and filling gasoline: Static electricity can initiate from ungrounded gasoline tanks or containers, from flowing gasoline, and from persons carrying a static electric charge. Static electricity can explosively ignite gasoline vapors that are present during the fueling process, resulting in serious burns to all nearby persons.

  • Page 42: Limited Warranty Policy

    This warranty does not cover any personal injury or damage to surrounding property caused by failure of any part. This warranty is in lieu of any other warranty expressed or implied and Powerhorse assumes no other responsibility or liability outside that expressed within this warranty.
  • Page 43 This page has intentionally been left blank.
  • Page 44 Distributed by Northern Tool + Equipment Co., Inc. Burnsville, MN 55306 Made in China...
