Summary of Contents for GefenTV Repeater For HDMI 1.3 GTV-HDMI1.3-141

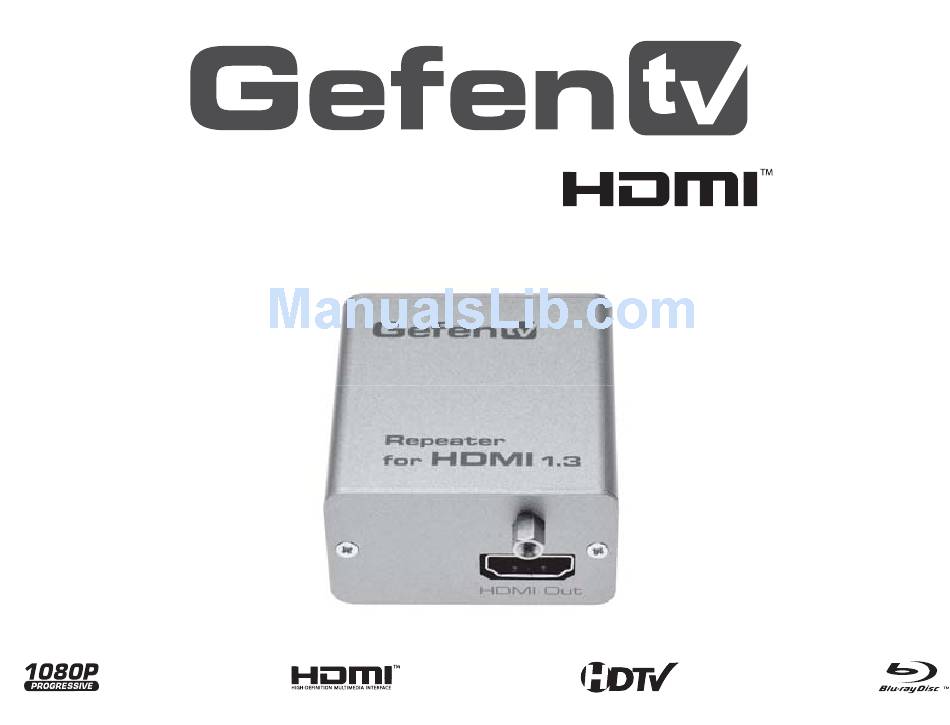

- Page 1 Repeater For GTV-HDMI1.3-141 GTV-HDMI1.3-141 User Manual User Manual...
-
Page 2: Asking For Assistance
Chatsworth, CA 91311 www.gefen.com/gefentv support@gefentv.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying Repeater For HDMI 1.3 is a trademark of Gefen Inc. All trademarks are the property of their respective companies Notice doc u men ta tion without prior written notice. -
Page 3: Table Of Contents
Introduction Operation Notes Features Panel Layout Connecting And Operating The Repeater For HDMI 1.3 Specifi cations Warranty CONTENTS... -
Page 4: Introduction
The new HDMI 1.3 specifi cation has posed new challenges in the area of video extension, but it has always been Gefen’s goal to accept and implement these new technologies to bring you the products that you want and need. Introducing the Repeater For HDMI 1.3. Now there is a viable solution for extending HDMI 1.3 using long distance premium HDMI copper cables. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE REPEATER FOR HDMI 1.3 • The Repeater For HDMI 1.3 is HDCP compliant • The Repeater For HDMI 1.3 is HDMI 1.3 compliant. For a list of supported HDMI 1.3 features, please see page 3. •... -
Page 6: Features
Fully HDCP and HDMI compliant • Compact, portable device • Wall-powered for extra amplifi cation power • Based on proven Gefen Super Booster technology HDMI 1.3 Features • Lip-Sync Pass Through • 225 MHz (up to 12 bit YUV 444 supported @ 1080p) •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Power LED Indicator 5V DC HDMI Input Power Input Back Panel HDMI Output... -
Page 8: Connecting And Operating The Repeater For Hdmi 1.3
CONNECTING AND OPERATING THE REPEATER FOR HDMI 1.3 How to Connect the Repeater For HDMI 1.3 Connect the source to the Repeater For HDMI 1.3 using a the supplied HDMI cable. Connect the display to the Repeater For HDMI 1.3 using a user supplied HDMI cable. Connect the included 5V DC power supply to the Repeater For HDMI 1.3. -
Page 9: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 225 MHz Input Video Signal ...1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Maximum Single Link Range ... 1920 x 1200 x 60hz HDMI Input/Output Connector Type ... HDMI Type A Operating Temperature ...
