Summary of Contents for ClearOne BluePort NS-BP200

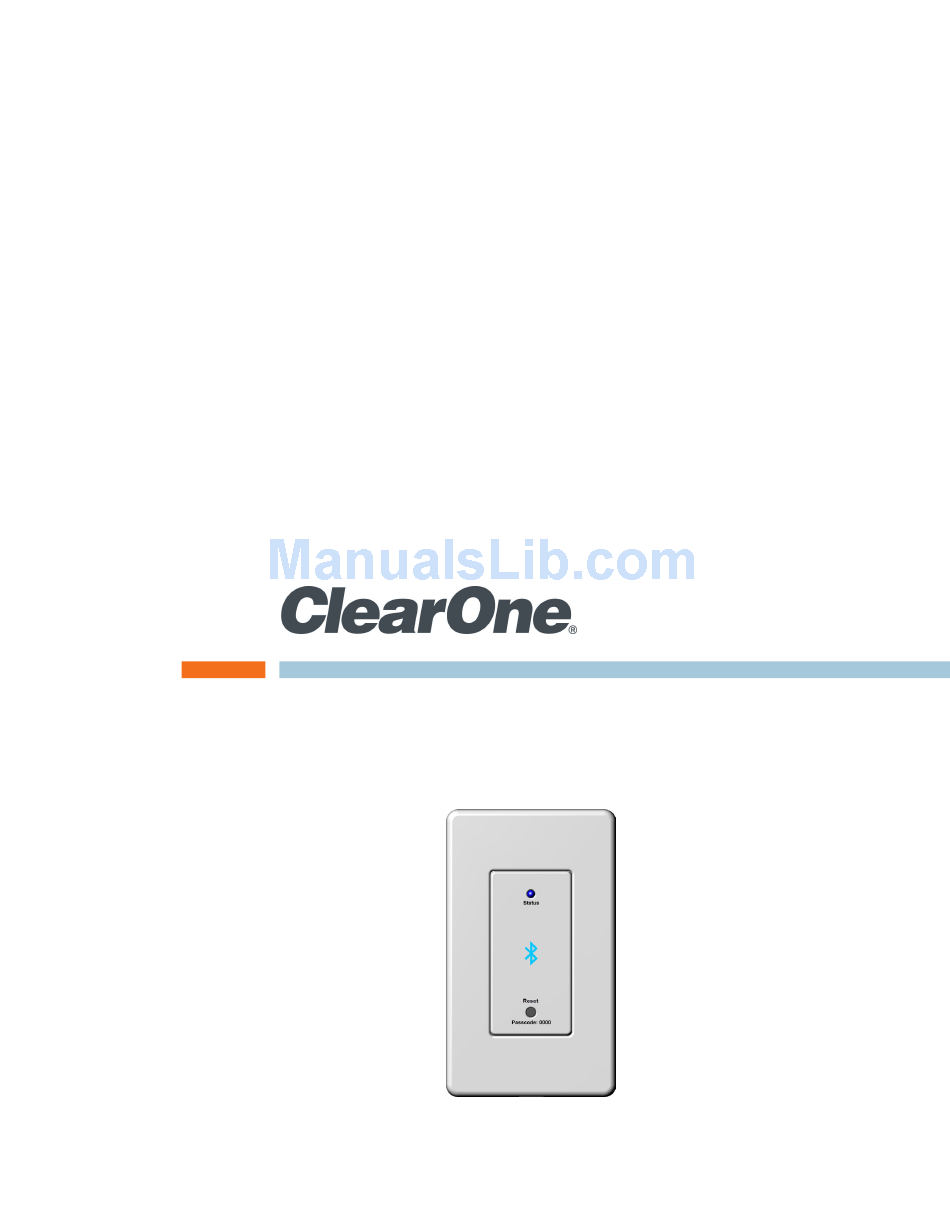

  • Page 1 BluePort NS-BP200 - Wireless Audio Gateway nstallatIon uIde...
  • Page 2 800-225-014-01 - Oct. 03, 2011 (Rev. 1.0) © 2011 ClearOne All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne. ClearOne reserves specific privileges. Information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    Table of contents PROducT OvERviEW Application ....................................1 Supported Devices ................................1 cONNEcTiONS ANd cONTROlS Electrical Connections ................................2 Zone Name Selector ................................2 Status LED ....................................2 Reset Button ..................................2 Physical Characteristics ................................2 Powering the BluePort ................................3 Connection Diagrams ................................4 PAiRiNg ThE WiRElESS dEvicE Zone Name Selector Switch ..............................7 How to Pair with the BluePort ...............................7 Reconnecting to a Previously Paired BluePort ........................8...

  • Page 4: Product Overview

    Product Overview The NS-BP200 BluePort is a simple to use digital wireless audio gateway that enables you to transmit digital audio from a source with Bluetooth A2DP support to your DigiLinX, NaimNet, ® VIEW™, Musica™ or Quartet™ multi-room system with a compatible EIM connection. The BluePort is fully Bluetooth v2.0 compliant.

  • Page 5: Connections And Controls Electrical Connections

    connections and controls ElEcTRicAl cONNEcTiONS 1x RJ45 connection with EIM (Expansion Interface Module used with SpeakerLinX, Musica Keypad, NaimNet and Quartet Keypad. Optional power injector may be required). 1x RJ45 connection with AP (Audio Port connection used with SpeakerLinX, TLA250, or Musica and Quartet Keypad).

  • Page 6: Powering The Blueport

    DigiLinX TLA250 Required NetStreams Quartet NS-Q4000 Required NetStreams Musica NS-MU5066, NS-MU4602, NS-MU4601, Musica Keypad Required ClearOne VIEW SL251, SL254, SL9250-CS, SLX300 Optional ClearOne VIEW (SL251, SL254, SL9250-CS, SLX300) With any NS-KL201, NS-KL101, NS-IRL1 Required NAIM Audio NaimNet NNP01, NNP02, NNP02-DC...

  • Page 7: Connection Diagrams

    cONNEcTiON diAgRAmS The following pages contain diagrams showing the connection layouts of various supported devices with the BluePort. nstAllAtion uide...
  • Page 8 : 800.283.5936 eChniCAl uPPort...
  • Page 9 nstAllAtion uide...

  • Page 10: Pairing The Wireless Device

    Pairing the Wireless device ZONE NAmE SElEcTOR SWiTch Multiple BluePort NS-BP200 devices may be installed within wireless range of each other. In this case multiple “BluePort” names are listed on their wireless device when pairing. The Zone Name Selector rotating switch allows the installer to set one of sixteen (16) preset names for the BluePort.

  • Page 11: Reconnecting To A Previously Paired Blueport

    REcONNEcTiNg TO A PREviOuSly PAiREd BluEPORT The BluePort will store the previous sixteen (16) devices that have connected. Previously paired devices do not need to repeat pairing. Instead open the Bluetooth configuration page on your wire- less source and reconnect to the room set with the Zone Name Selector rotary switch (SET ID). If a stream is playing from one device and second device connects and starts a stream, the second device’s stream will be played.

  • Page 12: Compliance And Service

    47CFR15.21 and could void the users authority to operate the device. FCC Part 15: This device complies with FCC Part 15 regulations for a Class B device. European compliance Details on European equipment compliance can be found on the ClearOne website at the following location: www.ClearOne.com/resources/EuroDOC.php. SERvicE ANd SuPPORT If you need assistance setting up or operating your product, please contact us.
