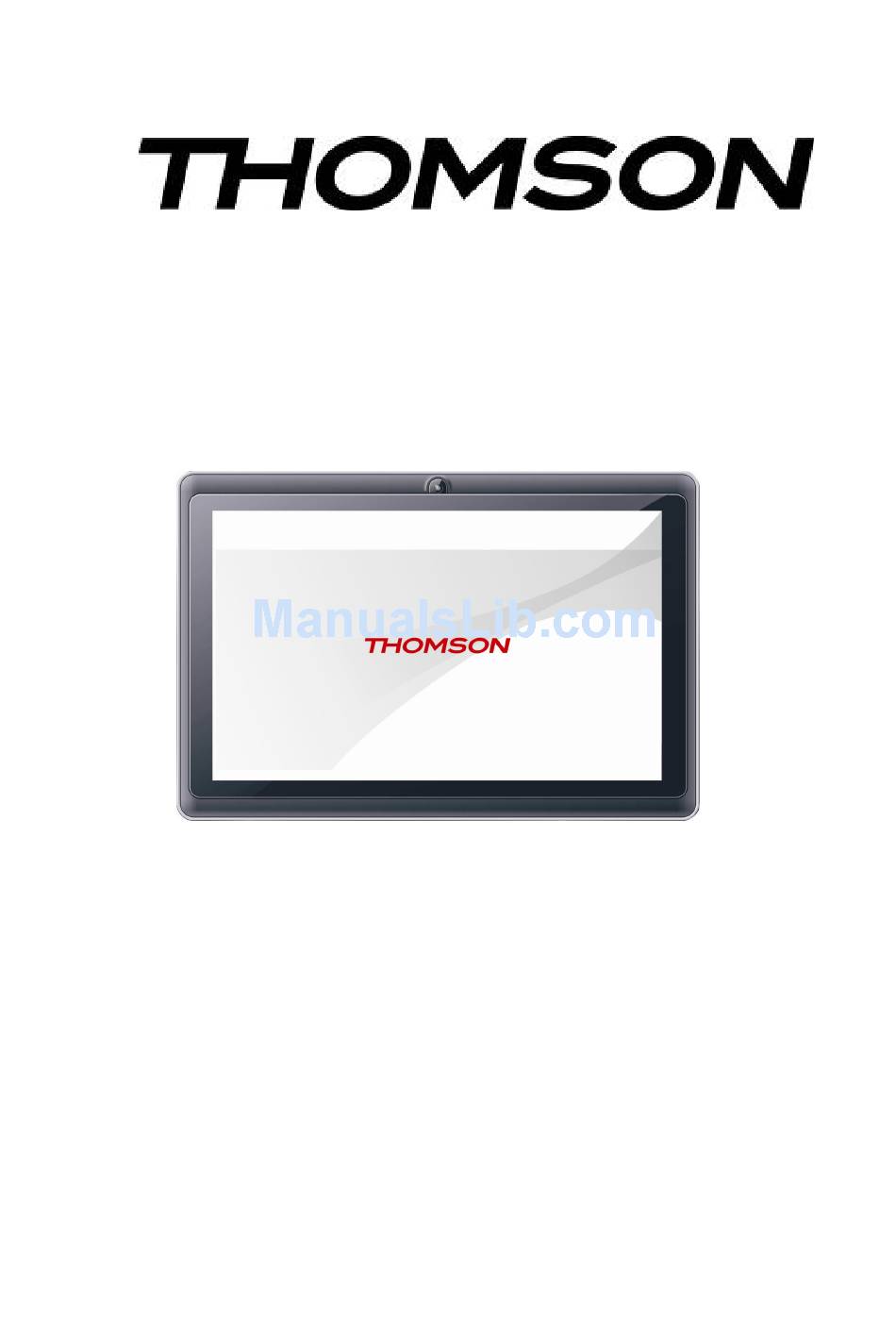

- Page 1 Model No.: QM734-2 User Manual Please read this instruction manual carefully before connecting or operating the product. Save it for future reference.
-
Page 2: Table Of Contents
Contents Page Important Safety Precautions ..........................4 Attention: ...................................5 Important Notice ...............................5 Caution ..................................5 Charge the Battery..............................5 Installing a Micro SD memory Card ........................6 Connecting to the Earphone ..........................7 TABLET PC View..............................7 Home Screen ................................8 PACKAGE CONTENTS ............................8 Power On/Off ................................8 Desktop ..................................9 Standby mode (Screen off mode) .........................9 Navigating the Touch Screen ..........................9... - Page 3 Email ................................21 Camera ................................22 Sound Recorder ............................24 Super-HD Player............................24 Music Player ..............................25 File Manager ...............................25 Search ................................26 Power ................................26 Clock ................................26 Calculator..............................27 Getjar ................................27 Trouble Shooting ..............................28 Specifications .................................29...
-
Page 4: Important Safety Precautions
Important Safety Precautions -The product shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed over the product. Dry location use only. -No naked flames sources, such as candles, should be placed over or near the product. -Never use the device while driving or when operating any vehicle as this could cause accidents. -
Page 5: Attention
transfers. -Use a slightly dampened lint-free cloth to clean this appliance. Do not dismantle the device or use alcohol, thinners or benzene to clean the surface of the device. -The supplier or retailer accepts no liability for lost, corrupted or damaged data. It remains the responsibility of the user to ensure that they perform consistent data backups during the use of this product. -
Page 6: Installing A Micro Sd Memory Card
device. The playback time of the battery has about 3hours when the product is played video file and using the headphone, which depends on the volume level and played files. Connecting the power adaptor improperly may cause serious damage to the device or power adapter. -
Page 7: Connecting To The Earphone
Connecting to the Earphone Insert your earphone (not included) into the device 3.5mm earphone jack on the side of the unit. Power ON the device, select your favorite music or video and adjust the volume to a comfortable listening level. Note: 1. -
Page 8: Home Screen
Home Screen 1. Access to Google search engine 7. Vol- 2. Voice search 8. Vol+ 3. Access to applications 9. Menu 4. Go back last page 10. Main screen applications 5. Access to Main Menu 11. Time display 6. Recent applications menu 12. -
Page 9: Desktop
Desktop After turning on the device the home screen displays with primary shortcuts, App shortcut icons, Widgets and the Status Bar. Standby mode (Screen off mode) To lock the touch screen press the Power button, to unlock press again. Touch the Lock icon and slide to the right in order to unlock the screen. Navigating the Touch Screen On the Touch Screen you may –... -
Page 10: Wireless & Networks
1. Wireless & networks - The Wi-Fi settings tab is selected as default. - Press the Wi-Fi Status indicator to enable or disable Wi-Fi. When Wi-Fi is enabled the device will scan for available networks. Select the appropriate, available Wi-Fi network to be used, enter the network password if prompted (tap in the password area to open the keyboard). -
Page 11: Display
3. Display Change the settings to control the display and backlight on your device. Brightness: Adjust the brightness of the display. Wallpaper: Select a background image for the Home screen from Live Wallpapers, Super-HD Player or Wallpapers. Auto-rotate Screen: Select to Auto-rotate screen or not. Sleep: Set Sleep time options between 15 seconds and 30 minutes or never sleep. -
Page 12: Apps
6. Apps View and manage the applications on your device. View and control the currently running processes and services. 7. Account & sync Used to Create and manage your email and Gmail accounts. After connecting to the Wi-Fi network, the e-mailing system synchronizes your account with the device. Emails are automatically downloaded into the device. -
Page 13: Language & Input
Device administrators: View the administrators you have approved for your device. You can allow device administrators to apply new policies to your device. Unknown sources: Set to download applications from any source. If you do not select this option, you can download applications only from Play Store. Trusted credentials: Set to use certificates and credentials to ensure the secure use of applications. -
Page 14: Date & Time
12. Date & time Change the settings to control how time and date appears on your device. If the battery remains fully discharged or removed from the device, the time and date will be reset. Automatic date and time: Set to receive time information from the network and update the time and date automatically. -
Page 15: About Tablet
About tablet View information about your device, such as model number and version. Connecting the Tablet with a computer Connect the device to the PC with the supplied USB cable. Ensure the device is turned ON and unlocked. On the main desktop touch the right side of the status bar on the bottom of the desktop. -
Page 16: How To Delete Applications (.Apk File) From The Device
1. Connect the device to the internet. See [1.Wireless & networks] above for directions on how to connect to the internet. 2. Run “Play Store” and search for the applications you want to install. 3. Follow the instruction on the screen for installation. The device will install the application automatically. -
Page 17: Change Input Method
Creating App Shortcuts Touch and hold the desired APK icon to place a shortcut on the desktop. Widgets Either scroll right to left with your finger or touch the Widgets tab to view the installed widgets. Touch and hold the desired WIDGET icon to place a shortcut on the desktop. Change Input Method If your device was installed with other input methods such as an external mouse, track pad, keyboard or games controller you may change the settings to suit under the Language and input... -
Page 18: Main Menu
Select the installed keyboard, then the keyboard will appear with your desired language you installed. Main Menu 1. Browser You may incur additional charges for accessing the Internet and downloading media files. For details, contact your service provider. Browse a webpage In the application list, select Browser. -
Page 19: Voice Search
→ Bookmarks. - To view your bookmarks history, select → Saved to bookmarks. - To save the current webpage by selecting → Share page. - To send a web address to others, select → Find on page. - To search for text on a webpage, select →... -
Page 20: Youtube
4. YouTube Learn to view and upload videos via the YouTube™ video sharing service. This feature may be unavailable depending on your region or service provider. Play a video 1. In the application list, select YouTube. 2. Select a video. 3. -
Page 21: Email
2. Select to update the message list. 3. Select an email message. From the message view, use the following options: - To move to the next or previous message, scroll right or left. - To reply to the message, select - To reply to the message and include all recipients, select - To forward the message to others, select - To add the message to the favourites list, select... -
Page 22: Camera
-Select email addresses from your contact list by selecting 3. Select the subject field and enter a subject. 4. Select the text field and enter your email text. 5. Select and attach a file. 6. To send the message, select SEND. If you are offline or outside your service area, the message will be held in the message thread until you are online and inside your service area. - Page 23 5. Click the camera shutter to take photos. 6. Press icon and set the White balance for the camera 7. Press icon and set the Exposure for the camera. 8. Press icon to adjust the camera setting How to Exit the Camera? ，press Touch the right down corner on the screen, it will pop-up the function bar icon to exit the camera.
-
Page 24: Sound Recorder
Video recording 1. In the application list, select Camera. 2. Rotate the device to the landscape view. 3. Drag the slider to switch to the camcorder. 4. Aim the lens at the subject and make any necessary adjustments. 5. To zoom in, press and hold the “+/-“ bar on the screen and slowly to move up. To zoom out, press and hold the “+/-“... -
Page 25: Music Player
：Increase or decrease the volume. ：Skip to the preview or next file. ：Pause or restart playback ：Video details checking. ：Exit the current video file Music Player Learn to listen to your favourite music while on the go. - Some file formats are not supported depending on the device’s software. - If a file size exceeds the memory available, an error may occur when you try to open the file. -
Page 26: Search
- If a file size exceeds the memory available, an error may occur when you try to open the file. View a file 1. In the application list, select File Manager. 2. Select a folder from device memory or Micro SD card. - To move up one level in the file directory, select - To return to the Home directory, select the 3. -
Page 27: Calculator
1. In the application list, select Clock. 2. Select Alarm set. 3. Select to set and add alarm. 4. Set the details of the alarm. 5. When you are finished, select Ok. To deactivate an alarm, select the clock icon next to the alarm. To delete an alarm, enter the alarm and select Delete. -
Page 28: Trouble Shooting
Trouble Shooting Device cannot boot up. 1. Check the battery power. 2. Connect adaptor and check again. After startup, the opening logo appears and then the device shuts down. 1. Insufficient battery power, please recharge. Cannot hear sound through the earphones. 1. -
Page 29: Specifications
Specifications Android 4.0 ICS ARM cortex A8 processor SDRAM DDR3 512MB (3D accelerator possible for 4D games) Display 17.75cm (7") TFT 800*480 Capacitive touch panel 17.75cm (7”) widescreen (16:9) [17.5cm (6.89”) viewable screen Screen size size] Multi-touch screen 5 point multi-touch 4GB (the stated memory capacity includes operating system Flash memory software)
