Tek Partner UNIVERSAL REMOTE CONTROL User Manual

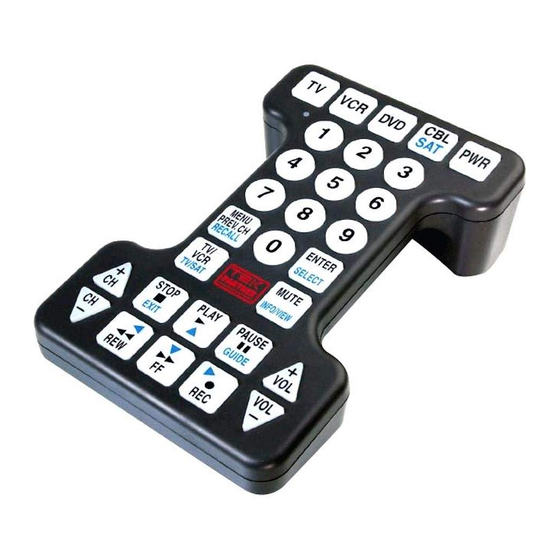

Tek Partner Universal Remote Control
TEK PARTNER™
UNIVERSAL REMOTE CONTROL
USER'S MANUAL
Contents:
HOW TO INSTALL THE BATTERIES
MAIN FEATURES
SETTING UP YOUR TEKPARTNER
SETUP BY ENTERING DEVICE CODE
SEARCH THROUGH THE LIBRARY
OPERATING THE TEKPARTNER
NORMAL OPERATION
MAINTENANCE
TROUBLESHOOTING
DEVICE CODE LIST
TV BRANDS
VCR BRANDS
CABLE BOX BRANDS
Congratulations! Your TEK PARTNER™ Universal Remote Control is a state-of-the-art device which
integrates many different infra-red remote controls. The TEK PARTNER™ is pre-programmed at the
factory, but you will need to enter a Device Code for each device to complete the program. Simply
enter correct device codes for your equipment and your TEK PARTNER™ is ready to use! A Device
Code List is included in this User's Manual. The TEK PARTNER™ replaces up to 4 separate remote
controls to operate your infra-red controlled televisions (TVs), video cassette recorders (VCRs), and
cable boxes (CBLs).
HOW TO INSTALL THE BATTERIES
Your TEK PARTNER™ requires 4 fresh AA-size batteries (alkaline batteries recommended).
1. Remove the battery cover on the back of your TEK PARTNER™.
2. Observe the polarity of the batteries and the "+/-" marks inside the battery compartment.
3. Insert the batteries.
4. Push the battery cover back in place.NOTE:
When all batteries are disconnected, the TEK PARTNER™ retains its setting only for 15 minutes.
Should you fail to replace new batteries in time, use a stylus or the tip of a pen to reset the unit. Th
reset button is located inside the battery compartment.
You may now have to re-program your TEK PARTNER™. See SETTING UP YOUR TEK PARTNER™
section.
http://www.hytekmfg.com/manual1.html
Page 1 of 7 Tek Partner Universal Remote Control
MAIN FEATURES
SETTING UP YOUR TEK PARTNER™
There are 4 Device Modes (TV, VCR, CBL, & AUX) in your TEK PARTNER™. You may setup the TEK
PARTNER™ by the following code entering or searching instructions.
Setup by entering DEVICE CODE
Referring to the DEVICE CODE LIST, look up the 3-digit DEVICE CODE which corresponds to the
brands and models of your video equipment. If there is more than one DEVICE CODE listed under
your brand, try the first code with the following instructions:
For example, entering your TV's code:
1. Hold down "PREV CH" and "ENTER" together for approximately 4 seconds until the status indicato
(located to the left of the "1" button) lights up.
2. Press a desired Device Mode Button (e.g. "TV").
3. Use the number buttons to enter your 3-digit Device Code (from the Device Code List) for your
TV. The indicator should go out immediately. NOTE: The status indicator will not blink while entering
Device Codes in step 3 above.
4. Turn on your device (e.g. TV), try the functions on the TEK PARTNER™. If your device (e.g. TV)
responds to your requested function correctly, you have entered the correct Device Code. Otherwise
repeat the above setup instructions with the remaining Device Codes until your device (e.g. TV)
responds to your requested function.
5. Simply repeat the above procedures to enter the Device Codes for your VCR & CBL - (Remember
to press a correct Device Mode Button in step 2 above).NOTES:
Any Device Codes can be entered into "CBL" & "AUX" modes. (i.e. The "CBL" & "AUX" modes
can be used to control TVs and/or VCRs). Simply press the "CBL" or "AUX" Device Mode
Button in step 2 above and enter your 3-digit Device Code for CBL or other devices.
If the indicator flashes twice during the above procedure, a wrong Device Code has been
entered. You are required to repeat steps 2 and 3 again.
If you cannot find a correct Device Code for your equipment, see Setup by SEARCH THROUGH
THE LIBRARY section.
It is highly recommended, for future reference, to write down your Device Codes on the
bottom label of your TEK PARTNER™.
SEARCH THROUGH THE LIBRARY
If you cannot identify a correct Device Code for your equipment from the Device Code List, you may
try the code search method.
For example: Turn on your device (e.g. TV).
1. Hold down "PREV CH" and "ENTER" together for approximately 4 seconds until the status indicato
lights up.
2. Press a desired Device Mode Button (e.g. "TV").
3. Enter a following corresponding Magic Search Code, and your TEK PARTNER™ is now ready to
start searching.
Magic Search Codes:
For example, press...
To search: Aim your TEK PARTNER™ at the device (e.g. TV), press the "PWR" and
4. "VOL+" button alternately, repeatedly, slowly and patiently until the device turns off. (NOTE:
There are approximately 70 TV codes, 55 VCR codes, and 55 Cablebox
5. codes.) Once your device has been turned off, immediately press the same Device Mode Button
(e.g. TV) again to lock in the code and the indicator should go out. If the indicator flashes twice afte
pressing the "VOL+" Button, you are already at the last code of the library. You may press "VOL-" to
search backward and repeat carefully the above procedures to search again. Simply repeat the
above procedures to search the Device Codes for your VCR and CBL keys. (Remember to press a
correct Device Mode Button in step 2 above).
NOTES:
3/10/03 http://www.hytekmfg.com/manual1.html
TV: 990 VCR: 992 CBL: 994
("PREV CH" & "ENTER" ... "TV" ... 990)
Page 2 of 7
3/10/03
