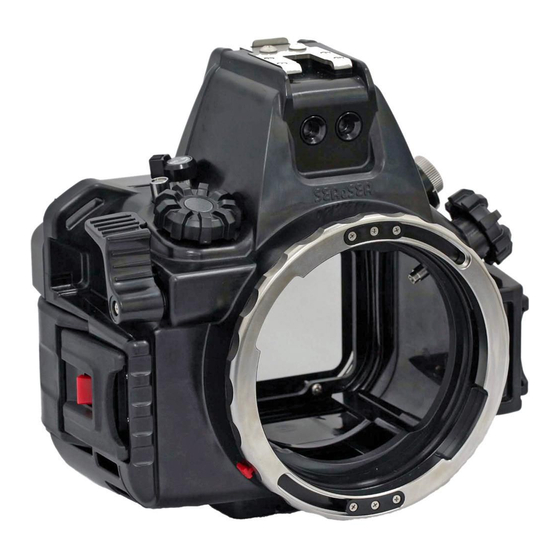

- Page 1 06150 UNDERWATER HOUSING for Canon EOS Kiss X2 / REBEL XSi / 450D Canon EOS Kiss X3 / REBEL T1i / 500D RDX-500D Žæˆµ•à–¾•‘ Instruction Manual...
-
Page 2: Table Of Contents
Introduction Thank you for purchasing SEA&SEA products. Please read this instruction manual carefully prior to using this product. Only with a thorough understanding of this manual’s content will you be able to use the housing correctly. After reading the manual, please be sure to keep it in a place where you can easily come back to it at any time. -
Page 3: Safety Precautions
Safety Precautions For safe handling of the product, please read the following precautions carefully before use. Failure to heed the precautions listed below could result in serious consequences. To prevent injury or damage to yourself and/or others, please observe the precautions as they contain highly important information related to personal and product safety. - Page 4 Safety Precautions =Do not rest heavy weight on the product. It might deform the outer casing, damage internal parts, make the waterproofing fail, or result in fire or electric shock. =Please note that some marks may be left on the camera scraping against the dials or gears of the housing.
-
Page 5: Precautions On Handling The O-Ring
Precautions on Handling the O-ring This product is kept watertight by the O-ring. To keep the O-ring functioning properly, please observe the following. Improper handling of the O-ring could cause flooding. CAUTION =SEA&SEA products use blue O-rings. These O-rings are impregnated with silicone oil through a special process. - Page 6 Precautions on Handling the O-ring Coat with silicone grease Silicone grease protects the O-ring from chafing. After checking the O-ring to make sure that there are no scratches, dust, or debris, apply a light coating of silicone grease to the entire O-ring with your finger. Applying too much grease will make it easier for dust and debris to adhere to the O-ring, and could cause flooding.
-
Page 7: Identification Of Parts
Identification of Parts Accessory shoe Fiber-optic cable socket Power switch ISO speed set button Main dial Focus / Zoom dial Shutter lever Buckle Buckle lock lever Port mount ring Hand strap eyelet Port lock Front case Aperture / Exposure Pressure balance control valve compensation button Viewfinder Mode dial... -
Page 8: Pressure Balance Control Valve
Identification of Parts Sync connector Front case Camera tray Fixing screw Camera base Knob Sync connector bracket Pressure balance control valve This product comes equipped with a pressure balance control valve. Pushing the valve counterbalances the pressure difference that occurs due to temperature or atmospheric changes, and makes it possible to open the housing. -
Page 9: Finder
Identification of Parts Finder This product comes equipped with a 0.5x pick-up finder. The finder can be replaced with an optional finder unit so you can change the finder magnification to match your shooting conditions. Replacing the finder Rotate the finder unit mounted on the rear case in a counterclockwise direction to remove it =The screw areas are coated in... -
Page 10: Preparation For Setting Up
Preparation for Setting Up This product must be used in combination with the optional equipment (digital camera, port, strobe, accessories etc.) for underwater photography. In order to set up the equipment, prepare each item correctly. Prepare the housing and port Maintaining the O-ring O-ring This product is kept watertight by the O-ring. -
Page 11: Opening And Closing The Housing
Opening and Closing the Housing Opening and closing the housing is done with the buckles. Here we will explain how to open and close the buckles. Opening the buckle Press and hold the buckle lock lever (‡@), and remove the right and left buckles simultaneously (‡A) CAUTION =When removing the buckle, be sure to use... -
Page 12: Attaching And Detaching The Port
Attaching and Detaching the Port In order to use this product underwater, the optional port for the camera lens must be attached to this product. CAUTION =Only the optional ports designed for SEA&SEA RDX-series housings can be attached to this product. =This product is delivered with a housing body cap attached to the port mount. - Page 13 Attaching and Detaching the Port Rotate the port mount ring toward LOCK (in a clockwise direction) until you hear it click into position =Make sure that the port lock has returned to the lock position as shown in the diagram. Click Lock position Detaching the port...
-
Page 14: Mounting The Camera In The Housing
Mounting the Camera in the Housing CAUTION =Make sure to remove the eyecup from the camera. If used with the eyecup in place, it could cause flooding. =If the display-off sensor is activated, the LCD monitor of the camera will turn off automatically when the camera is mounted in the housing and the rear case is closed. - Page 15 Mounting the Camera in the Housing Pull the power switch and focus/zoom dial out Pop up the camera's built-in flash. Align the camera tray with the camera base inside the front case, and slide the camera forward into the front case =Make sure to pop up the built-in flash of the camera before mounting the camera in the housing.
- Page 16 Mounting the Camera in the Housing Removing the camera from the housing Open the buckles Remove the rear case Pull the power switch and focus/zoom dial out Release the lock on the camera tray by pushing the knob, and slide the camera tray out E-15...
-
Page 17: When Using The Ys Converter
Mounting the camera in the Housing When using the YS converter (option) Release the lock on the camera tray by pushing the knob in the direction of the arrow (‡@), and slide the camera tray out (‡A) Knob Attach the camera tray to the c a m e r a ' s t r i p o d s o c k e t b y f a s t e n i n g t h e f i x i n g s c r e w using the supplied attachment... -
Page 18: Power Switch
Mounting the Camera in the Housing Insert the sync connector into the camera's accessory shoe CAUTION When inserting or removing the sync connector, be sure to hold the connector part. If you push or pull on the cord part, it could damage the sync connector or cause contact failures. -
Page 19: Connecting The Strobe
Connecting the Strobe This product comes equipped with two fiber-optic cable sockets and a YS converter connector. With the fiber-optic cable (option) Connect the strobe with the fiber-optic cable (option) when the strobe is triggered by sensing the light from the camera's built-in flash. Remove the fiber-optic cable Fiber-optic cable socket cap socket caps... -
Page 20: With The Ys Converter
Connecting the Strobe With the YS converter (option) Connect the strobe with the YS converter (option) when the strobe is triggered in conjunction with the camera. CAUTION =Carefully observe the instruction manual for the YS converter before use. =A Grip-stay L (option) is required when using the YS converter. =Do not connect the strobe and the YS converter connector with a sync cord (option) because this will damage the YS converter connector. - Page 21 Connecting the Strobe Align the B part of the connecting cable with the screws of the strobe bulkhead, and then rotate it until it stops =Do not twist the A (cable) part. Rotate the C part of the connecting cable until it stops =Tighten it securely.
-
Page 22: Attaching The Hand Strap
Attaching the Hand Strap Put the hand strap through the ‡B hand strap eyelet on top of the ‡A housing as shown ‡C ‡@ Put the hand strap through the hand strap eyelet on bottom of ‡C ‡A the housing as shown ‡B =Ensure a good grip, then fasten the velcro. -
Page 23: External Controls
External Controls Power switch Power switch By rotating the knob as indicated, you can turn the power ON/OFF. Shutter lever Shutter lever Push the lever toward you or gently press on it from the top to control the shutter button of the camera. - Page 24 External Controls WB selection button It controls the Metering mode button of the EOS 450D/Rebel XSi camera. Live View shooting / Movie shooting button It controls the WB selection button of the EOS 450D/Rebel XSi camera. Other controls Other control parts on the housing correspond to the operation parts of the digital camera.
-
Page 25: Attaching The Optional Accessories
Attaching the Optional Accessories This product accepts SEA&SEA optional accessories. By using this product in combination with those accessories, you will be able to try various shooting techniques. CAUTION Strobes and other accessories may have different depth rating. Check the depth rating for each before use. Read the instruction manual for each accessory before use. - Page 26 Attaching the Optional Accessories Stays / Arms SEA&SEA stays / arms can be mounted to the housing's tripod socket. <Example> Grip-stay L Sea Arm VII E-25...
-
Page 27: Maintenance And Storage
Maintenance and Storage CAUTION =Never use chemicals, cosmetics, any petroleum solvents such as paint thinner, or neutral detergent on the product. They may deform and damage the product. =After each use in salt water, make sure it’s watertight, then soak it sufficiently in fresh water. -
Page 28: Specifications
Specifications Compatible Canon EOS REBEL XSi / EOS 450D camera Canon EOS REBEL T1i / EOS 500D Controls Power switch, ISO speed set button, Main dial, Shutter button, Mode dial, AE lock / FE lock / Index / Reduce button, AF point selection / Magnify button, Aperture / Exposure compensation button, WB selection... - Page 29 SEA&SEA SUNPAK Co., Ltd. 3-2-20, Saiwai-cho, Kawaguchi-shi, Saitama, Japan 332-0016 TEL. +81-48-256-2251 World Customer Service Center TEL. +81-48-255-8512 http://www.seaandsea.jp...
