ASSEMBLY & OPERATING INSTRUCTIONS
This safety alert symbol identifies important safety messages in this manual.
Failure to follow this important safety information may result in serious injury
or death.
LS132-817-0310
Rev. 3

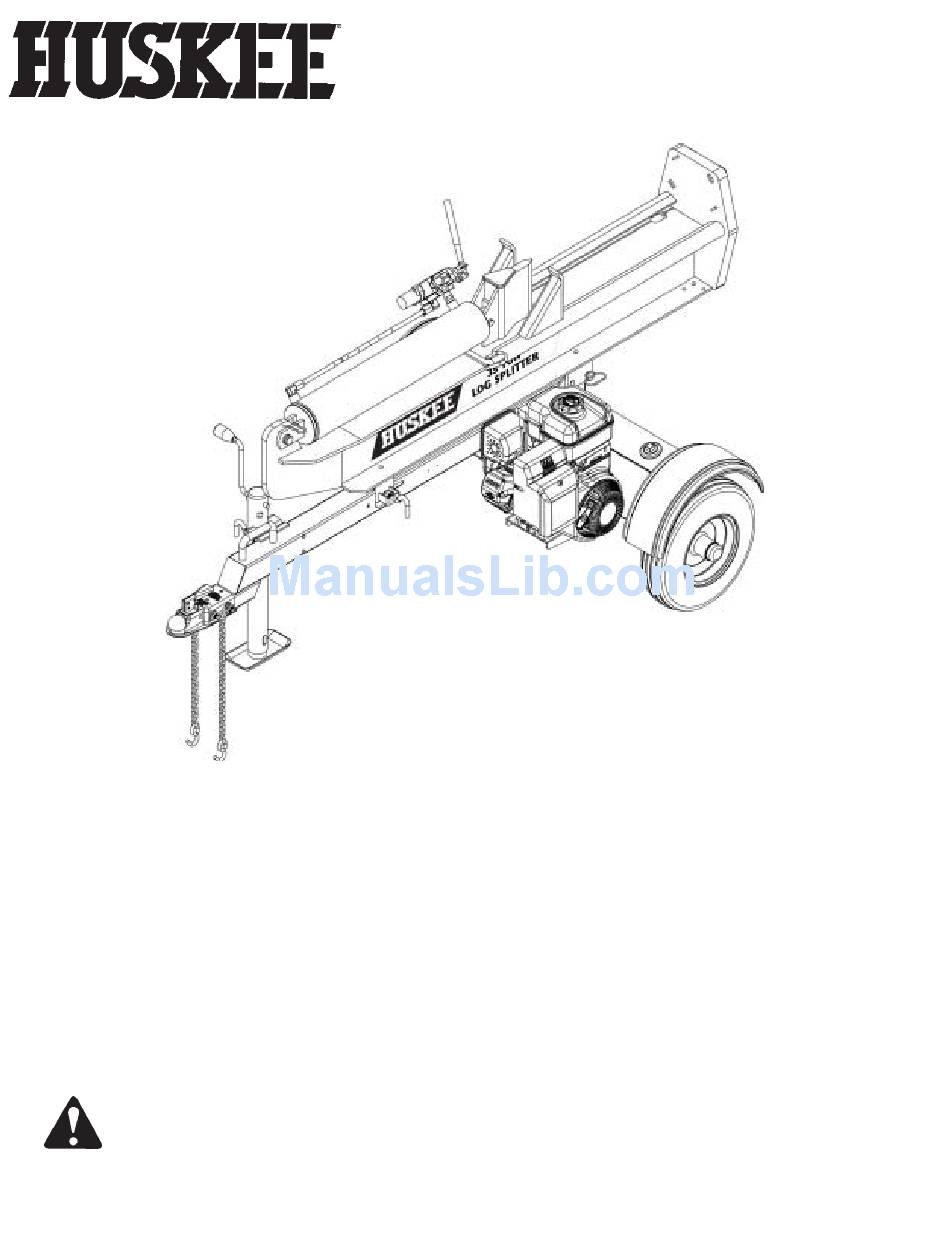

VERTICAL/HORIZONTAL
35 TON LOG SPLITTER
MODEL NO.
1083946 & 1083954
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Huskee 1083946

Summary of Contents for Huskee 1083946

  • Page 1 VERTICAL/HORIZONTAL 35 TON LOG SPLITTER MODEL NO. 1083946 & 1083954 Owner’s Manual ASSEMBLY & OPERATING INSTRUCTIONS This safety alert symbol identifies important safety messages in this manual. Failure to follow this important safety information may result in serious injury or death.

  • Page 2: Table Of Contents

    Table of Contents Page(s) Important Safety Information......................... Intended Use ......................... Personal Protective Equipment ....................Safety Decals ........................General Safety ........................Preparation of the Log ......................Work Area ........................... Operation of the Log Splitter ....................Repair and Maintenance Safety ..................... Hydraulic Safety ........................Fire Prevention ........................

  • Page 3: Important Safety Information

    WARNING: Read and thoroughly understand all instructions and safety information before assem- bling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. As with all power equipment, a log splitter can be dangerous if assembled or used improperly.
  • Page 4 PART NUMBER: 52055200 LOCATION: BOTH STRIPPER PLATES AND CYLINDER PART NUMBER: 52023200 LOCATION: HYDRAULIC TANK LOWER TANK, RIGHT CORNER PART NUMBER: 51018900 LOCATION: TOP OF HYDRAULIC CYLINDER Page 2...

  • Page 5: General Safety

    GENERAL SAFETY Failure to follow these instructions may result in serious injury or death. ALWAYSEread the operator’s manual before operation. It is located in the plastic canister on the tongue. EVER NEVER allow children to operate this log splitter. NEVER allow adults lacking proper instructions and understanding to operate this log splitter.

  • Page 6: Repair And Maintenance Safety

    KNOW how to stop the log splitter and disengage the controls before operating it. NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke. Serious injury or death could result. NEVER straddle or step over the log splitter during operation. NEVER reach or bend over the log splitter to pick up a log.

  • Page 7: Hydraulic Safety

    HYDRAULIC SAFETY The hydraulic system of your log splitter requires careful inspection along with the mechanical parts. Be sure to replace frayed, kinked, cracked or otherwise damaged hydraulic hoses or hydraulic components. NEVER check for leaks of hydraulic fluid with your hand. Fluid escaping from a small hole can be almost invisible. Escaping fluid under pressure can have sufficient force to penetrate skin causing serious personal injury or even death.

  • Page 8: Towing Safety

    IMPORTANT NOTE: This log splitter is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in efffective working order by the operator.

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ITEM NO. PART NO. DECSRIPTION QTY. 401610S0 Beam Assembly 40127500 Beam Lock Assembly 40164000 Tank Assembly 401640CA Tank Assembly (CA) 40035300 Tire and Wheel Assembly 2 40127200 Tongue Assembly 40140700 Fender 40116800 Hardware Kit NOTE: This log splitter was partially assembled at the factory. Refer to the drawing and parts list should it become necessary to disassemble the unit for repair or replacement of parts.
  • Page 10 STEP 3: Attach the tongue assembly (5) to the tank assembly (1) using two 1/2” NC x 4-1/2” hex cap bolts (2), two 1/2” l lock washers (3) and two 1/2” hex nuts (4). Tighten. ITEM NO. PART NO. DESCRIPTION QTY.
  • Page 11 STEP 5: Connect the end of the 1/2” ID x 38” hydraulic pressure hose (1) coming from the fitting on the pump to the fitting on the valve . See illustrations below. STEP 6: Slide one hose clamp (3) on the end of the 3/4” x 56” hydraulic return hose (2 ) that comes from the fitting on the filter .

  • Page 12: Parts Breakdown Illustrations

    STEP 8: Attach the two fenders (1) to the tank/axle using the four 1/4” NC x 3/4” hex cap bolts (2), the four 1/4” flat washers (3 ) , the four 1/4” lock washers (4) and the four 1/4:” NC hex nuts (5). Tighten ITEM NO.
  • Page 13 ENGINE/PUMP ASSEMBLY BREAKDOWN ITEM NO. PART NO. DESCRIPTION QTY. 5/16”-18 UNC Nylock Nut 5/16” Regular Lock Washer 5/16” x 1-1/4” GR 5 Bolt 5/16” x 1” UNF GR 5 Bolt 39055200 Briggs & Stratton 1650 Engine 39055100 Briggs & Stratton 1650 Engine (CA) 1 39070900 16 GPM Pump 40034300...
  • Page 14 TONGUE ASSEMBLY BREAKDOWN ITEM NO. PART NO. DESCRIPTION QTY. 17280300 M10 x 1.5 Nylock Nut 17271600 M10 x 1.5 x 100mm GR5 Bolt 17272000 M10 x 1.5 x 120mm GR5 Bolt 17290800 M10 Flat Washer 40127200 Tongue with Jack 40034600 Hitch Ball Assembly 40032300 Safety Chain...

  • Page 15: Operating Instructions

    OPERATING INSTRUCTIONS WARNING: Read and thoroughly understand all instructions and safety information before operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. As with all power equipment, a log splitter can be dangerous if assembled or used improperly.

  • Page 16: Operation

    CAUTION: TURN FUEL SHUT OFF VALVE TO THE “OFF” POSITION PRIOR TO TOWING.FAILURE TO DO SO MAY RESULT IN FLOODING THE ENGINE. NOTE: The engine maximum governed speed is preset at the factory at 3600 RPM no load speed. When splitting wood the throttle should be set at the maximum speed to develop the horsepower required for the pump.

  • Page 17: Warranty Service Information

    IMPORTANT NOTICE We, the manufacturer, reserve the right to change the product and/or specifications in this manual without notification. The manual is for information usage only and the pictures and drawings depicted herein are for reference only. NOTES Warranty Repair and Service Do not return this product to the store for warranty issues or repair.

  • Page 18: Specifications

    SPECIFICATIONS & t t i l - t l c i l o l l t l i t l i Part No. 53015800...
