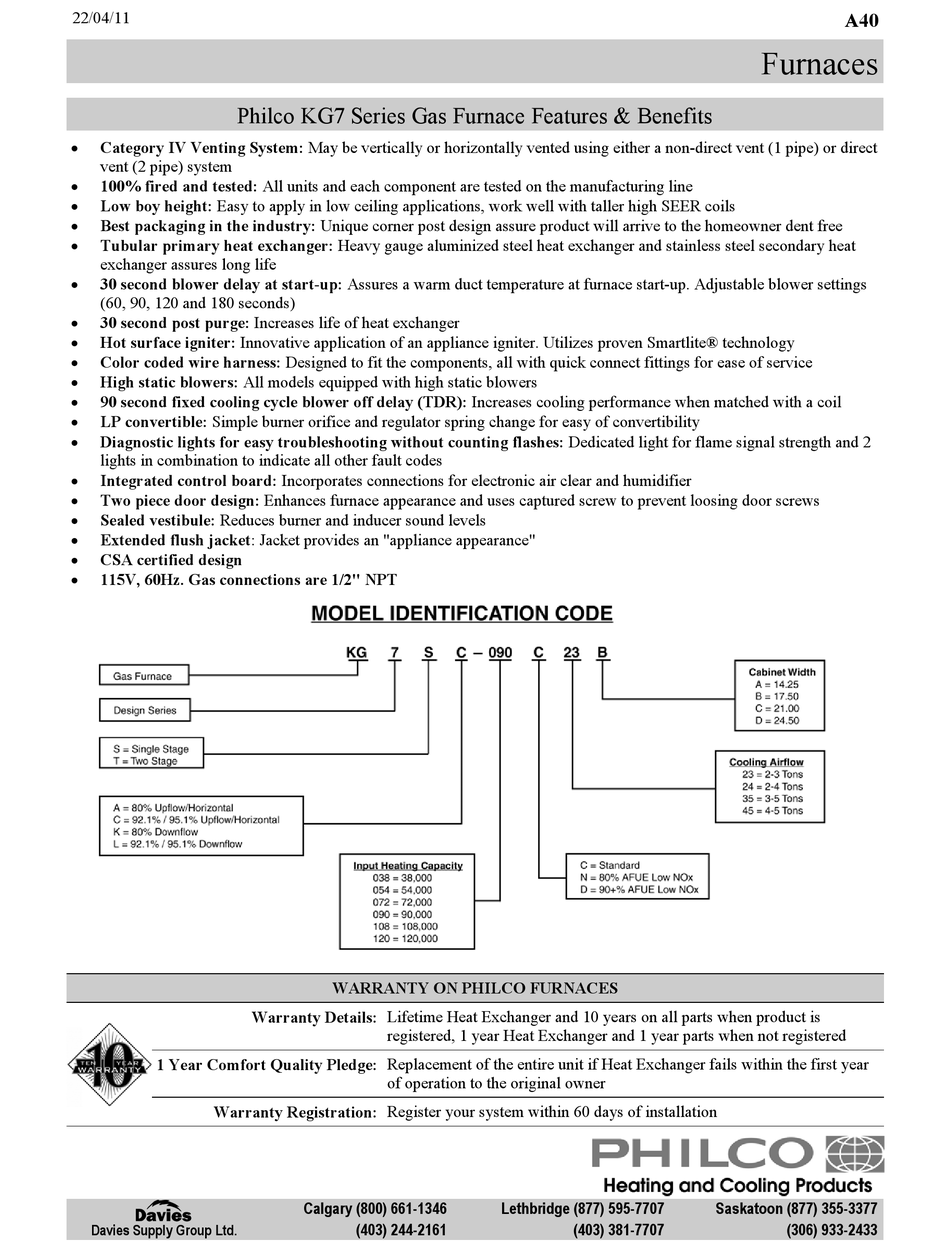

Philco KG7 Features & Benefits Manual

22/04/11
Philco KG7 Series Gas Furnace Features & Benefits

Category IV Venting System: May be vertically or horizontally vented using either a non-direct vent (1 pipe) or direct
vent (2 pipe) system

100% fired and tested: All units and each component are tested on the manufacturing line

Low boy height: Easy to apply in low ceiling applications, work well with taller high SEER coils

Best packaging in the industry: Unique corner post design assure product will arrive to the homeowner dent free

Tubular primary heat exchanger: Heavy gauge aluminized steel heat exchanger and stainless steel secondary heat
exchanger assures long life

30 second blower delay at start-up: Assures a warm duct temperature at furnace start-up. Adjustable blower settings
(60, 90, 120 and 180 seconds)

30 second post purge: Increases life of heat exchanger

Hot surface igniter: Innovative application of an appliance igniter. Utilizes proven Smartlite® technology

Color coded wire harness: Designed to fit the components, all with quick connect fittings for ease of service

High static blowers: All models equipped with high static blowers

90 second fixed cooling cycle blower off delay (TDR): Increases cooling performance when matched with a coil

LP convertible: Simple burner orifice and regulator spring change for easy of convertibility

Diagnostic lights for easy troubleshooting without counting flashes: Dedicated light for flame signal strength and 2
lights in combination to indicate all other fault codes

Integrated control board: Incorporates connections for electronic air clear and humidifier

Two piece door design: Enhances furnace appearance and uses captured screw to prevent loosing door screws

Sealed vestibule: Reduces burner and inducer sound levels

Extended flush jacket: Jacket provides an "appliance appearance"

CSA certified design

115V, 60Hz. Gas connections are 1/2" NPT
1 Year Comfort Quality Pledge: Replacement of the entire unit if Heat Exchanger fails within the first year
Warranty Registration: Register your system within 60 days of installation
Davies Supply Group Ltd.
C & L are Energy Star rated
WARRANTY ON PHILCO FURNACES
Warranty Details: Lifetime Heat Exchanger and 10 years on all parts when product is
registered, 1 year Heat Exchanger and 1 year parts when not registered
of operation to the original owner
