Summary of Contents for Quartet Battery Adapter

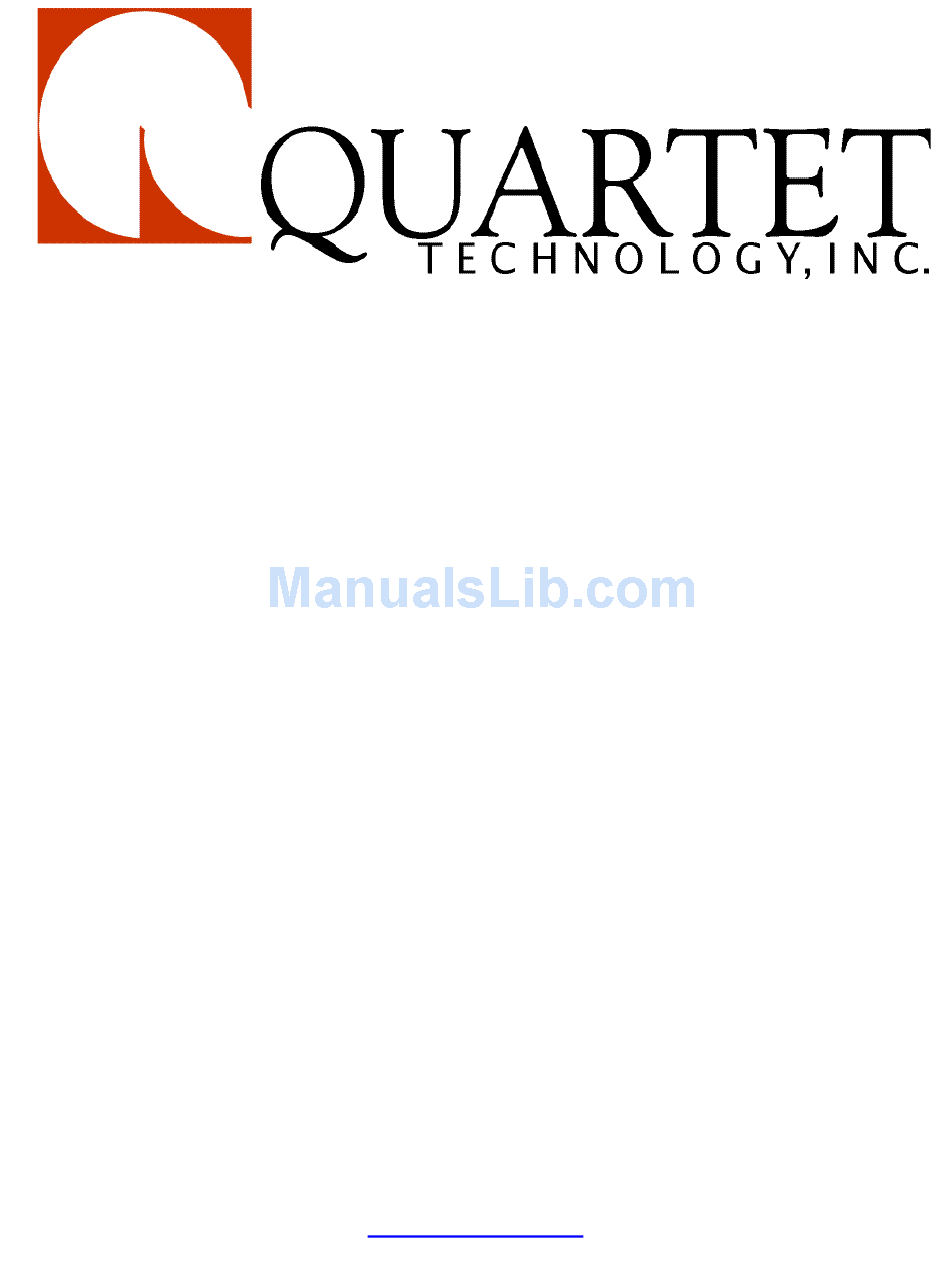

- Page 1 Battery Adapter (Owners Manual) 87 Progress Avenue, Tyngsboro, MA 01879, USA Phone (978) 649-4ECU Fax (978) 649-8363 http://www.qtiusa.com...
-
Page 2: Trademarks, Version, Printing, And Copyright
Quartet Technology, Inc. The information in this manual is subject to change without notice and Quartet Technology, Inc. assumes no responsibility for any errors that may appear in this document. -
Page 3: Warranty Information
Buyer. Quartet's sole responsibility under the aforesaid warranty shall be, at its election, the repair or... -
Page 4: Manual Description
• Instruction for installing the Battery Adapter Intended Use The intended function of the Quartet Battery Adapter is to provide a regulated +12VDC and/or +9VDC output power source from a +24VDC input source. Caution The Battery Adapter is not intended for powering heavy loads. Only low voltage, low current devices should be connected to the Battery Adapter. -
Page 5: Table Of Contents
..............................12 AFETY EATURES Reverse Input Protection ........................... 12 Over Voltage Input ............................12 Catastrophic Failure ............................12 Shorted Outputs..............................12 Battery Adapter Input Power Cable Fuse ......................12 ..........................13 LEANING AND AINTENANCE ................................14 CCESSORIES ........................15 ATTERY... -
Page 6: Overview
Overview Introduction Congratulations on your purchase of a Quartet Battery Adapter. You have selected a high quality, highly reliable instrument designed to give you years of trouble free use. This device is designed to provide two power outputs when connected to a +24VDC source such as that found on a wheelchair. -
Page 7: Components
When lit, indicates Battery Adapter is working properly Indicator LED’s There are two indicator LED’s on the Battery Adapter. These are shown as (A) and (D) above. Green LED When illuminated, this LED indicates that the +24VDC input is connected properly. -
Page 8: Connecting The Battery Adapter To A Wheelchair
Connecting the Battery Adapter to a Wheelchair Definition The Battery Adapter connects to the +24VDC power source of a wheelchair. Power drawn by the Battery Adapter is converted to two voltages, +12VDC and +9VDC. Procedure Complete the following steps to connect the Battery Adapter to a wheelchair power source: 1. - Page 9 Use extreme caution when working with any battery. Wheelchair batteries in particular are designed to provide large amounts of power. Shorting the wheelchair battery terminals could result in severe burns! Contact your local Quartet distributor to install the Battery Adapter. Battery Adapter Copyright © 2001 QTI...
-
Page 10: Using The Battery Adapter +9Vdc Output
Battery Adapter and obtain just +9VDC only. Cable View The Battery Adapter +9VDC Output Power Cable (QTI P/N: 9254) is shown below: Complete View The complete connection for both the Battery Adapter Input Power Cable (A) and... -
Page 11: Using The Battery Adapter +12Vdc/+9Vdc O
Outputs Definition The Battery Adapter +12VDC/+9VDC Output Power Cable (QTI P/N: 9253) provides a means to connect to the Battery Adapter and obtain both +12VDC and +9VDC. Cable View The Battery Adapter +12VDC/+9VDC Output Power Cable (QTI P/N: 9253) is... -
Page 12: Safety Features
Catastrophic Failure In the event the Battery Adapter fails, the internal fuse will “blow” to protect the Battery Adapter. If this happens, the unit will have to be returned for repair. Shorted Outputs In the event the +12VDC and/or the +9VDC outputs becomes shorted, the Battery Adapter will automatically trip an internal fuse and shut the outputs down. -
Page 13: Cleaning And Maintenance
Cleaning and Maintenance Cleaning You can clean the outside of the Battery Adapter with a slightly damp cloth, when necessary. Use water only on a clean cloth. Caution Always disconnect the Battery Adapter when cleaning and/or connecting anything to it. Never immerse in water! Maintenance The Battery Adapter requires no special cleaning or daily maintenance. -
Page 14: Accessories
Accessories Accessories A complete line of optional accessories to complement the Battery Adapter, include: Accessory QTI P/N Description Battery Adapter Input 9252 Supplies +24VDC from wheelchair power Power Cable source to the Battery Adapter Battery Adapter 9253 Supplies +12VDC/+9VDC power to external... -
Page 15: Battery Adapter Specifications
Battery Adapter Specifications Maximum Input Voltage +35VDC +20VDC Minimum Input Voltage Operating Temperature 32°F to 104°F (0 to 40°C) +9VDC Output Rating +9VDC +/- 5% @ 100mA +12VDC +/- 5% @ 200mA +12VDC Output Rating Battery Adapter Copyright © 2001 QTI... - Page 16 (This page left blank intentionally) Quartet Battery Adapter Copyright © 2001 QTI...
