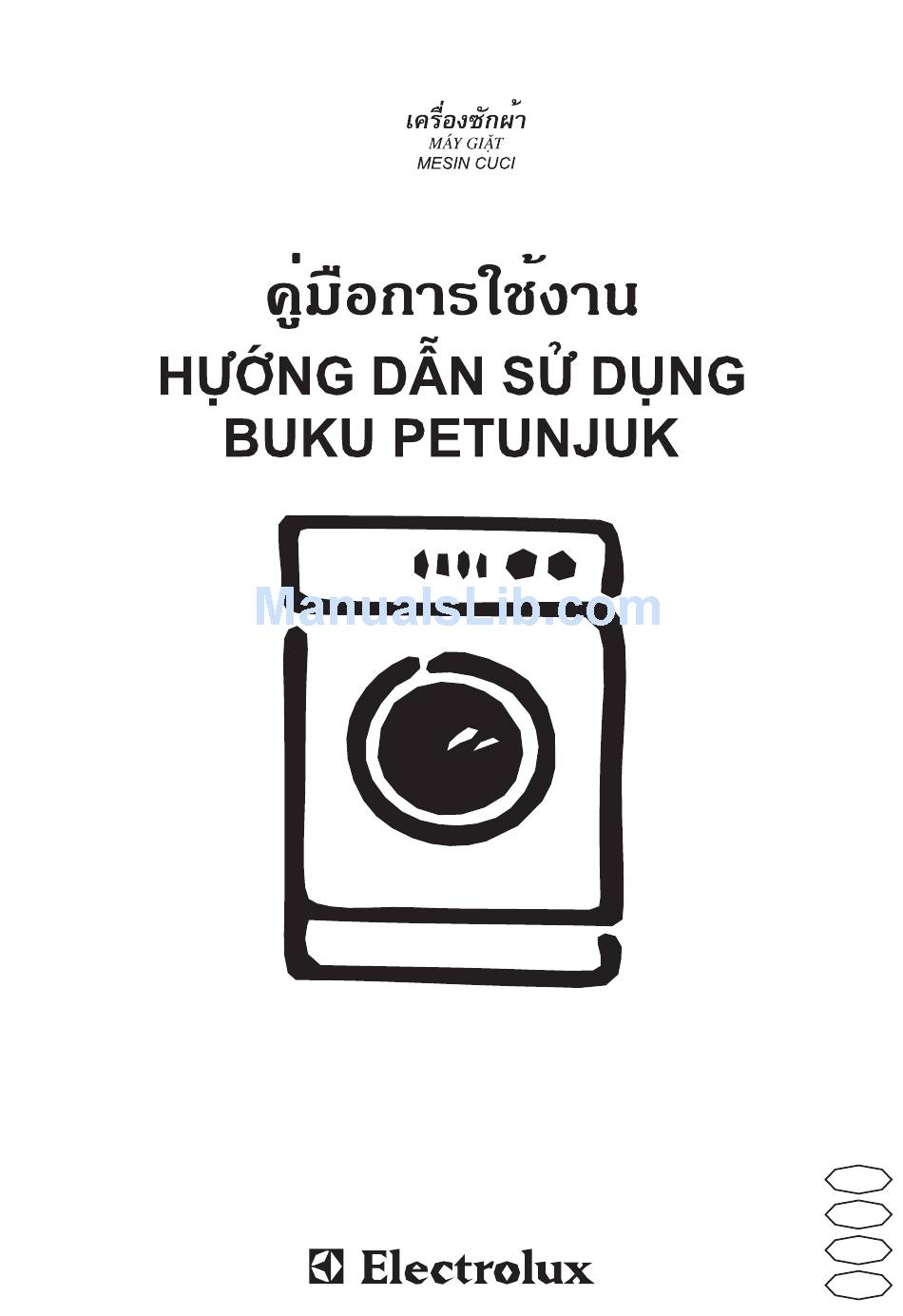

- Page 1 W A S H I N G M A C H I N E INST RUCT ION BOOKL E T EW 770 F EW 880 F VI ET 132 993 971...
-
Page 2: Table Of Contents
Dear customer, Transport damages Please read these operating instructions carefully When unpacking the appliance, check that it is not and pay particular attention to the safety notes damaged. If in doubt, do not use it and contact the indicated in the first pages. We recommend that you Service Centre. -
Page 3: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • All internal packing must be removed before using • Leave the porthole door slightly ajar when the the appliance. -
Page 4: Disposal
(EW 880 F) Delicates 2.5 kg (EW 770 F) kg (EW 880 F) Woollens and Hand wash SPIN SPEED 750 rpm max. (EW 770 F) 850 rpm max. (EW 880 F) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W... -
Page 5: Installation
Installation Unpacking 7. Set the machine upright and remove the remaining rear screw. Slide out the relevant pin. All transit bolts and packing must be 8. Plug all the holes with the plugs which you will removed before using the appliance. find in the envelope containing the instruction booklet. -
Page 6: Water Drainage
The inlet hose must not be lengthened. If it is too For a correct functioning of the machine the short and you do not wish to move the tap, you will drain hose must remain hooked on the proper have to purchase a new, longer hose specially support piece situated on the top part of the back designed for this type of use. -
Page 7: Your New Washing Machine
Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The programme selector dial combines the function of programme and temperature selection, making it easier to set the programme. •... -
Page 8: Use
Control panel 1 Detergent dispenser Drawer 3 “Quick Wash” button This button allows you to select the Quick Wash function, for laundry that is only slightly soiled (not Programme Option buttons for wool, hand wash and economy programme Depending on the programme, different functions 60E). - Page 9 8 Programme selector dial for cotton, synthetics, hand wash and wool: The selector is divided into 5 sections: 750 r.p.m. for Model EW 770 F and 850 r.p.m. for • Cotton Model EW 880 F for delicate fabrics: 650 r.p.m.
-
Page 10: Washing Hints
Washing hints Sorting the laundry Washing a maximum load makes the most efficient use of water and energy. Follow the wash code symbols on each garment For heavily soiled laundry, reduce the load size. label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. -
Page 11: Detergents And Additives
Lipstick: moisten with acetone as above, then treat Quantity of detergent to be used stains with methylated spirits. Remove any residual The type and quantity of detergent will depend on marks from white fabrics with bleach. the type of fabric, load size, degree of soiling and Red wine: soak in water and detergent, rinse and hardness of the water used. -
Page 12: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 13: Operating Sequence
Press the Spin Reduction button repeatedly to reduce the spin speed. The relevant light illuminates. 3. Measure out the additive EW 770 F If required, pour fabric softener into the compartment marked , without exceeding the «MAX» mark. -
Page 14: Start The Programme
7. Start the programme If you cannot open the door but you need to open it you have to switch the machine off by turning the To start the selected programme, press the programme selector dial to “O”. After about 3 Start/Pause button;... -
Page 15: Programme Tables
Programme table Washing programmes Temperature/ Fabrics Type of laundry Additional functions Programme Prewash Rinse Hold 90° Sheets, household linen, towels, White cotton Quick Wash tablecloths COTTON Heavy Stains Spin reduction Prewash Rinse Hold White cotton Hand towels, sheets, underwear, economy tablecloths Heavy Stains COTTON... -
Page 16: Programme Tables
Programme table Special programmes Programme selector dial Programme Programme description Additional functions position 3 rinses with liquid additive, For rinsing hand washed Spin Reduction if required Short spin at items Rinse Hold Rinses max. speed For emptying out the water of the last rinse of programmes Water draining Drain... -
Page 17: Maintenance
Maintenance Bodywork Detergent can also accumulate inside the drawer Clean the outside of the machine with soap and recess: clean it with an old toothbrush. Refit the water only. Rinse with clean water and dry with a soft drawer after cleaning. cloth. -
Page 18: Water Inlet Filter
• Remove any objects from the pump impeller by Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 19: Something Not Working
Something not working? Problems which you can resolve yourself, before calling the After Sales Service. During machine operation it is possible that the End light starts to flash: 4 flashes= the door has not been closed 2 flashes= the machine does not empty 1 flash= the machine does not fill. - Page 20 Problem Possible cause • The machine, which is the result of modern • Water is not visible in the machine: technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent. • Spinning starts late or the machine •...
