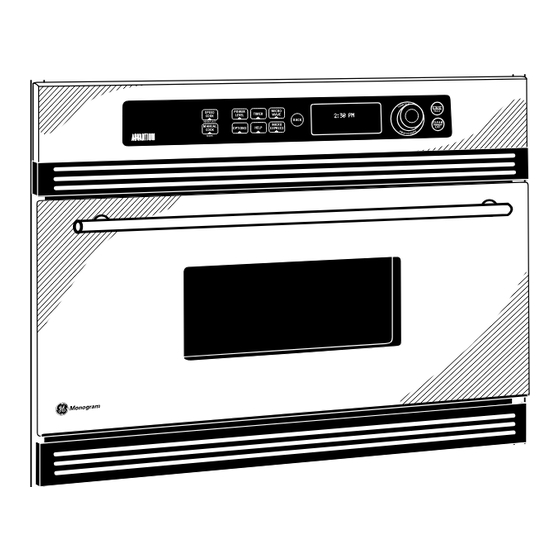

ZSC2001CSS - GE Monogram Built-In Advantium
Dimensions (in inches)
15"
28-7/16"
(Recessed
Portion)
15-27/32"*
29-25/32"
*Excludes Handle

Electrical Requirements

Single Speedcook Installation
Product rating is 120/208 or 120/240 volt, 60 Hz, 30 Amps. This product must be connected to
a supply circuit of the proper voltage and frequency and protected by a time delay fuse or cir-
cuit breaker. The power supply should be brought to a separate 30 ampere branch circuit.
Wire size must conform to the requirements of the National Electric Code or the prevailing
local code.
Combined Speedcook and Wall Oven Installation:
When installed in combination with a GE single wall oven, use separate electrical
junction boxes,
OR,
Install a single junction box connected to 50 amp. supply circuit or properly rated
supply circuit.
• Refer to single oven installation instructions for electrical requirements of
that product.
• These connections must be made by a qualified electrician. All electrical
connections must meet National Electrical code or prevailing local codes.
Combined Speedcook and Warming Drawer installation:
When installing the Speedcook oven over a GE electric warming drawer, a separate
120V, 60Hz, properly grounded receptacle must be installed. See instructions packed
with the warming drawer.
Specification Created 4/00
™
14-1/8"
20-27/32"
21-7/8"
7/8"
27/32"
9/16"
27/32"
13"
15/32" 11/16"
Oven
™

Installation Requirements

• These ovens may be installed directly into a wall
or wall oven cabinetry, 30" minimum width.
• The front surface of the oven will be nearly flush
with surrounding cabinetry doors.
• This oven can be installed over any GE single
electric built-in oven or a single GE electric built-in
warming drawer.
• This oven must be installed at least 36" above
the floor.
IMPORTANT: This oven is not approved for use
above another built-in Speedcook oven, side by
side or under the countertop installations.
• For personal safety, this oven cannot be installed
in a cabinet arrangement such as an island or
peninsula.
• Cabinets installed adjacent to wall ovens must
have an adhesion spec of at least 194°F tempera-
ture rating.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
