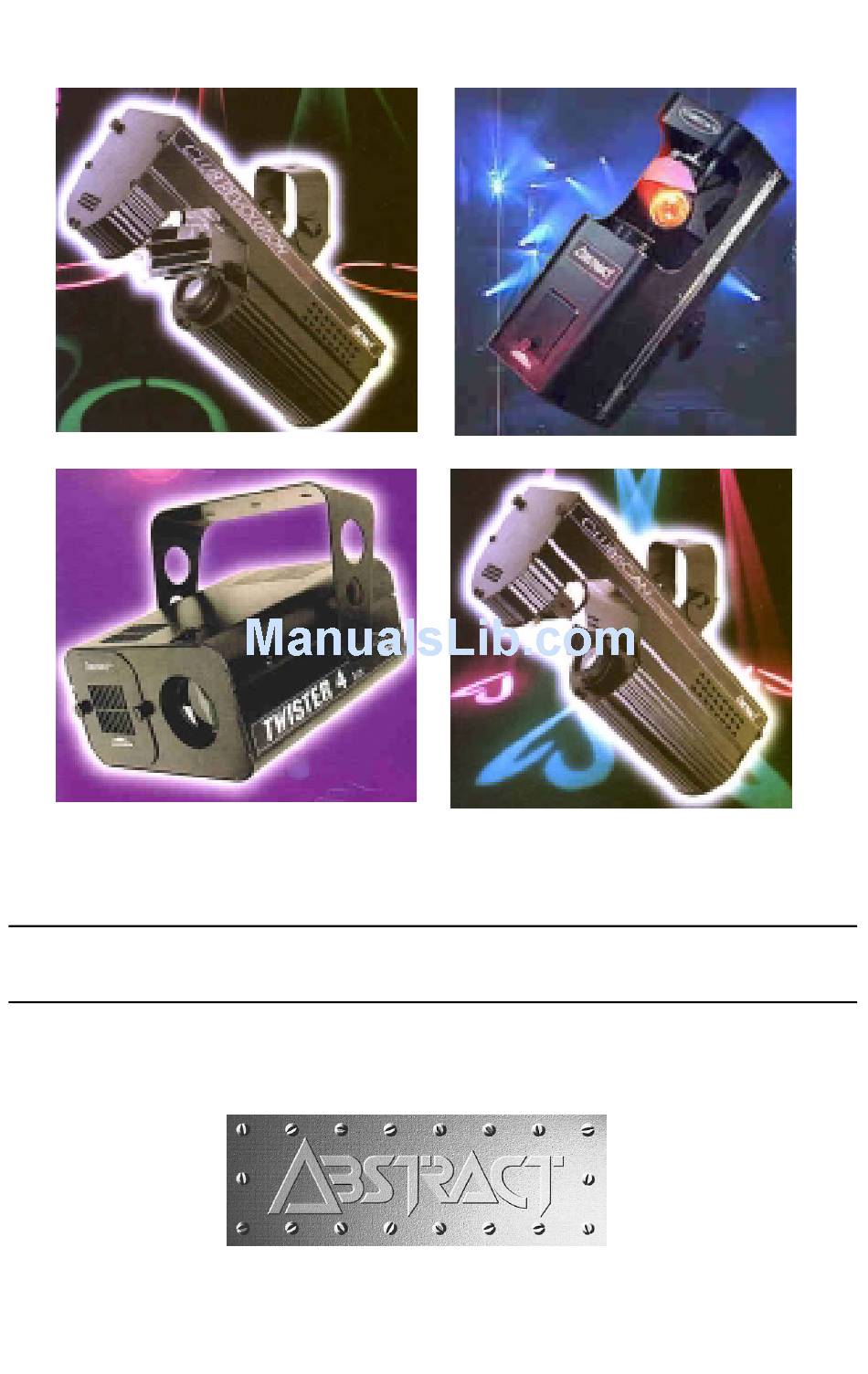

- Page 1 Instruction Manual...
- Page 2 Abstract Universal Instruction Manual Introduction The Abstract range of lighting products offers an incredible number of features in a variety of different effects, which can all work together in harmony to produce an amazing light show. This booklet contains instructions for the following products:...
-
Page 3: Connections And Controls
DMX input plug (pin 3 cold, pin 2 hot, pin 1 screen). A dedicated controller such as the Abstract CE controller, or other DMX lighting desk can be connected to this plug. The unit buffers the DMX signal, so you must make sure you get the connectors the right way round. - Page 4 Mains power (not shown in picture). Power is supplied to the unit through an IEC connector on the back face of the unit. There is a power supply fuse built into this connector. If this fuse fails you should take the unit to an Abstract dealer for service.
- Page 5 - you can connect any mix of units together and a fascinating synchronised lightshow will be produced. If you have more than one Abstract unit, you can link the units using DMX cables (balanced microphone cables should work). Connect the DMX out (the socket) on the first unit to the DMX in (plug) on the second unit.
- Page 6 It is always assumed to be “off” for the first unit. If you are using Abstract CE-range products with Club products, make sure one of the Club products is first in the DMX line, because the Club products have “Supersound”...
- Page 7 You don’t need to connect a line terminator in the last unit. If you are using the Abstract CE controller, you should set up the controller to match the heads you have connected. Refer to the controller manual for help on this.
-
Page 8: Operating The Unit
Abstract Universal Instruction Manual Operating the unit When you turn the unit on, it will go through an initialisation routine where it moves all the motors to their zero positions. You may hear some bumping noises as the unit checks the limits of movement on the motors. - Page 9 Abstract Universal Instruction Manual Operation in DMX controlled mode To control the unit we recommend Abstract’s CE controller, Compact controller or ClubShow system, which are designed specifically for Abstract lighting units. However, you can use any DMX controller to operate the unit.
- Page 10 Compatibility with other Abstract units All units in the Abstract CE, VR and Club ranges are compatible with each other, even those which have different functions, or more colours and gobos. You will find that some colours are repeated on the simpler units;...
-
Page 11: Maintenance Of The Unit
If you are operating the unit regularly for prolonged periods (e.g. nightclub installations) you should take the unit to an Abstract dealer for full servicing and internal cleaning a few times a year. Do not attempt to open the case yourself as electrical hazards are present inside, and you risk damaging delicate internal parts. -
Page 12: If You Have Problems
The trip will automatically reset when the unit cools down. Ensure all vents are clean and have free airflow. If the fan does not run when the unit starts up, take the unit to an Abstract dealer for repair. - Page 13 If still you cannot resolve the problem, it may be that the unit has a fault. You should contact your Abstract dealer for assistance. If you have Internet access you can go to: http:\\www.abstract-lighting.co.uk...
-
Page 14: Specifications
Abstract Universal Instruction Manual Specifications Beam movement: 160° (pan) x 100° (tilt) -(Clubscan, Futurescan 1) Beam rotation: 0 - 80rpm variable speed bidirectional rotation (ClubRevolution, Twister 4, Galactic Star) Mirror drum swivel: 220° swivel (ClubRevolution, Gladiator Revolution) Microstepping: 0.1125° resolution (all channels) -
Page 15: Dmx Values
Abstract Universal Instruction Manual DMX values Pan (Swivel on ClubRev)-Ch1 Tilt (Ch 2) Result Result Left Central Central Right Bottom Rotation (Ch 2 on ClubRevolution) Result Stop Fastest speed clockwise Slowest speed clockwise Stop Slowest speed a.clockwise Fastest speed a.clockwise... - Page 16 Abstract Universal Instruction Manual Gobo Shutter Blackout Blackout Open Open Laser “ Star “ Slice “ Tunnel “ Heart “ Eurostars “ Sunburst “ Triangle “ Slash “ Bubbles “ Segment “ Bubbles Open Slow strobe Slow strobe Strobe 2...
-
Page 17: Dip Switch Settings
Abstract Universal Instruction Manual Dipswitch settings The Abstract CE controller can show you a picture of how the dip switches should be set. If you are using this controller, ignore the settings below. Settings for all heads if not listed below Settings for Twister 4 Settings for ClubColour &... - Page 18 Abstract Universal Instruction Manual ©Abstract Design to Light 1999 Tel: +44 (0)116 278 8078 http://www.abstract-lighting.co.uk Club Range Instruction Manual - Issue 1.0: Oct 99 Written for Abstract Design to Light by Sabre Technology Ltd: 01482 831031 Page 18...
