Ipevo Kaleido R7 User Manual

Hide thumbs Also See for Kaleido R7:
Table of Contents

Advertisement

Quick Links

Download this manual

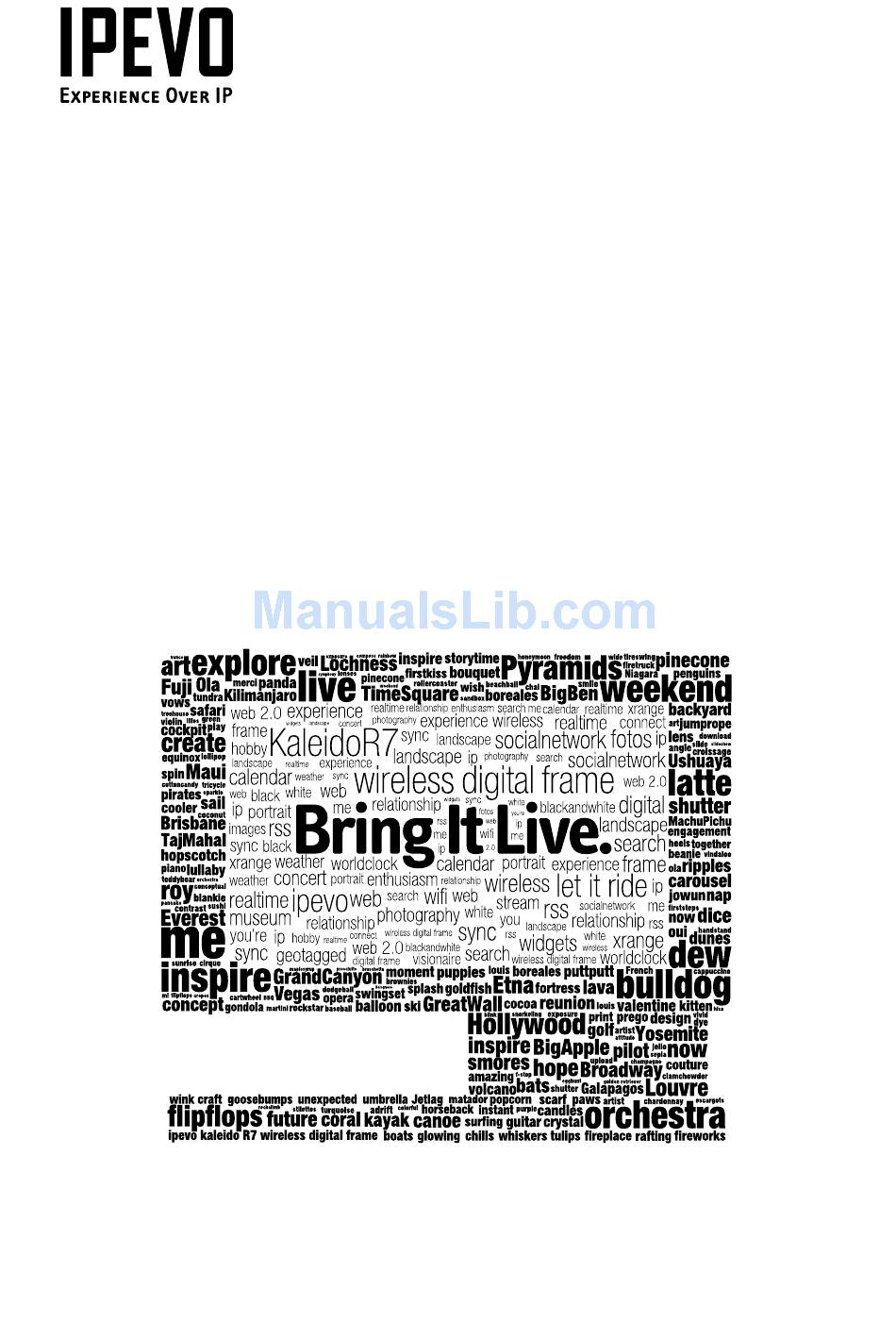

You are watching Kaleido
R7
™
A new way to explore and discover digital photos
www.ipevo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kaleido R7 and is the answer not in the manual?

Questions and answers

Related Manuals for Ipevo Kaleido R7

Summary of Contents for Ipevo Kaleido R7

  • Page 1 You are watching Kaleido ™ A new way to explore and discover digital photos www.ipevo.com...

  • Page 2: Table Of Contents

    2.2 Playing My Gallery 2.3 Playing Card and Memory 3. Using Kaleido R7 Remote Control 3.1 Remote control overview 3.2 Remote control receiver position on Kaleido R7 3.3 Operations in the Menu mode 3.4 Enter/quit the Playback mode 4. Basic Playback Features 4.1 Change photo/text layout mode...

  • Page 3: Manual Version History

    Date Details V1.0.RM.E March 1st, 2009 • First official release version • Corresponding to Kaleido R7 V02.00.04.69 ~ V1.1.RM.E July 6th, 2009 • Added new chapters: 4.9, 5.4, 5.5, 6.6, 7.4 • Corresponding to Kaleido R7 V02.00.05.16 ~ Manual Version History...

  • Page 4: Getting Started

    Note for Network environment: Kaleido R7 will only recognize computers in the same (wireless) network. In other words, both the computer and Kaleido R7 must be connected to the same wireless network access point. It could be one of the following scenarios:...

  • Page 5: Initial Setup

    1. Kaleido R7 is connected to a wireless router 2. EyeStage is installed in your computer 3. Kaleido R7 and EyeStage are paired For details, refer to the Quick Start Guide which is in Kaleido R7 package or downloadable from www.ipevo.com. Getting Started...

  • Page 6: Re-Entering Initial Setup

    1.3 Re-entering Initial Setup If the Initial Setup described above is not completed when you turn Kaleido R7 on, you may start the process again through these steps: 1. Reset all settings in Kaleido R7 by activating the following menu item: Settings >...

  • Page 7: How It Works - Three Ways To Enjoy Playing Your Photos

    Three outstanding feature combine together to make a ‘one of a kind’ digital frame. • Live Channels – capture, stream, and play photos live • My Gallery – synchronize photos to Kaleido R7 and play locally • Card and Memory – enjoy photos in your memory device 2.1 Playing Live Channels...

  • Page 8: Playing Card And Memory

    Kaleido ™ 3. Play photos from Kaleido R7 : Play the synced photos from Kaleido R7. No computer is required. Play photos 2.3 Playing Card and Memory Insert any memory card (SD, SDHC, MMC, MS) or USB flash disk into Kaleido R7 to enjoy stored contents.

  • Page 9: Using Kaleido R7 Remote Control

    3. Using Kaleido R7 Remote Control 3.1 Remote control overview The remote control provides instant access to settings and for navigating through contents. All Menus items on Kaleido™ R7 can be accessed using the (OK/MODE), and (BACK/MENU) keys on the remote control.。...

  • Page 10: Remote Control Receiver Position On Kaleido R7

    3.2 Remote control receiver position on Kaleido R7 The location of the remote control receiver is shown below. For the best response, point the control directly to the receiver, ensuring a clear line of sight between the remote control and Kaleido R7.

  • Page 11: Operations In The Menu Mode

    3.3 Operations in the Menu mode Navigate menu items ↓ Press: Up key or Down key 。 Using Kaleido R7 Remote Control...
  • Page 12 Select a menu item Press: OK key (OK/MODE) 。 Using Kaleido R7 Remote Control...
  • Page 13 Return to the previous menu Press: Back key (BACK/MENU) Using Kaleido R7 Remote Control...
  • Page 14 Enter characters 1. Use 。。。。 to highlight a character. = Windows: Backspace / Mac: Delete = Windows: Backspace / Mac: Delete Using Kaleido R7 Remote Control...
  • Page 15 2. Press (OK/MODE) to input the highlighted character. = Windows: Backspace / Mac: Delete = Windows: Backspace / Mac: Delete Using Kaleido R7 Remote Control...
  • Page 16 3. To delete the last character, highlight and press (OK/MODE). = Windows: Backspace / Mac: Delete = Windows: Backspace / Mac: Delete Using Kaleido R7 Remote Control...
  • Page 17 4. To complete entering characters, highlight and press (OK/MODE). = Windows: Backspace / Mac: Delete Using Kaleido R7 Remote Control...

  • Page 18: Enter/Quit The Playback Mode

    3.4 Enter/quit the Playback mode Enter Playback mode and start playing In the Menu mode, you may move the cursor to any location (except for Settings) and press the Play key to start playing. Using Kaleido R7 Remote Control...
  • Page 19 To: Quit the Playback mode Anytime you want to quit playback, press the Menu key (BACK/MENU). Kaleido R7 will return to the Menu mode. Using Kaleido R7 Remote Control...

  • Page 20: Basic Playback Features

    4. Basic Playback Features Kaleido R7 offers various playback features to provide you with an enjoyable and convenient photo viewing experience. 4.1 Change photo/text layout mode Photos posted on the Web are often accompanied by detailed descriptions from the owner. View descriptions, channel name, album title, and other information by switching between different layout modes in Kaleido R7.
  • Page 21 Mode 2 Mode 3 Basic Playback Features...
  • Page 22 Mode 4 Basic Playback Features...

  • Page 23: Repeat All Channels Or A Single Channel

    You may refresh the channel to get the latest content. It is useful for channels that are frequently updated, such as news RSS. How: During Live Channels playback, press the Refresh key . Kaleido R7 will refresh the channel content and then restart playing from the 1st photo. Basic Playback Features...

  • Page 24: Jump To Your Favorite My Gallery Channel And Play It

    Shortcut key is now programmed. 5. Start playing the photos again. When you press Kaleido R7 will automatically jump to the programmed channel and start playing it. You need to have at least one channel to use the Shortcut keys.

  • Page 25: Move To The Previous Or Next Channel

    4.6 Move to the previous or next channel You may switch to the previous or next channel during playback, just like switching between channels on your television set. How: During playback, press the Channel Up key switch to the previous channel; press the Channel Down key to switch to the next channel.

  • Page 26: Set Kaleido R7 To Standby Mode

    4.8 Set Kaleido R7 to standby mode While Kaleido R7 is idle, there is no need to turn the main power off - just use the standby mode. Here are the main benefits: • Saves power consumption. • No waiting time: Kaleido R7 will go to standby or wake up instantly.

  • Page 27: About Pc Link/Offline Status

    2. On EyeStage, Live Channel 'My Channel 1' starts playing. 3. Kaleido R7 switches to Live Channels mode and starts playing 'My Channel 1'. 4. If the photo or mode changes in EyeStage, Kaleido R7 screen will also change accordingly.

  • Page 28: Advanced Playback Features

    5. Advanced Playback Features 5.1 Playback options in the Settings menu To access the below options from the main menu, go to the Settings menu and select Playback Options. Item Options Description Time per Slide 5 sec(default) to 1 day The interval time between each photo Transition Effects Off (default), 7 effects, random...

  • Page 29: Zoom Mode

    5.2 Zoom mode Kaleido R7 provides three zoom modes: Smart Zoom and Fill in, Smart Zoom, and None (Off). Zooming applies to photos smaller than Kaleido R7 LCD display screen area. • None: Kaleido R7 will not enlarge the photo.
  • Page 30 (proportionally) to fill in the display area of the screen. This can cause some parts of the photo to be trimmed. Kaleido R7 will determine whether to fill in and/or magnify the image based on the ratio between the area of the section to be trimmed against the total area.

  • Page 31: Date Information

    5.3 Date information Kaleido R7 automatically collects the date and time values recorded in the EXIF* information to display on the screen. You can choose whether or not to display this information on screen by changing this setting. If the EXIF information of the photo does not include date and time, they do not appear during playback even if the Date Information function is activated.

  • Page 32: Autoplay When Pc Link

    As soon as Kaleido R7 connects with EyeStage (PC OFFLINE status changes to PC LINK), Kaleido R7 starts playing Live Channels. If it has been playing My Gallery or Memory card, Kaleido R7 switches to Live Channels and continue playback.

  • Page 33: Playback Order

    The following playback orders are available from the Playback Options menu. • Sequential (default): Kaleido R7 plays the photos sequentially as displayed in the channel list or thumbnail view. • Random: Kaleido R7 shuffles all photos in the current location and plays them randomly. Live Channels –...

  • Page 34: Extra Features And Settings

    6. Extra Features and Settings 6.1 Change wireless network settings You may change the following settings related to wireless network. • Connect with other wireless networks • Manually configure the IP address • View the current network status • Reconnect with the current wireless network (see the next section for details) How: From the Settings menu, select Wireless Network.

  • Page 35: Reconnect Current Wireless Network

    6.2 Reconnect current wireless network You might face a situation where Kaleido R7 does not connect with the wireless router anymore due to external factors: unstable network, wireless router reset, etc. In such cases you do not need to reconfigure the wireless network setting – just use the Reconnect function.

  • Page 36: Automatically Standby And Wake Up Kaleido R7

    6.3 Automatically standby and wake up Kaleido R7 You can put Kaleido R7 into standby mode and wake it up on a scheduled basis. How: From the Settings menu, select Automatic Standby. 4.8 Set Kaleido R7 to standby mode for more details about the standby mode.

  • Page 37: Update Firmware

    1. From the Settings menu, select Reset Settings > User Settings or Reset All. 2. After resetting user settings, Kaleido R7 will go back to the main menu. 3. After resetting all settings, turn Kaleido R7 power off and turn it on again. You will re-enter the Initial Setup.

  • Page 38: Reformat Internal Memory

    6.6 Reformat internal memory Reformatting the Kaleido R7 internal memory deletes all photos in the internal memory and then resets all internal settings (i.e. brings Kaleido R7 back to the factory default condition). Reformatting is useful in the following situations: •...

  • Page 39: Useful Tips For Kaleido R7

    7. Useful Tips for Kaleido R7 7.1 Replace remote control battery To replace the remote control battery, follow these steps. The battery type is CR2025, 3V. 1. Pull the battery compartment out from the remote control main body. 2. Insert the replacement battery with the positive side (+) facing up.

  • Page 40: Plug/Unplug Memory Card

    The diagram below shows the location of the slot for SD, SDHC, MMC, and MS card. • Plugging the memory card: Insert the card into the slot. Make sure it is placed in securely, otherwise Kaleido R7 may not recognize the card (the card slot is not equipped with a spring mechanism).

  • Page 41: Supported Memory Device And Photo Format

    • MS card • USB flash disk Note: Not all memory devices in the market are supported by Kaleido R7. Please check www.ipevo. com/kaleido to learn about our recommended brand, usage, and so on. Photo format: • JPEG baseline format, up to 10MB in size Note: •...

  • Page 42: Faq And Troubleshooting

    Service mail: cs@ipevo.com http://www.ipevo.com © 2009 IPEVO Inc. All rights reserved. IPEVO, Kaleido, Eyestage, the IPEVO logo, and other IPEVO marks are owned by IPEVO Inc. and may be registered. All other trademarks are the property of their respective owners.
