KiSS DP-470 User Manual

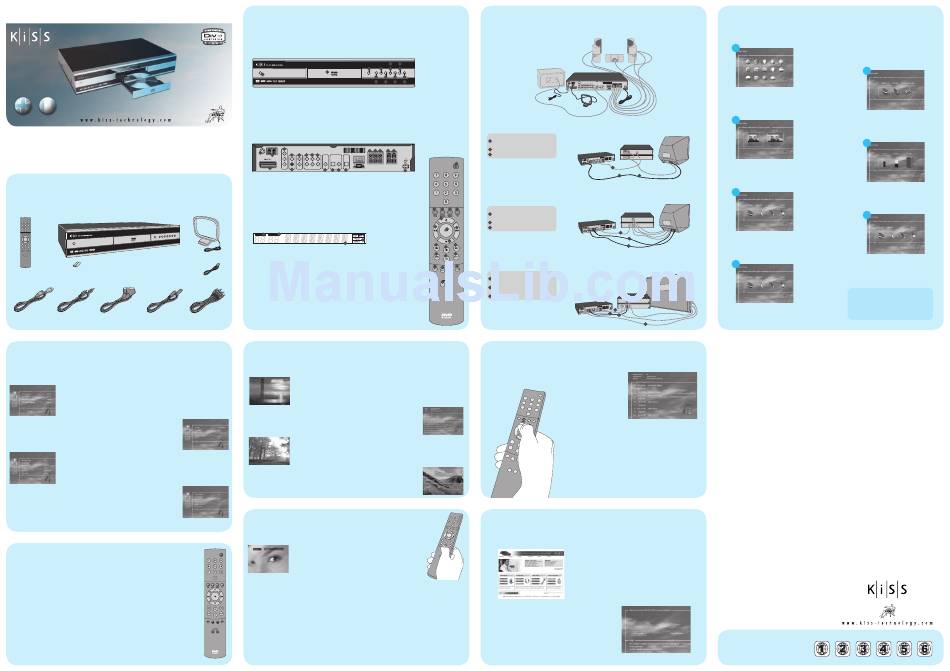

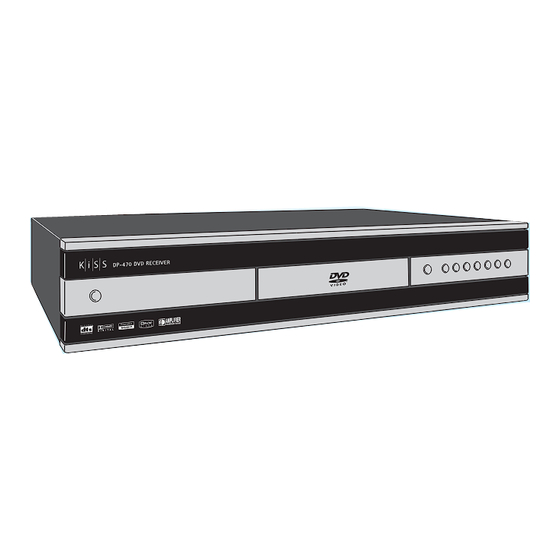

DVD Receiver KiSS DP-470
english français
Congratulations on your new KiSS DP-470
The many different functions provided by your new DVD receiver will be a source of pleasure to you for many years to come. Naturally, you can play and watch
DVD films with superb audio and visual quality. You can watch films in many other formats than DVD, such as MPEG-4, XviD, DivX. The audio features also give
you the option of playing music CDs, MP3 or Ogg Vorbis files. The DP-470 automatically recognises each format and can read CD-RW and DVD-RW alike. Your new
DP-470 also supports Picture CDs (jpg), which means that you can display your photos directly on the TV screen. This includes the pictures developed at the photo
shop and any photos you have scanned and saved on a CD yourself.
Note: Do not use the DVD Receiver until you have studied the quick setup menu. To do so, the DVD Receiver must be connected to a TV set.
accessories
1
Make sure the following accessories are included with your DVD Receiver.
KiSS DVD Player DP-470
Remote Control Batteries for the Remote Control
[size "AAA" (R6P)]
Power Cable Audio Cable SCART S-Video
(Provided in Europe only) (Not Provided in Europe)
advanced setup
You can always access the Setup menu and adjust the DP-470 to your specific requirements and hardware. When the KiSS logo appears on the
main screen, press the SETUP button on your remote control, and a menu will appear with the available options. The orange frame shows your
5
position on the menu. Use the arrow buttons to move the frame and select by pressing the ENTER button. The settings on some of the menus have
already been determined under Quick setup, but there are several settings available under Advanced setup as well.
Language Settings
The first menu is the Language settings menu. Here you select the language you wish to use for the menus, that will
appear on the screen, and your preferred language when playing a DVD film – for subtitles, speech and menus (they will
only be used if the film supports the language).

Video Settings

You can select the TV type (16:9 or 4:3 aspect ratio), video system (Pal or NTSC) and video output (Scart, S-Video,
Component Video or Component Progressive (Progressive Scan)). Composite video is available in all modes except in
progressive scan mode. Component Progressive delivers the best video quality, but be aware that if your TV does not
support Progressive Scan the picture (and menu) will disappear. You can reset this to the factory settings by pressing:
LOAD, INFO, 1, 2, 3 on the remote control.

Audio Settings

KiSS has tuned the product to give you the best possible sound experience (Loudness). Under acoustic setup, you can
neutralize these settings or enhance them further by selecting dynamic sound. Speaker size is used to make the right bass
management. When using small front speakers, try to place the subwoofer between the front speakers. Speakers level let
you change the level on the speakers individually. Select the channel you want to change and use the volume buttons to
adjust up and down.
Miscellaneous Settings
This display lets you set your preferred level of protection on the films. Some films are divided into levels, so that parents
can prevent their children from seeing a specific type of film. In the next menu item, you create a password that is
required for editing this setup*. The light in the DVD Receiver's display can be modified from max to normal to min or off.
All settings can be reset in the "Restore settings" menu, and the Quick setup can be re-initiated from the last menu.
*If you wish to modify this setup later on, you must re-enter the password.
Note: Progressive scan only works on Component video output. This connection gives the best video quality. Only select Component Progressive if your TV
supports it. To leave a menu, press the left arrow on the remote control.
6
receiver
Turn on and select DVD, Radio, Video and TV by pressing the source buttons.
Standby Button
Standby will turn off the DVD receiver
Source Select Buttons
Press the DVD button to start playing a medium. Pressing the Radio button will start playing radio. TV or Video should be pressed to
select external inputs from TV or Video sound. Auxiliary can be selected by pressing the Video button twice.
Amplifier Buttons
Change the volume level by pressing the volume buttons. Press mute if instant silence is needed. The mode button is used to change
between different sound modes. By default, the best available sound mode is selected for the source or media playing. It can be changed
according to the table shown below. The default for CD, mp3 and radio is always stereo (centre and rear speakers are turned off).
DTS: Surround, Stereo
Dolby Digital: Surround, Stereo
Stereo: PLII movie, Stereo, PLII music
overview
Discover the player in all its angles

Front panel

The front panel has the standard buttons listed below. When the disk tray is open, push the end of the tray to close it.
3
2
1
1. On/Off 9. Fast Forward Option on the Setup Menu
2. CD Tray 10. Menu 11. Enter
3. Open/Close 12. Navigate Left
4. Play/Pause 13. Navigate Right
2
5. Stop 14. Navigate Up
6. Previous Chapter 15. Navigate Down
7. Next Chapter 16. Close
8. Rewind

Back panel

Detailed overview of the back panel
4
15
1
2 5 7 8 9 10
3
6 11 12 13 14
1. FM antenna 9 Video analog input 17 Surround speaker left out
2. AM antenna 10 Auxiliary analog input 18 Right speaker out
3. SCART connector 11 Subwoofer output 19 Left speaker out
4. Component video output 12 Optical audio input 20 AC input
5. Composite video output 13 Coaxial audio input
6. S-Video output 14 Optical audio output
7. Analog audio output 15 Surround speaker centre out
8. TV analog input 16 Surround speaker right out
Display
The DVD Receiver is equipped with a VFD display which indicates the current ongoing activities.
2
1
4
3
1. Indicates the selection of the disk being played
2. Indicates the track, chapter or program being played
AM Antenna
3. Indicates the status on the source or the media playing
4. Indicates the type of media being played

Remote

FM Antenna
The receiver is delivered with a standard remote control. All the player's functions can be
performed from it.
1. Standby 9. Right Arrow/Fast Forward 15. List
2. DVD Selector 10. Down Arrow 16. Setup
3. Radio Selector 11. Previous Track/Chapter/ 17. Info
4. Video or Auxiliary Selector Program 18. Mute
5. TV Selector 12. Stop 19. Sound Mode
6. Up Arrow 13. Next Track/Chapter/ 20. Load/Eject
7. Left Arrow/Rewind Program 21. Volume -
Composite Video
8. Play/Pause/Enter 14. Menu 22. Volume +

playing medias

7
The DVD Player supports the following media: DVD Video, DivX, XviD, ISO MPEG-4, Audio CD, MP3, Ogg Vorbis and JPG.
DVD Menu
If you have adjusted your DVD Receiver according to the instructions above, you can now insert a DVD into your DVD
Receiver. A moment later, the DVD menu will appear. Use the arrow buttons to navigate in the menu and start the film.
Note: As this menu is part of the DVD itself, it will vary from one DVD to another.
When you insert an audio CD or a disc with MP3 or Ogg Vorbis files, the player will automatically recognise the format
and start playing it. You can use next/previous track or you can use the menu to navigate through the file structure, and
select the song you want to hear by pressing enter.

DivX, XviD and MPEG-4

The DP-470 recognises the format and automatically starts playing the CD when you insert it into the drive. Use the
counter in the display to help you to see where you are in the film. You have access to the usual playback options, such
as stop, pause, go to next, time search, etc.
The DP-470 can show photos on your TV. The photos must be stored in JPEG format on a Disc. The player will
automatically recognise the files, and start showing them as a slide show. In the menu you can navigate to find a
specific photo, and start the slide show from here by pressing enter.
advanced functions
8
To simplify the remote, we have put all advanced functions under the list button. Press list until you get the function you
want to operate. Press enter to activate it.
Working the List functions
Press the List button until the function (Zoom in this example) is available on the on-screen menu.
Press enter to activate it (change Zoom level in this example).
Note: The on-screen menu times out automatically after a few seconds with no changes.

Subtitle

Zoom
Use this function to choose from the subtitles You can zoom in on specific areas. When zoom
available on the film. Normally you can also is available, press enter to zoom in, and use the
choose the subtitle on the DVD menu cursor to move the zoom-window on the screen.

Audio

Angle
Use this function to chose among the available If the film supports more than one camera angle,
audio tracks on the film. Normally you can also you can use enter to switch from one camera
chose Audio on the DVD menu. angle to another.
Search Repeat
When activating search you can enter a specific You can play the current title/disc or a chapter/
title, chapter or time on the disk, and start playing track continiously by activating repeat. Default
from here by pressing enter. repeat is off.
Set Mark, Goto Mark Late night
Set mark will remember the current position If you want to watch a movie without disturbing
(timestamp) on the disc. By activating the Goto others in the house, you can reduce the dynamics
mark, the player will start playing from that (loud sounds) by activating the late night function.
position. When the disc is changed the bookmark This function is reset when the product is turned off.
will be reset.

connecting

Refer to the illustration below to connect speakers, subwoofer and antennas. To fi t the DP-470 into your current video system, refer to the
three confi guration examples. Choose between one of them or make your own combination.
7 9
5 13 15
4 6 8 10 Subwoofer
11 12 14 16 extra accessory
3
SCART video configuration
Both audio and video is connected through the SCART connector. If a Satellite receiver or set top box has digital audio output (here optical), you
can connect it directly.
Quick Setup
1
• Video output must be set to SCART
Advanced setup - audio
2 • TV input must be set to SCART
16 17 18 19
3 • Video input must be set to optical
1
20
S-Video configuration
Video is connected through the S-Video connectors (or composite video connectors) to the TV. Audio is also connected through the TV to the DVD receiver.
If a Satellite receiver or set top box has digital audio output (here coaxial), you can connect it directly
2 3 4 5
Quick Setup
1 • Video output must be set to S-video
6
Advanced Setup - audio
2 • TV input must be set to Analog
7
9 3 • Video input must be set to coaxial
8
10
11 13
12
14 16
15
Component video configuration
17 19 20 Video is connected to the monitor, and audio is connected to the DVD receiver
18
Quick Setup
• Video output must be set to component video 1
21 22
Advanced Setup - audio
2 • TV input must be set to analog or if digital
audio to coaxial/optical
3
• Video input must be set to analog
Note:
Certain functions will only work if
supported by the media.
radio
9
If the antennas are correctly connected, you should be able to listen to both FM and AM radio
CD, MP3 and Ogg Vorbis
Photo CD and Jpeg

software update

10
KiSS players get regularly updated enabling new functions or improvements. An internet connection and a CD Burner are
required for this operation
Shuffle
When shuffle is activated tracks are played in
random order. Default shuffle is set to off.
Slide show
With this function you can change the time that
each picture is shown in the slide show. You can
Updating the Player
also stop the slide show by selecting off.
Once the CD is burnt with the firmware update, it needs to be loaded in the player
Title menu
which will read it. A message will come up on the screen asking to restart the DVD
This function is sometimes used if you have more
Player. This should be done from the on/off button on the front panel. The CD is being
than one film (title) on one DVD.
loaded, this action might take a little time. The Firmware Update Screen comes up on
the TV, and two options can be selected, Full Update or Partial Update. Full update,
updates the firmware and resets the player to its factory settings. Partial Update,
only updates the firmware. KiSS recommends users to use Full Update. The player is
being updated, which might take up to a minute. Restart is needed. To verify if the
player has been well updated, once it's back up, press "Setup", the number of the
Not all the functions are available on all the
current firmware is written on the top left corner of the screen.
medias
quick setup
If your DVD Receiver is correctly connected (see the chapter on cable connections), a menu will appear when you turn on the DVD Receiver.
The menu installs the most important settings for your TV set and language.
Speakers 1
extra accessories
KiSS DP-470
Power Cable
FM Antenna
AM Antenna
3
VCR
SAT/STB
TV
3
KiSS DP-470
1 2
5
VCR
SAT/STB
3
TV
KiSS DP-470
2
1
7
VCR
SAT/STB/HDTV/PC
2
3
2
KiSS DP-470
Monitor/
1
Plasma TV
support
More information or assistance is available at KiSS Technology's website
under End User/Support/After sales for DVD Player.
Address: www.kiss-technology.com
Resetting
To reset the settings of the DP-470, press the following buttons on the remote
control: "Open", "Clear", "1", "2", "3". KiSS Technology A/S reserves the right to
change all settings and specifications without notice.
Important safety information
• Read these instructions carefully and pay attention to all warnings and
guidelines.
Find a radio station
• Do not overload electrical sockets or extension cables. Overloading can result
in fire or electric shock.
Press >> or << to start searching for a radio station. The display will show the current
frequency. If necessary you can fine tune with arrow up/down. It is possible to change between
• Never insert objects into the DVD player's cabinet door. They might come
FM and AM by pressing the List button until the FM/AM function is available and press enter
into contact with dangerous voltage points or short-circuit components,
to toggle between FM and AM.
which can cause fire or electric shock.
• Do not spill liquids on the DVD player.
• If the DVD Player does not function normally, or if it emits unusual sounds
Programmes
or odours, pull out the plug immediately and contact an authorised technician.
• Do not attempt to service the DVD player yourself. If you open or dismantle
Once the radio station is found, you can store it to a specific programme number. Use the
the shielding, you expose yourself to dangerous voltage and other hazards.
List button to find the Store function and activate it. Enter the program number (1 to 30) and
All maintenance must be carried out by qualified service technicians.
press enter. Stored programmes can be selected by digit input, or by next/previous, you can
also press the menu button and select from the programme list. Where RDS is available, the
programme name will appear as well as the frequency. By pressing info you will get more RDS Environmental information
information. • The system is made of recyclable materials which can be reused if
disassembled by authorised personnel.
• Please follow local regulations for the disposal of packaging
materials, used batteries and discarded units.
Copyright
This product contains copyright technology which is protected pursuant
to the patents that are the property of Macrovision Corporation and other
copyright holders. Any use of this copyright technology must be approved by
Macrovision Corporation. The technology is intended for use in the home unless
otherwise approved by Macrovision Corporation. Breakdown and disassembly
are prohibited.
Made under license from Dolby Laboratories. "Dolby" and the double "D" symbol
are trademarks of Dolby Laboratories. "DTS" and "DTS Digital Surround" are
trademarks of Digital Theater Systems, Inc.
Getting the Firmware
Warranty certificate
KiSS Players firmware updates can be found on KiSS Technology's home page. KiSS provides a twenty-four (24) month warranty from the date of purchase
Under www.kiss-technology.com, "end user" section, then "support". Once on the against material and manufacturing defects. For defects covered by the
support page, choose "upgrade". Select the player to upgrade from the list, and warranty, the product must be returned to the dealer that sold the product.
choose between PAL (Europe and Asia) or NTSC (US and Japan). The file should
download on the PC's Hard Disk. KiSS recommends Nero if burning the CD on a PC
Terms of Warranty
and Toast if burning on a Mac. The file is a Disc Image and has to be burnt as such.
1. The warranty is only valid on presentation of the original sales receipt, and
Make sure that "Disc at Once" and "Finalize CD" in Nero are selected or "Write Disc"
if the serial number on the product is fully legible.
and "Verify CD" in Toast are enabled. If not, an error could occur while updating the
2. The obligations of KiSS are limited either to repair or replacement of
player. More info are available in the "How to Burn" Section of the Support Page.
defective components. The repair or replacement of defective components
is based on an assessment by KiSS. Exchange is only possible if the repair
cannot be performed.
3. Warranty repairs must be carried out by an authorised KiSS dealer, or an
authorised service centre. No remuneration is provided for repairs
performed by unauthorised workshops. Any repairs or damage to the
product caused by unauthorised intervention are not covered by this
warranty.
DVD films are normally supplied with a regional code (1),
(2), etc., and can only be played on DVD players/receivers
with the same regional code. You can see the region on
the back of the player. Region tags appear as follows:
Note: If this menu does not appear when you start the DVD Receiver, recheck the cable
connections.
Note: Try connecting your TV set using the Composite Video cables. Composite Video always
produces a picture.
2
Language
Select the language that will be used whenever you open the
DP-470's built-in menus. Use the arrow buttons on the remote
4
control to move the rectangular frame to the language you wish
to select and press ENTER.
Select the video connection your DVD receiver is plugged
with. Your options are SCART, S-Video or Component video.
Composite video is always available, but the quality level is not
as good as the other connections.
4
TV
This screen presents two different types of TV formats: 4:3
(normal) or 16:9 (wide screen).
Note: Some 4:3 TV screens can display 16:9 format.
Speaker Type
To get the best possible sound select the type of speakers you
have connected
6
Audio input connection for TV
Select the Audio Connections you have going to your TV. These
screens come up as SCART as default, but you also have the
choice between, Analog, Coaxial and Optical.
Audio input connection for Video
Select the Audio Connections you have going to your Video.
These screens come up as SCART as default, but you also have
the choice between, Analog, Coaxial and Optical.
You can always go back and start again if you
happen to do something wrong, Just press on the
Audio input connection for Auxiliary setup button of your remote, go to miscellaneous
settings and select Quick Setup
Select the Audio Connections you have going to your Auxiliary.
These screens come up as SCART as default, but you also have
the choice between, Analog, Coaxial and Optical.
4. This product will not be considered as being defective, either in materials or
in manufacture, if adaptation to national, local, technical or safety-
related requirements is required in countries other than the specific country
for which the product was originally designed and manufactured.
5. This warranty does not cover these types of adaptations, and no
remuneration will be offered for these types of adaptations or for any
consequential damages. The warranty does not cover the following:
a) Periodic inspection, maintenance and repair or replacement of parts
resulting from normal wear.
b) Costs connected to transport, disassembly or installation of the product.
c) Misuse, including use for purposes other than was intended, or faulty
installation.
d) Damage caused by lightning, water, fire, natural catastrophes, war,
insurrection, incorrect line voltage, insufficient ventilation or other causes
outside of the control of KiSS.
6. This warranty applies to every legal owner of the product during the
warranty period.
Packaging
If possible, use the original packing material for any shipping. Otherwise, repack
the DP-470 using:
• A reinforced cardboard box, strong enough to carry the weight of the
product.
• At least 6 cm / 2.36 inches of shock-absorbing material around the product.
• Nonabrasive dust-free material for the other parts.
• Nonabrasive wrapping for the product. (Dust and dirt cover)
• Repack the product in such a way as to ensure that it cannot shift in the
box during transport.
• No other alternative will be accepted
Information we must receive before repairing the product:
Model name: KiSS DVD Receiver DP-470
Serial no.:
Fault description (if possible):
Copy of the invoice or sales receipt
The dealer's name, address and phone no.
Personal information: Name, address, post code/city, phone no. and e-mail
address (optional).
Your signature
Dealer's stamp and signature
Date
KiSS Technology A/S, Slotsmarken 10, DK 2970 Hørsholm, Denmark
Hotline (user support) +45 45 17 00 07,
All contacts with KiSS Support should be addressed in English

Video
