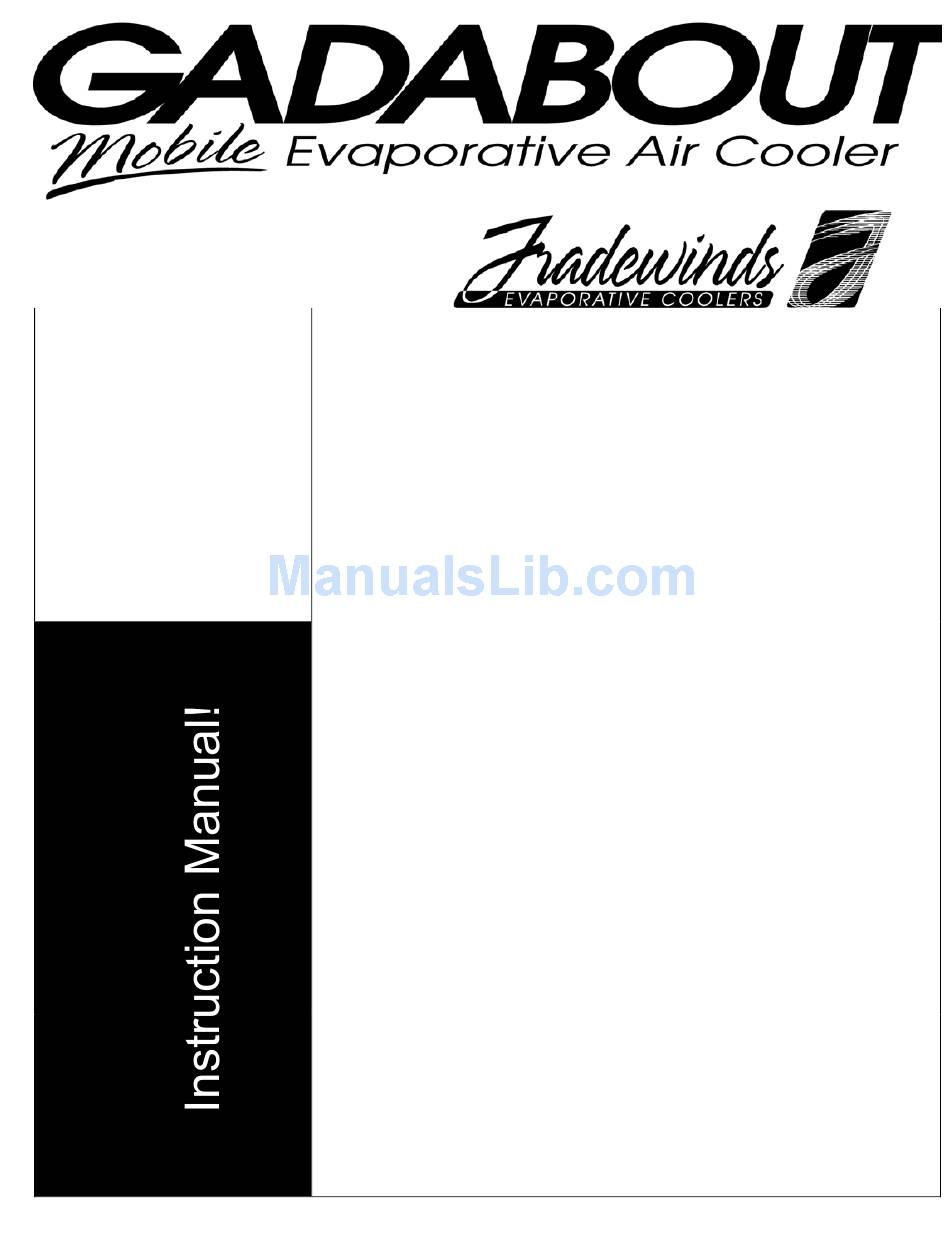

Tradewinds GADABOUT M300 Owner's Manual

Mobile evaporative air cooler

Owner's Manual

Model #'s

M300

M400

M500

P/N 71112

REV 11/03

Table of Contents

Need help?

Do you have a question about the GADABOUT M300 and is the answer not in the manual?

Page 1 Owner’s Manual Model #’s M300 M400 M500 P/N 71112 REV 11/03...
Page 2: Install Drain
4. HIGH and LOW COOL settings operate both the fan and the pump. 5. HIGH and LOW VENT settings operate only the fan. Caution: Do not operate the pump with low or no water in the reservoir. Model M300 M400 M500 Power consumption...
Page 3: Maintenance
Excessive oil in the motor may leak onto the motor windings and damage the • motor. The M300 has no blower bearings, but the motor may be oiled by putting 2 or 3 • drops into the small, V shaped protrusion on the side of the motor.
Page 4: Troubleshooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE REMEDY No electrical power to unit Check fuses or breakers and GFCI Fuse blown or breaker tripped • Cooler fails to start or does not Check voltage and belt tension, GFCI tripped • deliver air replace motor if needed Motor overheated Replace motor...
Page 5 M400 & M500 REPLACEMENT PARTS M400 M500 M400 M500 Item Description Item Description Part No. Part No. Part No. Part No. 71014 71014 Power cord 30318 30322 Blower wheel 71033 71033 Cord wrap bracket 30241 30238-02 Shaft 70973 71027 Water hose 524330 524331 Set collar...
Page 6 M300 REPLACEMENT PARTS M300 M300 Item Description Item Description Part No. Part No. 71014 Power cord 70425 Inlet ring 71033 Cord wrap bracket 70423 Motor 70973 Water hose 70424 Blower wheel 71012 Pump 70367 Blower housing 451GRIL Grill assembly 71019...
