Summary of Contents for Moto-Tech MOTO-1 Series
Page 1
MOTO-1 User manual BEIJING MOTO-TECH CO., LTD http://www.motor-scan.com...
Page 2
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Operate introduction Dear user Your purchased tool is belong to the MOTO-1 ® series, it cover all our technology and experience in many years. The tool will be a very useful work partner and friend to you, satisfy both you and your end customers.
Page 3
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Notes This manual is a necessary part of the tool. It contains its technology features and functions. Please reading the manual carefully before you use the tool or store it. 1. When the engine is working, please make sure that the indoor is ventilation or connect the exhaust gas equipment to the vehicle’s exhaust system.
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Contents Chapter One Product Structure………………………………………………….. 1.1 External View of Mainframe……………………………………………………………………….1 1.1.1 Front layout of mainframe………………………………………………………………………1 1.1.2 Operation guide for the top part of mainframe………………………………………..1 1.1.3 Operation guide for the bottom part of mainframe………………………………….1 1.2 Technical parameter………………………………………………………………………………….2 Chapter Two Function Introduce…………………………………………………...

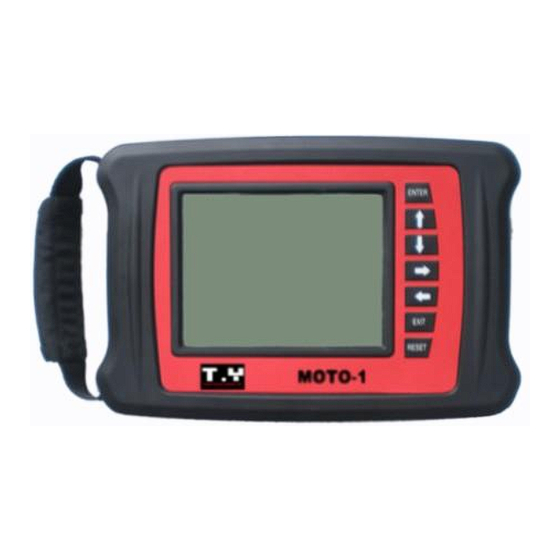

User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Chapter One Product structure 1.1 External View of Mainframe 1.1.1 Front layout of Mainframe Mainframe Length: 220mm Length: Mainframe Width: 150mm Vision Screen Length: 104mm Vision Screen Width: 81mm Instruction of keyboard 【ENTER】key: Confirmation to the current 1.1.2 Operation guide for the top part option.
Page 6
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner 1. Power supply insert 2. Diagnose interface 3. USB interface...
1.2 Technical parameter Working Voltage: DC12V Working current: <1A Working temperature: 0~40℃ Humidity: <80% Chapter Two Function introduction 2.1 Mainframe power supply modes VINASHIN MOTOOR EFI fault diagnostic instrument has several power supply modes 1. Motorcycle diagnostic connector power supply. 2.
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner 2.2 Menu introduction of boot-strap After electrifying the mainframe, turn on the power supply. The mainframe displays the application object of the scanner: MOTORCYCLE SCANNER. After waiting for 1sec. it can enter the main menu automatically.
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner 2.3 System Diagnosis Menu BMW MOTOR 1.System Diagnosis 2. System Information 3. Software Updating Select ENTER This menu is the main menu of this diagnostic scanner; all the diagnostic functions enter from this menu.
Page 10
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner BMW MOTOR 1.System Diagnosis 2. System Information 3. Software Updating Select ENTER This menu displays some specific information of the diagnostic scanner. After pressing the [ENTER] key, it appears the following interface.
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner System Information System software:03.00 Diagnostic software:1.00 S/N:OEM0001548 Press [ENTER] to confirm 2.5 Software Updating Menu...
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner BMW MOTOR 1.System Diagnosis 2. System Information 3. Software Updating Select ENTER This function will be used when updating the software. According to this operation direction, you can finish the software update process. Chapter Three System diagnostic...
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner 3.1 System Diagnostic Introduction Connect diagnostic connector to the motorcycle diagnostic connector and turn on the ignition switch. Open the power supply switch of the diagnostic scanner, and enter the following interface. BMW MOTOR 1.System Diagnosis 2.
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Press the [ENTER] key to enter the following interface. Diag. 1.SIEMENS SYSTEM EXIT ENTER Select 3.2 Read Trouble Code Press [ENTER] key to enter the following interface. BMW MOTOR Communication, please wait...
Page 15
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner If communication failure with ECU will appear the following interface BMW MOTOR Communication failure! Press [ENTER] to confirm If communication with motorcycle ECU is successful will enter the following interface.
Page 16
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner SELECT FUNCTION 1. Read DTC 2. Clear DTC 3. Read Datastream 4. Test Unit 5. Read ECU ID ↑→↓←Select EXIT ENTER Choose【1.Read DTC】,press【ENTER】key it will display following interface. Reading the DTCs,please wait...
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner When read trouble code finished it will appear the following interface. P0105 Intake manifold pressur- e Sensor P0110 Intake air temperature - sensor DTC number :2 EXIT 3.3 Clear Trouble Code Choose【2.Clear DTC】will appear the following interface.
Page 18
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner SELECT FUNCTION 1. Read DTC 2. Clear DTC 3. Read Datastream 4. Test Unit 5. Read ECU ID ↑→↓←Select EXIT ENTER Press[ENTER] key appear the following interface.。 BMW MOTOR Clearing, please wait...
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Later will appear the following interface. Clearing has carried out! Press [ENTER] to confirm 3.4 Read Data Stream Choose【3.Read Data Stream】enter the following interface.
Page 20
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner SELECT FUNCTION 1. Read DTC 2. Clear DTC 3. Read Data Stream 4. Test Unit 5. Read ECU ID ↑→↓←Select EXIT ENTER This function is used to display the current data condition of ECU system. Using this data, you can estimate the vehicle working condition.
Page 21
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Press【→】key continue to look over other data stream. 3.5 Action Testing Choose【4.Test Unit】will appear the following interface. SELECT FUNCTION 1. Read DTC 2. Clear DTC 3. Read Datastream 4. Test Unit 5.
Page 22
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Press【ENTER】key appear the following interface. Actuator 1. Fuel Injector 2. Ingition Coil 3. Fuel Pump 4. MIL 5. All Tests At The Same Time ↑→↓←Select EXIT ENTER Choose【1.Fuel Injector】will appear the following interface.
Page 23
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner SELECT FUNCTION 1. ON 2.OFF ↑→↓←Select EXIT ENTER Choose【1.ON】will appear the following interface. BMW MOTOR Testing, please wait…...
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner The carry out finished will display the following interface. BMW MOTOR Test has carried out! Press [ENTER] to confirm 3.5Read ECU ID Choose [5.Test Unit] will appear the following interface.
Page 25
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner SELECT FUNCTION 1. Read DTC 2. Clear DTC 3. Read Datastream 4. Test Unit 5. Read ECU ID ↑→↓←Select EXIT ENTER Press【ENTER】key appear the following interface. BMW MOTOR Reading the ECU version,Pleas- e wait...
Page 26
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Later display the following information. BMW MOTOR ECU VER:QG0100 Press [ENTER] to confirm...
User Manual of VINASHIN MOTOR EFI fault diagnostic scanner Appendix I: FAQ and Solution 1. When testing the motorcycle ECU with the diagnostic scanner, it displays “Communication failure!” what is the problem? How to deal with it? This problem may be caused by the reasons as below: 1.1 Please check up whether the ignition switch is turn to the “ON”...
