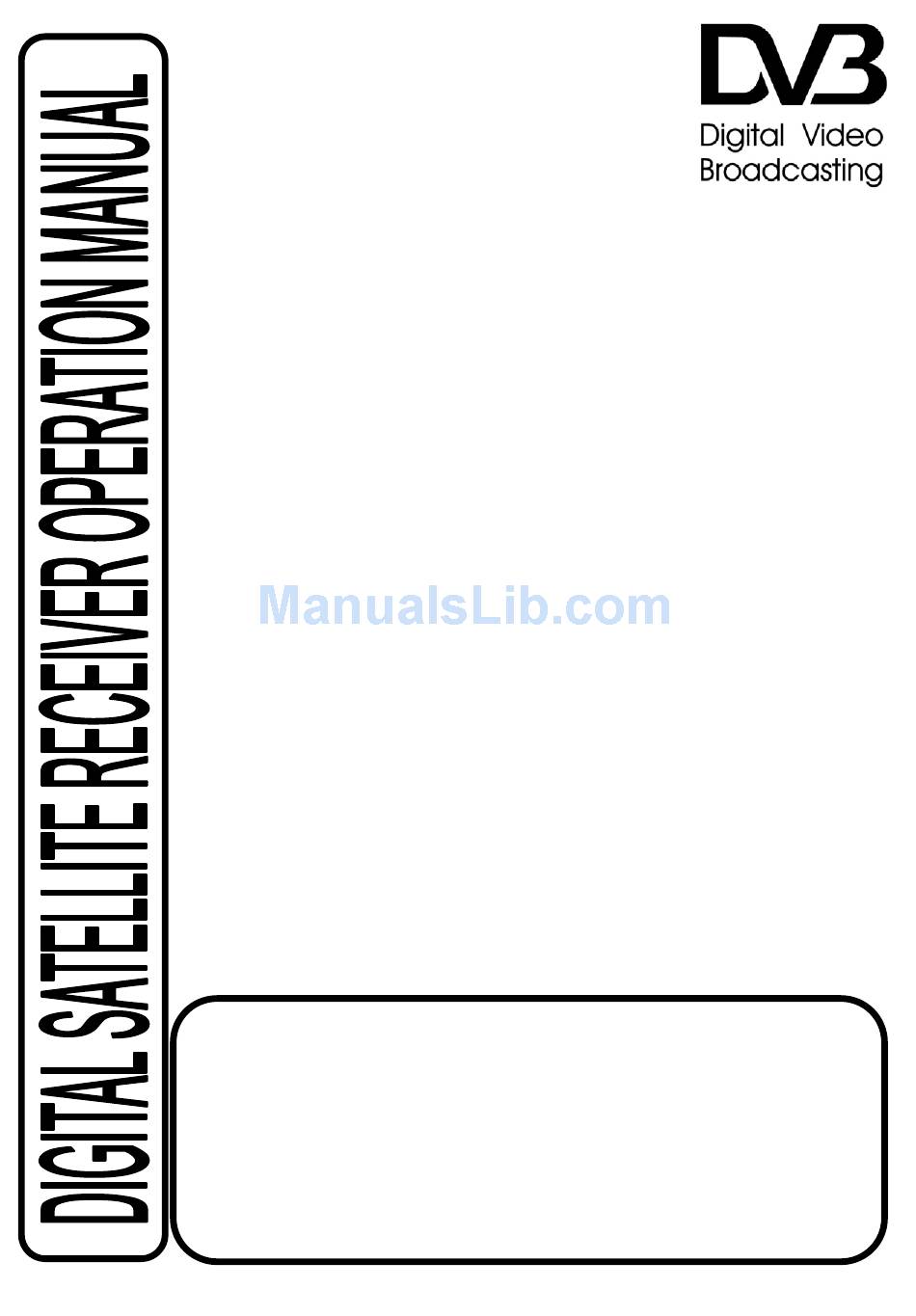

- Page 1 DATACOM DT-103 DEAR CONSUMER GREAT APPRECIATION FOR PURCHASING OUR PRODUCT; TO SECURE THE BEST PERFORMANCE AND THE HIGHEST SAFETY, PLEASE READ THE FOLLOWING EXPLANATION CAREFULLY PLEASE READ THIS MANUAL WITH SUFFICIENT CAREFULNESS AND PATIENCE PRECEDE THE CONNECTION AND INSTALLATION...
-
Page 2: Table Of Contents
CONTENT Safety Instruction..........................1 Front Panel ............................2 Rear Panel............................2 Remote controller ..........................3 System Connection ..........................5 Power On............................5 Menu Tree............................6 Installation............................7 User Setup............................10 Edit ..............................11 Lock setup ............................15 Advanced setting ..........................16 Timer .............................. -
Page 3: Safety Instruction
SAFETY INSTRUCTION Please read the following instructions carefully Do not overload the following wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or an electrical shock Never allow liquids, sprays or other material to be exposed with the inside of the STB Unplug the STB from the wall outlet before cleaning and use the soft cloth to clean the exterior of the STB The LNB cable must be earthed to the system that earthing for the satellite antenna... -
Page 4: Front Panel
FRONT PANEL Card slot (spare) Standby switch AUDIO: to choose audio channel Volume adjusting decrease/ key leftwards MENU: Menu entry/ exit button Channel turning forwards/ key upwards OK: menu confirmation/ channel list Volume adjusting increase/ key rightwards Remote sensor/ status indicator Channel turning backwards/ key downwards LED-displaying window REAR PANEL... -
Page 5: Remote Controller
REMOTE CONTROLLER KEYS Advice operates each function of the STB by using the button on the remote controller. Please read this section to help advance your understanding of the function of the STB Non-menu: to mute the audio output To instruct the unit to enter the standby mode Non-menu: to select the favorite installed channel Non-menu: to show satellite list Menu mode: to select or adjust the parameter... -
Page 6: Precautions About Batteries
Non-menu: to switch the channel between the present and the last Non-menu: to enter the timer editing function Non-menu: to switch the channel mode between TV and Radio Non-menu: to show the stored channel list, menu mode: to confirm the operation Non-menu: to show the present channel’s information Non-menu: to enter Game interface for entertainment... -
Page 7: Front Panel
PREPARATION OF REMOTE CONTROLLER Load the batteries to the groove of the remote controller and then enable you to operate the native Open the lid Load the batteries (AAA type) and attend whether the anode and cathode of battery are corresponding to the polarity indicated on the remote controller Close the lid OPERATION SCOPE OF THE REMOTE CONTROLLER... -
Page 8: System Connection
SYSTEM CONNECTION Connect the AUDIO, VIDEO, and TV Scart output terminals with the corresponding terminals of the TV set Adjust the direction of the dish according to the antenna signal level displaying on the screen Connect the F terminal to both ends of the cable, one end to the LNB terminal of satellite antenna and the other end to “SAT IN”... -
Page 9: Menu Tree
MENU TREE... -
Page 10: Installation
INSTALLATION Punch the MENU key on the program-enjoying mode and the image shows as Move the cursor onto the Installation menu tape and punch the OK key, the image shows as: Punch the OK key to enter the lighting satellite name and the interface shows its transponders as: Punch the red key and key to select the transponder... - Page 11 Punch the MENU key to return to the Select Satellite interface, punch the red key and key to select one or more the satellites and punch the blue key to enter the Satellite interface ( right side) to scan the chosen satellite or satellites Move the cursor onto the Satellite tape, punch the +/- key to select the selecting satellite (note: only two or more the...
- Page 12 tapes show together a certain length and whether the lock indicator lights up simultaneously. Light the sixth tape; punch the +/- key to switch the status between “on” and “off”, punch the OK key to enter the motor interface when the “on” status is being chosen and the interface shows as Light the seventh instruction tape;...
-
Page 13: User Setup
The function of eighth instruction tape Recalculate position is to send an instruction to the motor, and calculate the suitable situation by itself Punch the MENU key to return to the Satellite interface to start the scan, there four modes to search the satellite channels, they are: Auto, TP, FTA and NIT. -
Page 14: Edit
LOCAL TIME SETTING Light the Local Time Setting and enters its sub-menu: GMT: the Greenwich Meantime Selected time zone: to choose the appropriate location Summer time: daylight saving time Time offset: to modify the time What the Current Time appears is the synchro-time which is sent by the satellite signal A/V OUTPUT SETTING Light the A/V Output Setting tape and enters... -
Page 15: Edit Tv Channel
EDIT TV CHANNEL Light Edit TV Channel and enters its interface: Punch the green key repeatedly to change the mode and which will be shown on the yellow tape correspondingly, the status includes: MOVE, FAVOR1-4, SORT, DELETE 1. Move: when the yellow tape shows the “move” character, punch the yellow key, punch the to move the channel name tape to the suitable location and punch the yellow key once more to release. - Page 16 Change: punch the yellow key, the picture shows: Light the Satellite tape and punch the OK key to enter the soft-keyboard interface: Use the , +/- key to move the cursor and the OK key to confirm the input Use CAPS instruction to switch the letter state between capital and miniscule Use NUM instruction to switch the mode from letter to digit and special symbol...
-
Page 17: Lock Setup
EDIT TRANSPONDER Return the interface to the Edit and light the Edit Transponder menu tape, the image shows Delete: punch the key to move the cursor upwards or downwards, punch the red key and the window with “YES” and “NO” appears, punch the red key to delete it and the green one to exit Punch the green key to add the “upward/ downward”... -
Page 18: Advanced Setting
Lock TV Channel: return the Lock Setup interface and light the Lock TV Channel instruction, the image shows Punch the OK key to enter its interface which is similar with the Edit TV Channel, punch the key to select the channel and punch the yellow key to add one “lock”... -
Page 19: Timer
TIMER Punch the blue key in the Main Menu interface, the interface enters TIMER function, the image shows as The tape on the top shows the present date and time sent by satellite Punch the digit-keys directly to modify the showing date and time, hereinto: Input 12 digits is to modify either the date or the time Input 8 digits is to modify the date only... -
Page 20: Tel
TELEPHONE DIRECTORY To punch the green key in the MAIN MENU, the interface enters the Telephone directory one Punch the green key to add the telephone list, and instead the red key to remove which. Punch the +/-, key to redden the item of the telephone list which... -
Page 21: Terms
TERMS (reference) DiSEqC (Digital Satellite Equipment Control) A standard through which it is possible to let a DiSEqC compatible receiver send a signal via the RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the 22KHz signal to control the switching device. -
Page 22: Specification
SPECIFICATION Tuner Input Frequency 950 - 2,150 MHz Signal Level -25dBm - -65dBm (75 ) LNB Control DiSEqC1.0/1.2 22KHz LNB Power & Polarization 13V/18V (Max. 400mA) Channel Decode Demodulation QPSK (SCPC, MCPC) Input Symbol Rate 2-40MSPS Video Profile Level MPEG-II MP@ ML Output System NTSC / PAL Output Terminal... - Page 23 PACKING LIST ITEMS Qty. REMARK DIGITAL SATELLITE RECEIVER INSTRUCTION MANUAL REMOTE CONTROL AV CABLE CELL NOTE: Any modification will not be noticed in advance. Our company reserves the rights for the explanation of the difference...
