Summary of Contents for TileVision LRC
- Page 1 MENU Universal Splashproof Learning EXIT Remote Control PG.UP TEXT PG.DN TVS/00485/04...
-
Page 2: Table Of Contents
TileVision® Universal Splashproof Learning Remote Control The remote control is designed to allow the user to control up to three different devices by using the TV, SAT and DVD buttons to select which device is to be controlled. The remote control is preprogrammed with a library of codes covering all major device brands. -
Page 3: The Remote Control

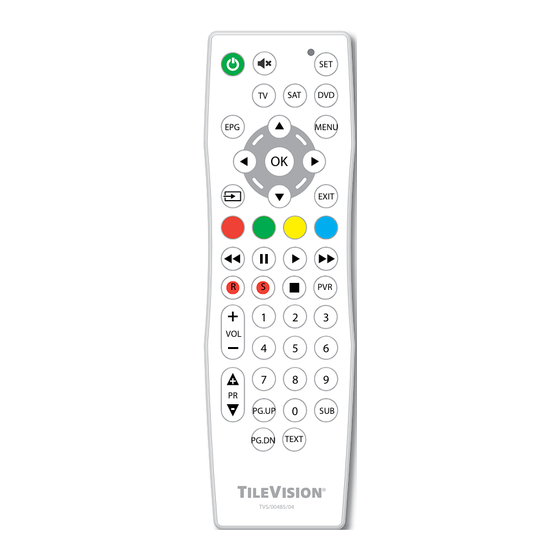

The Remote Control Power On/Off button – Turns the TileVision® on from, or off to, standby Sound Mute button – Turns the sound on or off SET button – for manual programming. TV ‘Device’ button – Selects the TV’s set of button functions SAT ‘Device’... -
Page 4: Activating The Remote Control
Activating the Remote Control Before the remote control can be used an insulating plastic film must be removed from beneath the battery. Place the remote control face down on a horizontal flat surface and use the opener to release the battery compartment cover by rotating it in an anti-clockwise direction. -
Page 5: How To Control A Device
TileVision® Codes The TileVision® learning remote control is supplied with the TV device button set to the TileVision® TV22/FR1 and TV26/FR2 model remote control codes. If these remote control codes are accidentally erased, or if an alternative TileVision®... -
Page 6: Auto Search - All Brand Codes
Auto Search – All Brand Codes Switch the chosen device (TV, satellite receiver, DVD recorder/player) that you wish to find the code for, to ON. When the correct code has been found the device will switch OFF. Press and hold down the TV ( ), satellite ( ) or DVD ( ) button until the... -
Page 7: Checking/Recalling A Device Code
Checking/Recalling a Device Code To find out which three digit code is controlling any device: Press and release the device button: TV ( ), satellite ( ) or DVD ( ) for which you want to find the code. Press the same device button again, together with the OK ( ) button and release both buttons. -
Page 8: Manual Programming And Program Deletion
Manual Programming and Program Deletion High levels of ambient light such as natural sunlight or energy efficient fluorescent lights should be avoided when manually programming the remote control. Any button other than the device buttons and the button can be manually programmed. Manually Programming a Button Place the original remote control and the learning remote control roughly 10 mm apart facing ‘head-to-head’... -
Page 9: Troubleshooting
TileVision® web site or program the buttons from the device’s own remote control. During learning the red light does... - Page 10 Troubleshooting If the remote control fails to operate after the battery has been installed or replaced. A. Gently pull forward the small battery terminal. B. Gently raise up both prongs. C. Insert the battery at an angle, so it rests on the battery terminal A. Refit the battery cover and wait 15 seconds before operating the remote control.
-
Page 11: Button Assignment Table
Button Assignment Table TileVision® Model/Button Function Programmable Remote Control TV19/FR1 TV17/FR5 TV17/FR4 /FR3 /FR2 Button TV26/FR1 - 371 TV23/FR3 - 369 TV23/FR2 /FR1 - 370 Power On/Off Power On/Off Power On/Off Power On/Off Number buttons 0–9 Number buttons 0–9 Number buttons 0–9 Number buttons 0–9... - Page 12 Lower Healey Business Park · Froom Street · Chorley Lancashire · UK · PR6 9AR Tel: 0870 871 0111 · Fax: 0870 871 0112 eMail: sales@porta.co.uk · Web: www.tilevision.tv TileVision Learning Remote Control Operating Instructions – April 2012 – TVS/00527/04 ®...
