FMMOD02 INSTALLATION / USER GUIDE
CONTENTS

• FM Modulator

• Mounting Hardware

1-800-221-0932
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION

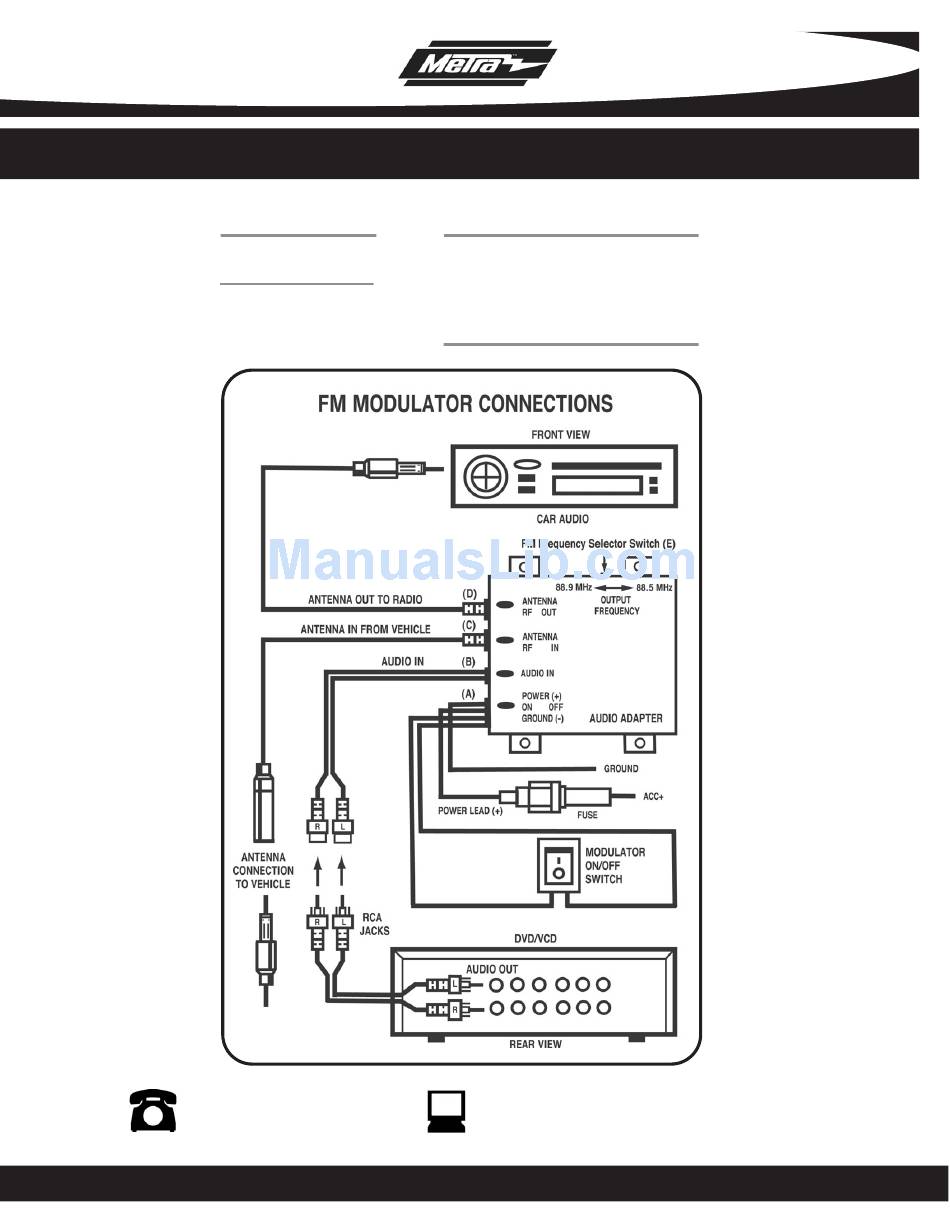

MODULATOR CONNECTIONS
A) Power connections and on/off switch
B) RCA audio input jacks
C) Antenna connection to vehicle
D) Antenna connection to radio
E) FM frequency selector switch
