GarrettCom GT3071R User Manual

Garrett Turbocharger Upgrade Kit for the Mitsubishi Evo X
Application:
2008+ Mitsubishi Lancer Evolution X

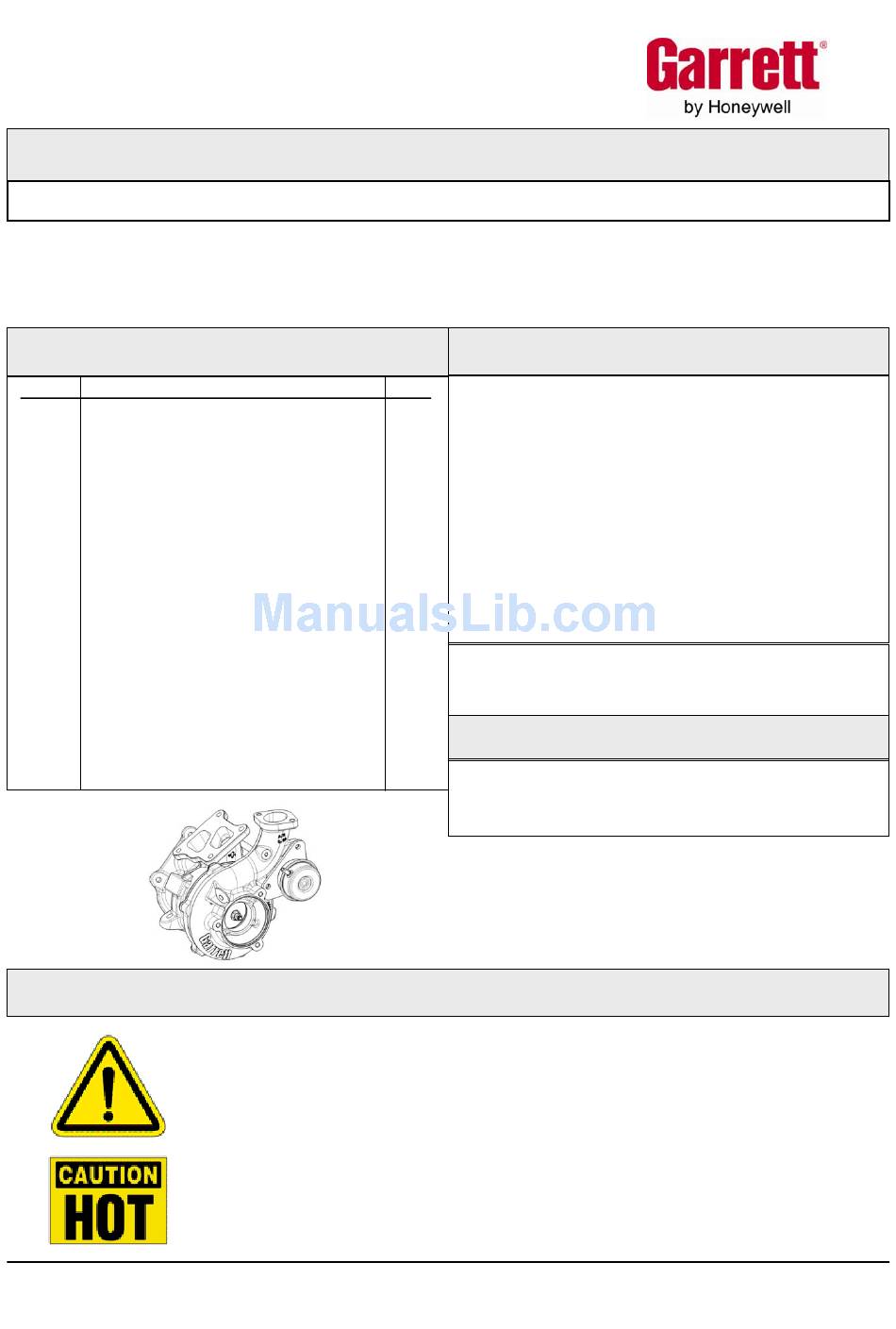

Parts List
Item Description

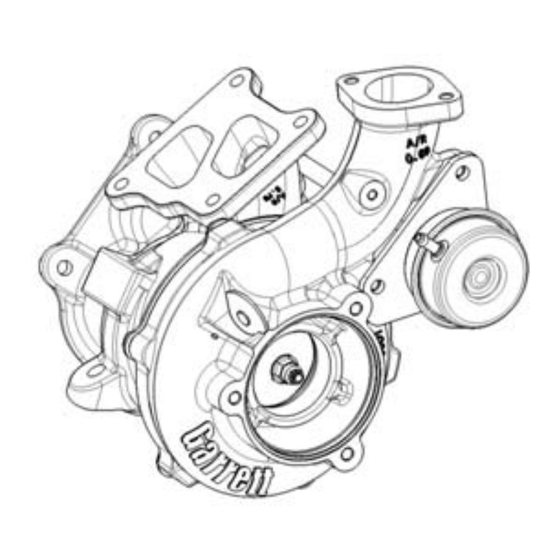

1 Turbocharger (GT3071R or GT3076R)
2 Compressor inlet elbow
3 Oil inlet fitting (banjo bolt)
4 Oil drain line (with o-ring)
5 Water line
6 Oil inlet spacer
7 O-ring for inlet elbow
8 Oil drain bolt (M8 x 1.25, 8mm 12-pt head) 2
9 Oil drain gasket
10 Copper crush washer, M14
11 Copper crush washer, M12
12 Copper crush washer, M10
13 Actuator retaining ring
14 Bolt, turbine (stainless, M10 x 1.25 x 35)
15 Installation Instructions
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
Document 737639-39 (Rev -)
Bill of Materials & Precautions
We recommend that this Garrett product be installed by a qualified automotive technician. If
you have any doubts as to your ability to install this product, consult with a local automotive
repair company. Please be sure to carefully read all of the attached instructions prior to
starting the installation process. If you have any questions about the enclosed parts or the
instructions, call the distributor that you purchased the kit from for clarification.
Prior to the Garrett product installation, be sure that the vehicle is parked on a level surface
and the engine is cool. Engine fluids and components can be extremely hot following normal
vehicle operation. Avoid direct contact of engine fluids or components with your skin which
may cause personal injury.
www.TurboByGarrett.com
Part Numbers: 788550-0001:
• Ratchet and metric sockets: 10, 12, 14, 17, 19, 22mm, 8mm 12-
Qty.
point
1
• Socket extensions, various sizes
1
• Universal joint ("wobbly") for socket extension
1
• Torque wrench (lb-ft or N-m)
• Combination wrenches: 10, 12, 14, 17, 19mm
1
• Pliers for hose clamps (needlenose or similar)
1
• Screwdrivers: flat blade and Phillips, various sizes
1
• Cutoff wheel or hacksaw for trimming steel heat shields & stud
1
• File or de-burring tool for steel heat shields & stud
• Ruler, scale or calipers (inch or metric)
1
• Floor jack and 2 jack stands rated for weight of vehicle, or
vehicle lift
4
3
• NOTE: Bolt and fastener sizes may be different from one
model year to the next depending on OE specifications.
2
Different tools than those listed above may be required.
1
Recommended Other Items
2
1
• Factory Service Manual & Owner's Manual
• Safety glasses
• Anti-seize compound
PLEASE INSURE THAT THE PART NUMBER THAT HAS BEEN
RECEIVED WAS THE INTENDED PART NUMBER BEFORE
BEGINNING INSTALLATION.
See Honeywell Turbo Technologies' return policy if the incorrect kit
has been ordered.
788550-0002:
Tools Needed
GT3071R
GT3076R
1
