Summary of Contents for Gecko in.p3-110

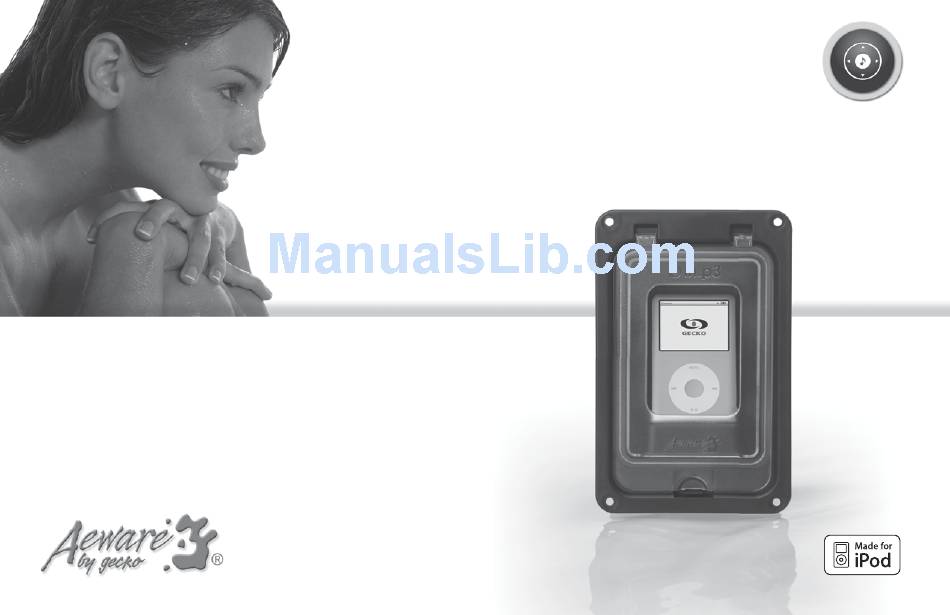

- Page 1 ™ Waterproof protection, docking, connectivity & remote control for iPod on a spa! Owner’s manual Control your iPod from your spa keypad Seamless integration of your iPod to the waterproof audio and control systems of your spa!
-
Page 2: Table Of Contents
Table of contents features ................... 5 warnings ..................6 overview ..................8 installation ..................9 connections in.chant™ ................11 in.tune II™ ................ 12 placing iPod on the dock station ..........13 placing USB key or other MP3 player (optional) ...... 14... - Page 3 in.p3-110™...
-
Page 4: Features
Besides protection against water, it docks, connects and enables remote control of your iPod. The in.p3-110™ is the perfect solution to safely integrate your iPod to the waterproof audio system of your spa. -
Page 5: Warnings
• Use of this PRODUCT outside of its technical specification will • Do not let water pour on the docking connector while connecting void the warranty and Gecko Alliance Group liability. or disconnecting the iPod device. • The PRODUCT should be serviced by qualified personnel only. - Page 6 (such as Ozone Generator, Pump and the like). • Gecko Alliance Group shall not be liable for any incidental, special or consequential cost or damages incurred by the • This control should always be installed with the proper orienta- tion as per the specifications provided by Gecko Alliance Group.
-
Page 7: Overview
Spa wall USB (optional) Enclosure USB/Aux (optional) Aux (optional) iPod Gasket Door Docking connector Latch Din connect to in.tune II™ Side view in.p3-110™ Front view in.p3-110™... -
Page 8: Installation
R 3/16" 4.8 mm 5 1/8" R 15/16" 130.2 mm 23.8 mm 3 1/2" 88.9 mm Groove 8 1/16" 204.8 mm DOWN R 13/16" 20.6 mm Step 1 Step 2 Step 3 Using the drilling template supplied with the unit, determine the If the installation location is Then drill four 1/8”... - Page 9 (122 mm) Warning! The minimum recommended height to install the in.p3-110™ unit is at least 4" above the fl ooding zone. It's strongly recommended to install the in.p3-110™ unit as high as possible to facilitate user accessibility. Carefully select the installation location making sure to avoid pipes, electrical wiring and other...
-
Page 10: In.chant
Optional USB/ JACK RCA (Right) See in.chant™ user manual. RCA (Left) White White Female 9-pin Male 9-pin White mini din connector mini din connector Note: It's not possible to directly control the iPod once connected to the in.p3-110™ docking connector. -
Page 11: In.tune Ii
9-pin mini din receptable as illustrated. in.tune II™ Ipod model supported: See in.tune II™ user manual. Female 9-pin Male 9-pin Mini-Din connector Mini-Din connector Note: It's not possible to directly control the iPod once connected to the in.p3-110™ docking connector. -
Page 12: Placing Ipod On The Dock Station
The in.p3-110™ unit also acts The iPod turns on automatically as soon as it's connected to • Press downwards on in.p3-110™ docking connector. Power to the iPod is turned off when bottom latch to release as an automatic recharging the iPod is removed from the docking connector. Gecko Alliance’s the door open. -
Page 13: Placing Usb Key Or Other Mp3 Player (Optional)
USB key or other MP3 player (optional) in.p3-110™ • Press downwards on • Insert your USB key in the connector • Close door. bottom latch to release the door open. • connect a jack 1/8" to jack 1/8" cable between your MP3 player and the Aux connector in the dock station. -
Page 14: Specifi Cations
General specifications: Environmental: Operating temperature: -20°C (-4°F) to 50°C (122°F) Storage temperature: -30°C (-22°F) to 60°C (140°F) Humidity: up to 80% RH, non condensing Mechanical: Weight: 0.7 kg (1.6 lbs) Dimensions (W x H x D): 144mm x 222mm x 99mm (5-11 ⁄ 16" x 8-3/4" x 3-7/8") Standards: UL 1563 Fifth Ed. - Page 15 9919-100811-B Gecko Alliance Rev. 03/11 450 des Canetons, Quebec City (QC) G2E 5W6 Canada, 1.800.78.GECKO © 2010 Groupe Gecko Alliance Inc. 9225 Stellar Court, Corona, CA 92883 USA , 951.667 .2000 TM trade-marks of/marques de commerce de Groupe Gecko Alliance Inc.
