Features:

» » Compatible»with»Apple»iPod,»iPhone,»and»iPads»with»»
30-pin»connectors.»»Also»compatible»with»the»latest»generation»»
iPods»and»iPhones»with»the»use»of»a»lightning»adapter.»»
» » Play»Audio»and»Video»files»or»view»pictures»when»connected»to»an»AV»
entertainment»system»
» » Sync»when»connected»to»a»computer»using»the»supplied»USB»cable»
» » Charge»with»the»included»AC»adapter»or»from»charge-capable»USB»jacks»
» » 3.5mm»Stereo»Audio»and»Composite»Video»output»jack»
» » Mini-B»USB»Connector»
» » Wireless»Infrared»Multi-function»Remote»Control

What is in the Box:

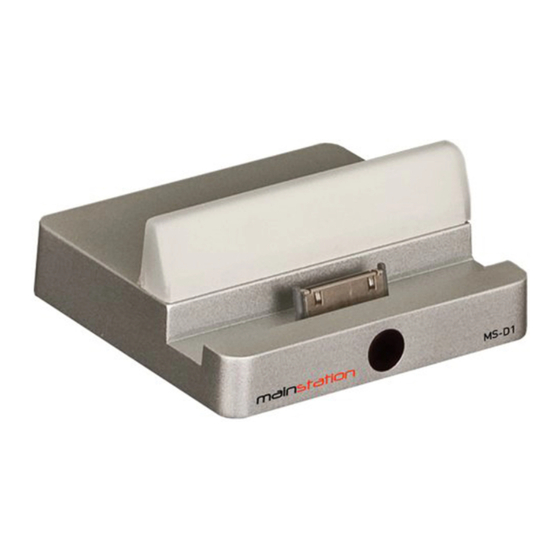

MS-D1 (Dock)

Using the MS-D1 Docking Station:

Place»the»MS-D1»on»a»flat»level»surface.»»
The»MS-D1»is»shipped»with»two»silicone»rubber»support»caps,»one»thick»and»the»other»thin.»»Select»and»install»the»desired»cap»
by»slipping»it»over»the»support»member»with»the»angled»face»forward.»»The»iPhone4,»iPad2,»and»iPods»use»the»thick»silicone»
cap.»»All»earlier»iPhones»and»iPads»use»the»thin»silicone»cap.»»It»may»be»necessary»to»use»the»thin»silicone»cap»with»devices»
that»have»a»protective»case—Experiment»to»see»which»cap»works»best»for»your»devices.»»
*Note:
It»is»important»to»use»the»support»caps»for»iPads.»»iPods»and»iPhones»can»be»used»without»them»if»necessary.»
Rev. B
USER GUIDE
iPod / iPhone / iPad
Docking Station with
Apple
30-pin Connector
®
MODEL: MS-D1
D 1
M S -
» » Use»with»MS-B1 Bluetooth
AC Adapter
POWER
with USB
Output
MENU
SELECT
(1) Thick & (1) Thin
IR Remote
Silicone Support Caps
Control
receiver
®
for wireless playback»from»Bluetooth»
capable»electronics
< MS-B1
AV Cable 3.5mm
4-Conductor
to RCA
REPEAT
USB-A to Mini-B
USB Cable
