- Page 1 A-PoE User Manual (V1.0) -PD 512 Anviz PoE Splitter © 2001-2013 Anviz Global.
-
Page 2: Packing List
Product Instruction Package Accessory Package DC12V Connection Terminal Name Resolution Name: 100M PoE Splitter Model: A-PoE-PD 512 PoE protocol: IEEE 802.3af PoE: Power Over Ethernet P D: Powered Device Interface: AUTO Negotiation/AUTO MDI/MDIX Network Transmission rate: 10/100Mbps PSE: Power Sourcing Equipment... -
Page 3: Product Instruction

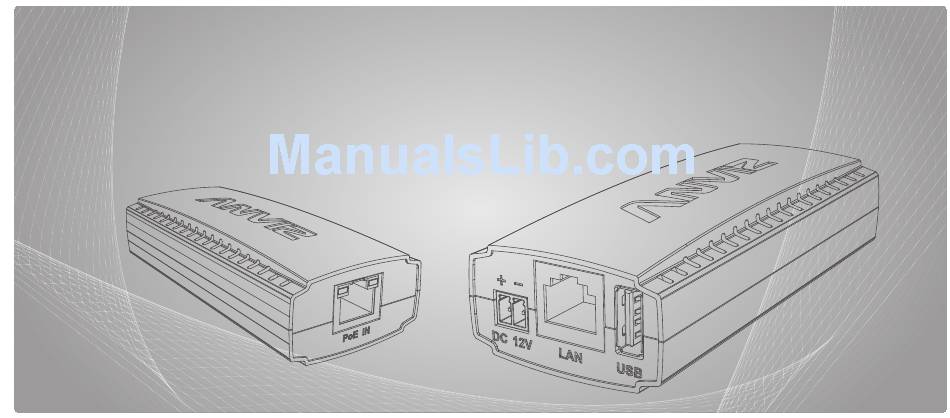

Product Instruction A-PoE-PD512 PoE Splitter is an economic and practical, with high performance and high reliability base on IEEE 802.3af standard PoE remote power receiving equipment. The power can be transferred only with cable. A-PoE-PD512 can work with IEEE 802.3af Power Sourcing Equipment, also supply the power and data transfer to the terminal without PoE function. - Page 4 Parameter Power Supply 13W (IEEE 802.3af) Maximum Output Power 36-57V Voltage Input 12V/5V Voltage Output PoE parameter 1A(Maximum) Current Output AUTO Negotiation/AUTO MDI/MDIX Interface Port and performance Input RJ45 *1 (Power + LAN IN ) RJ45 *1 (LAN OUT) Port DC *1 Output USB Port *1 (Only support power)
- Page 5 Data Transmission 10/100Mbps Communication Distance 100M IEEE 802.3i 10BASE-T; IEEE 802.3u 100BASE-TX Protocol IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet PoE Input Green 48V Input DC Output Yellow Meet IEC61000-4-2(ESD)±15KV(air), ±8KV (contact) requires and the Interface Protection ability to withstand 8/20 us 24 a (12 a) energy Environmental specification Work Temperature -10~60...
-
Page 6: Device Connection Diagram
Size 102x45x27mm(L*W*H) Weight 1 Year Warrant Period Device Connection Diagram HD Sureillance Network Cable with PoE Power Network Cable Face Power Cable Fingerprint Iris Time Attendance PoE Switch/PSE IP Phone www.anviz.com Wireless AP...
