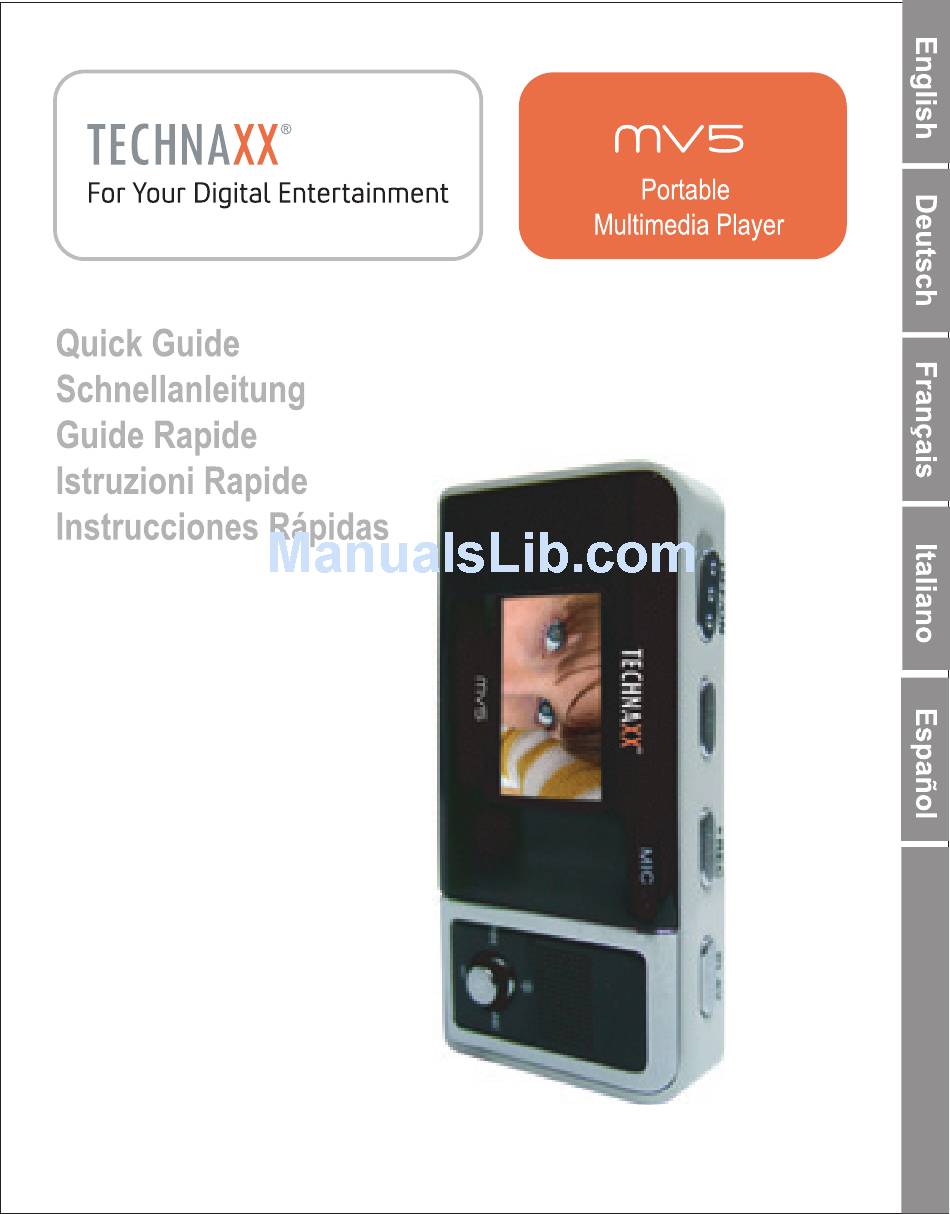

Technaxx MV5 Quick Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Summary of Contents for Technaxx MV5

Page 2: Table Of Contents
Table of Contents Notice…………………………………………… Unique Feature………………………………… Description of the Buttons…………………… Introduction to the Functions………………… 1. Turn ON/OFF……………………………… 2. Introduction to the Menus………………… 3. Music menu………………………………… 4. Voice menu………………………………… 5. Erase Files………………………………… 6. JPEG Display……………………………… 7. Motion Video……………………………… 8. Settings…………………………………… 9. Record Menu………………………………...
Page 3 12. USB connect……………………………… 13. Troubleshooting…………………………… 14. Technical Specifications…………………...
Page 4: Notice
Notice Do not place the Player in places with too high/ low temperature or damp. Do not let any object drop or impact onto the Player. Avoid using the Player in places with too much dust or soot. Do not use chemicals such as alcohol and benzene attenuant.
Page 5 of battery may cause an explosion. Only use the same type or equivalent batteries for change!
Page 6: Unique Feature
Unique Features Mini USB Interface, Full Speed 2.0 65K color OLED Display Supports music play: MP3\WMA\WAV formats, Lyric synch Display Supports BMP\JPG photo browsing Supports video play: SMA\SMV formats Supports TXT file reading Supports Micphone recording 5 EQ modes ： Normal 、 Rock 、 Jazz Classical、Pop 5 Play modes：...
Page 7: Description Of The Buttons
Description of the Buttons PLSY button have Power ON, OFF, Play, Pause and Stop function ○, Menu Options Next, Fast Forward Previous, Fast Backward ○, Volume Increasing ＋ ○, Volume Decreasing － Equalizer and Hold button REC/A-B A-B repeat button, A-B record button OFF/ON Power reset button...
Page 8: Introduction To The Functions
Introduction to the Functions Turn ON/OFF Move OFF/ON button to ON status long press Play button to power on long press Play button to power off Move OFF/ON button to OFF status Introduction to the Menus Enter menu:Press Menu button to enter main menu，short press Menu button to enter all levels sub-menu...
Page 9: Music Menu
Music Menu Enter the interface of music, and play music, press Previous\Next button to select the songs under the status of playing, short pressing PLAY button to pause...
Page 10 pressing Previous\Next button to backward and forward In music mode, Pressing Menu button to pop-up menu, include: Play all Artist, Album, Songs, New Music, Genre, Year, Exit Short pressing EQ button to switch EQ mode, long pressing EQ button to lock all buttons During the music playing，pressing REC/A-B button ,then the start repeating point A is fixed.
Page 11: Voice Menu
Voice menu Pressing MENU button to enter main menu Pressing Previous\Next button to select Voice mode Pressing MENU button to enter voice file selecting interface, after confirming then pressing MENU button enter and play Erase Files Under main menu, short pressing...
Page 12 Pressing Previous\Next button to select voice or delete all or exit, pressing menu to confirm, then press Previous\Next button to select file type that needed delete Press down MENU to select the file to be deleted, then pressing to select YES or NO.
Page 13: Jpeg Display
Jpeg Display Pressing MENU to enter Main Menu, press Previous\Next button to find Jpeg Display, pressing Menu button to enter Sub-menu, including: Manual, Slide Show, Thumbnail, Exit by pressing Previous\Next button select previous or next picture Slide Show: slide to next picture automatically every 3 seconds Thumbnail: display 4 pictures on the screen at one time...
Page 14: Settings
enter Motion Vedio mode Long pressing Menu button，stop the playing, enter into Motion Vedio Mode under the status of playing, short pressing PLAY button to pause press +/- button to adjust the volume (Notice: CD-ROM include SMV Convert Tool) Settings Pressing MENU to enter Main Menu, press Previous\Next button to find Settings, short pressing MENU button...
Page 15 Language Enter Settings mode, Pressing Previous\Next button select “Language” mode, pressing Menu button confirm, Press Previous\Next button select appropriate language, Pressing Menu button to confirm and exit EQ Mode The EQ Mode including 5 kinds of MODE （Normal、 Rock、 Jazz、 Classical and Pop）...
Page 16: Record Menu
Contrast set LCD brightness Power Savings Including disable, 1Min, 2Mins, 5Mins, 10 Mins Screen Save Including back on, 3sec, 5sec, 10sec, 15sec Record Menu Power on the player, then short press Menu button to enter the main menu Pressing Previous\Next button to select Record Mode Short pressing Menu button to enter the status of recording，and begin to...
Page 17 display as followings Pausing the recording, please short pressing PLAY button when you finished record , please pressing Menu button again，and it will built the voice file automatically and exit recording interface 10 Text Browser 10.1 Power on the player, then short press Menu button to enter the main menu Pressing Previous\Next button to select Text Browser...
Page 18 10.3 Pressing PLAY button to enter the interface of play mode selection including: Manual and Slide 10.4 Pressing Menu button to select 11 About 11.1 It will show the player the information of Version and memory 12 USB connect 12.1 charging by USB interface 12.2 connect computer find folder include: VOICE(save record...
Page 19 13 Troubleshooting 13.1 Although the PLAY button is pressed, the Player has no display on its LCD. 13.2 Causes & Treatment: The battery has no power. Please connect the Player to a PC or the external charger to charge the battery. 13.3 When the Player is turned on, it has no actions to any keystrokes.
Page 20 computer. Or, there is no music files in the memory of your Player. 13.7 The time display of some songs is very confused when the Player plays them. 13.8 Causes & Treatment: When the Player plays the MP3 files that are compressed in the VBR (Variable Bit Rate) format, the changes in rate while playing the files will cause...
Page 21 abnormally? 13.10 Causes & Treatment: This is mainly caused by the USB disconnection while the Player transfers files. We suggest that user disconnect the USB connection to avoid abnormal behaviors at the computer side. 13.11 Why is the displayed total memory of the Player not the same as the nominal one? 13.12 Causes: We need some memory...
Page 22 displays “Error, Reformat Media” then the Player shuts off automatically. Why? 13.14 Causes: If you format your Player with Windows NTFS on a Win2000 or WinXP system, the Player cannot recognize this format, so it displays “Error, Reformat Media” then shuts off.
Page 23 14 Technical Specifications Memory Capacity 128/256/512MB/1GB/2GB Battery Li-Battery 65K COLOR OLED Output Frequency 20Hz to 20KHz Range Music Format MP3 and WMA Recording Format Compression Rate 32Kbps to 256Kbps Supported Warning: If your Player displays incorrect total memory...
Page 24 correctly. Memory declaration: Flash factory compute memory unit which it is 1000. 1K = 1000Byte, 1M = 1000K, 1G = 1000M. System unit is 1K = 1024Byte, 1M = 1024K, 1G = 1024M.After format PLAYER, Flash memory will be less than standard memory. The System file require memory too.
