Summary of Contents for Ematic SportsCam EVW535W

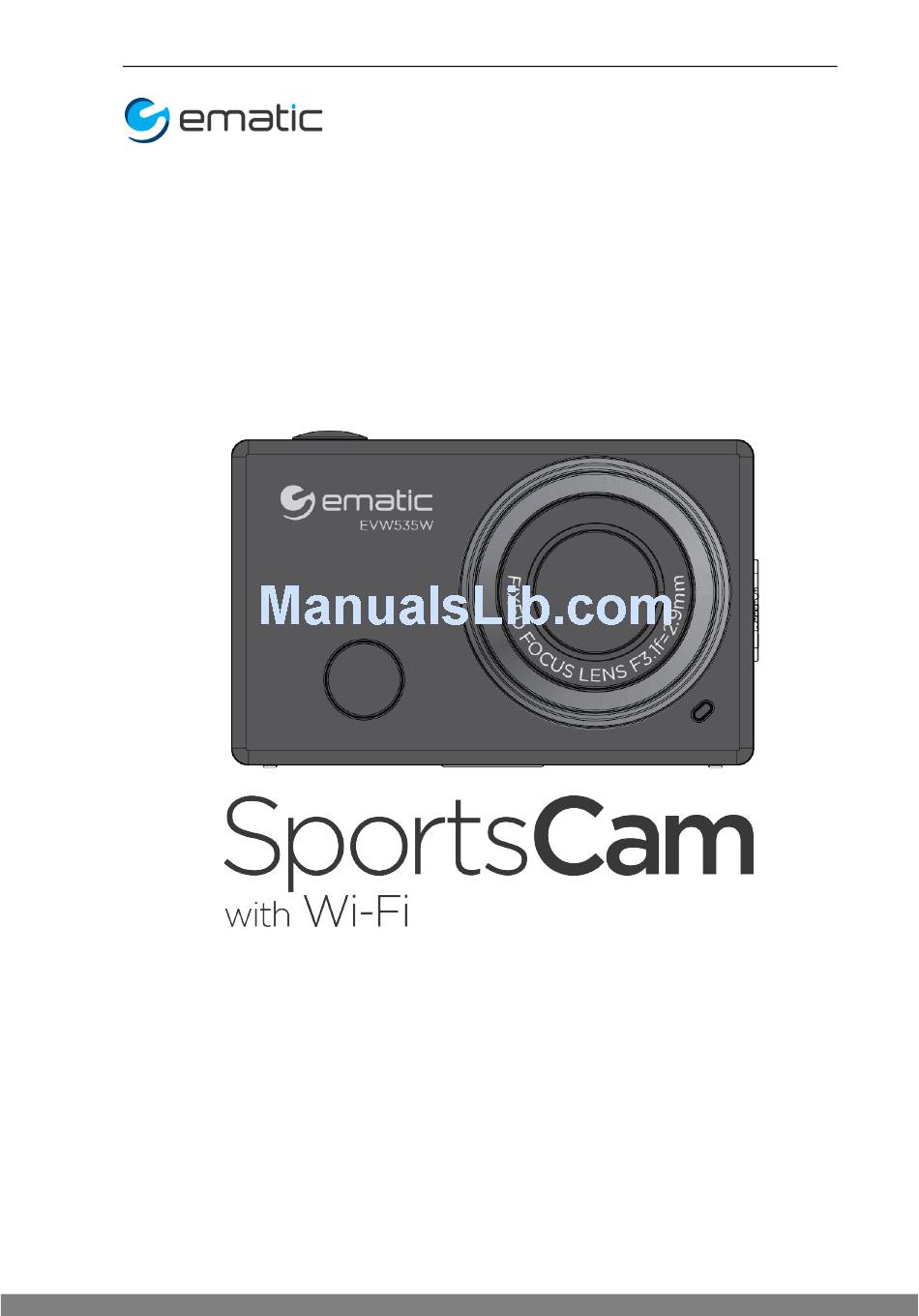

- Page 1 EVW535W...
-
Page 2: Appearance And Buttons
Thank you for buying our SportsCam with Wi-Fi. Before starting to use this product, please read this manual carefully to maximize its performance and extend the life of the product. Appearance and Buttons 1. Shutter button 8. Micro USB port 2. -
Page 3: Lcd Display Illustration
LCD Display Illustration Turn on the Wi-Fi DV, the LCD will display the following status and settings: 1. Camera mode 2. Video recording mode (default) 3. Wi-Fi icon (display when enabled) 4. SD card icon (display when loaded) 5. Resolution icon: In camera mode, HI stands for 8 Mega Pixels (3264x2448), and in video recording mode, it stands for FHD (1920x1080, 30fps);... - Page 4 Working Mode Flow Chart After turning on the DV, you can press the Power/Mode button to switch the following modes in turn: Video mode (720P, 60fps) Video preview mode (1080P default) Video mode (720P, 30fps) Camera mode (8MP) Camera mode (5MP) In video mode, press the Shutter button to start recording, and press it again to stop;...
- Page 5 or recording a video in professional mode, the card of Class 10 is required. Turn off the camera before inserting or removing the card. 2. Use the battery 2.1 Install the battery. Please install the lithium battery correctly as shown in the following graphic. ...
- Page 6 Turn on/off 1. Turn on: press and hold the button for about 3 seconds, the LCD displays “ON” and a beep can be heard. 2. Turn off: press and hold the button for about 3 seconds, LCD displays “OFF” and a beep can be heard. Note: The camera will turn off automatically if it is idle for 5 minutes.
- Page 7 Video recording mode The DV is in video recording mode. icon Video FHD: 1080p@30fps resolution Recording time Stands for 0 hour and 00 minute. SD card icon Display when a SD card is inserted, otherwise no display. Battery level Battery is full The DV is in Mute mode, no Beep will be heard when pressing Mute icon the buttons.
-
Page 8: Enable/Disable Wi-Fi
displayed in LCD will flash. At the same time the red indicator will flash too, meaning the recording is in process. Stop recording: Press and release the button, the icon and [:] displayed in LCD will stop flashing. At the same time the red indicator will stop flashing, meaning the recording is stopped. -
Page 9: Enable/Disable Mute Mode
Wi-Fi is disabled by default When Wi-Fi is enabled, the Wi-Fi icon will display on LCD 4. Enable/disable Mute mode The buzzer is enabled by default. Under the Video or Photo mode, press and hold the Shutter button to disable the buzzer and indicator to enter Mute mode. Under Mute mode, the icon will display on the screen;... - Page 10 Note: Before connecting or removing the HDMI cable, stop video recording, playback and disconnect Wi-Fi. 5.2 When HDTV is connected, it enters Playback mode, the LCD displays as below: Icon name Description Under Playback mode currently. Playback mode There are 31 files and you are viewing the 19 one.
- Page 11 the file or formatting will appear. Press the Wi-Fi button to switch between deleting or formatting, then Press the Power button to select Yes or No, and press the Shutter button to confirm and exit. 6. Connecting to PC 6.1 Turn on the camera and connect it to the USB port of the PC via the attached USB cable.
- Page 12 Now you can start using the camera as a web cam through an application. To return to U-disk mode (PCU mode), press the Shutter button again. Note: Driver is not required for web cam mode (PCC mode) on Windows XP (SP3) version or above. Remote Control Application Buttons Power off button...
- Page 13 APP (support Android™ and iOS®) 1. How to install an APP 1.1 Search for “SYMAGIX” in Google Play™ (for Android OS), or scan the QR code printed on the gift box to find the APP and install it according to the instruction. 1.2 Search for “SYMAGIX”...
- Page 14 ...
-
Page 15: Limitations Of Liability Statement
When you access a website that is not owned or operated by Ematic (a “non-Ematic website”), even one that may contain an Ematic logo, please understand that it is independent from Ematic, and that Ematic has no direct control over the content on such website(s). - Page 16 (including, without limitation, reasonable attorneys’ fees, charges and disbursements, as well as the cost of in-house counsel and appeals) arising from or related to Ematic, the use of The Ematic User Manual or any Ematic product and/or software. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
