Pure Acoustics DREAM BOX Owner's Manual

Technical Specifications

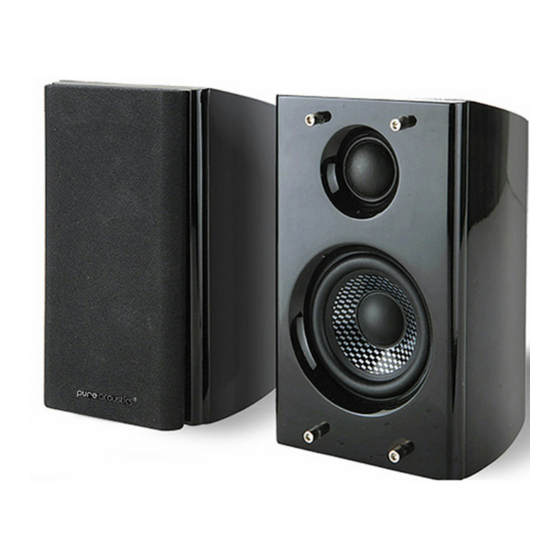

Dream Box front pair
80 Watts (125 W peak)
POWER HANDLING
FREQUENCY RESPONSE 80 Hz - 20 KHz
90 dB
SENSITIVITY
OHMS, NOMINAL/MIN. 8/4 ohms
2-way, DRAV FIG.
DRIVER COMPLEMENT
One 3˝ woofer PP CON
WOOFER
TWEETER 1˝ silk dome
17.6 x 16.5 x 11 Cm
DIMENSIONS
(7 x 6.5 x 4.4 Ins.)
(H x W x D)
WEIGHT 1.6 x 2 Kg (7 lbs.)
Any color
FINISH
GRILLE Black
27.5 x 22 x 20.5 Cm
CARTON DIMENSIONS
(11 x 8.8 x 8.2 Ins.)
(H x W x D)
CARTON WEIGHT 3.5 Kg (7.7 lbs.)
Pair front speakers
CARTON CONTAINS
Design and specifications are subject to change without notice.
www.pure-acoustics.com
Dream Box SUB Dream Box center
50 Watts (120 W peak) 80 Watts (125 W peak)
35 Hz - 150 KHz 75 Hz - 20 KHz
N/A 90 dB
N/A 8/4 ohms
1 DRAV FIG. 2-way, DRAV FIG.
One 6.5˝ woofer PP CON Two 3˝ woofer PP CON
N/A 1˝ silk dome
20 x 20 x 29.8 Cm 11 x 28 x 16.5 Cm
(8 x 8 x 11.9 Ins.) (4.4 x 11.2 x 6.5 Ins.)
4.8 Kg (10.6 lbs.) 2.5 Kg (5.5 lbs.)
Any color Any color
Black Black
35 x 25.5 x 25 Cm 15.5 x 32 x 20.5 Cm
(14 x 10.2 x 10 Ins.) (6.2 x 12.8 x 8.2 Ins.)
5.6 Kg 3.1 Kg (6.8 lbs)
One subwoofer One center speaker
DREAM BOX
O M
WNER'S ANUAL
THE PURE SOUND OF LIFE
PURE ACOUSTICS ®
Pure Acoustics, Inc.
18 Fuller Place • Brooklyn, NY 11215 USA
Tel: 718-788-4411
www.pure-acoustics.com
