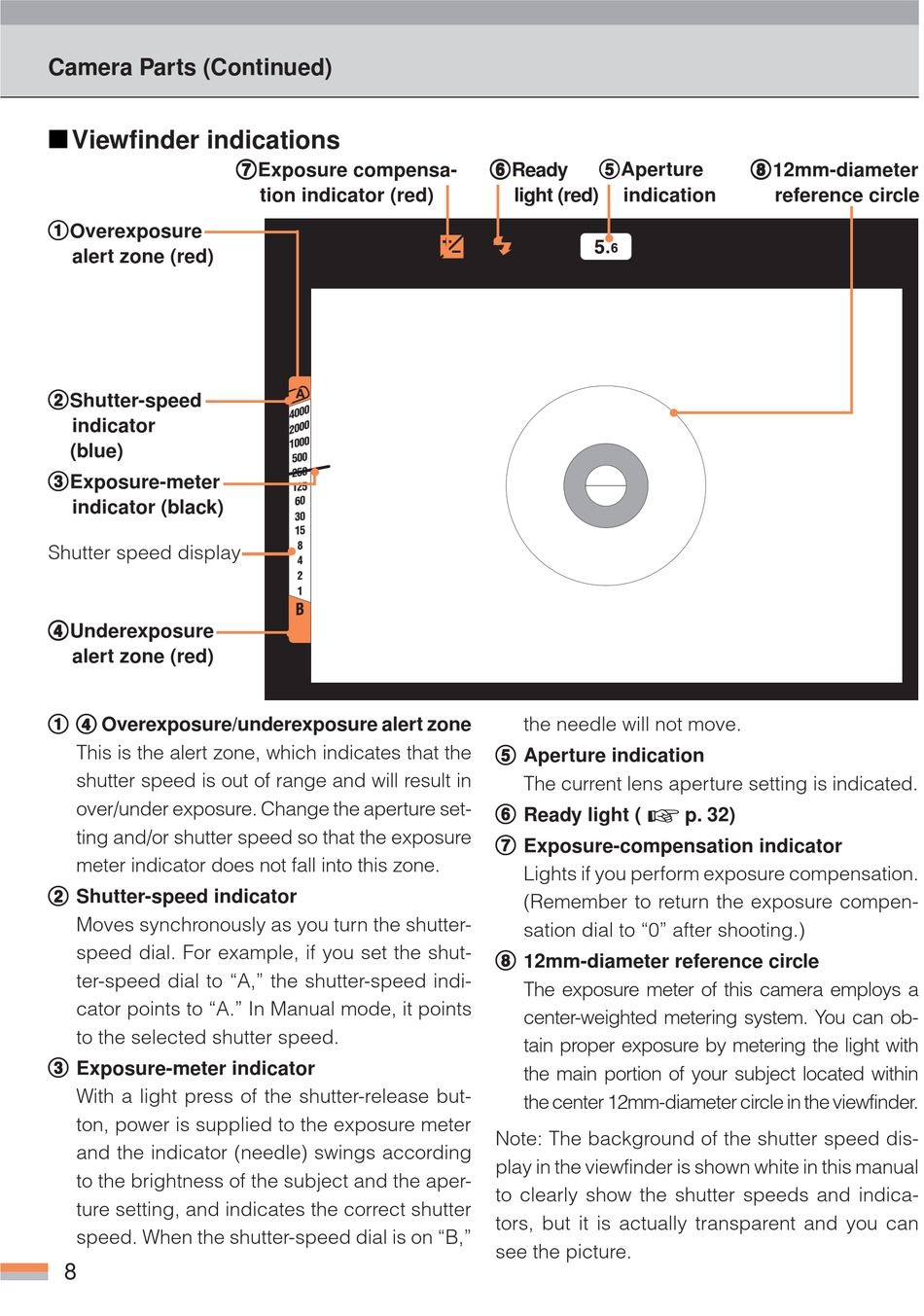

Viewfinder indications

1 Overexposure 1 1 1 1
alert zone (red)
2 Shutter-speed 2 2 2 2
indicator
(blue)
3 3 Exposure-meter 3 3 3
indicator (black)
Shutter speed display
4 Underexposure 4 4 4 4
alert zone (red)
1 4 1 1 4 4 Overexposure/underexposure alert zone 4
1 1 4
This is the alert zone, which indicates that the
shutter speed is out of range and will result in
over/under exposure. Change the aperture set-
ting and/or shutter speed so that the exposure
meter indicator does not fall into this zone.
2 2 2 2 Shutter-speed indicator 2
Moves synchronously as you turn the shutter-
speed dial. For example, if you set the shut-
ter-speed dial to "A," the shutter-speed indi-
cator points to "A." In Manual mode, it points
to the selected shutter speed.
3 3 Exposure-meter indicator 3
3 3
With a light press of the shutter-release but-
ton, power is supplied to the exposure meter
and the indicator (needle) swings according
to the brightness of the subject and the aper-
ture setting, and indicates the correct shutter
speed. When the shutter-speed dial is on "B,"
8
7 Exposure compensa- 7 7 7 7
tion indicator (red)
5 5
6 Ready 6 6 6 6 5 5 Aperture 5
light (red) indication
the needle will not move.
5 Aperture indication 5 5
5 5
The current lens aperture setting is indicated.
6 Ready light ( 6 6 6 6
7 7
7 7 Exposure-compensation indicator 7
Lights if you perform exposure compensation.
(Remember to return the exposure compen-
sation dial to "0" after shooting.)
8 12mm-diameter reference circle 8 8 8 8
The exposure meter of this camera employs a
center-weighted metering system. You can ob-
tain proper exposure by metering the light with
the main portion of your subject located within
the center 12mm-diameter circle in the viewfinder.
Note: The background of the shutter speed dis-
play in the viewfinder is shown white in this manual
to clearly show the shutter speeds and indica-
tors, but it is actually transparent and you can
see the picture.
8 8 8 12mm-diameter 8 8
reference circle
