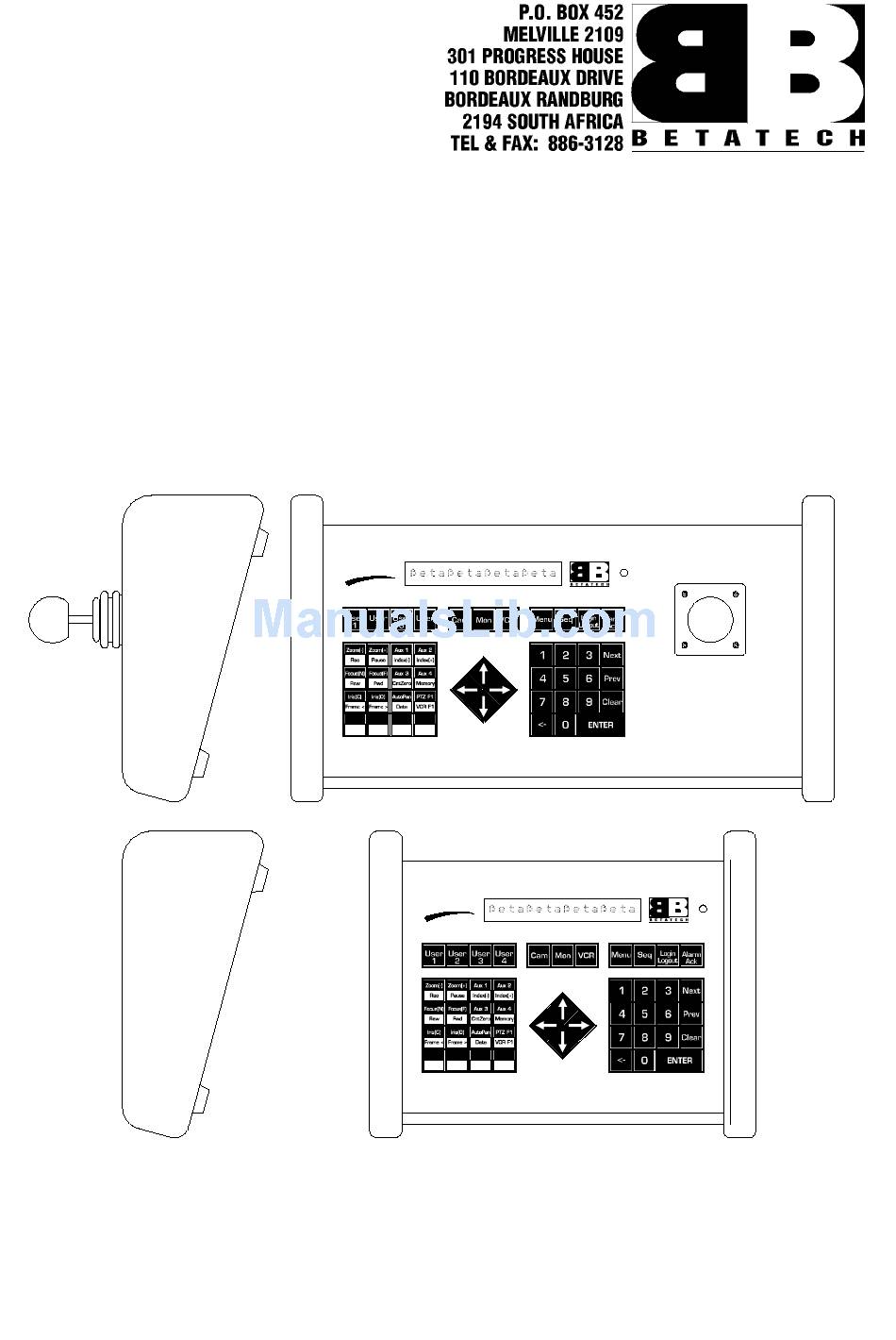

- Page 1 PROGRAMMABLE CONTROL KEYBOARD USER MANUAL P C K R e c a l l S t o r e P T Z P T Z P l a y S t o p V C R V C R P C K...
-
Page 2: Table Of Contents
Page 2 1. INTRODUCTION ............................... 3 3. OPERATION ................................4 3.1. N ............................. 4 UMERIC ELECTION 3.2. S ..............................5 YSTEM PERATION 3.2.1. Camera Operation Mode..........................5 3.2.2. Monitor Operation Mode..........................5 3.2.3. VCR Operation Mode ............................5 3.2.4. Sequence Operation mode ..........................6 3.2.5. -
Page 3: Introduction
Page 3 1. INTRODUCTION The Programmable Control Keyboard (PCK) is a remote control keyboard for the Betatech range of video matrix switching and control equipment. Many common functions required in controlling a medium to large sized CCTV installation may be readily carried out from a single compact keyboard. -
Page 4: Operation
The rear panel of the PCK is as follows: R S 4 2 2 & P O W E R FIG 3. Programmable Control Keyboard with Joystick - Rear Panel Layout P C S T Y L E J O Y S T IC K R S 4 2 2 &... -
Page 5: System Operation
Page 5 Once a value has been selected, changing to the next or previous value may readily be accomplished by using the “Next” and “Previous” keys respectively. 3.2. System Operation On power up the unit will automatically enter the “Login” mode of operation. In order to log into the system the operator must key in his / her password using the numeric keyboard. -
Page 6: Sequence Operation Mode
Page 6 3.2.4. Sequence Operation mode In this mode of operation, the numeric keypad selects the active sequence. The left and right arrow buttons cover the same functions as the “Previous” and “Next” buttons. Pressing the up arrow key will initiate the currently selected sequence. -
Page 7: Setting The Communication Baud Rate
Page 7 4.2. Setting the Communication Baud Rate The currently baud rate is displayed when the PCK is powered up. The baud rate should be matched to that of the video matrix switcher. Note that the highest possible baudrate should be used for fast response. The default baud rate is 19.2 Kbaud. -
Page 8: Appendix A - Connector Pinouts
Page 8 APPENDIX A - CONNECTOR PINOUTS A.1. D9 Main Connector Pinout with device set in SLAVE MODE Pin Number Pin Function RS422 RX[-] RS422 RX[+] RS422 TX[+] RS422 TX[-] Communications ground AC1 or unregulated DC + power input AC2 or unregulated DC Ground power input A.2. -
Page 9: Joystick Connector Pinout
Page 9 Audio out Cold Audio in Cold Audio out Hot Audio ground INTERCOM Supply AC1 or unregulated DC+ power input INTERCOM Audio Ground Audio ground A.4. Joystick Connector Pinout Pin Number Pin Function Joystick common Button 1/1 X wiper 1 Joystick common Joystick common Y wiper 1... -
Page 10: Appendix C - Dimensions
Page 10 APPENDIX C - DIMENSIONS...
