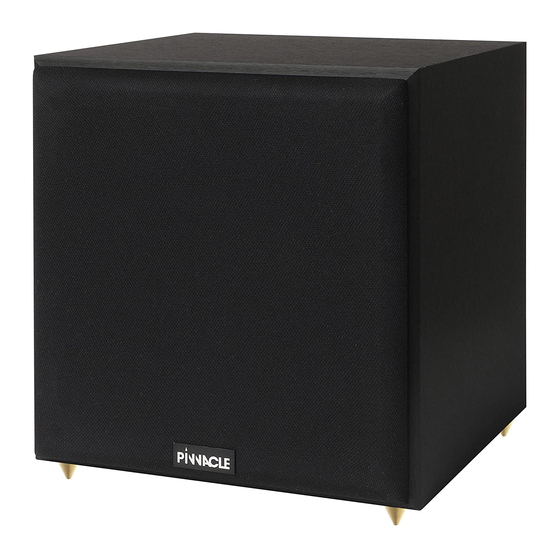

- Page 1 Subwoofer Owner’s Manual: SubCompact 6, SubCompact 8, SubCompact SubSonic , Baby Boomer , S-Fit Cnr Sub 300 , CS 66 , CS 88 Baby Boomer Plus , Sonic 500 Digital Sub 600, SuperSonic & UltraSonic 2008 PINNACLE LOUDSPEAKERS...
- Page 3 ® We congratulate and thank you for choosing a PINNACLE subwoofer. Our subwoofers exemplify the best in modern audio technology, and are designed to produce remarkable amounts of deep bass. Please read this manual completely to ensure the best possible performance from your Home Theater or sound system.
- Page 4 CONNECTIONS: Complete all wire connections in your Home Theater / sound system before powering up your subwoofer or your receiver (amplifier). Be sure to observe proper polarity for all speaker wire connections (+ to +, - to -). To obtain the best performance, use only speaker wire of 12, 14, or 16 gauge (available from your dealer).
- Page 5 If your receiver has no subwoofer output jack but has pre-amp left & right channel outputs you can connect your subwoofer directly to your receiver's pre-amp outputs using the L & R Line Input jacks. If your receiver uses jumpers to connect its pre-amp outputs with its amp stage inputs you will need to acquire two splitter cables (such as Radio Shack # 42-2535) to be able to hookup your sub while continuing to provide a signal to your receiver's amp stage inputs.
- Page 6 There are two reasons to use this connection option. The first is if your receiver has no subwoofer output jack! The second is if your system would benefit from having the bass filtered out of the main speakers (if you have a Dolby Digital or DTS receiver you can achieve the same results electronically simply by configuring your main speakers as SMALL and connecting your sub using an RCA cable - see Connection Option #1).
-
Page 7: Very Important
Adjust the PHASE switch on the subwoofer’s control panel to determine which position sounds the most natural. The difference should be most audible in the mid-bass. If you cannot detect a difference, leave the PHASE switch in the 0° (in-phase) position. If you have placed your subwoofer's Crossover Bypass switch in the OFF position adjust the CROSSOVER knob and determine what position sounds best. -
Page 8: Troubleshooting
TROUBLESHOOTING: No Sound only from Subwoofer - Please note that this subwoofer has a thermal protection feature which will shut off its amplifier if it gets too hot; it will turn itself back on when it has cooled sufficiently. Otherwise: Check subwoofer power / volume settings and all connections. -
Page 9: Product Specifications
Weight: SubCompact 6 - 16 lbs. / S-Fit Cnr Sub 300: 18 lbs. / SubCompact 8 - 21 lbs. / SubSonic - 22 lbs. CS 66 - 24 lbs. / SubCompact 10 - 28 lbs / Baby Boomer & Baby Boomer Plus - 30 lbs. -
Page 10: Limited Warranty
LIMITED WARRANTY: What Is Covered ® Your Pinnacle subwoofer features a limited warranty as follows. The subwoofer driver(s) and all assembly and construction aspects are covered by this warranty for a period of seven (7) years from the date of original purchase. Your subwoofer amplifier is covered by this warranty for a period of two (2) years from the date of original purchase. - Page 12 1 Fairchild Court Suite 140 Plainview, NY 11803 Tel. (516) 576 9052, Fax. (516) 576 0826 pinnacle@pinnaclespeakers.com http://www.pinnaclespeakers.com PR MAN QB REV0508...
