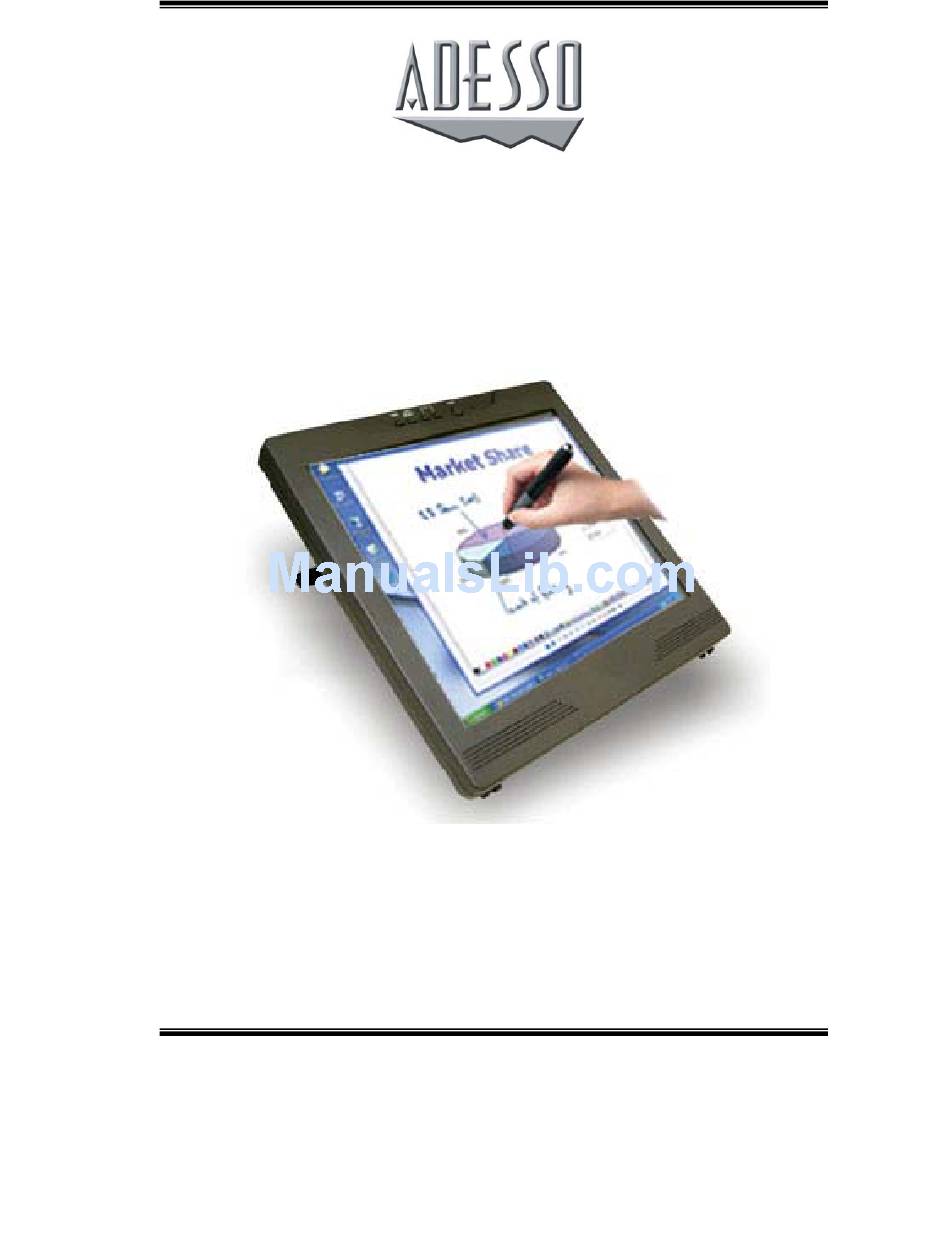

- Page 1 CyberTablet M17 17” Tablet Monitor USERʹS GUIDE ...
- Page 2 Safe Handling Markings and Symbols Various markings and symbols are used in this user’s guide and on this product, to ensure the safe and correct use of this product and to prevent personal injury and property damage. These symbols and their meanings are as explained below. Understand the information well before reading the body of the user’s guide. WARNING This symbol indicates the presence of potential dangers that, if ignored or applied incorrectly, could lead to death or serious injury. CAUTION This symbol indicates the presence of potential dangers that, if ignored or applied incorrectly, could lead to slight or moderate injury. CAUTION This symbol indicates the presence of potential dangers that, if ignored or applied incorrectly, could lead to damage to surrounding property. This symbol draws attention to cautions (including warnings). This symbol indicates something prohibited. This symbol indicates something that must be done. ...
- Page 3 Safety Precautions Always comply with them WARNINGS Securely insert the power plug into the Before moving this product, detach the power outlet. power plug and the power cable. If it is not plugged in securely, The power cable might be damaged, overheating will occur, possibly possibly resulting in electric shock resulting in electric shock or fire.
- Page 4 Safety Precautions Always comply with them WARNINGS Do not use a power cable other than the Do not open or alter the cabinet of this accessory power cable. product. If a power cable other than the The cabinet contains high-voltage accessory power cable is used, fire areas, so electric shock or other or electric shock might result.
- Page 5 Safety Precautions Always comply with them WARNINGS In the following cases, unplug the product from the AC Adaptor outlet and ask the technical support of Hitachi Software. a.! After the power cord or AC Adaptor plug is damaged. b. After a liquid is spilled onto the main unit. c.
-
Page 6: Table Of Contents
Contents 1. Introduction ....................1-1 1.1 Product Introduction ................... 1-1 1.2 Package Overview ....................1-2 1.3 Part Names and Functions .................. 1-3 1.3.1 Front Screen ......................1-3 1.3.2 Front Switch Panel ....................1-4 1.3.3 Connector Panel ......................1-5 1.4 Assembly and Setup .................... 1-6 1.4.1 Adjusting the Stand .................... -
Page 7: Introduction
Introduction 1. Introduction 1.1 Product Introduction About the Product This 17” flat panel screen with an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include the following: Direct Analog signal input Active matrix TFT LCD technology 1280 x 1024 SXGA resolution 17”... -
Page 8: Package Overview
Introduction 1.2 Package Overview After unpacking, make sure that all of the following parts are included. Parts Name Qty. 17-inch LCD monitor Stylus pen AAA alkaline dry cell Spare pen tips AC adapter Power cable RGB cable USB cable Audio cable (stereo mini-plug) (10) Pen tip replacement pin set (11) -
Page 9: Part Names And Functions
Introduction 1.3 Part Names and Functions 1.3.1 Front Screen (1) LCD and tablet operating area (4) Front switch panel Receives text and graphical These switches are used to turn the information entered with the stylus power ON/OFF, enter OSD menu pen, and transmits the data to a PC. - Page 10 Introduction 1.3.2 Front Panel Controls ! ! ! ! (1) Power button (4) Menu button This button turns the This button is used to display the CYBERTABLET M17 LCD monitor OSD menu. Press it after making ON/OFF. menu selections to apply those. (2) Power indicator (5) (+) button his indicator turns green when power...
- Page 11 Introduction 1.3.3 Connector Ports Bottom View of CYBERTABLET M17 Back (1) Power port (4) Audio input port The AC adapter is connected here. This port is used to output PC audio from the speakers. The supplied (2) VGA input port audio cable is connected to this port.
-
Page 12: Assembly And Setup
Introduction 1.4 Assembly and Setup Keep the following points in mind when installing the CYBERTABLET M17 Select a stable, flat location. Avoid installing in locations that are dusty, extremely hot, cold, or humid. Also avoid installing in locations exposed to direct sunlight. 1.4.1 Adjusting the Stand Follow the procedure shown below to adjust the stand. -
Page 13: How To Use The Pen Holder
Introduction CAUTION Hold the body firmly and slide the stand slowly when adjusting it. When adjusting the stand, if you pull up the lever without holding onto the body, the body may move suddenly, resulting in unexpected injuries or damage to the body. Use the screen at an easily viewable angle. -
Page 14: Connection Procedure
Introduction 1.4.3 Connection Procedure Follow the procedure below to connect the PC and CYBERTABLET M17 ! ! ! ! ! ! To power outlet (1) Connect the RGB cable to the VGA input port on the side of the CYBERTABLET M17, and tighten the screws to fasten. Connect the other end of the cable to the PC VGA port, and tighten the screws to fasten. - Page 15 Introduction WARNING Use the AC Adaptor supplied with this product. Use only AC Adaptor or power cables specified by the manufacturer. Use of improper adaptors or cables can damage the product or cause a fire. Using this product with Windows 98 and Windows 98 Second Edition When using this product with Windows 98 or Windows 98 Second Edition, on some computers it may be necessary to install a driver for the USB controller located inside the PC.
-
Page 16: Usage Procedures
Usage 2. Usage Procedures This section describes the basic procedures for using CYBERTABLET M17. For information on using advanced CYBERTABLET M17 features, see the CYBERTABLET M17 Software and User's Guide. 2.1 Turning the CYBERTABLET M17 On This section describes how to turn the CYBERTABLET M17 on. (1) Turn on the CYBERTABLET M17 power. -
Page 17: Using The Stylus Pen
Usage 2.2 Using the Stylus Pen This section describes how to use the CYBERTABLET M17 stylus pen. 2.2.1 How to Use the Stylus Pen The stylus pen has a power switch. Battery life can be prolonged by ON/OFF the power switch. -
Page 18: Stylus Pen Settings
Usage 2.2.3 Stylus Pen Settings The stylus pen has one pen tip button, and two side buttons. Mouse actions can be assigned to these three buttons. The default button settings are summarized in the following table. Button User action Corresponding mouse action Pen tip Press the pen tip against the display. -
Page 19: Changing The Battery In The Stylus Pen
Usage 2.2.4 Changing the Battery in the Stylus Pen The stylus pen contains a single AAA alkaline dry cell. If the pen begins to operate erratically (e.g., if pen input is cut off), change the battery as described below. Note that battery life is approximately 1,800 hours under normal usage. -
Page 20: Replacing The Stylus Pen Tip
Usage 2.2.5 Replacing the Stylus Pen Tip When the stylus pen tip wears down and becomes too short, replace it as described below. (1) Using the special pin set, remove the stylus pen tip. (2) Insert a new pen tip into the stylus pen. English... -
Page 21: Using The Osd Menu
Usage 2.3 Using the OSD Menu The OSD menu is used when adjusting the CYBERTABLET M17 LCD screen. OSD is an abbreviation for On-Screen Display. The OSD feature allows you to view and adjust the settings for the display on the screen. •(+) button 2.3.1 OSD Buttons and Their Functions 1.Increase the brightness of... -
Page 22: Osd Adjustment Options
Usage 2.3.2 OSD Adjustment Options (1) BRIGHTNESS Used to adjust screen brightness. (0-100) (2) CONTRAST Used to adjust color contrast. The larger the value, the brighter the image will be. (0-100) (3) LCD ADJUSTMENT CLOCK : Used to adjust screen size. (0-100) PHASE : Used to adjust the sampling timing (phase) for converting the analog input signal to a digital input signal. - Page 23 Usage (4) COLOR TEMPRATURE Used to adjust the color temperature of the screen. (SRGB, 9300K, 7200K, 6500K, 5000K) USER : Used to adjust the red, green, and blue colors of the screen. (0-100) RETURN : Used to return to the previous page. (5) ECO MODE Used to turn the ECO mode ON, and limit brightness setting from 0 to 20 to reduce power consumption.
- Page 24 Usage (7) OTHER SETUP SMOOTH : Used to adjust the smoothness of the image. (0-3) OSD H.POSITION : Used to adjust horizontal position of OSD window. (0-100) OSD V.POSITION : Used to adjust vertical position of OSD window. (0-100) OSD TRANSPARENCY : Used to turn OSD window background transparency ! ! ON/OFF.
-
Page 25: Appendix
(For details on selection, see key)? the PC manual and other documentation.) Other Contact technical support. www.adesso.com or email: support@adesso.com Stylus pen-related problems In this case Check this And do this Stylus pen does not operate. CYBERTABLET M17 Uninstall CYBERTABLET M17 Software may be damaged Software, and then reinstall. - Page 26 Appendix In this case Check this And do this Is pen tip worn down? Check if the pen tip is worn down or is too short. (For details on how to replace the stylus pen tip, see “2.2.5 Replacing the Stylus Pen Tip” on page 2-5 of this User’s Guide.) Are there any electronic This product is susceptible to...
-
Page 27: System Specifications
Appendix 3.2 System Specifications Item Specification Product name CYBERTABLET M17 Tablet Monitor Display Driver type Active-Matrix Liquid Crystal Display (TFT) characteristics Effective screen size 731.8 mm 337.920 mm (W)×270.336 mm (H) 17 in. 13.3 in (W) x 10.7 in. (H) Resolution 1280×1024 (SXGA) Pixel pitch...
