Summary of Contents for Micricomputer Systems MSI-P563

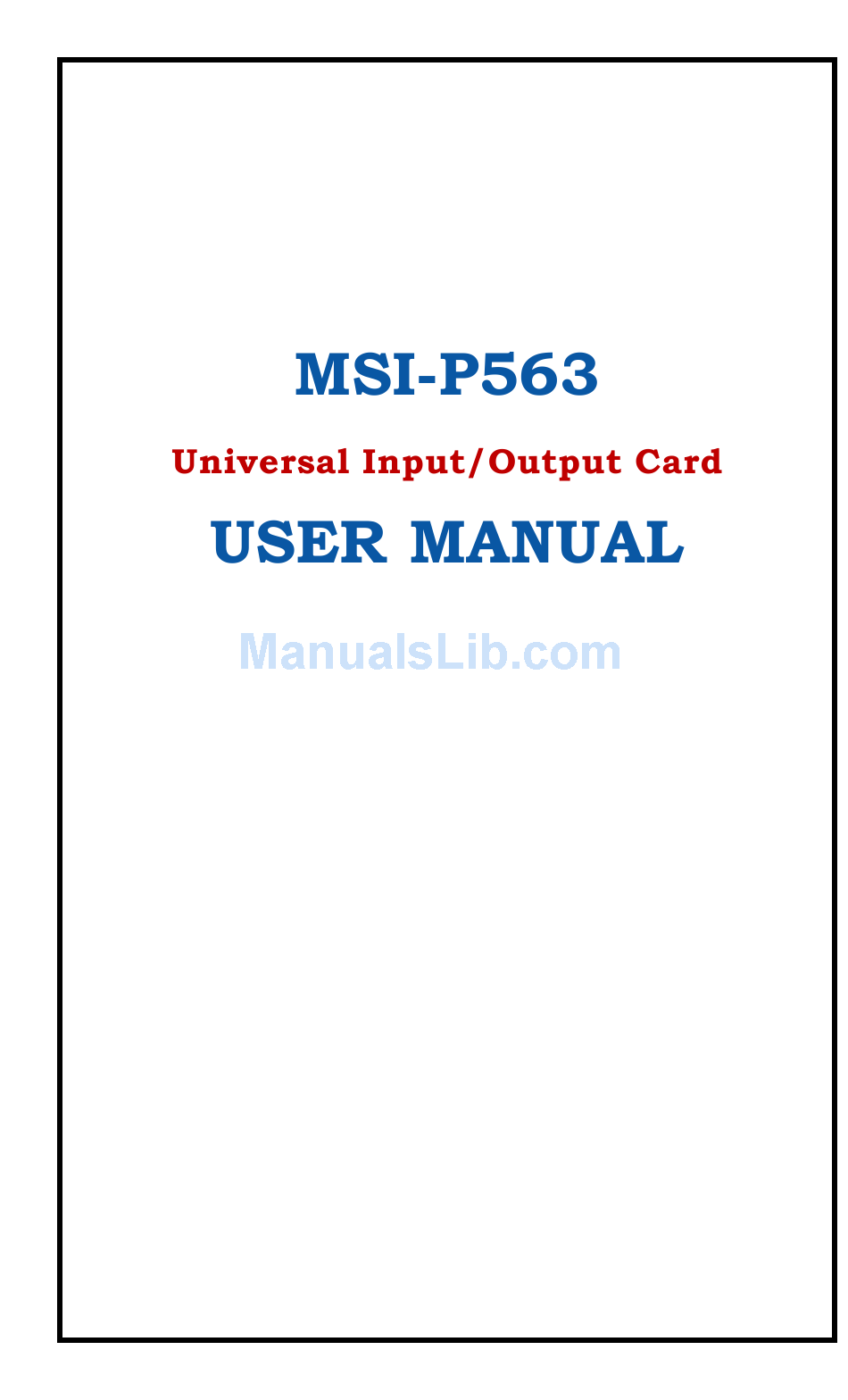

- Page 1 PC/104 Embedded PC Industrial I/O Series Microcomputer Systems, Inc. 1814 Ryder Drive Baton Rouge, LA 70808 ¨ Ph (225)769-2154 Fax (225) 769-2155 ¨ http://www.microcomputersystems.com E-mail:staff@microcomputersystems.com Page MSI-P563 User Manual...
-
Page 2: Table Of Contents
I. INTRODUCTION II. HARDWARE DESCRIPTION A. Card Addressing B. 82C55A Programmable Peripheral Interface C. 16550 Serial Port RS-232C Selection RS-422 Selection RS-485 Selection D. 82C54 Programmable Interval Timer E. Interrupt Connections III. SPECIFICATIONS APPENDIX Circuit Diagram Page MSI-P563 User Manual... -
Page 3: Introduction
I. INTRODUCTION The MSI-P563, shown in Fig. 1, is a general purpose I/O card designed for use with all PC/104 embedded systems. The card provides a versatile mixture of I/O functions for the designer which includes 24 TTL I/O lines, an IBM PC compatible asynchronous serial port, and three 16-bit counter/timers, as shown in the block diagram of Fig. - Page 4 50-PIN 82C55A CONNECTOR 24 TTL I/O LINES RS-232C 10-PIN INTERFACE CONNECTOR PC/104 16550 SERIAL I/O INTERFACE CHANNEL RS-422/485 10-PIN INTERFACE CONNECTOR 82C54 CLOCK 10-PIN INTERVAL INPUT CONNECTOR TIMER BUFFERS Figure 2. Block Diagram of the MSI-P563.
- Page 5 COM4 on 64 distinct 1K byte boundaries. The three counter/ timer channels are selectable at hex addresses 120H-123H on 64 distinct 1K byte boundaries. Other addresses can be provided by MSI if required by programming of the 22CV10A device. Page MSI-P563 User Manual...
-
Page 6: Hardware Description
Device Physical Address = Base Address + Device Address Device addresses are given in Table 2. In the table, COM1, COM2, COM3 and COM4 addresses use 8 contiguous bytes with the first byte located at 3F8H, 2F8H, 3E8H and 2E8H, respectively. Page MSI-P563 User Manual... -
Page 7: 82C55A Programmable Peripheral Interface
Table 2. Device addresses for the MSI-P563. -------------------------------------------------------------------------------------------- Device JP2 Jumpers Device Address -------------------------------------------------------------------------------------------- 82C55A (U10) None 304H - 307H 16550 (U6) None COM1 COM1 ** COMX COM2 COMX, S1 COM2 ** COMY COM3 COMY, S1 COM3 ** COMX, COMY... -
Page 8: 16550 Serial Port
Appendix) is available at JP8-2 for routing to the appropriate interrupt of the PC/104 bus, as described in Section E below. Data sheets describing the 14550 are available on the internet www.natsemi.com/pf/PC/PC16550D.html 1. RS-232C Selection The required jumpers for RS-232C operation are given in Page MSI-P563 User Manual... -
Page 9: Rs-422 Selection
The RS-422 connector (J4) pin-outs are described in Table 6. If line termination resistors are required, install jumper JP10-1 to insert 120 Ohms across the transmitter output (TX) and JP10-2 for 120 Ohms across the receiver input (RX). Page MSI-P563 User Manual... -
Page 10: Rs-485 Selection
OUT1 pin (complement of data bit 2 of the Modem Control Register) as follows: OUT1 Mode Receive Transmit Table 7. RS-485 connector J4 pin-outs. -------------------------------------------------------------------------------------------- Pin No. Function Pin No. Function -------------------------------------------------------------------------------------------- FGND* TX+/RX+ TX-/RX- -------------------------------------------------------------------------------------------- * Incorporates a 43 Ohm series resistor to ground. Page MSI-P563 User Manual... -
Page 11: 82C54 Programmable Interval Timer
** SYSCLK is the PC/104 bus clock from pin B20. *** UART CLK is a 1.8432 MHz clock. Table 6. 82C54 connector J2 pin-outs. -------------------------------------------------------------------------------------------- Pin No. Function Pin No. Function -------------------------------------------------------------------------------------------- GATE0 OUT1 CLK0 GATE2 OUT0 CLK2 GATE1 OUT2 CLK1 -------------------------------------------------------------------------------------------- Page MSI-P563 User Manual... -
Page 12: Interrupt Connections
IRQ7 to bus JP1-6 INTR1 input JP1-2 IRQ9 to bus JP1-7 IRQ4 to bus JP1-3 IRQ6 to bus JP1-8 INTR3 input* JP14 INTR2 input JP1-9 IRQ3 to bus JP1-5 IRQ5 to bus JP1-10 INTR0 input -------------------------------------------------------------------------------------------- Page MSI-P563 User Manual... - Page 13 JP8-3,4 INTR2 JP8-7,8 INTR1 -------------------------------------------------------------------------------------------- Table 13. Interrupt input jumpers for JP5. -------------------------------------------------------------------------------------------- Jumper Function Jumper Function -------------------------------------------------------------------------------------------- JP5-1 INTR0 input JP5-4 INTRB of 82C55A JP5-2 INTRA of 82C55A JP5-5 INTR2 JP1-3 INTR1 input JP5-6 -------------------------------------------------------------------------------------------- Page MSI-P563 User Manual...
-
Page 14: Specifications
Clock Buffers 74HCT00 inverters Connector 10-pin, 0.100" grid (AMP 103311-1) Interrupts Channels Four, sharing with tri-state buffers for IRQ3-7, 9 Option Jumpers .025" square posts, 0.1" grid Electrical & Environmental +5V @ 200 mA typical -40° to 85° C Page MSI-P563 User Manual...
