Summary of Contents for Smart Parts 3.5" Digital Picture Frame

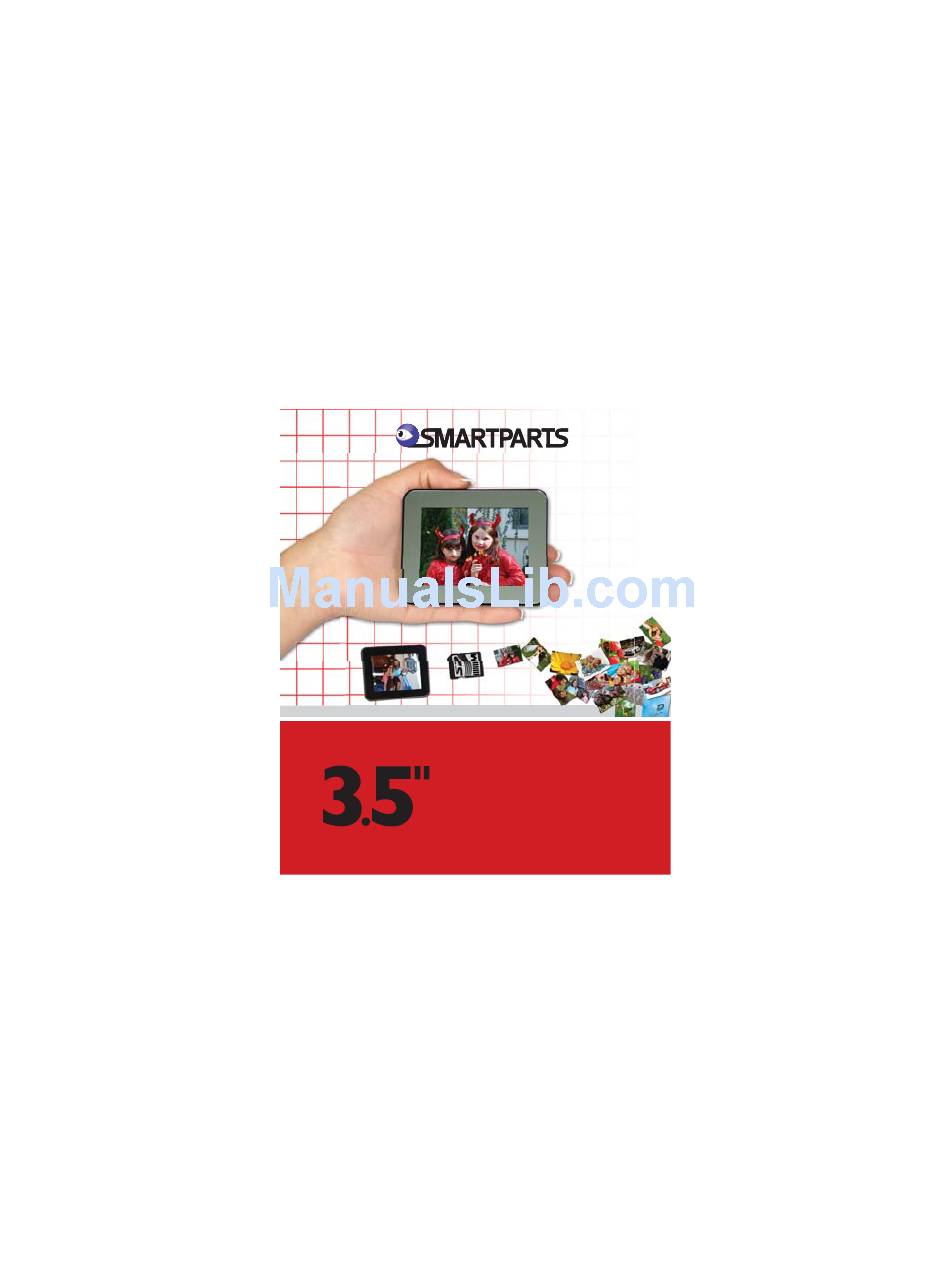

- Page 1 DIGITAL PICTURE FRAME User’s Manual...
-
Page 2: Table Of Contents
Congratulations on purchasing the 3.5” portable digital picture frame. QUICK START 1. Insert a SD/HC or MMC memory card into the slot on the right side of the frame 2. Power the frame ON by pressing the button. 3. Automatic picture slideshow will start after a few seconds. Table of Content Overview...................... -
Page 3: Overview
Congratulations on purchasing the 3.5” digital picture frame. Carefully read and follow all warnings and instructions in this manual before you begin to use this digital picture frame. Failing to follow the warnings can result in personal injury or damage to the digital picture frame. Important: Please keep this user manual in a convenient location for future referencing. -
Page 4: What's Included
What’s Included Included in the box: • Digital Picture Frame • User Manual • USB cable (Use to charge) • Protective Micro-fiber Carrying and Cleaning Case Menu Left Select Right Power Exit Power input USB Port SD/MMC Card Slot... -
Page 5: Getting Started
Getting Started To begin using your digital picture frame right away, follow these simple steps. 1. Connect the frame to a computer’s USB port using the mini USB cable to charge the frame. Once fully charged you can use the frame for up to 2 full hours. -
Page 6: Thumbnail Screen
Thumbnail Screen This screen shows thumbnail versions of all photos on the selected memory source. Six photos are displayed at a time. Use this screen to select a single photo to display, or to start a slide show of all of the photos. -
Page 7: Other Options
Other Options In the slide show mode, you can press and hold down the button to access the following: Rotate Photo, Zoom Photo, Copy Photo, Delete Photo, Adjust LCD Color. To exit at any time press button. Rotate Photo: Using the buttons highlight ‘Rotate Photo’. -
Page 8: Delete Photo, Adjust Lcd Color
Delete Photo: (This option is only available when viewing pictures from internal memory) Using the buttons highlight ‘Delete Photo’. Press to delete the picture on screen. To exit press button. Adjust LCD Color: Using the buttons highlight ‘Adjust LCD Color’. Press to adjust the display. -
Page 9: Display Settings And Tools
Display Settings and Tools Additional settings will allow you to access the following: Display image size, Slideshow transitions, Slideshow Speed, Connect to PC, Power Saving, Factory Default. Press button until you see the ‘Select Card’ screen. Press and hold button until the dislpay settings appear. buttons to highlight your selection. -
Page 10: Recharging The Frame
Recharging the Frame Your Digital Picture Frame charges directly from the USB cable. Simply plug your Digital Picture Frame into your computer using your USB Cable. A full charge takes approximately 2 hours to complete. Indicates that the battery power is low and needs charging Indicates that the charging in progress Indicates that the Digital Picture Frame is completely charged OptiPix™... -
Page 11: Faqs
FAQs 1. How to power on/off? To power on press button To power off press and hold down button for 3 seconds 2. How to browse through your photos? Press buttons to browse through pictures 3. How to copy a single photo from SD card to internal memory? If in thumbnail view press and hold button until a sub menu appears on the bottom left hand corner. -
Page 12: Technical Specifications
Technical Specification Product: 3.5” Digital Picture Frame Resolution: 320x240 pixel QVGA Button: 4 Buttons(Power/Exit, Menu/ Select, Left/Up, Right/Down) USB interface: USB 2.0 full speed Internal Memory: Saves up to 30 photos at low picture size File formats: JPEG Display Colors: 16.7M Colors Dimensions: 95x77x13(mm) Power: li-ion poly battery 3.7V last up to 2 hours when fully charged Charger: Charged by USB port... -
Page 13: Important Product Safety Instructions
Product Care Notice Caution: Never remove the plastic casing. There are no end user serviceable parts inside. Do not attempt repairs yourself. The warranty does not cover repairs or attempted repairs by anyone not authorized by the Authorized Dealer. If the frame begins to emit smoke, abnormal noises, or a strange odor, immediately turn it off. -
Page 15: Technical Support
Disclaimer Authorized dealer does not recommend the use of any ammonia or alcohol-based cleaners on the LCD screen or plastic casing. Some chemical cleaners have been reported to damage screen and/or display case. Authorized dealer will not be liable for damage resulting from the use of any ammonia or alcohol-based cleaners.
