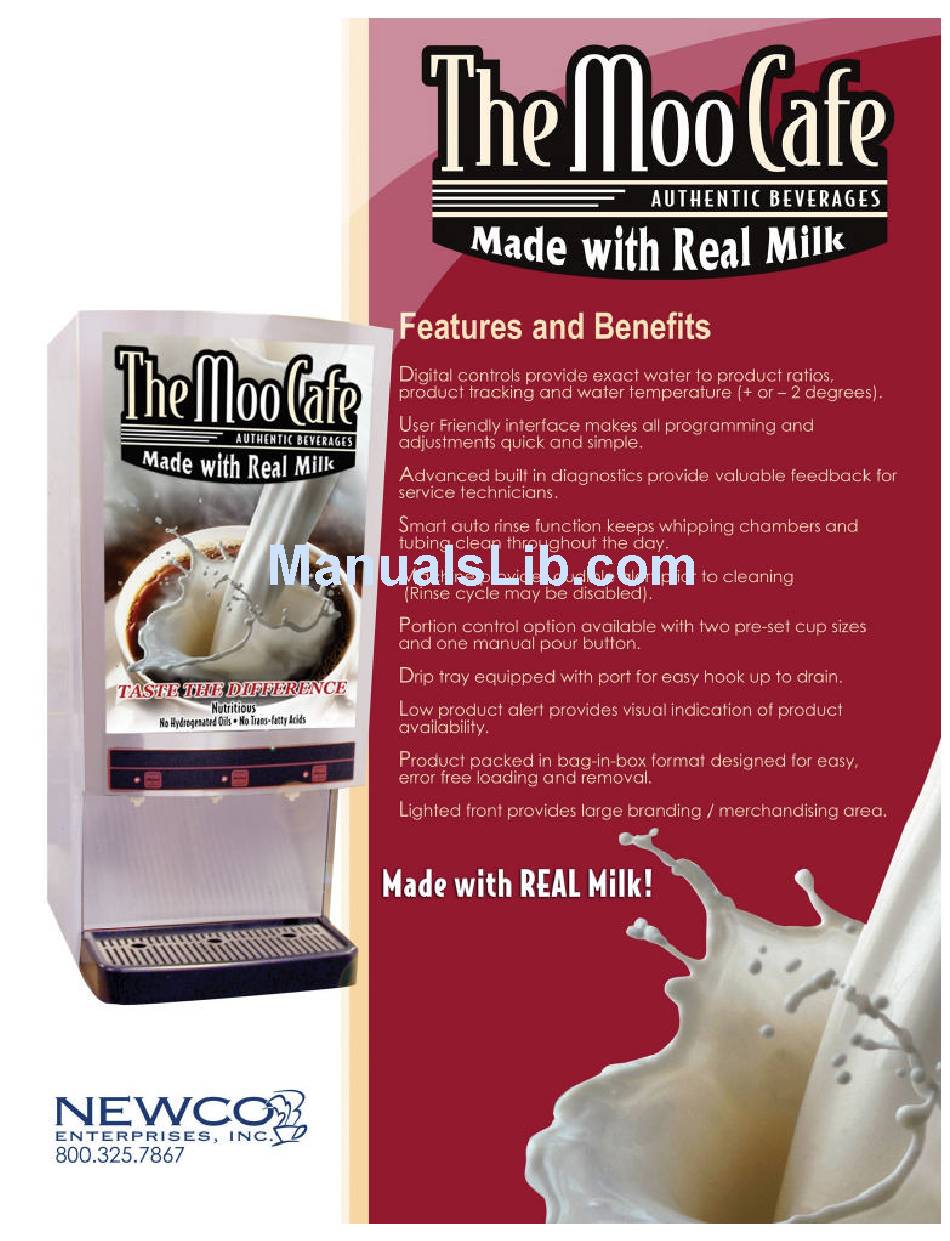

Summary of Contents for Newco MT-3

  • Page 2 13.68 Weight: 100 lbs 30.98 34.96 Adjustable 36.71 6.81 8.99 25.09 23.96 Page 2...
  • Page 3 UNPACKING INSTRUCTIONS Carefully unpack the MT-3 Machine and inspect immediately for shipping damage. Your MT-3 Machine was shipped in a carton designed to give it maximum protection in normal handling. It was thoroughly inspected before leaving the factory. In case of damage, contact Newco.

  • Page 4: Cleaning And Sanitizing Instructions

    CLEANING AND SANITIZING INSTRUCTIONS: Sanitizing: All food dispensing units should be sanitized periodically. All parts to be sanitized must be cleaned first. To prepare a sanitizing solution: ADD 2 TSP. OF LIQUID CLOROX BLEACH (5.25% CONCENTRATION) TO 1 GALLON OF WATER AT ROOM TEMPERATURE (70°- 90°F).

  • Page 5: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING: To reduce the risk of electrical shock unplug the dispenser power cord before repairing or replacing any internal component: damage can occur to control boards if unit is not unplugged and disconnected from power source. (Before any attempt to replace a component be sure to check all electrical connections for proper contact) PROBLEM PROBABLE CAUSE REMEDY...
  • Page 6 Machine operation and calibration settings Product Empty Product Reset/ Indicator Main Product Ratio Lights Display Setting Temp. / Calibration Settings Auto Rinse On/ Off Toggle The pushbutton settings are multi-purpose, and are accessed in two levels Level one: To access level one settings depress Button, and hold for approximately 5 seconds.
  • Page 7 Temperature Adjustment: Allows temperature adjustment of the tank from 160 degrees to 190 degrees Release the button after accessing level one settings , push the settings button again. The display will change to tank temperature set point, and can be toggled up and down with the buttons, up (+) or down (-) to the desired tank setpoint with a maximu m temperature of 190 degrees.

  • Page 8: Equipment Calibration

    Equipment Calibration Calibration Settings: Used to calibrate water and concentrate dispense rates Level two: To access calibration settings press and hold the button until is shown on the display-continue to hold another 8 seconds, until is shown on the display. Use the buttons, left (+) or right (-) to toggle between H2O calibration choices as shown on the product indicator lights.
  • Page 9 Calibration: Concentrate This procedure calibrates the peristaltic pumps to the product to insure that the water to concentrate ratios are accurate. Refer to the concentrate installation and removal instructions inside the door of the machine and load the desired product bags into the machine. The concentrate calibration mode can be activated either after H2O calibration or by ngs pressing and holding the button until is shown on the display-continue to hold another 8 seconds, until...
  • Page 10 Supplement Sheet Issued: 5/10/04 PORTION CONTROL PROGRAMING INSTRUCTIONS for “THE MOO CAFÉ” This is a temporary supplement sheet which will be used in conjunction with the normal User’s Manual. The new manuals will have this set of instructions included. This set of instructions should be done first to ensure that the proper cup sizes are set.

  • Page 11: Package Installation

    PACKAGE INSTALLATION -Step 1 Step 2 Install package Open Cartridge door Lay cartridge on side and install Identify Flavor Label Bag. Slide cap with hose in notch Step 3 Placement Close door Place top caps top-notch Place cartridge in desired location Step 3 Thread hose Turn pump knob counter...
  • Page 12 Loosen Screws Remove Panel Remove Drain Tray Page 12...
  • Page 13 Remove LH side panel Page 13...
  • Page 14 Dump Valve PN 102068 Lamp Ballast PN 102064 Lamp-9w PN 102062 Transformer PN 105115 120/240 Terminal Block Safety Relay PN 511053 PN 110908 Line Filter Display Board DETAIL A PN 127178 PN 102026 Closeoff Panel PN 102368 Drain Tray Grate Heat Sink PN 121659 PN 108502...
  • Page 15 Pump Rotor Pump Rotor PN 1020523 PN 1020523 Pump Housing PN 102054 Whipper Dosing Head Whipper Blade PN 102046 PN 102051 Whipper Seal Whipper Chamber PN 102049 PN 102045 Whipper Base PN 102047 Slinger Washer PN 102048 Whipper Restrictor Whipper Restrictor PN 102044 PN 102044 Page 15...
  • Page 16 Pump Motor Spacer Pump Motor PN 102043 PN 102042 Whipper Motor Spacer Whipper Motor Whipper Motor Whipper Motor PN 102060 PN 102060 PN 102060 PN 102060 Page 16...

  • Page 17: Water Tank Assembly

    Safety Overflow Fill Valve Water Inlet PN 151770 Tank Gasket PN 102221 Cooling Fan Remove Brass PN 205148 Thumbscrews Water Level in Compartment Probe Upper Rear PN 108022 Thermistor Probe PN 151800 Hi-limit Manual Reset Thermostat Heating Element PN 111593 Dual Voltage PN 701695-10 Remove (6) Screws...
  • Page 18 H2O Flow Control Valves DETAIL C SCALE 1 : 2 Flow Rate Adjustments: Clockwise-Decreases Flow Counter Clockwise- Increases Flow Page 18...
