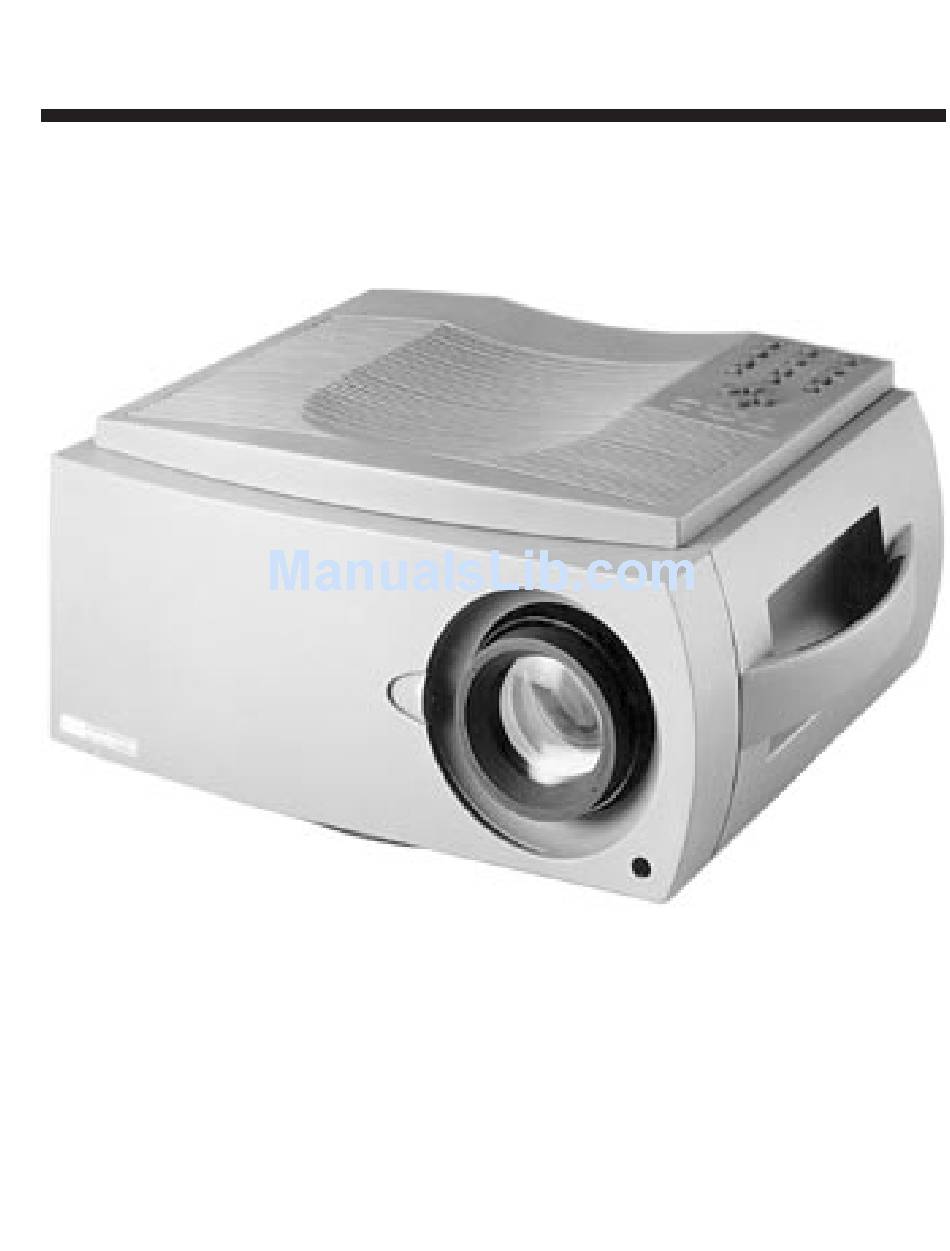

- Page 1 Telex ® User’s Manual MagnaByte P170/P170v ® Desktop LCD Projector...
-
Page 2: Fcc Statement
Inactive pixels may appear illuminated on the display, however, they will not affect picture quality or the life expectancy of the unit. If you have any questions on this matter, please feel free to contact Telex Communications, Inc. FCC Statement... -
Page 3: Important Safety Instructions
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 4 Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to prevent it from overheating. These slots and openings must not be blocked or covered in any manner. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at wall outlets, convenience receptacles, and the point where they exit from the product.
-
Page 5: Table Of Contents
QUICK SETUP ....... P170/P170v SETUP ...... -
Page 6: General Features
The P170/P170v is equipped with a monitor interface connector. This allows you to simultaneously view your computer video on both the small and large screens. Figure 1 shows the P170/P170v in use to project computer-generated images onto a large screen. - Page 7 640 columns. Each pixel is a single thin-film-transistor that actively controls the brightness of the light that passes through the pixel. To protect the P170/P170v from excessive heat, it is equipped with a fan that is turned on whenever the desktop LCD projector is turned on.
-
Page 8: Accessories
Catalog 47436-029 ® The RC-7 is specifically designed for use with the MagnaByte P170/P170v. It allows remote control of all the P170/P170v keypanel and on-screen functions. (The RC-7 comes with the basic P170/P179v.) B-10 Lapel Microphone with Transmitter Catalog 70889-xxx The B-10 features a permantly attached omni-directional lapel microphone. -
Page 9: Unpacking The P170/P170V
Unpack the MagnaByte P170/P170v desktop LCD projector and check the package contents. Refer to Figure 2 and the following list for items that are included in the P170/P170v: P170/P170v desktop LCD projector, with appropriate labels User’s manual Quick reference guide... - Page 10 Figure 2. P170/P170v Package Contents SOFTCASE RC-7 REMOTE POWER CORD VGA VIDEO CABLE ADAPTERS (Used on Macintosh units only) AUDIO CABLE (dual RCA to 1/8" stereo) AUDIO CABLE (1/8" stereo to 1/8" stereo) COMPOSITE VIDEO & AUDIO CABLE (Triple RCA to RCA)
-
Page 11: Quick Setup
P170/P170v. To ensure adequate cooling, place the P170/P170v on a hard, flat sur- face, such as a table or desktop as shown below. Figure 3. - Page 12 Connect the P170/P170v to the computer/s, audio source/s and an AC wall outlet as shown in Figure 5. (The P170v can also be con- nected to one or more VCRs or LaserDisc players. Figure 5. VCR or P170/P170v Laserdisc Audio...
-
Page 13: P170/P170V Setup
Desktop NOTE: Ensure that the P170/P170v vents are not blocked. The P170/P170v takes in cool air at the bottom of the projector. Hot air is exhausted at the top of the P170/P170v. To determine the distance between projector and screen, refer to Fig- ure 8 and select the desired screen image size. -
Page 14: Connecting The P170/P170V
Connecting the P170/P170v The P170/P170v must be connected to some video source, and to an AC wall outlet. The P170/P170v can also be connected to a computer monitor, audio source/s, additional video source/s and to an external amplified stereo speaker system. (Only the P170v can be connected to a composite or S-VHS video source.) - Page 15 Plug the other end of the VGA cable into the COMPUTER 1 ® VIDEO or COMPUTER 2 VIDEO jack on the MagnaByte P170/P170v. To use your computer monitor along with your P170/P170v, plug the monitor cable into the OUTPUT MONITOR jack on the ® MagnaByte P170/P170v.
- Page 16 VIDEO or COMPUTER 2 VIDEO jack on the MagnaByte P170/P170v. ® To use your computer monitor along with your MagnaByte P170/P170v, select the adapter labeled either “550093-1” or “550093-3.” Plug the adapter into the OUTPUT MONITOR jack ® on the MagnaByte P170/P170v;...
-
Page 17: Remote Control Battery
LED on the remote control no longer lights when keys are pressed, indicating a “dead” battery Operating distance between the remote control and the P170/P170v becomes too short for your purposes, indicating a “weak” battery Continue with the Operation section of this manual for instructions on ®... -
Page 18: Operation
® After you have connected the MagnaByte P170/P170v as described in either the Quick Setup or P170/P170v Setup sections of this manual, you are ready to begin using your color desktop LCD projector. Basic Operation Slide open the lens cover door shown in Figure 13. - Page 19 Raise or lower the projector as desired, then release the bar. NOTE: The keypanel and on-screen control settings will be the same as they were when the P170/P170v was last used, if five seconds were allowed to elapse before the P170/P170v was turned off.
- Page 20 10. Turn on and play the connected VCR, LaserDisc player, etc. (P170v model only.) 11. Press SOURCE on the P170/P170v keypanel to select one of the com- puter inputs, as indicated by the SOURCE LEDs shown in Figure 12. (Only the P170v can also select from two composite video and one S-VHS source.)
-
Page 21: Controls
CONTROLS The P170/P170v keypanel and Menu Mode On-Screen controls allow you to customize the projected image and enhance the appearance of your presentation. The function of each keypanel and on-screen control is described below and the keypad is shown in Figure 14. - Page 22 COMPUTER 1, and COMPUTER 2 will be the only video sources available.) LAMP Press LAMP to turn off the projector lamp. Press LAMP again to turn on the projector lamp. (The lamp is on when the P170/P170v is turned on.) Alignment Press , or , to move the image left, right, up, or down.
-
Page 23: On-Screen Controls
To access the STANDBY funtion, press and release MENU, then press either the up or down arrow key to “step” through the “menu” until STANDBY is displayed. Press either the right or left arrow key to place the P170/P170v screen in standby. After a few seconds, an on-screen graphic will indicate the STANDBY setting. - Page 24 LAMP HOURS is displayed. An on-screen graphic will indicate the current LAMP HOURS value. The LAMP HOURS value is based upon an expected average lamp life of 40 hours. As the P170/P170v is used, the lamp hour value is decremented from 40 toward 0. When the lamp...
-
Page 25: Led Indicators
COMPUTER 2 connection and it has been selected, using the SOURCE control. POWER When lit, the POWER LED indicates that the P170/P170v is plugged into an AC wall outlet and turned on. TV 1 When lit, the TV 1 LED indicates that a video source is present at the TV 1 connection and it has been selected, using the SOURCE control. -
Page 26: Remote Control
160 F (70 C) in summer and drop below -20 F ® (-29 C) in winter. If the MagnaByte P170/P170v has been exposed to extremely hot, cold or humid conditions, allow it to stand at room temperature for 30 minutes before use. Take care to protect the ®... - Page 27 NOTE: Typically, lamps have an operating life of approximately 40 hours. When lit, the REPLACE LAMP LED indicates that the P170/P170v has been in use for approximately 40 hours and lamp failure may occur soon. At this time you may elect to replace the lamp or reset the LAMP HOURS using the Menu Mode On-Screen control, or you may elect to continue using your P170/P170v until the lamp fails.
-
Page 28: Fuse Replacement
Figure 16. Fuseholder Location AC POWER FUSE POWER INPUT JACK HOLDER SWITCH Fuse Replacement Figure 16 shows the location of the fuse/spare fuse holder. Use a small flat-blade screwdriver to pop the fuse/spare fuse holder out. A spare fuse may be stored in the slide-out drawer, as shown in Figure Replace the fuse only with the type and rating shown on the label. -
Page 29: Troubleshooting Guide
Troubleshooting Guide PROBLEM POSSIBLE SOLUTIONS ® Telex logo is displayed on MagnaByte P170/P170v Unit is working properly, but no video source is present. ® No image projected from MagnaByte P170/P170v ® MagnaByte not turned on. ® MagnaByte not connected to AC wall outlet. - Page 30 ® P170/P170v. (The MagnaByte P170/P170v may contain a maximum of 50 inactive pixels.) Image contains one or more vertical bars Use the Menu Mode On-Screen Controls to adjust the WIDTH . (After eliminating the vertical bars, use FOCUS to sharpen the image.)
- Page 31 PROBLEM POSSIBLE SOLUTIONS Image out of focus Rotate the lens to adjust screen focus. Adjust FOCUS control. NOTE: If only portions of the image are out of focus and the FOCUS adjustment causes the out-of-focus portions to move, refer to the solution described in the “vertical bars”...
-
Page 32: Service Information
If modules are to be returned to the dealer or factory, they should be shipped in the original packing material or carefully packed in some other container with sufficient packing material to prevent damage. Technical assistance is available from the Telex Customer Service Department at the following address: Customer Service Department... -
Page 33: Technical Specifications
TECHNICAL SPECIFICATIONS Computer Compatibility IBM and IBM compatibles with VGA (640 x 480) Macintosh computers with external video (640 x 480 mode) Computer Interface HD-15 D-subminiature interface connector Color Palette 8-color mode: 2 shades per color, 8 total colors 16M-color mode: 253 shades per color, 16,194,277 total colors LCD Panel 6.4"... - Page 34 Composite Video Requirements (P170v only) NTSC, PAL or SECAM composite video S-VHS Video Requirements (P170v only) NTSC, PAL or SECAM video with separate chrominance and luminance Projection Lamp Requirements 410 Watt FXL lamp Input Power 450 Watts at 120 VAC Weight 12.3 lbs (5.6 kg) Dimensions...
-
Page 35: Abbreviations
ABBREVIATIONS Auxiliary Black and white CCIR Comite Consultatif International des Radio Communications Compact disk Clockwise Counter-clockwise Disk operating system Extended play (same as SLP) Federal Communications Commission Liquid crystal display Light emitting diode Long play ME-SECAM Middle East SECAM NTSC National Television System Committee Phase alternation by line Random access memory... -
Page 36: Index
INDEX accessories ........3 accessory ........7 alignment . - Page 37 INDEX, CONT’D labels ........4 LAMP ..... . 13, 15, 17, 19-22, 24, 29 LAMP HOURS .
- Page 38 ® TELEX COMMUNICATIONS, INC. • 9600 Aldrich Ave. So., • Minneapolis, MN 55420 U.S.A. 38109-624 Rev D May 1996...
