Summary of Contents for Sewell PC to TV Converter

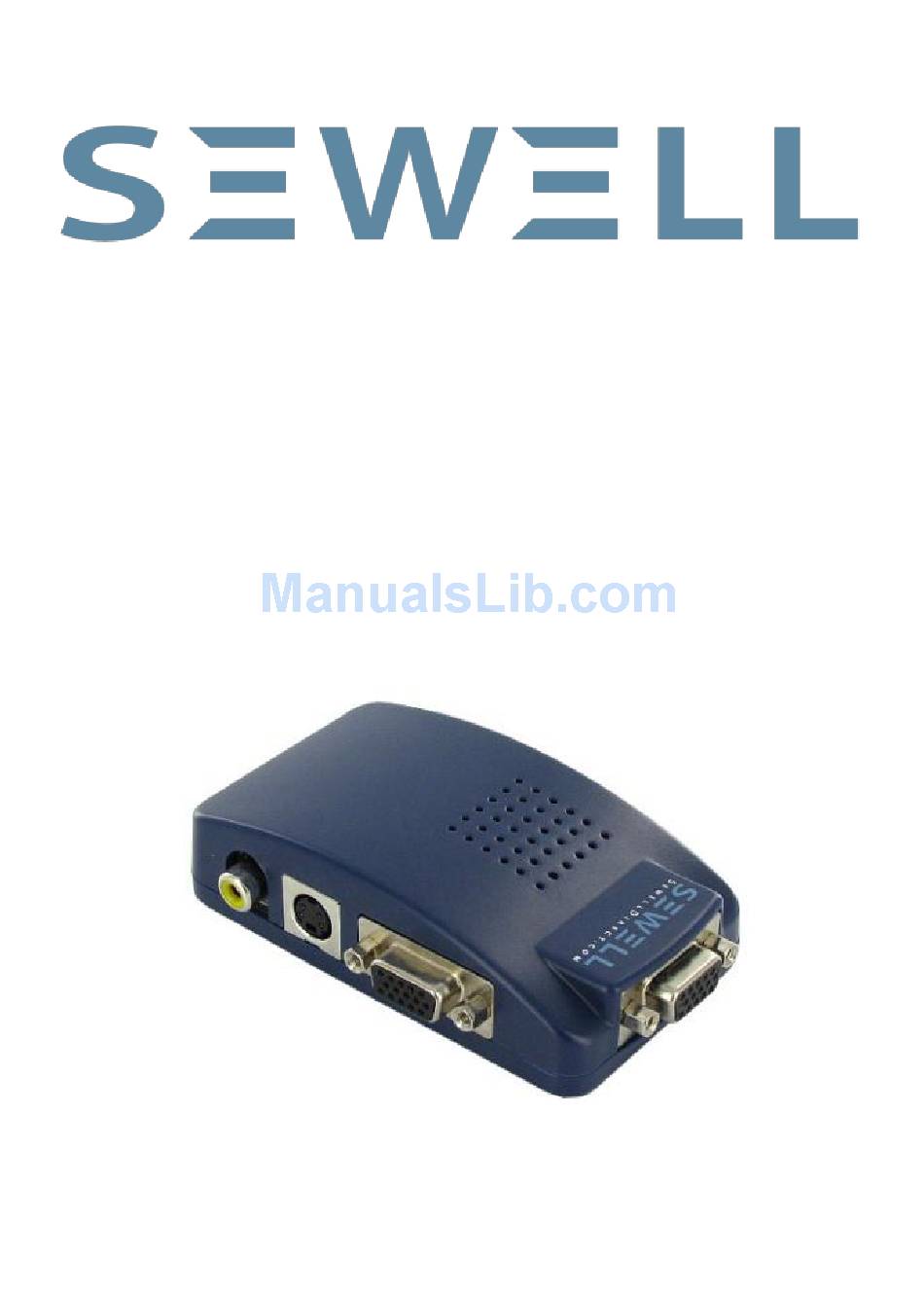

- Page 1 PC to TV Converter User Manual...
- Page 3 Thank you for your purchase of our PC to TV converter from Sewell Direct. We are pleased to offer you quality products at low prices. Your product is covered by a one year warranty from your purchase date and is...
-
Page 4: Table Of Contents
Table of Contents Introduction ……………………… 1 Features …………......1 System Requirements ....1 Supported Resolutions ....2 Package Contents ....... 2 Installation ……………………….. 3 Setup ………………………………. 3 Output Video Signal ……………… 5 Troubleshooting ………………… 7... -
Page 5: Introduction
Introduction Ready to watch Netflix on your TV? The PC to TV converter is just what you needed. You can now experience all of your computer’s entertainment on your television including music, video, and photos. Features VGA Computer Connection ... -
Page 6: Supported Resolutions
640x480 @ 60/72/75/85 Hz 800x600 @ 60/75 Hz 1024x768 @ 60/75 Hz Package Contents PC to TV Converter One 5 ft VGA cable One 5 ft Composite cable (video) One 5 ft S-Video cable ... -
Page 7: Installation
Installation Setup Connect Composite RCA or S-Video cable to the converter and then to the TV. Take note of the name of the connection that is labeled on your TV (AV1, AV2) as this will be used later. Connect the VGA (15-pin) for video and USB for power. - Page 8 “TV/video”, “input”, or “source” button on your TV or Remote Control. (Optional) Connect a VGA cable (sold separately) to an external monitor to see the same display as on the TV. (Optional) If you purchased an optional audio cable, connect it between the headphone jack of your computer to the red and white connection on your TV.
-
Page 9: Output Video Signal
Video Signal Output Laptops sometimes require an additional step. Some do not automatically output a video signal. This is easily remedied. All laptops have “hotkeys” which can enable an external display. Each brand varies. But they all require pressing and holding “FN”... - Page 10 Press and hold “FN” and press the correct key for your laptop to output a signal. You should then see your laptop screen on your TV. Windows 7 uses the “Windows logo” and “P” pressed at the same time.
-
Page 11: Troubleshooting
Troubleshooting Pulling your hair out? Nothing on the TV? Ready to give up? Here are some tips to help. I can’t find where to change the resolution!! Windows XP: Click on Control Panel > Display (in the Appearance and Themes category) Windows Vista / 7: Appearance and Personalization >... - Page 12 I cannot locate my computer hotkeys. Each laptop should have hotkeys. Windows 7 has a default of the “Windows key” and “P”. The most common hotkeys for the VGA connection are F4, F5, and F8. Otherwise, check in your computer user manual or contact your computer manufacturer to locate them.
- Page 13 I can’t hear anything on the TV! This converter does not process audio, and sound will play from your computer speakers. If you would like to get audio on the TV you can purchase a separate audio cable like the SW- 7921.
- Page 14 The TV screen is still black… First, double check all the connections. Make sure you have both the 15 pin VGA and the USB connected to the computer. Make sure your TV is on the correct input. Verify that your screen resolution is one supported by the converter.
