Model #: PS-402-HG-OEM

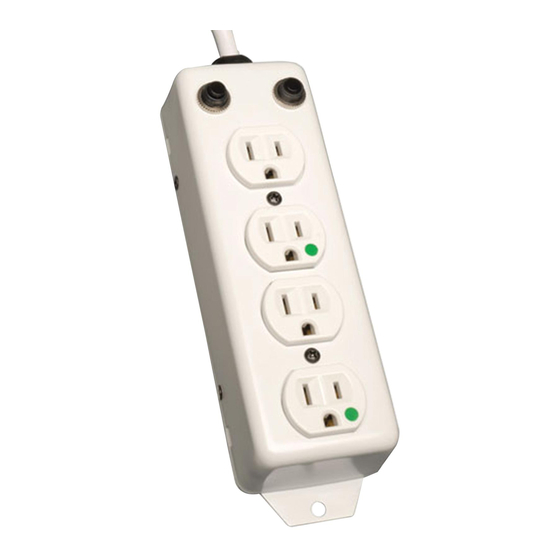

For Patient-Care Areas - 4-outlet Medical-Grade Power Strip with 2-ft. Cord
Description
Tripp Lite's PS-402-HG-OEM Power Strip is designed to be installed on any mobile cart, diagnostic equipment, instrument, IV pole, etc. It is
designed to supply power to plug-connected components of a movable equipment assembly that is rack-, table- or pedestal-mounted. Features 4
output receptacles, 2-ft. AC power cord and two built-in resettable circuit breakers that control power to all outlets and protect against overloads.
Switchless design prevents accidental shutoff. Optional-use keyhole mounting tabs and flanges.
PLUG/OUTLETS: NEMA 5-15P-HG hospital-grade plug and 4 NEMA5-15R-HG hospital-grade receptacles
ELECTRICAL: 120V AC, 50/60Hz, 15A
FORMAT: All-metal corded multi-outlet strip
Applications
Mobile carts, IV poles and other UL 1363A certified usages.
Can be used in Patient Care Areas, when properly mounted.
Package Includes
PS-402-HG-OEM Power Strip
Owner's manual and warranty information
Features
Versatile power distribution strip designed to be installed on any mobile cart, IV pole, etc.
Meets UL 1363A to supply power to plug-connected components of a movable equipment assembly that is rack-, table- or pedestal-mounted
4 x NEMA 5-15R-HG hospital-grade output receptacles
2-ft. AC cord with integrated, molded NEMA5-15P-HG hospital-grade plug
Rugged all-metal housing withstands years of use without breakage
15A electrical capacity with two built-in resettable circuit breakers
120V, 50/60Hz
Optional-use keyhole mounting tabs and flanges
Switchless design prevents accidental shutoff
Specifications
OVERVIEW
Highlights
Designed to be installed on any mobile cart, IV pole, etc.
Tested to UL 1363A to supply power to plug-connected components of a
movable equipment assembly, that is rack-, table- or pedestal-mounted
4 hospital-grade receptacles and hospital-grade plug
2 ft. cord
Two 15-amp resettable circuit breakers
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail:
saleshelp@tripplite.com
Advertisement
Related Manuals for Tripp Lite PS-402-HG-OEM
Summary of Contents for Tripp Lite PS-402-HG-OEM
- Page 1 Description Tripp Lite's PS-402-HG-OEM Power Strip is designed to be installed on any mobile cart, diagnostic equipment, instrument, IV pole, etc. It is designed to supply power to plug-connected components of a movable equipment assembly that is rack-, table- or pedestal-mounted. Features 4 output receptacles, 2-ft.
- Page 2 Intended Application Hospital/Medical Model Type For Patient-Care Areas OUTPUT Frequency compatibility 50 / 60 Hz Circuit Breaker (amps) Overload protection 2 x 15amp breakers (1 line, 1 neutral) Outlet quantity / type 4 NEMA 5-15R-HG Outlet orientation Single row of 4 INPUT Nominal Input Voltage(s) 120V AC...
- Page 3 Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
